CNC 99 QL
Available colors

CNC 99 QL

New

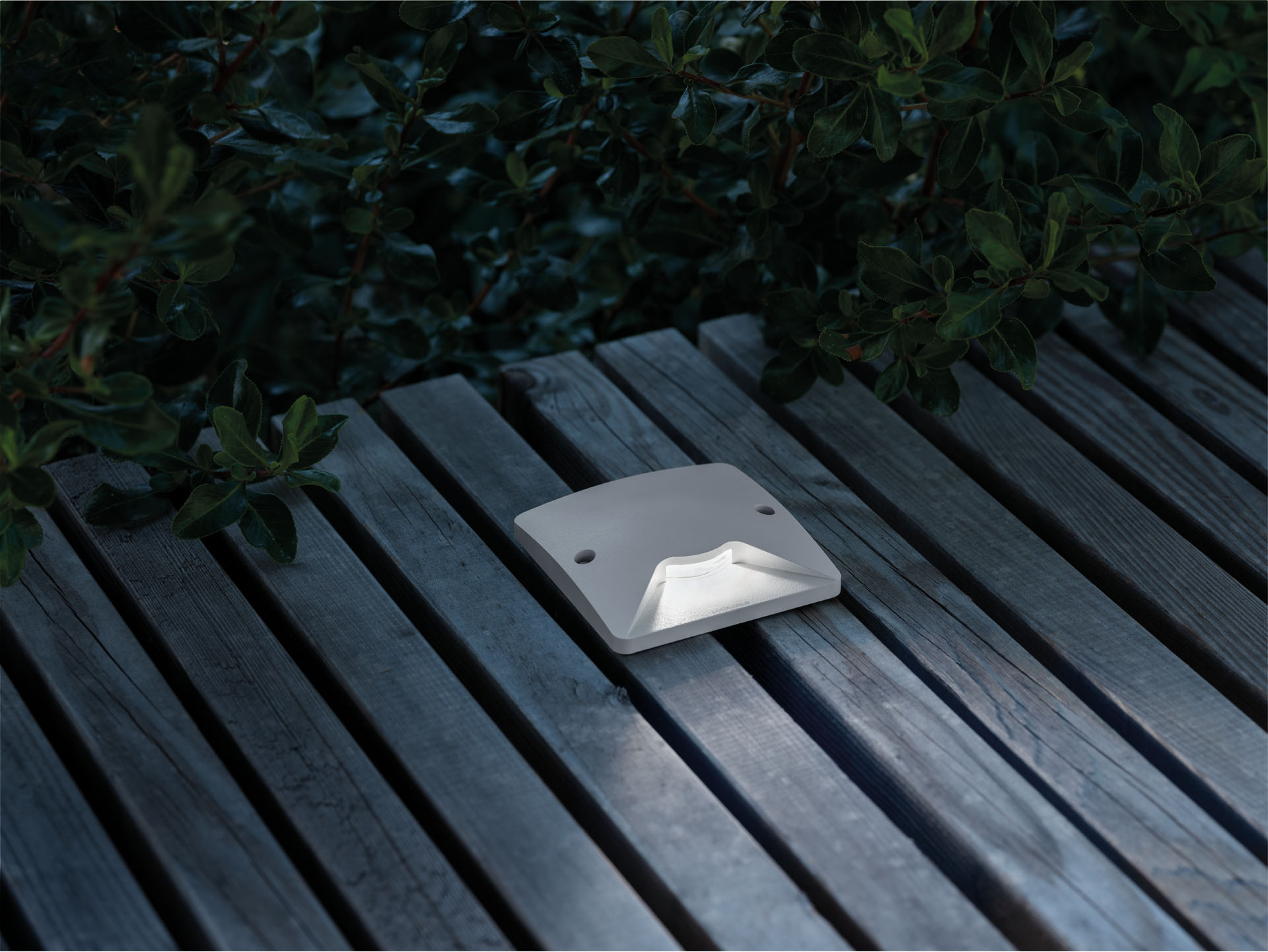

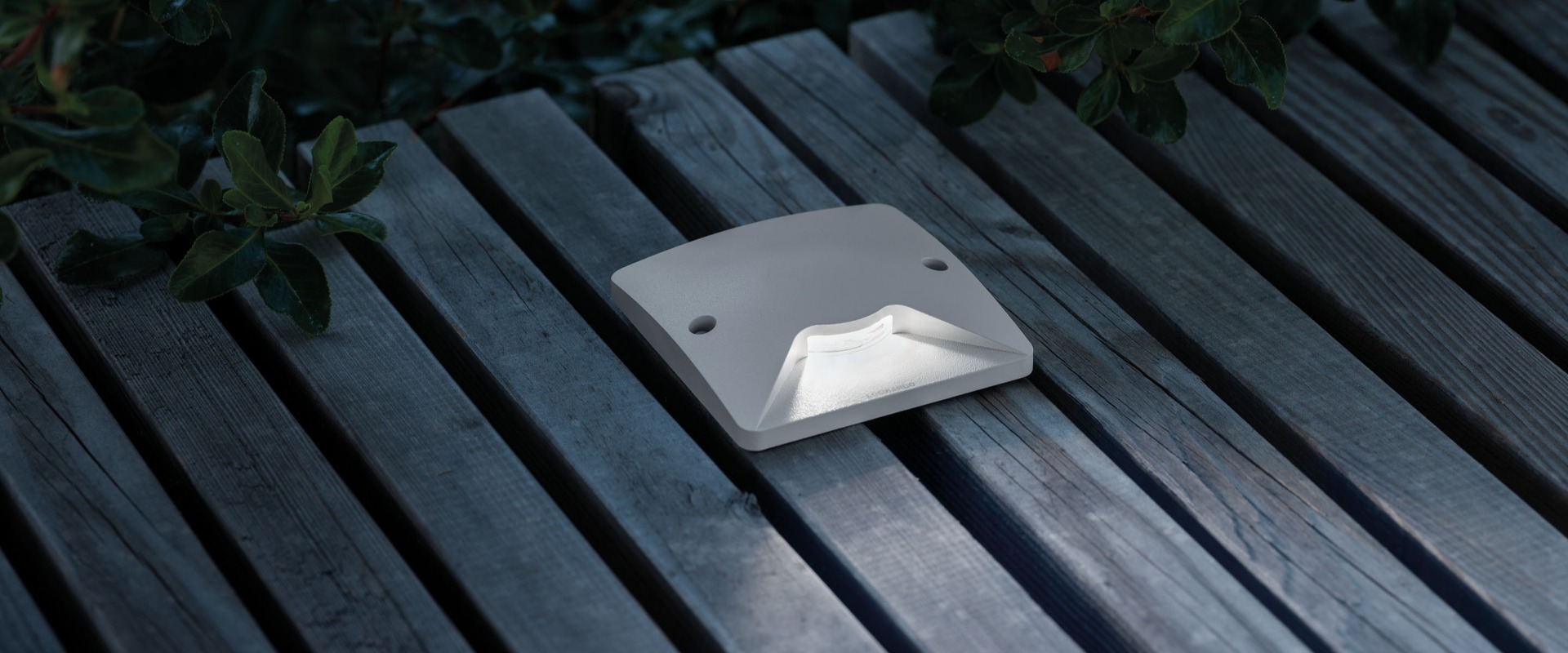

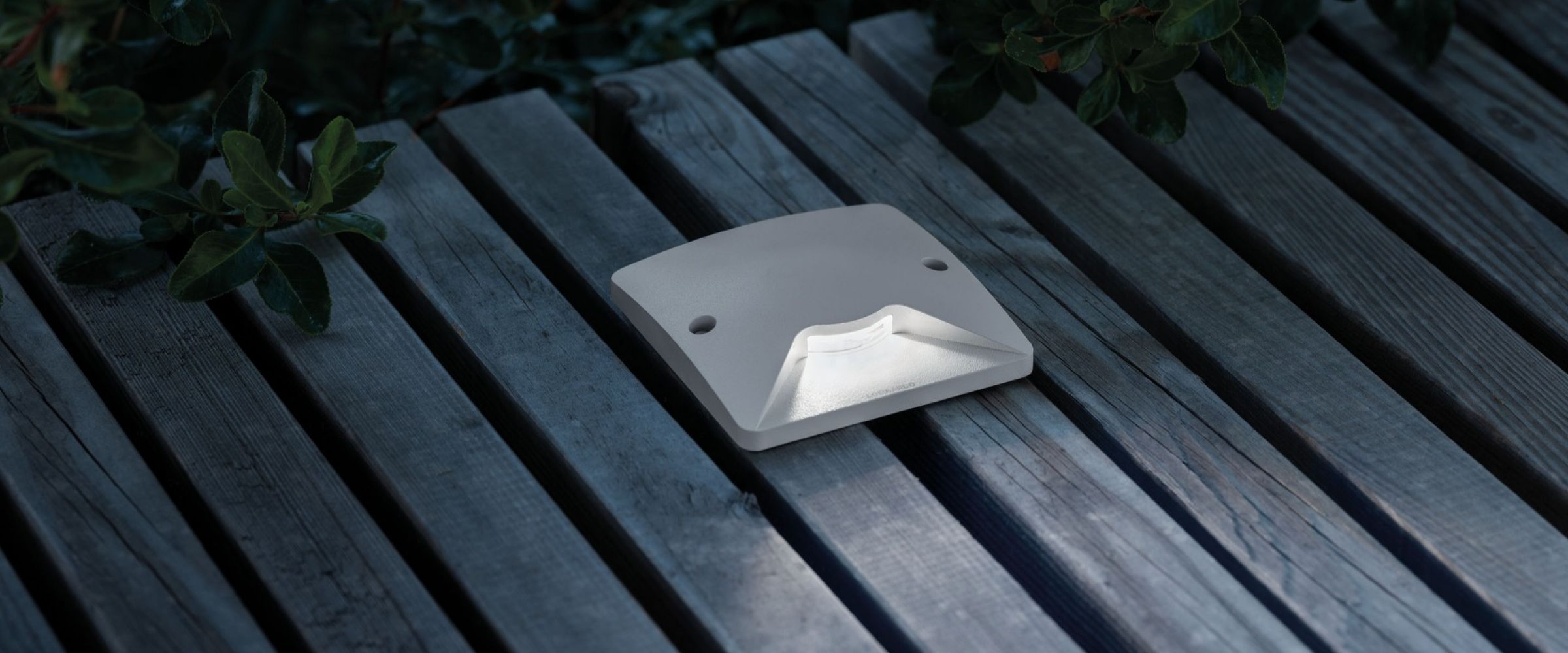

Suitable for ground and wall installation and for outdoor use. Installation directly to the ground or by means of recess box supplied separately. Product designed for LED light sources for accent lighting and making driveways and pathways. Turned aluminium body and retaining ring. Transparent PMMA diffuser. Silicone gaskets. 0.5 m of H05RN-F power cable pre-wired and secured by means of a nickel-plated brass cable gland. A4 or AISI 316L stainless steel nuts and bolts. Product supplied with water-stop device to protect it from water and humidity infiltration.
No photobiological risk, RG0 risk group (EN62471).
LED 4000K (N), 3000K (3) or 2700K (2). Ballast 24V power supply not included.
IP 67
Outdoor e waterproof
Aquastop
Aquastop
Pre-wired
Pre-wired
Dimmable
Dimmable
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
PMMA
CNC 99 QL
  • IP 67
  • IK 10 20J xx9
  • Carrabile/Drive-over Max 2000 Kg
  • Temp. max  53°C
  • CE
When installed with recess box code LB1230001, the product is walk-over.
Fasci di luce
1L-down
LED
W LM REAL LM COL. DIFF. Trasp.
CODE
LED COLOUR
Select LED colour
LED colour not valid
5 470 52 CL.III 24V 24V White RAL 9010
N
4000K
3
3000K
2
2700K
Grey High Tech RAL 9006
Grey anthracite RAL 7021
Corten
Related product: CNC 99 CL
