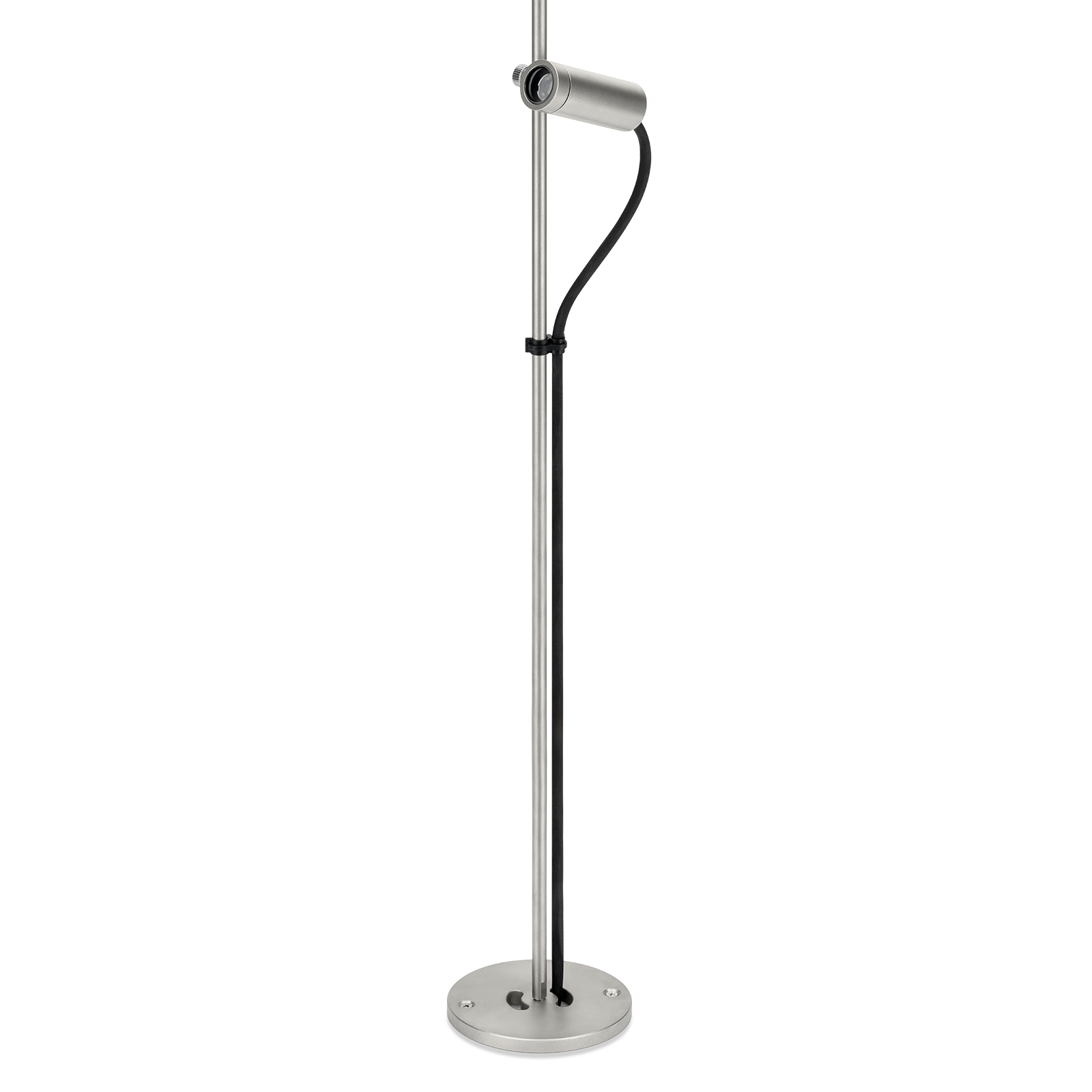

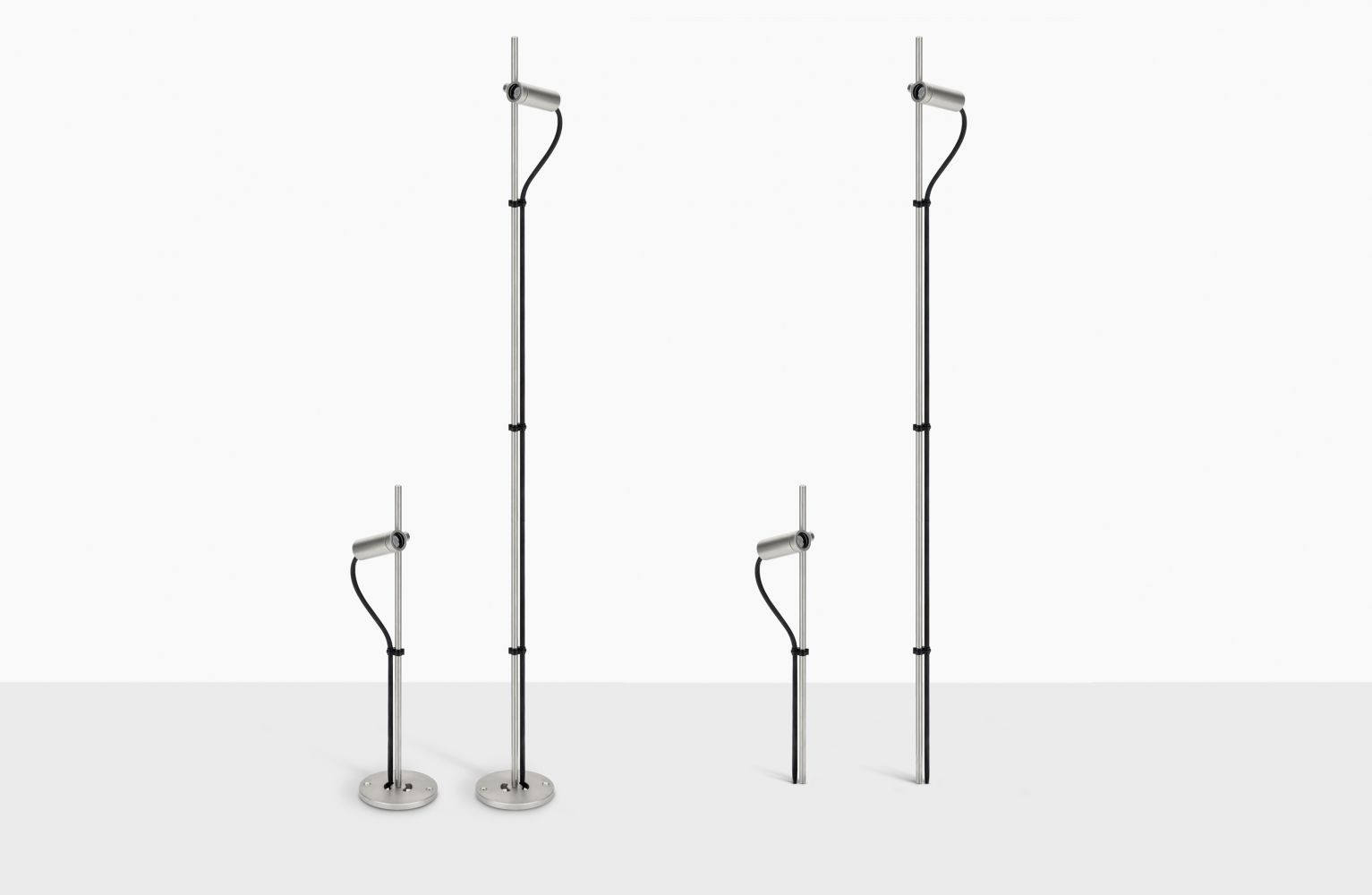

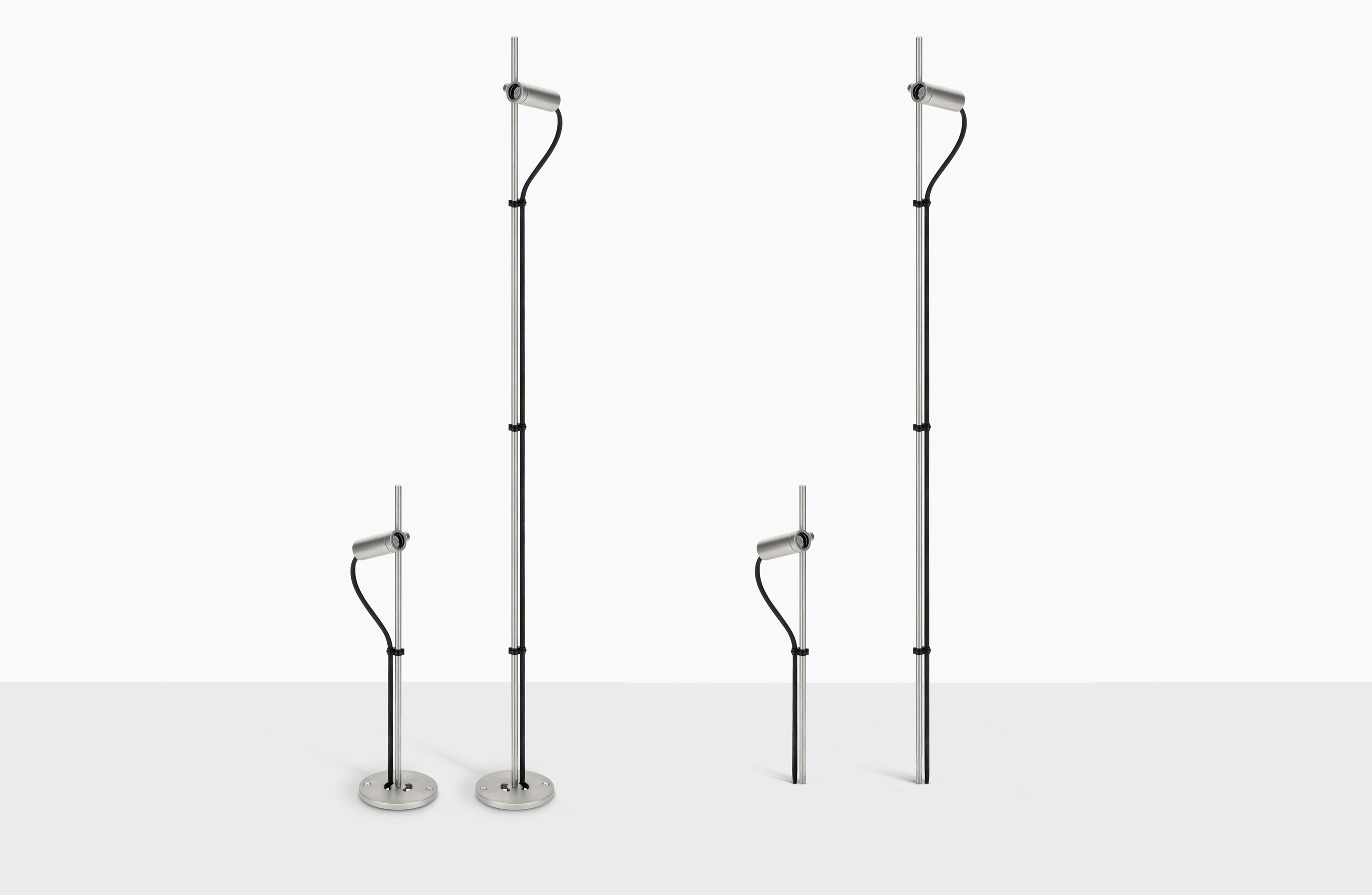

CNC 35 2.0 Swing Post 100

Minimalist downlight for recessed installation. Also suitable for outdoor use. Aluminium and/or AISI316L steel body. Wide choice of colour temperatures. Transparent glass diffuser. The product has an IP 67 rating and is fitted with an integrated Aquastop to protect against water and humidity infiltration. Pre-wired luminaire with multi-year warranty on LED circuit, supplied with power cord H05RN-F 2x0.75. Power supply excluded 24Vdc or 500mA - 6V. Honeycomb version available (not available with D optics). LED 4000K (N) or 3000K (3), 2700K (2) or 2200K (1). No photobiological risk under normal conditions of use; RG1 risk group exempt (EN62471).

expand

Outdoor e waterproof

24 V

Aquastop

Dimmable

Pre-wired

CRI 90

5 years warranty on LED circuit

Diffuser

Transparent glass

Ask for information

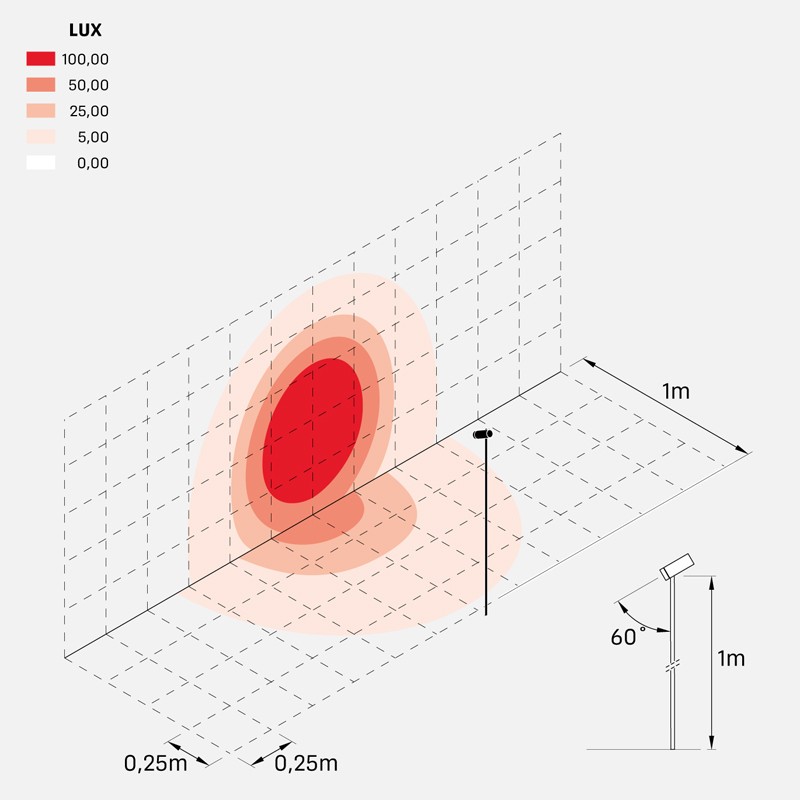

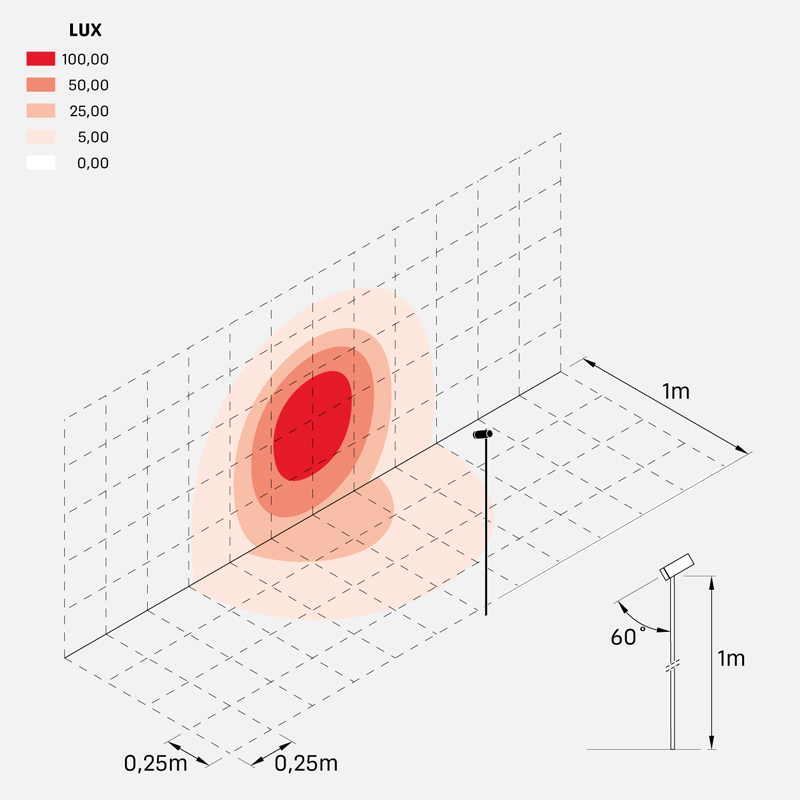

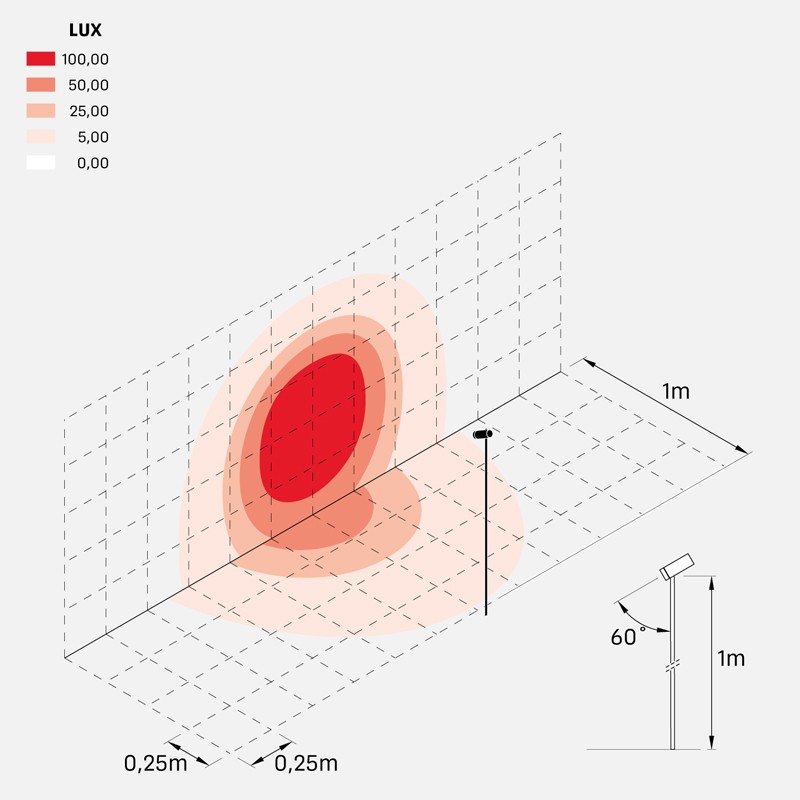

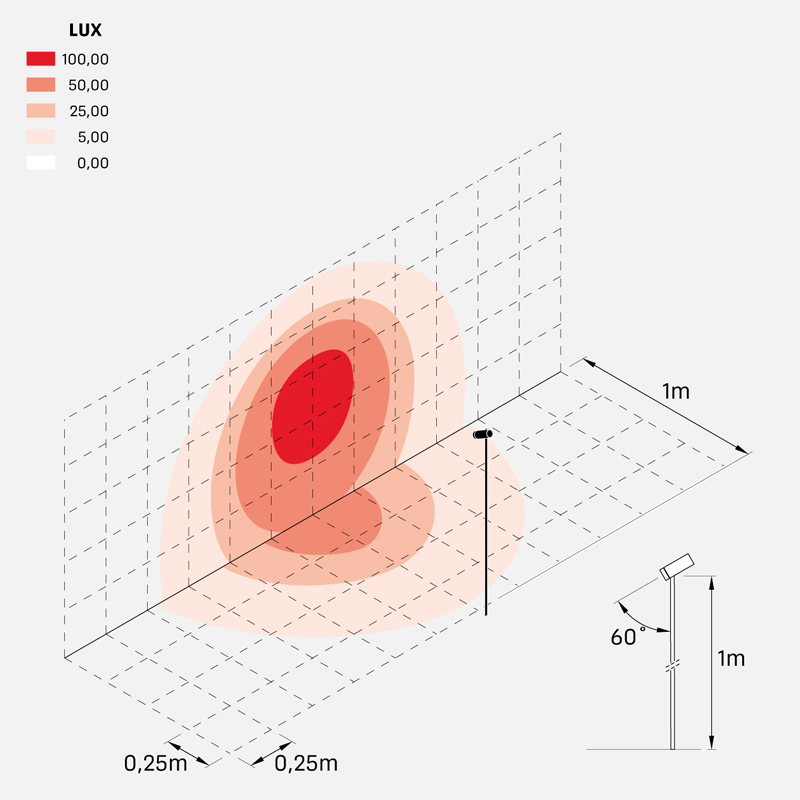

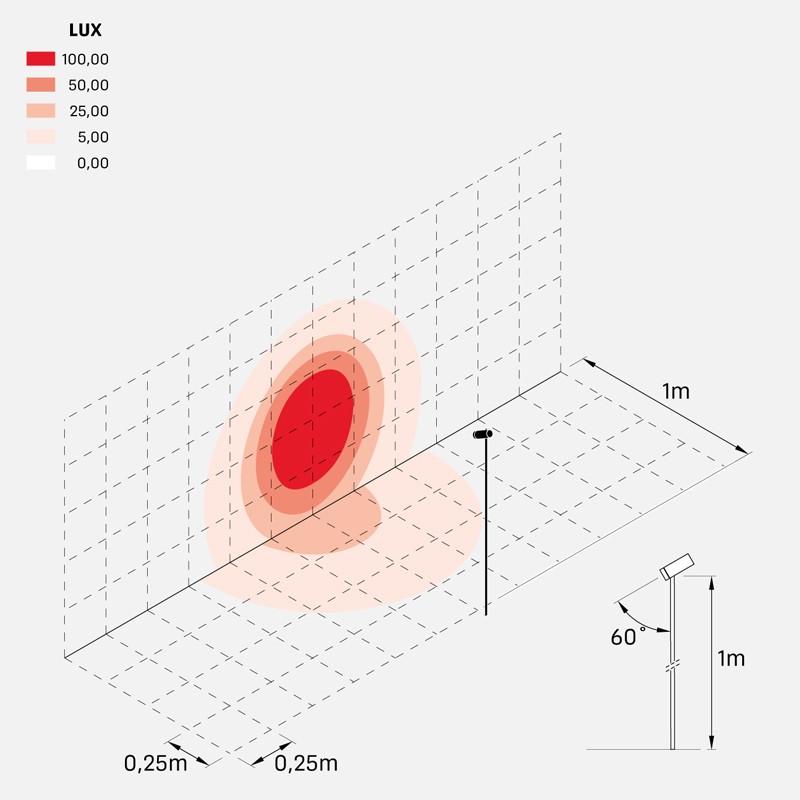

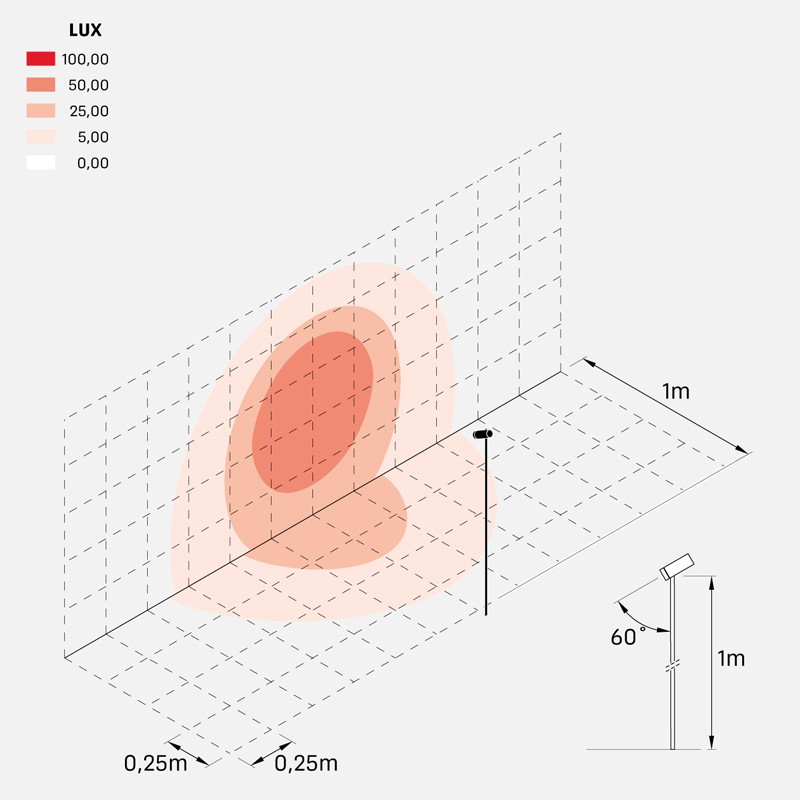

Lighting simulations

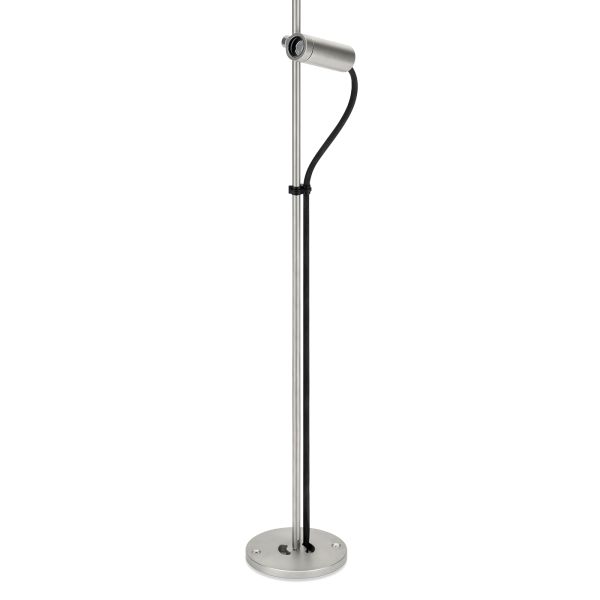

CNC 35 2.0 Swing Post 100

Temp. max on diffuser 65°C

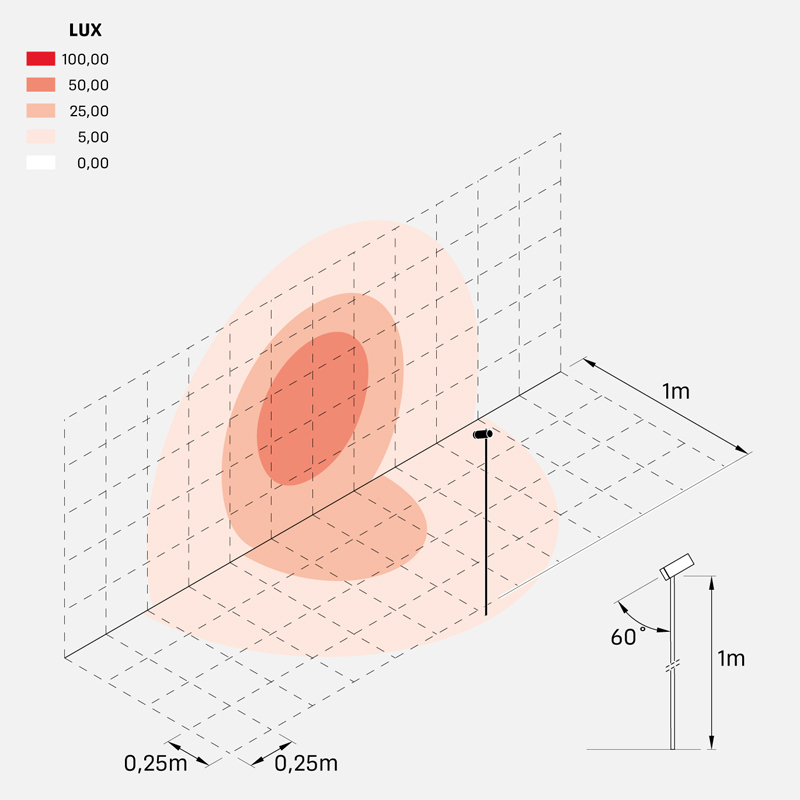

Optic D not available for Honeycomb version.

LED
W	LM	REAL LM		COL.	CODE	Download
2	150	147	24V		LT158350	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LT15835E	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LT15835K	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
2	150	97	24V		LT15835H0	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LT15835HE	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LT15835HK	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
2	150	147	500mA - 6V		LZ158350	CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LZ15835E	CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LZ15835K	CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
2	150	97	500mA - 6V		LZ15835H0	CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LZ15835HE	CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LZ15835HK	CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
