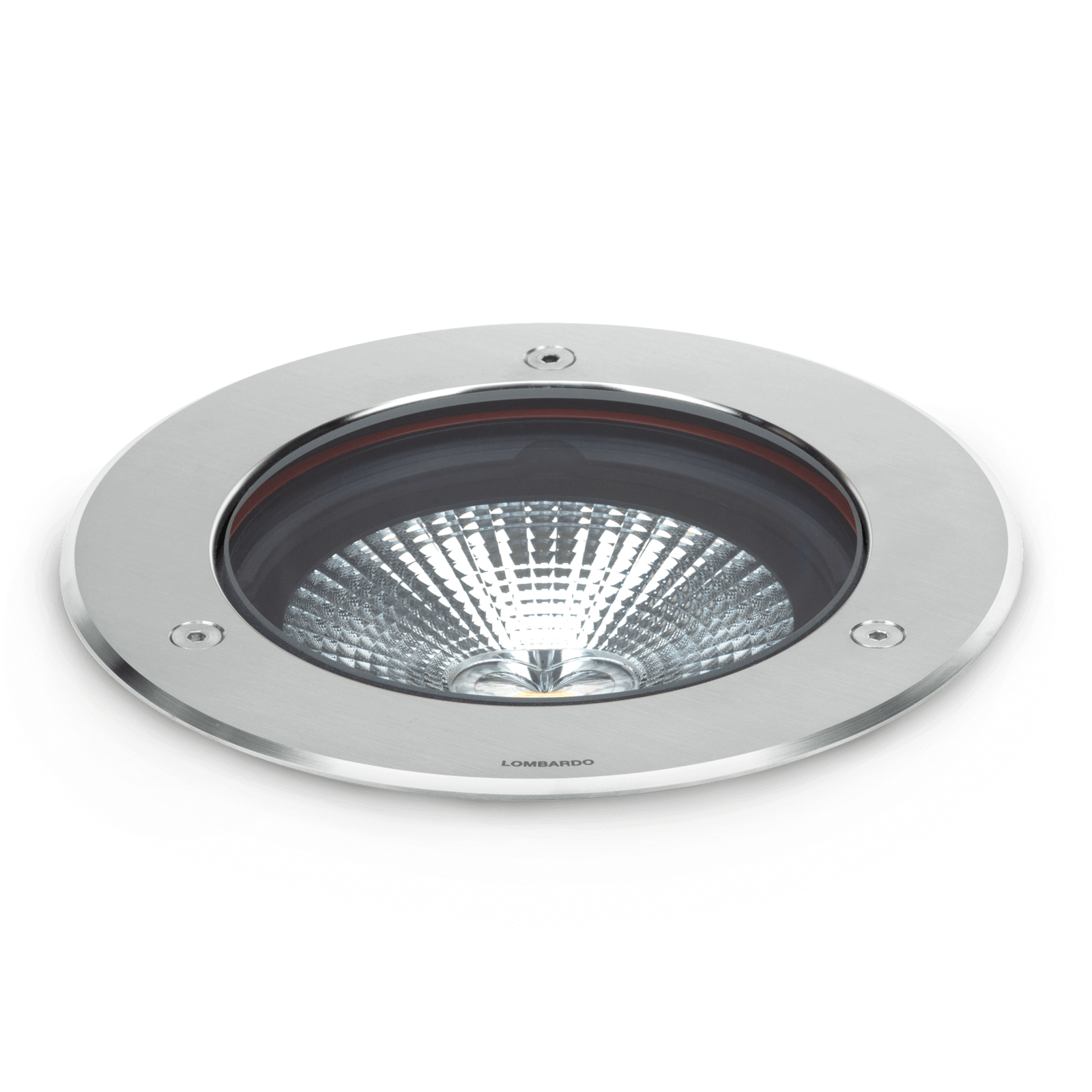

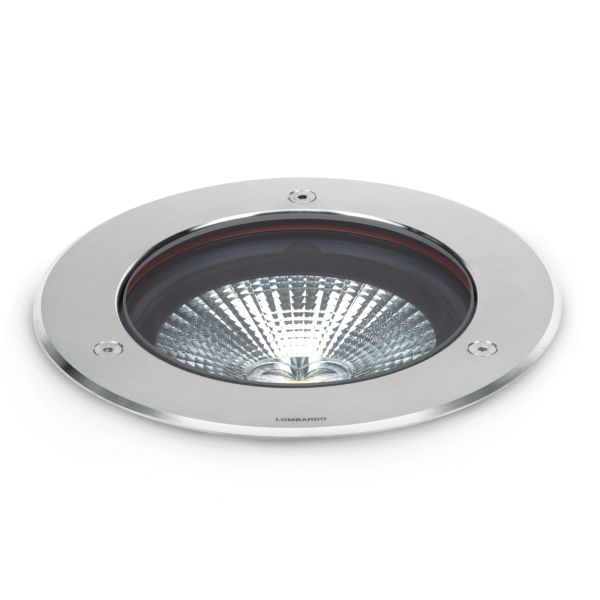

Cnc 150

Ideal for recessed ground application, both for drive-over and walk-over use Installation by means of a recess box supplied separately. Product designed for LED light sources for accent lighting and making driveways and pathways.
Retaining ring made of stainless steel AISI 316L, body made of anodized aluminium EN-6061 T6.
Tempered glass diffuser.

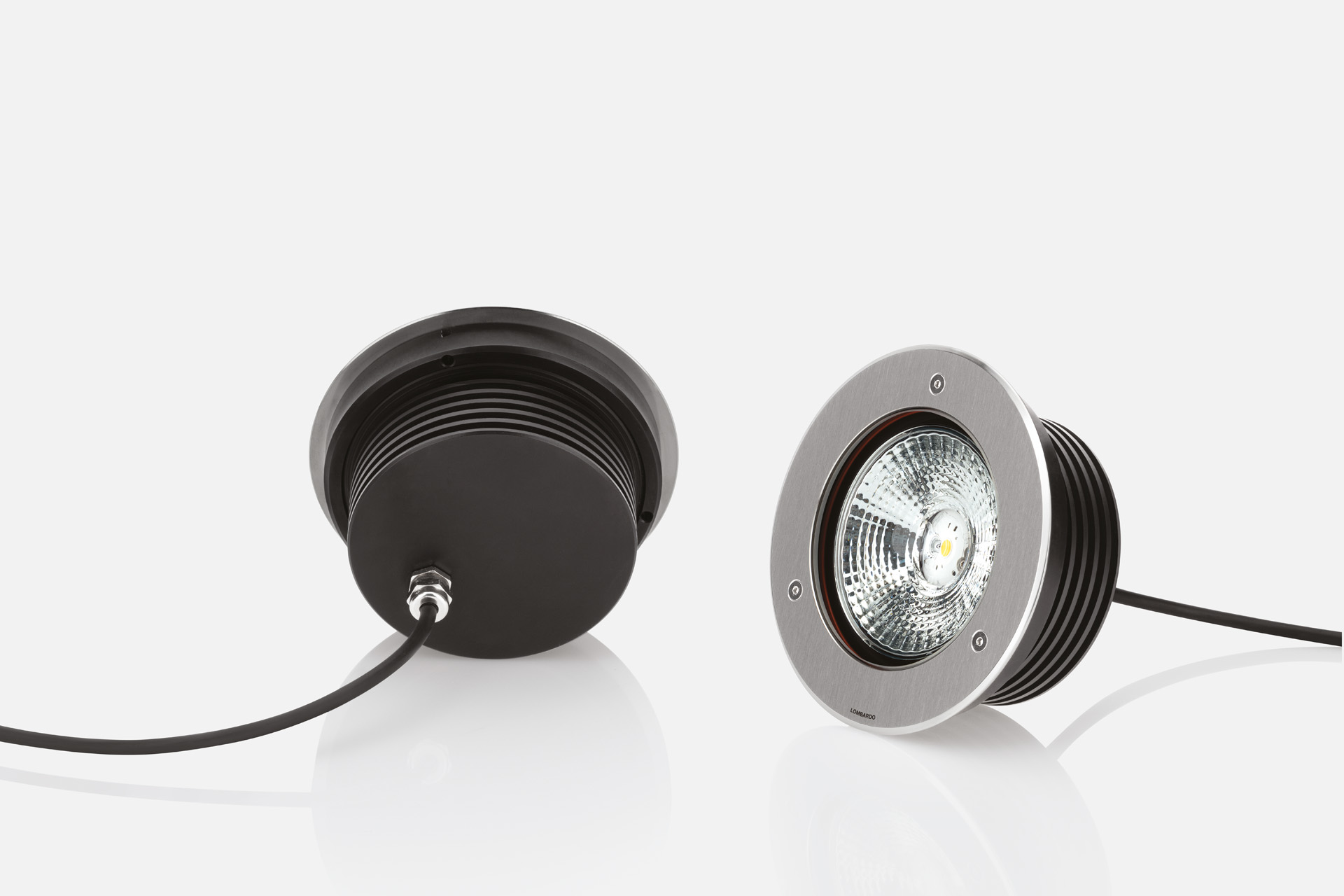

0.5 m of pre-wired cable type H05RN-F, secured by means of a nickel-plated brass cable gland.
316L stainless steel nuts and bolts.
Product supplied with water-stop device to protect it from water and humidity infiltration.
600 mA constant current version: only drivers type SELV or equivalent must be used.
LED 4000K (N), 3000K (3) and 2700K (2). Ballast not included. No photobiological risk, RG0 risk group (EN62471).
IP 67
Outdoor e waterproof
Aquastop
Aquastop
Pre-wired
Pre-wired
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Serigraphed glass
Available colors
Brushed grey
Cnc 150
  • IP 67
  • IK 10 20J xx9
  • CE
  • Carrabile/Drive-over Max 2000 Kg
  • Temp. max 58°C
Max. temperature measured on the glass 58°C.
Fasci di luce
CNC100 C-UP
LED
W LM REAL LM COL. DIFF. Trasp.
CODE
OPTIC
Select optic
Optic not valid
LED COLOUR
Select LED colour
LED colour not valid
20 2800 2480 CL.III 600mA 600mA Brushed grey
S
12°
M
24°
L
32°
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%

Lighting simulations

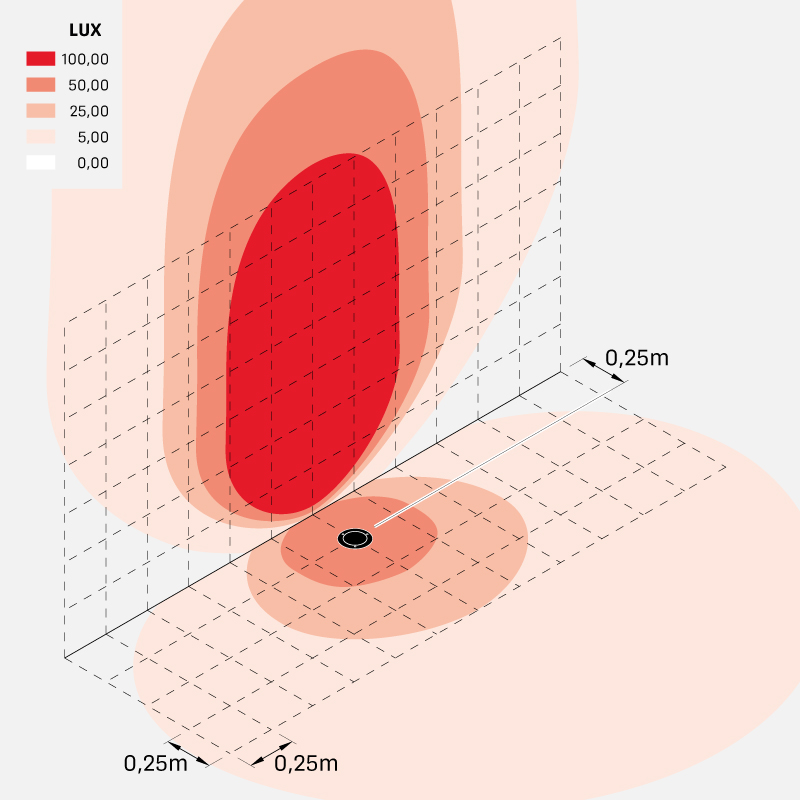

cnc_150_l
cnc_150_l

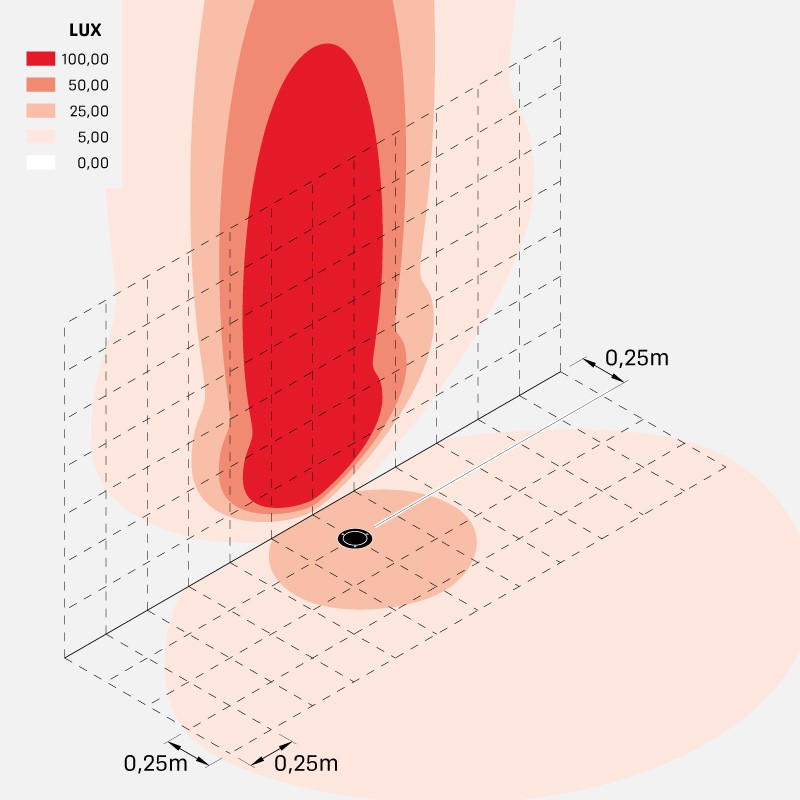

cnc_150_m
cnc_150_m

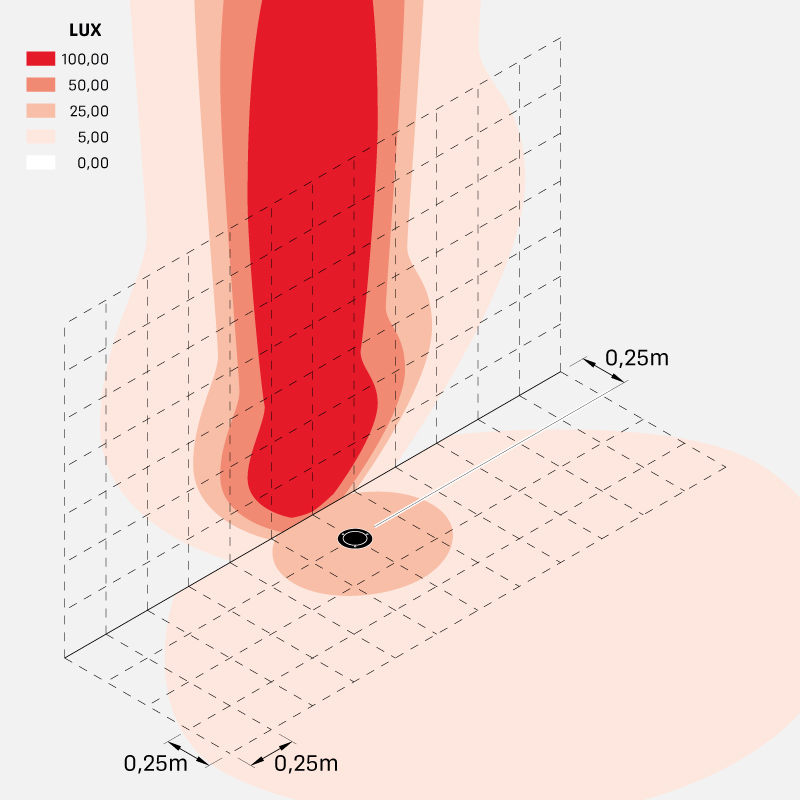

cnc_150_s
cnc_150_s
