CNC 50 Swing
Available colors

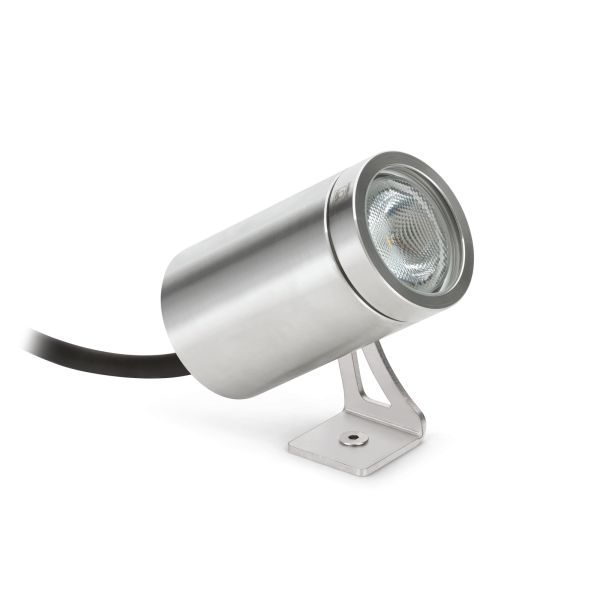

CNC 50 Swing

Suitable for installation on walls and ceilings and for outdoor use. Ideal for recessed ground application, also for walk-over use. Installation by means of a recess box supplied separately. Product designed for LED light sources for accent lighting and marking driveways and pathways. Body and retaining ring made of stainless steel AISI 316L. Heat tempered glass diffuser. Silicone gaskets. 1.5 m. pre-wired cable type HO5RN-F 2x0,75, secured by means of a nickel-plated brass cable gland. Dimmable version available. A4 or AISI 316L stainless steel nuts and bolts.All the wiring is supplied with a special sheathing protecting the spot from seepage of water and damp. The retaining spring adapts both to applications requiring the use of the recess box or for fittings directly on plasterboard ceilings. Version in constant tension 12/24V. Version in constant current 350mA/ 500mA: only drivers type SELV or equivalent must be used. All the wiring is supplied with a built-in electronic system that allows a non-polarised connection of the spot light.
LED 4000K (N), 3000K (3), 2700K (2). Ballast not included.
No risk of photobiological damage, RG1 group (EN62471).
IP 67
Outdoor e waterproof
Aquastop
Aquastop
Pre-wired
Pre-wired
5 years warranty on LED circuit
5 years warranty on LED circuit
Diffuser
Transparent glass
Until our stock lasts.
Recommended for you
CNC 50 Swing
  • IP 67
  • IK 07 2J xx5
  • CE
  • Temp. max Vetro/Glass 65°C (Ta 25°C)

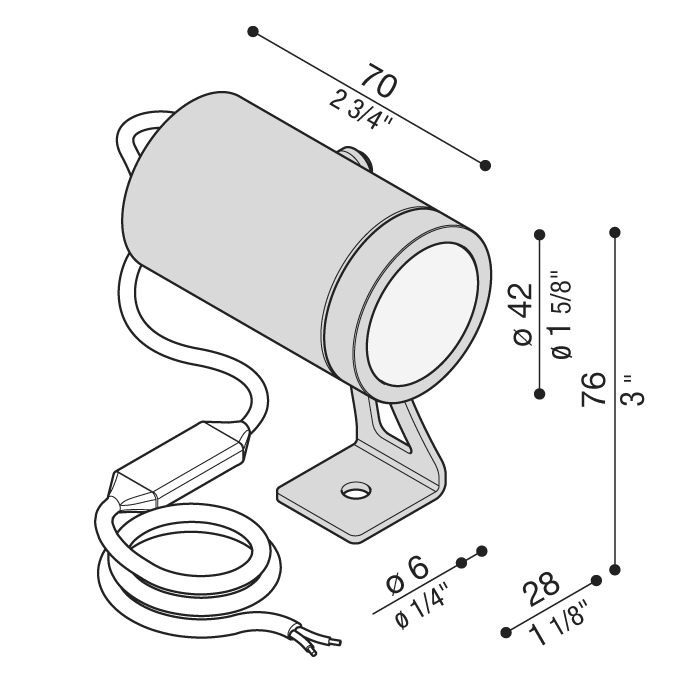

Swivel version. Stake not included.
LED
W LM REAL LM COL. GLASS
CODE
Download
6,5 650 Max 427
CL.III 500mA - 14V 500mA - 14V
Polished stainless steel
LL107012
Grey anthracite RAL 7021
LL107044
Corten
LL107045
6,5 650 Max 427
CL.III 24V 24V
Polished stainless steel
LL107013
Grey anthracite RAL 7021
LL107046
Corten
LL107047
Complete the CODE
OPTIC
S
13°
M
24°
L
53°
D
Diff.
LED COLOUR
N
4000K
3
3000K
2
2700K

Lighting simulations

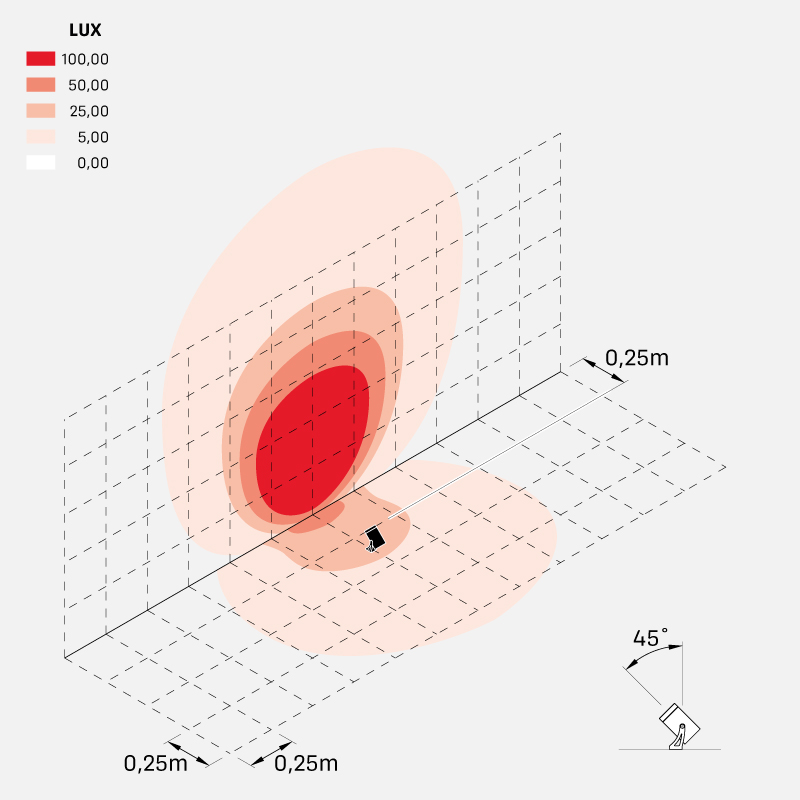

cnc_50_swing_d
cnc_50_swing_d

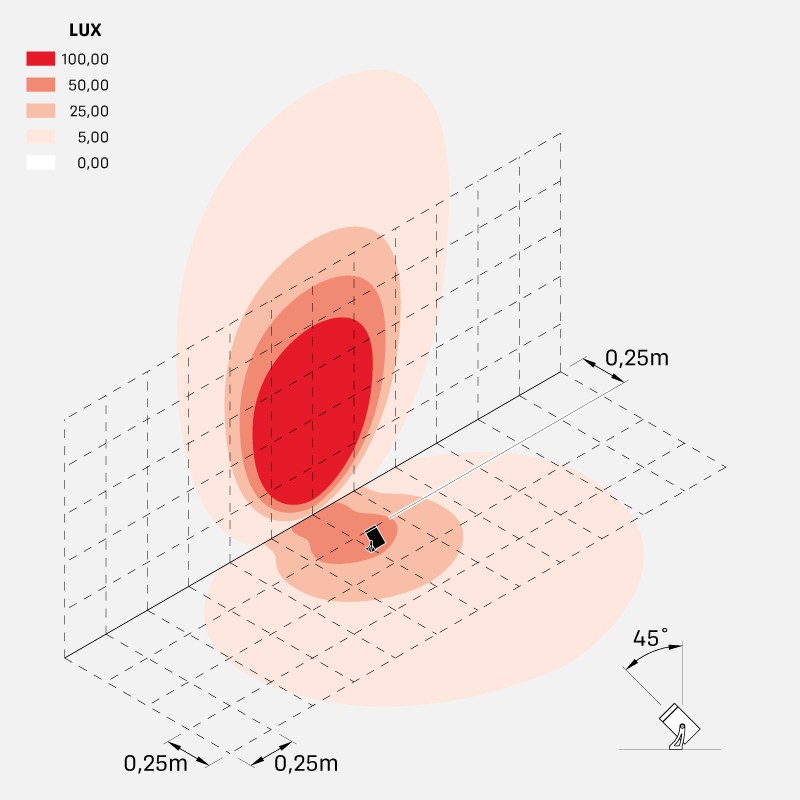

cnc_50_swing_l
cnc_50_swing_l

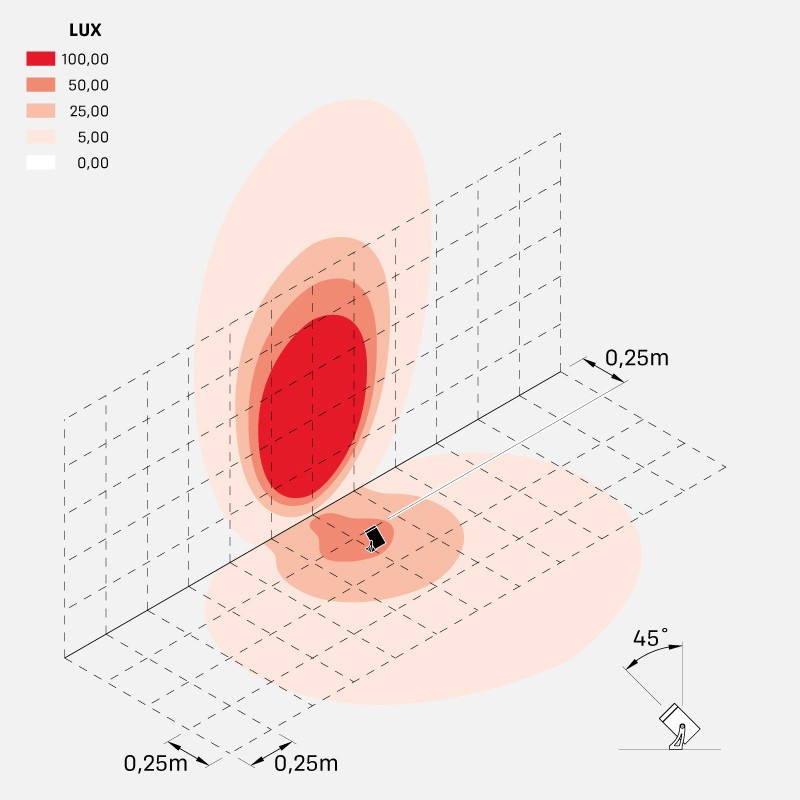

cnc_50_swing_m
cnc_50_swing_m

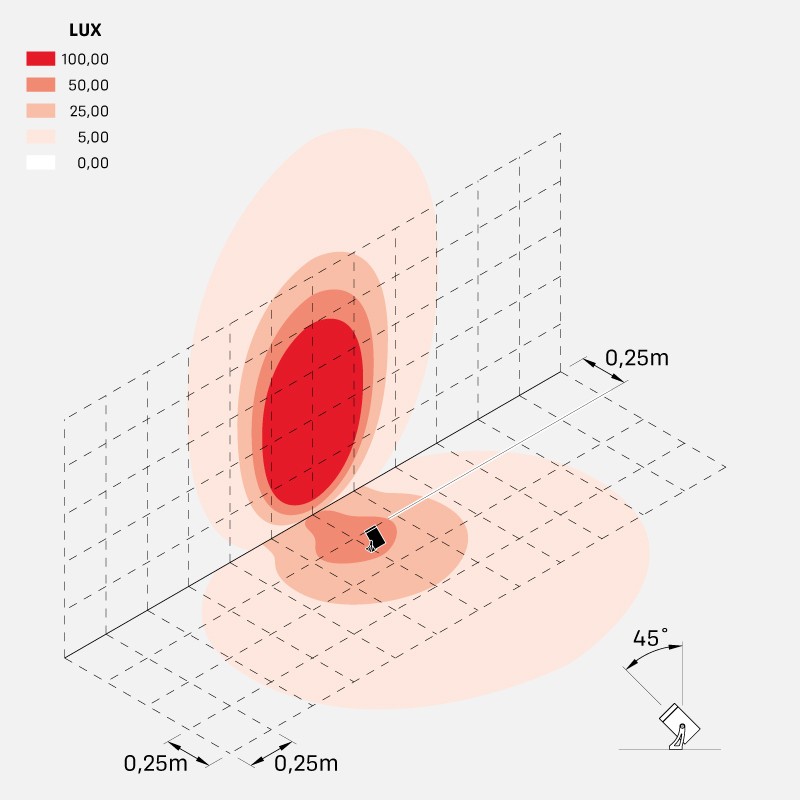

cnc_50_swing_s
cnc_50_swing_s
