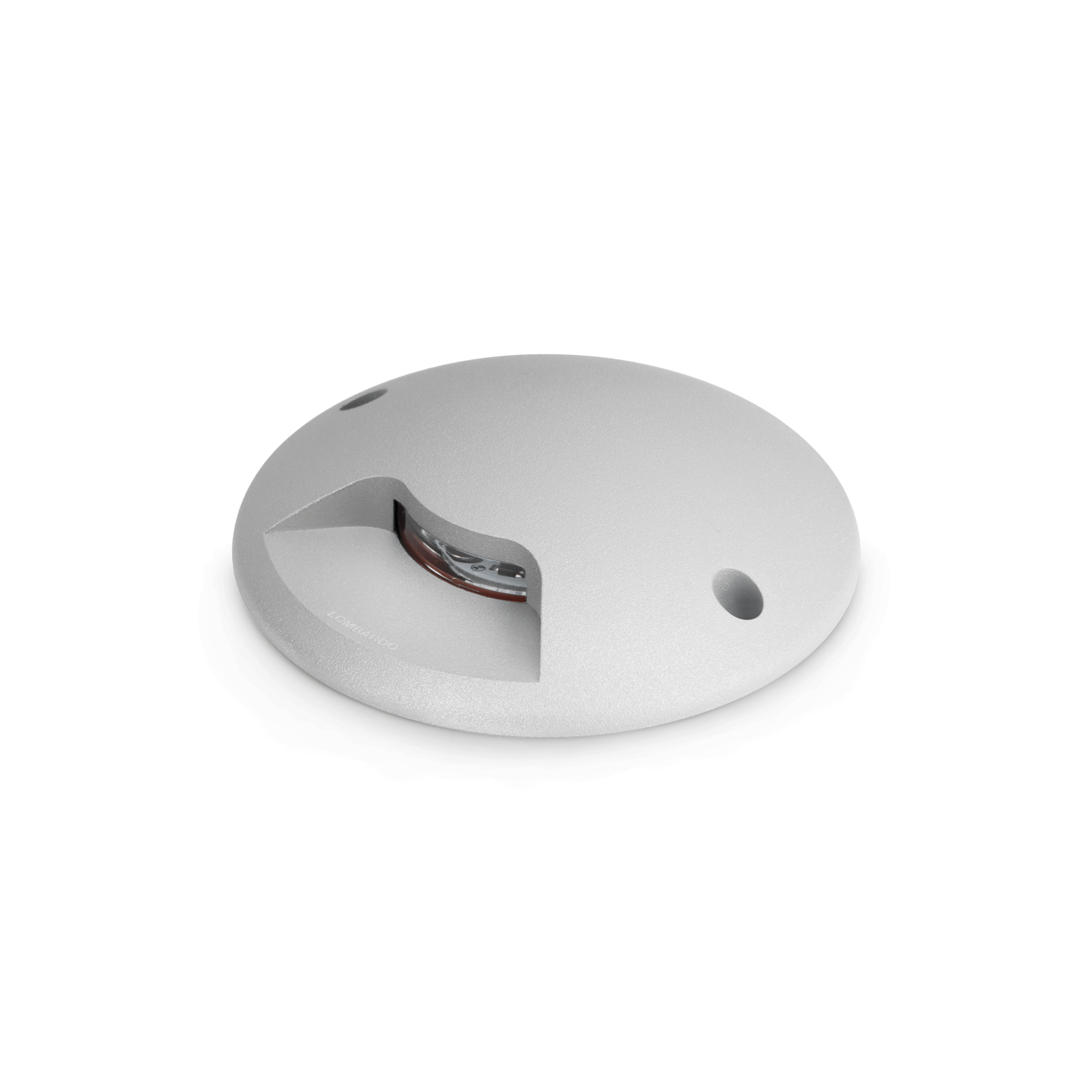

Cnc 99 CL

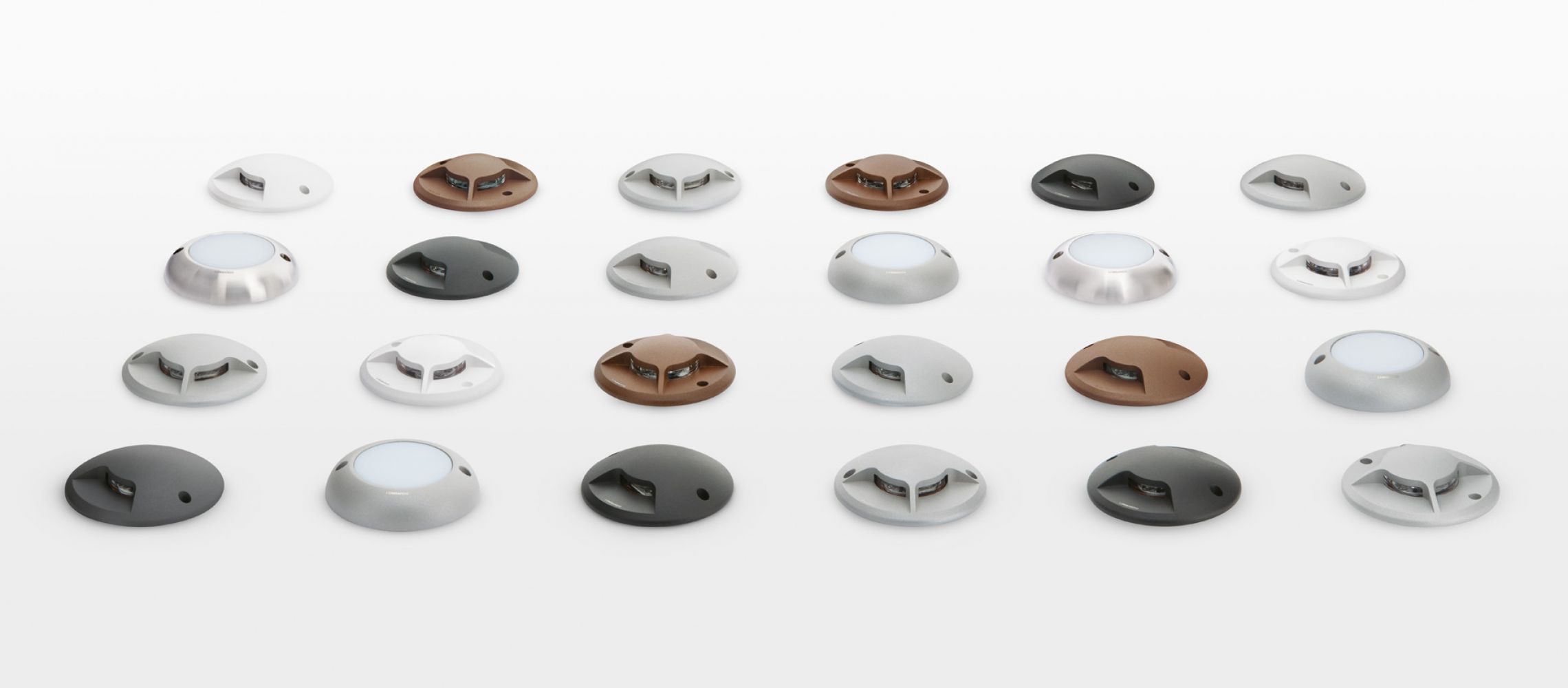

Available colors

Cnc 99 CL

Suitable for ground and wall installation and for outdoor use. Installation directly to the ground or by means of recess box supplied separately. Product designed for LED light sources for accent lighting and making driveways and pathways. Turned aluminium body and retaining ring. Transparent PMMA diffuser. Silicone gaskets. 0.5 m of H05RN-F power cable pre-wired and secured by means of a nickel-plated brass cable gland. A4 or AISI 316L stainless steel nuts and bolts. Product supplied with water-stop device to protect it from water and humidity infiltration.
No photobiological risk, RG0 risk group (EN62471).
LED 4000K (N), 3000K (3) or 2700K (2). Ballast 24V power supply not included.
IP 67
Outdoor e waterproof
Aquastop
Aquastop
Pre-wired
Pre-wired
Dimmable
Dimmable
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
PMMA
Cnc 99 CL
  • IP 67
  • IK 10 20J xx9
  • Carrabile/Drive-over Max 2000 Kg
  • Temp. max 53°C
  • CE
Unidirectional version.
Cod. LL137000N/3/2 stainless steel retaining ring.
Max. temperature measured on the eyelid 53°C.
Fasci di luce
CNC 99 CL
LED
W LM REAL LM COL. DIFF. Trasp.
CODE
LED COLOUR
Select LED colour
LED colour not valid
5 470 45 CL.III 24V 24V Polished stainless steel
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%
White RAL 9010
Grey High Tech RAL 9006
Grey anthracite RAL 7021
Corten

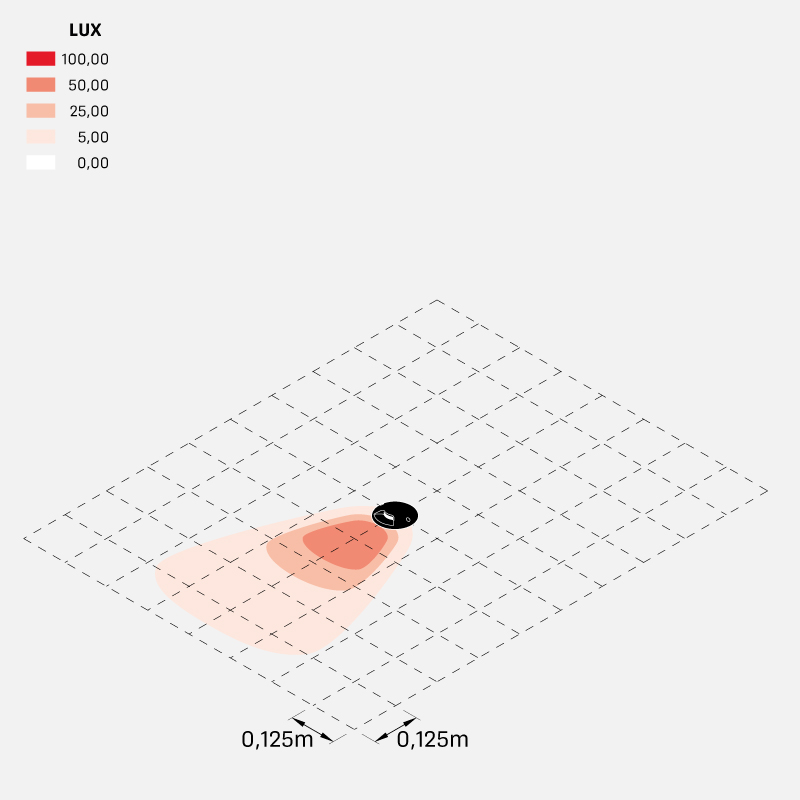

Lighting simulations

cnc_99_cl
cnc_99_cl
