EVERYDAY
LIGHT
CNC 35 2.0 Q
Available colors
Sandblasted Grey Grey anthracite RAL 7021 Corten White RAL 9010 Black PVD

CNC 35 2.0 Q

New
Minimalist downlight for recessed installation. Also suitable for outdoor use. Aluminium and/or AISI316L steel body. Wide choice of colour temperatures. Transparent glass diffuser. The product has an IP 67 rating and is fitted with an integrated Aquastop to protect against water and humidity infiltration. Pre-wired luminaire with multi-year warranty on LED circuit, supplied with power cord H05RN-F 2x0.75. Power supply excluded 24Vdc or 500mA - 6V. Honeycomb version available (not available with D optics). LED 4000K (N) or 3000K (3), 2700K (2) or 2200K (1). No photobiological risk under normal conditions of use; RG1 risk group exempt (EN62471).
IP 67
Outdoor e waterproof
24 V
24 V
Aquastop
Aquastop
Dimmable
Dimmable
Anodisation
Anodisation
Pre-wired
Pre-wired
CRI 90
CRI 90
Sea Treatment
Sea Treatment
5 years warranty on LED circuit
5 years warranty on LED circuit
Diffuser
Transparent glass
Ask for information
Lighting simulations
CNC 35 2.0 Q
  • IP 67
  • IK 10 20J xx9
  • Calpestabile/Step Max 500 Kg
  • Temp. max on diffuser 65°C
  • CE
Optic D not available for Honeycomb version.
Light beam
360_nt
CNC 35 2.0 Q
LED
W LM REAL LM COL. CODE Download
2 150 147
CL.III 24V 24V
Sandblasted Grey
LT158110
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LT15811E
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LT15811K
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
White RAL 9010
LT15811W
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Black PVD
LT15811B
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
2 150 97
CL.III 24V 24V HONEYCOMB
Sandblasted Grey
LT15811H0
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LT15811HE
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LT15811HK
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
White RAL 9010
LT15811HW
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Black PVD
LT15811HB
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
2 150 147
CL.III 500mA - 6V 500mA - 6V
Sandblasted Grey
LZ158110
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LZ15811E
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LZ15811K
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
White RAL 9010
LZ15811W
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Black PVD
LZ15811B
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
2 150 97
CL.III 500mA - 6V 500mA - 6V HONEYCOMB
Sandblasted Grey
LZ15811H0
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LZ15811HE
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LZ15811HK
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
White RAL 9010
LZ15811HW
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Black PVD
LZ15811HB
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Complete the CODE
OPTIC
S
20°
M
30°
L
45°
D
Diff.
LED COLOUR
N
4000K
3
3000K
2
2700K
1
2200K

Lighting simulations

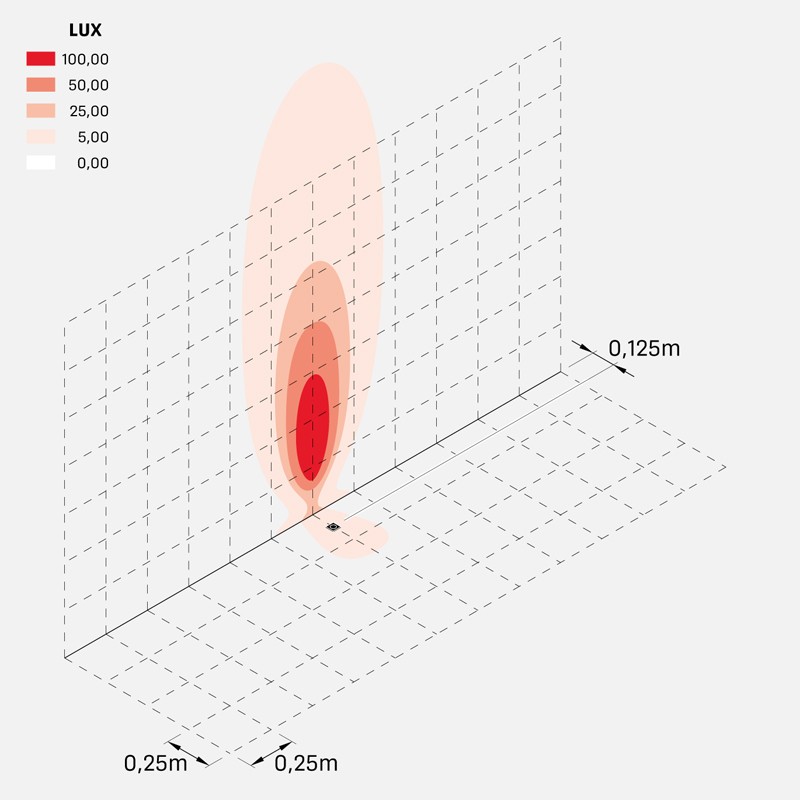

cnc_35q_20_optic_S
cnc_35q_20_optic_S

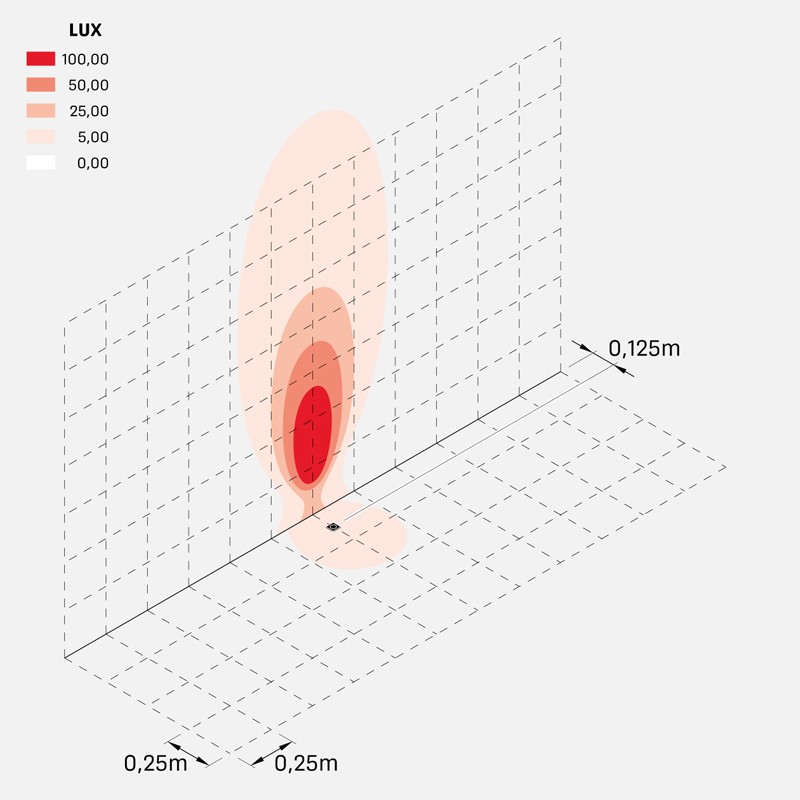

cnc_35q_20_optic_M
cnc_35q_20_optic_M

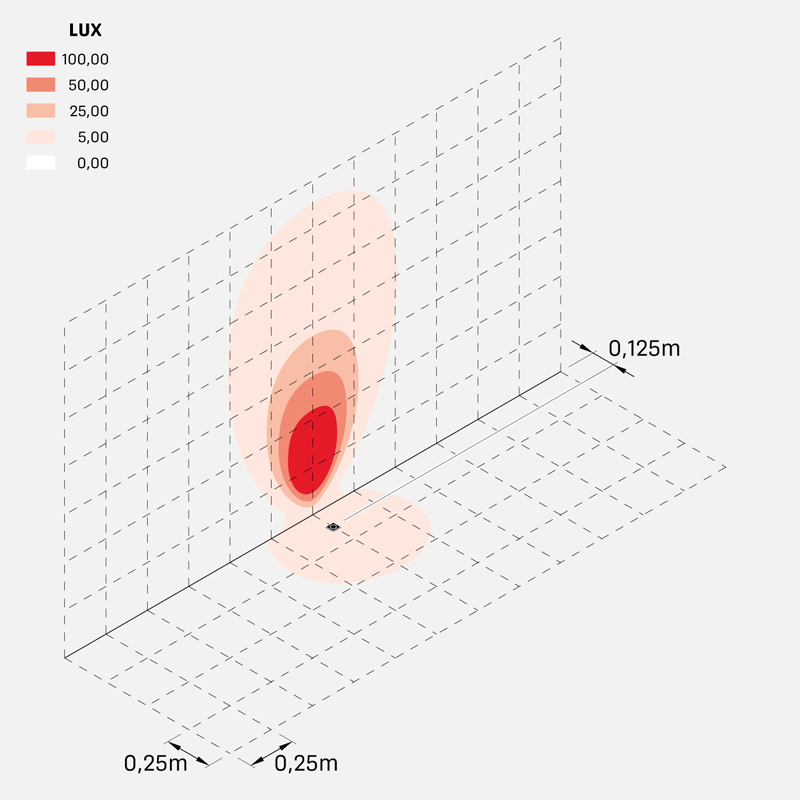

cnc_35q_20_optic_L
cnc_35q_20_optic_L

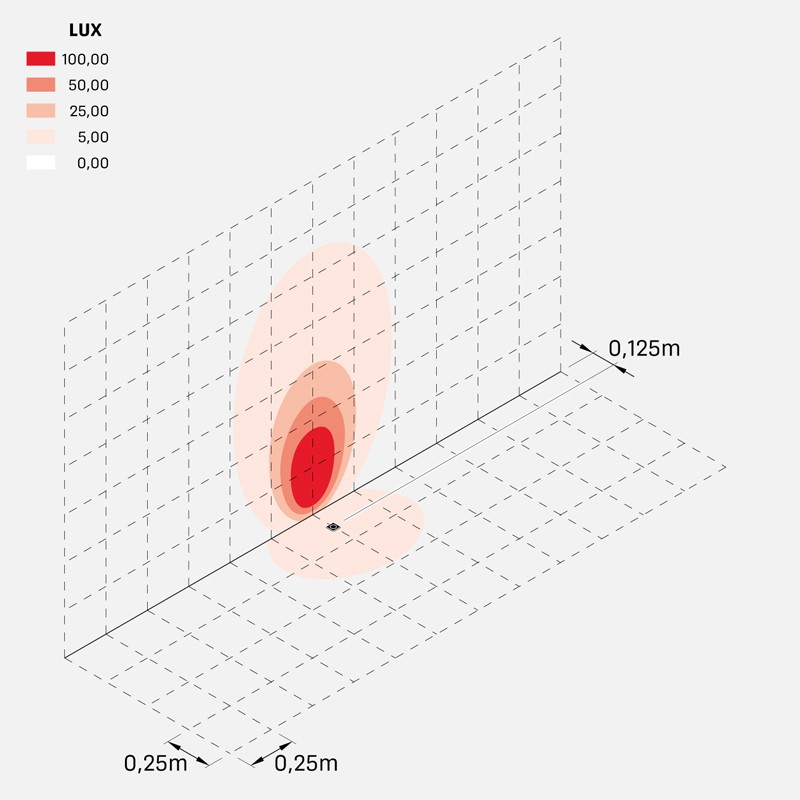

cnc_35q_20_optic_D
cnc_35q_20_optic_D

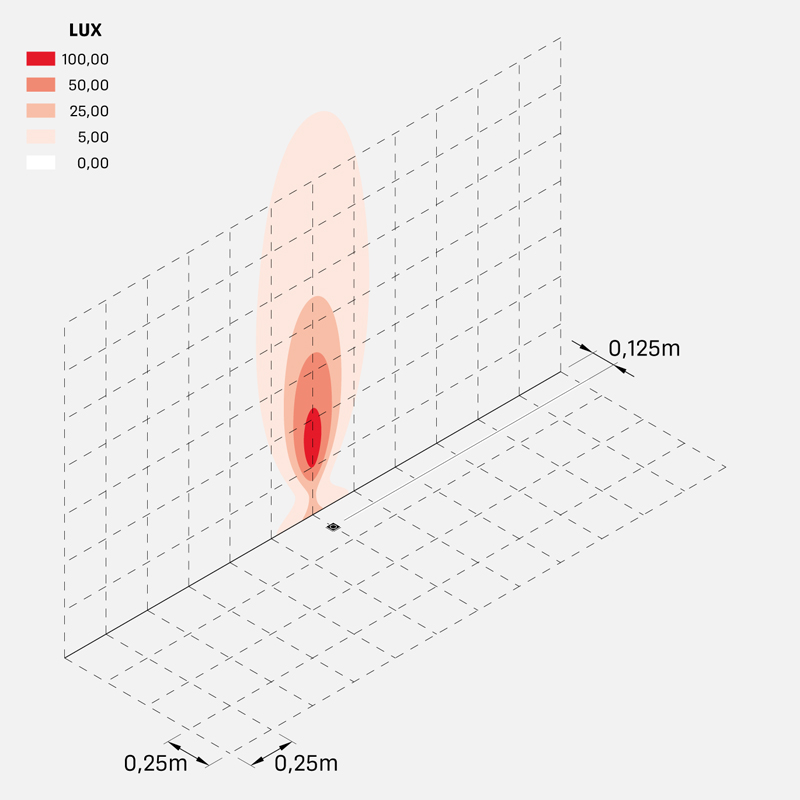

cnc_35q_20_honeycomb_optic_S
cnc_35q_20_honeycomb_optic_S

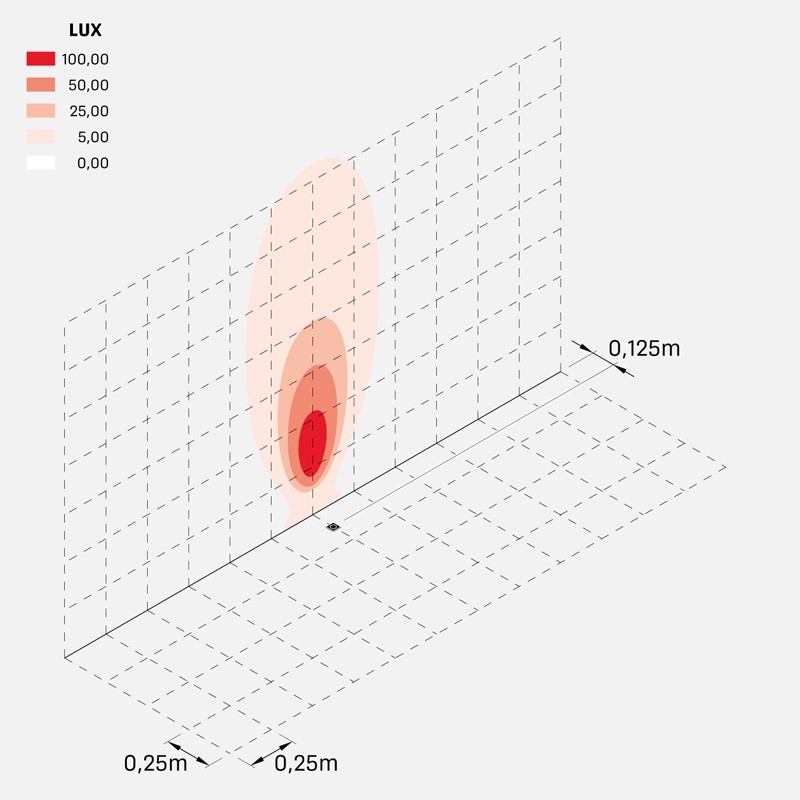

cnc_35q_20_honeycomb_optic_M
cnc_35q_20_honeycomb_optic_M
cnc_35q_20_honeycomb_optic_L
cnc_35q_20_honeycomb_optic_L
CNC 35 T CNC 35 T CNC 35 Q CNC 35 Q CNC 35 Top S CNC 35 Top S CNC 35 Top L CNC 35 Top L CNC 35 Mask CNC 35 Mask CNC 35 Swing CNC 35 Swing CNC 50 Swing CNC 50 Swing CNC 50 T Up CNC 50 T Up CNC 35 T Up CNC 35 T Up CNC 35 Q Up CNC 35 Q Up CNC 50 T CNC 50 T CNC 50 Top L CNC 50 Top L CNC 50 Top 2L CNC 50 Top 2L CNC 35 Swing Spot CNC 35 Swing Spot CNC 25 T CNC 25 T CNC 25 Q CNC 25 Q CNC 100 L CNC 100 L CNC 100 2L CNC 100 2L CNC 100 Up CNC 100 Up CNC 120 T CNC 120 T CNC 99 CL CNC 99 CL CNC 99 C2L CNC 99 C2L CNC 99 C4L CNC 99 C4L CNC 99 C180 CNC 99 C180 CNC 99 C Up CNC 99 C Up CNC 150 CNC 150 CNC 99 QL CNC 99 QL CNC 99 Q2L CNC 99 Q2L CNC 99 Q4L CNC 99 Q4L CNC 49 CL CNC 49 CL CNC 49 C2L CNC 49 C2L CNC 49 C4L CNC 49 C4L CNC 49 C180 CNC 49 C180 CNC 49 QL CNC 49 QL CNC 49 Q2L CNC 49 Q2L CNC 49 Q4L CNC 49 Q4L CNC 25 2.0 T CNC 25 2.0 T CNC 25 2.0 Q CNC 25 2.0 Q CNC 35 2.0 T CNC 35 2.0 T CNC 50 2.0 T CNC 50 2.0 T CNC 35 2.0 Swing Superficie CNC 35 2.0 Swing Superficie CNC 35 2.0 Swing CNC 35 2.0 Swing CNC 35 2.0 Swing Garden 40 CNC 35 2.0 Swing Garden 40 CNC 35 2.0 Swing Garden 100 CNC 35 2.0 Swing Garden 100 CNC 35 2.0 Swing Post 40 CNC 35 2.0 Swing Post 40 CNC 35 2.0 Swing Post 100 CNC 35 2.0 Swing Post 100 CNC 25 2.0 Q Full Resin CNC 25 2.0 Q Full Resin CNC 25 2.0 T Full Resin CNC 25 2.0 T Full Resin CNC 35 2.0 Q Full Resin CNC 35 2.0 Q Full Resin CNC 35 2.0 T Full Resin CNC 35 2.0 T Full Resin CNC 50 2.0 T Full Resin CNC 50 2.0 T Full Resin CNC Oval CNC Oval CNC Oval Superficie CNC Oval Superficie CNC Oval Garden 40 CNC Oval Garden 40 CNC Oval Garden 100 CNC Oval Garden 100 CNC Oval Post 40 CNC Oval Post 40 CNC Oval Post 100 CNC Oval Post 100 CNC 35 2.0 Trimless T CNC 35 2.0 Trimless T CNC 35 2.0 Trimless T Asimmetrico CNC 35 2.0 Trimless T Asimmetrico CNC 35 2.0 Trimless Q CNC 35 2.0 Trimless Q CNC 35 2.0 Trimless Q Asimmetrico CNC 35 2.0 Trimless Q Asimmetrico CNC 50 2.0 T Trimless CNC 50 2.0 T Trimless CNC 50 2.0 Trimless T Asimmetrico CNC 50 2.0 Trimless T Asimmetrico CNC 50 2.0 Trimless Q CNC 50 2.0 Trimless Q CNC 50 2.0 Trimless Q Asimmetrico CNC 50 2.0 Trimless Q Asimmetrico CNC 50 Swing Spot CNC 50 Swing Spot
Thermoplastic recess box CNC/INC 35 Thermoplastic recess box CNC/INC 35 CNC 25-35 / INC 35 ballasts in constant current CNC 25-35 / INC 35 ballasts in constant current CNC 25-35 / INC 35 ballasts in constant tension 12/24V CNC 25-35 / INC 35 ballasts in constant tension 12/24V Cable type H05RN-F 2x0,75 Cable type H05RN-F 2x0,75
