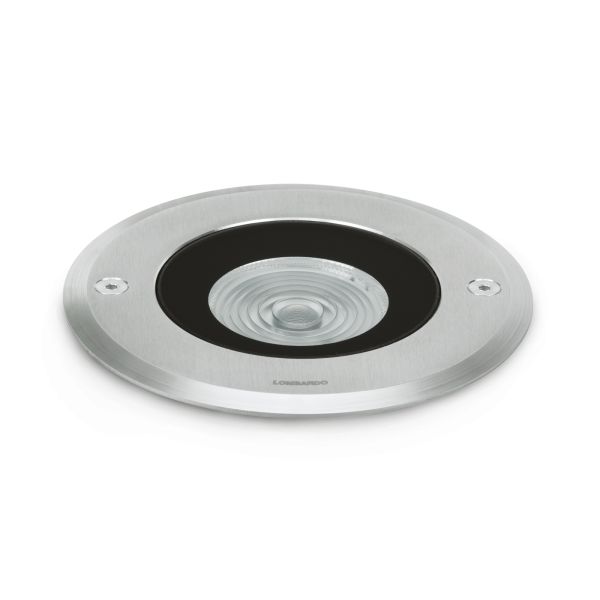

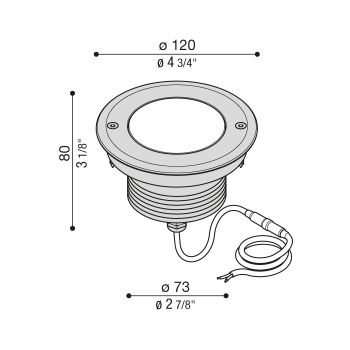

CNC 120 T

Ideal for recessed ground application, also for drive-over use.

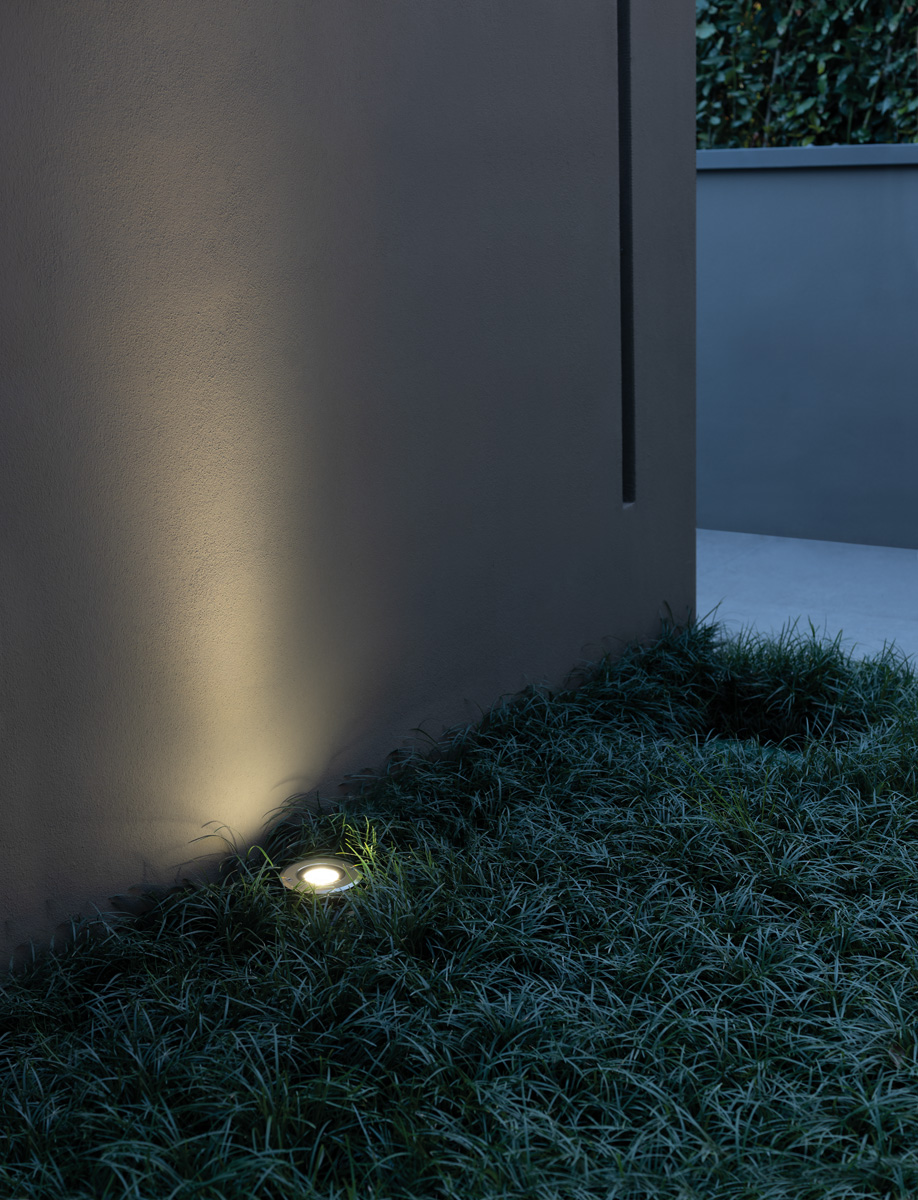

Ideal for recessed ground application, also for walk-over use. Installation by means of a recess box supplied separately. Product designed for LED light sources for accent lighting and marking driveways and pathways.

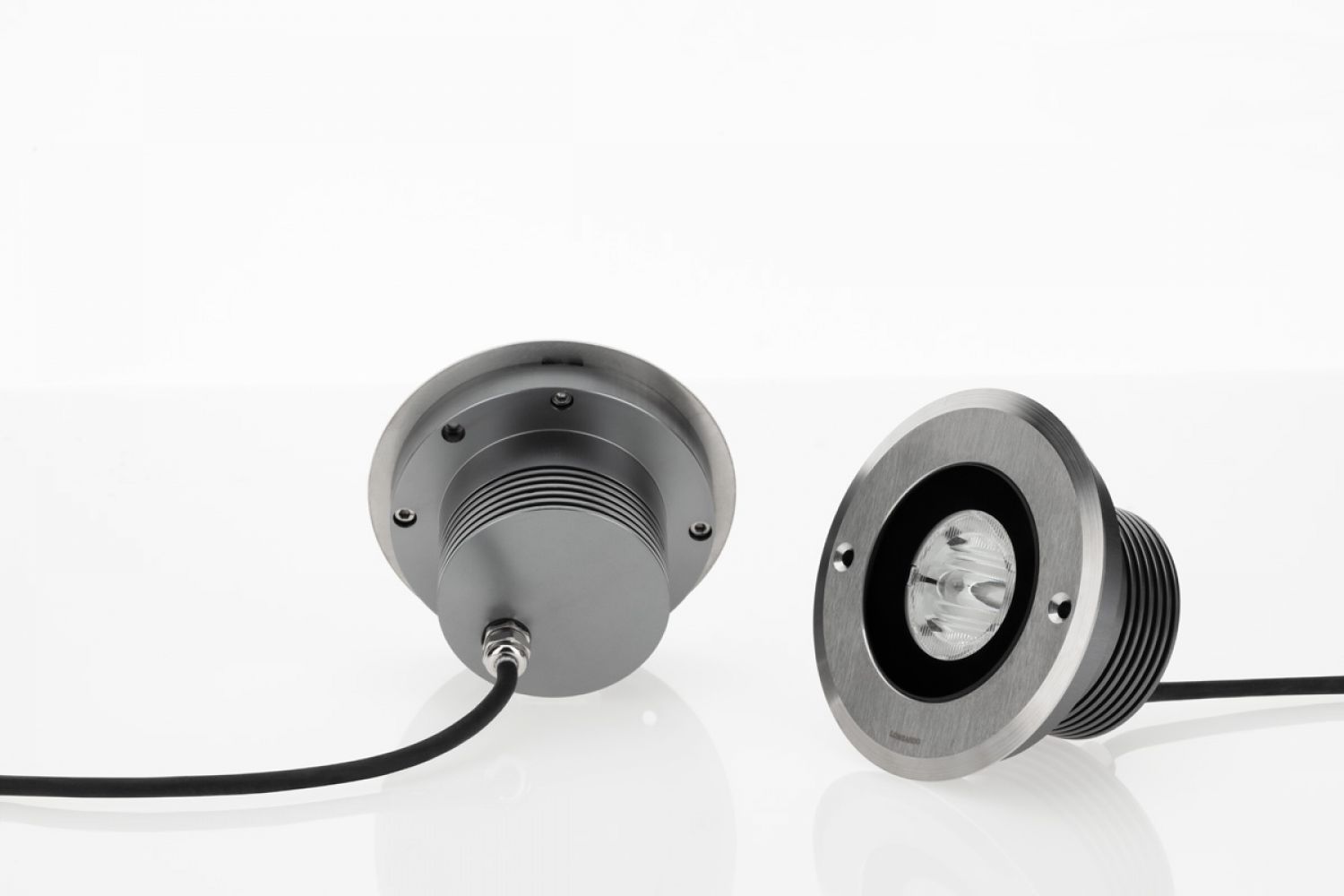

Retaining ring made of stainless steel AISI 316L, body made of EN-6061T6 anodized aluminum.
Heat tempered and silk – screen printed glass. Silicone gaskets. 1.5m pre-wired cable type H05RN-F, secured by means of a nickel-plated brass cable gland.
AISI 316L stainless steel nuts and bolts.
All the wiring is supplied with a special sheathing protecting the spot from seepage of water and damp.
Version in constant tension 12/24V. Version in constant current 700mA: only drivers type SELV or equivalent must be used.
LED 4000K (N), 3000K (3)or 2700K (2). Ballast not included. No risk of photobiological damage, RG0 group (EN62471).
IP 68
Outdoor e waterproof
Aquastop
Aquastop
Pre-wired
Pre-wired
Dimmable
Dimmable
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Serigraphed glass
Available colors
Brushed grey

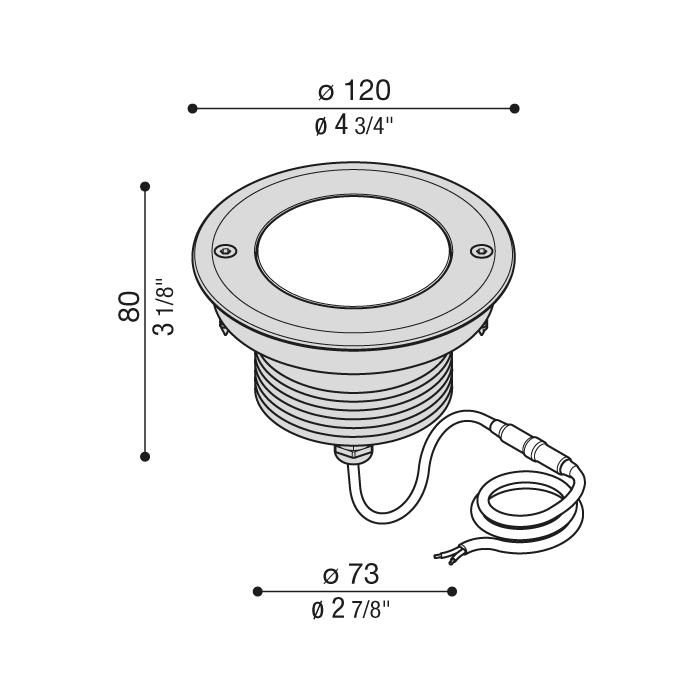

CNC 120 T
  • IP 68
  • IK 10 20J xx9
  • CE
  • Carrabile/Drive-over Max 2000 Kg
  • Temp. max Vetro/Glass 60°C (Ta 25°C)
Version with round retaining ring, choice of 4 different optics. Max. temperature measured on the glass 60°C.
Drive-over version.
Fasci di luce
CNC T/Q/UP
LED
W LM REAL LM COL. DIFF. Trasp.
CODE
OPTIC
Select optic
Optic not valid
LED COLOUR
Select LED colour
LED colour not valid
9 1000 750 CL.III 700mA - 12V 700mA - 12V Brushed grey
S
Spot-25°
M
60°
A
Asymm.
D
Diff.
B
Blade
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%
9 1000 750 CL.III 12/24V 12/24V Brushed grey

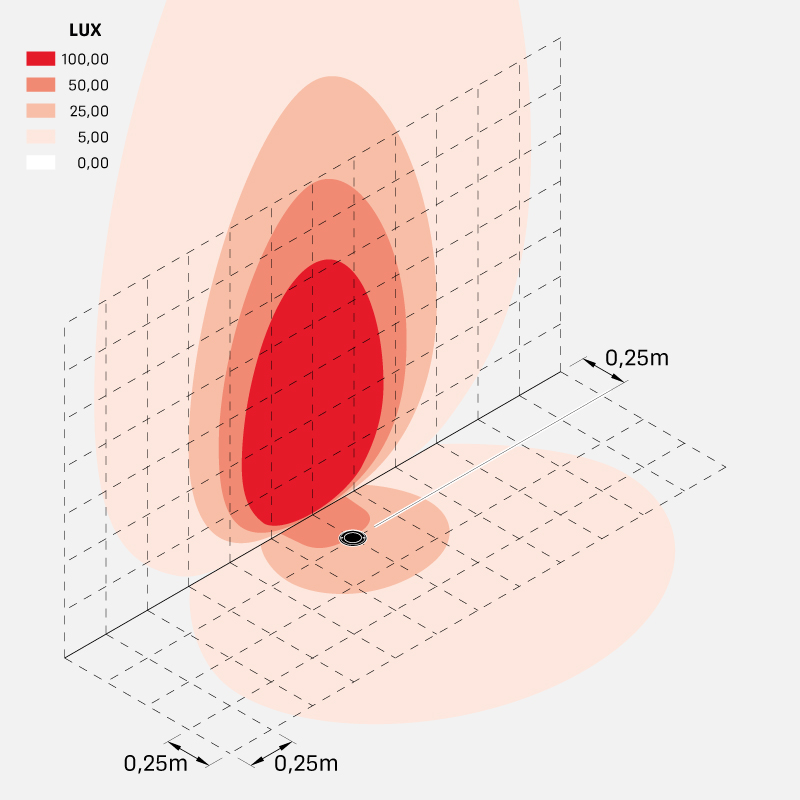

Lighting simulations

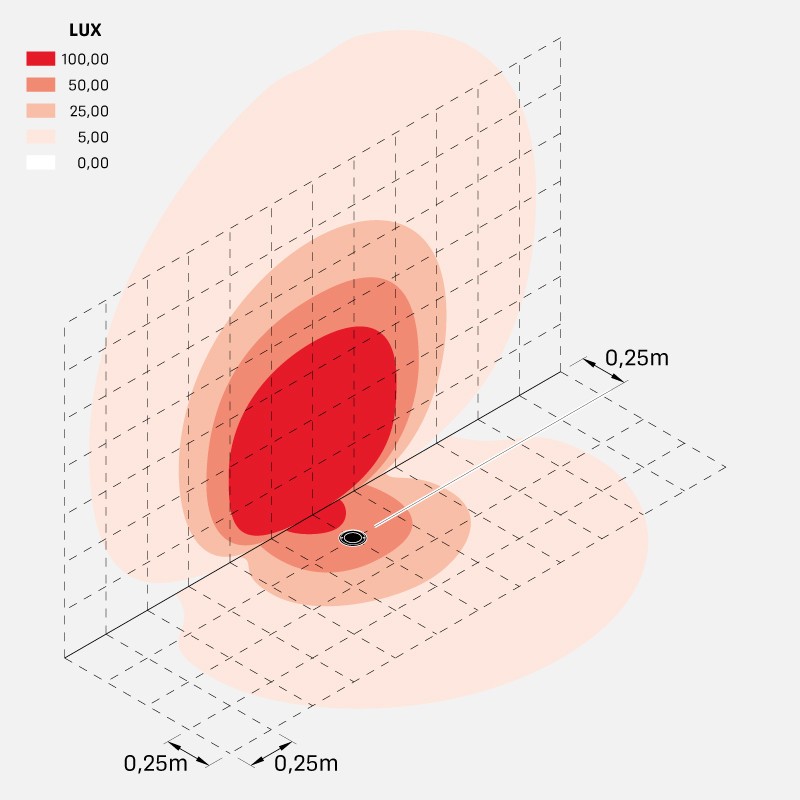

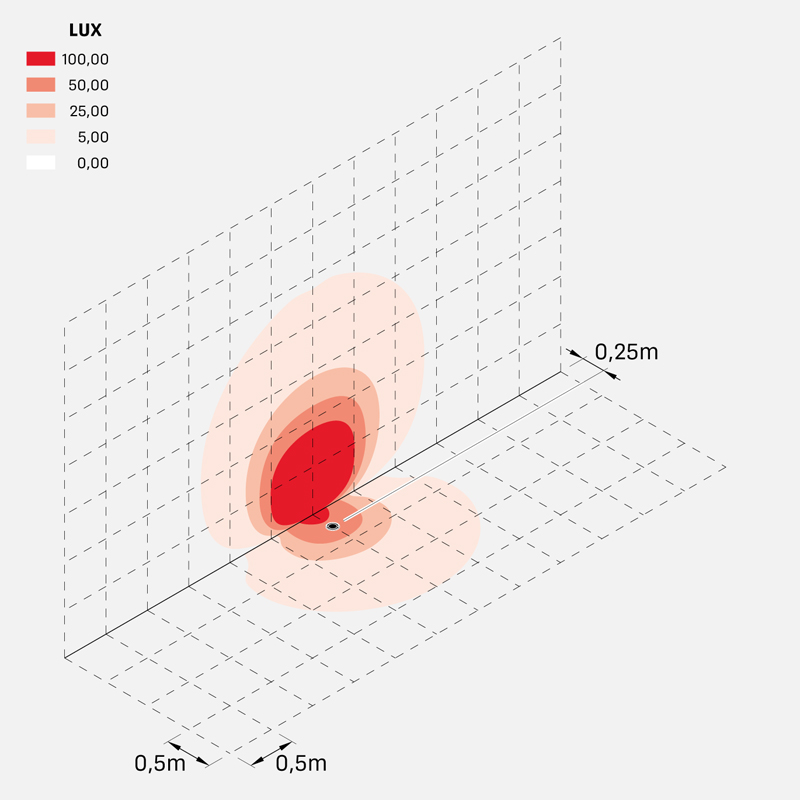

cnc_120_a
cnc_120_a

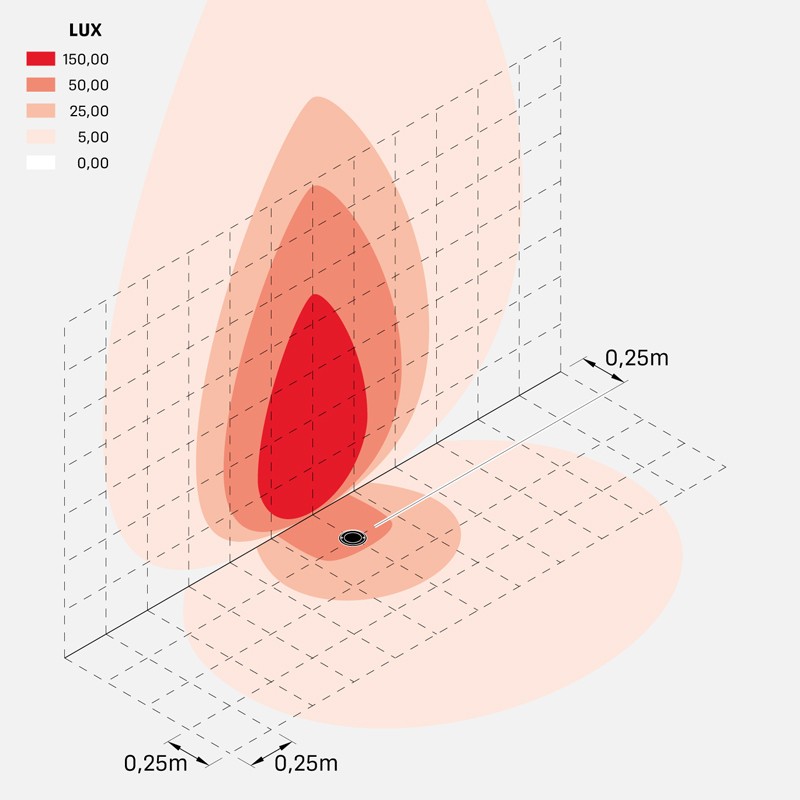

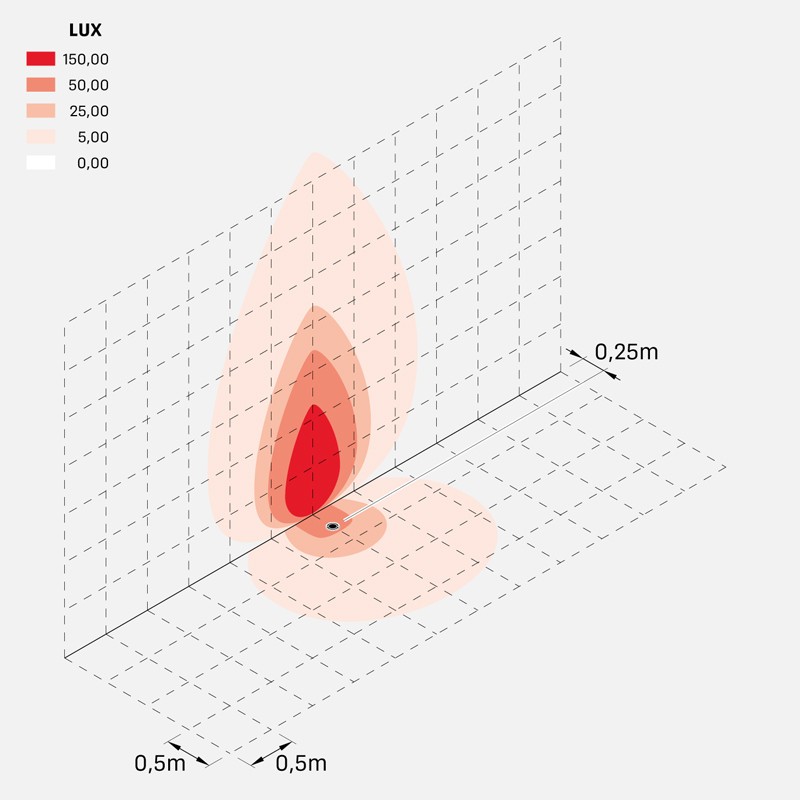

cnc_120_b
cnc_120_b

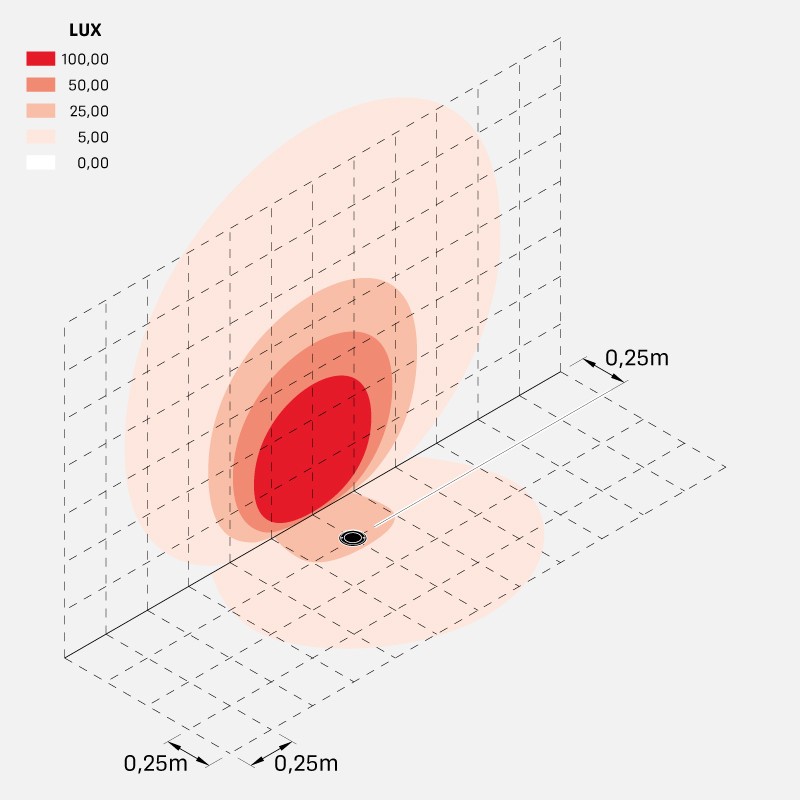

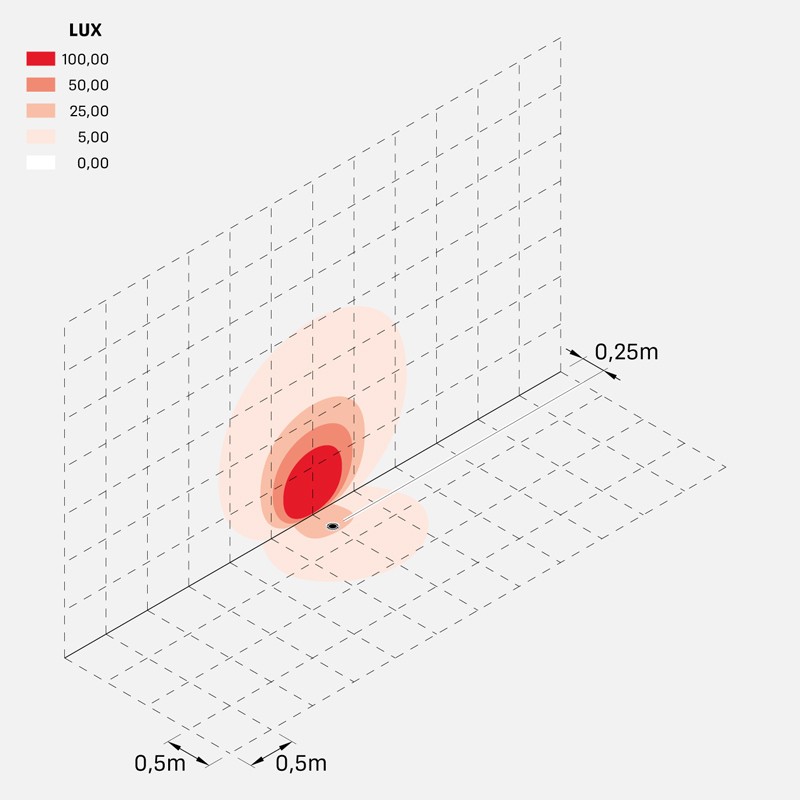

cnc_120_d
cnc_120_d

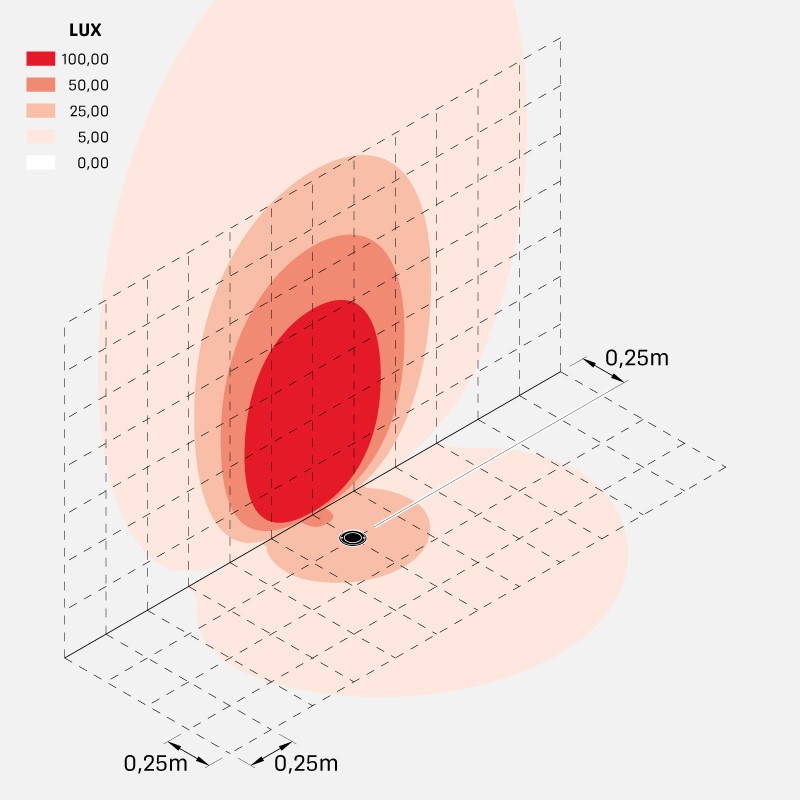

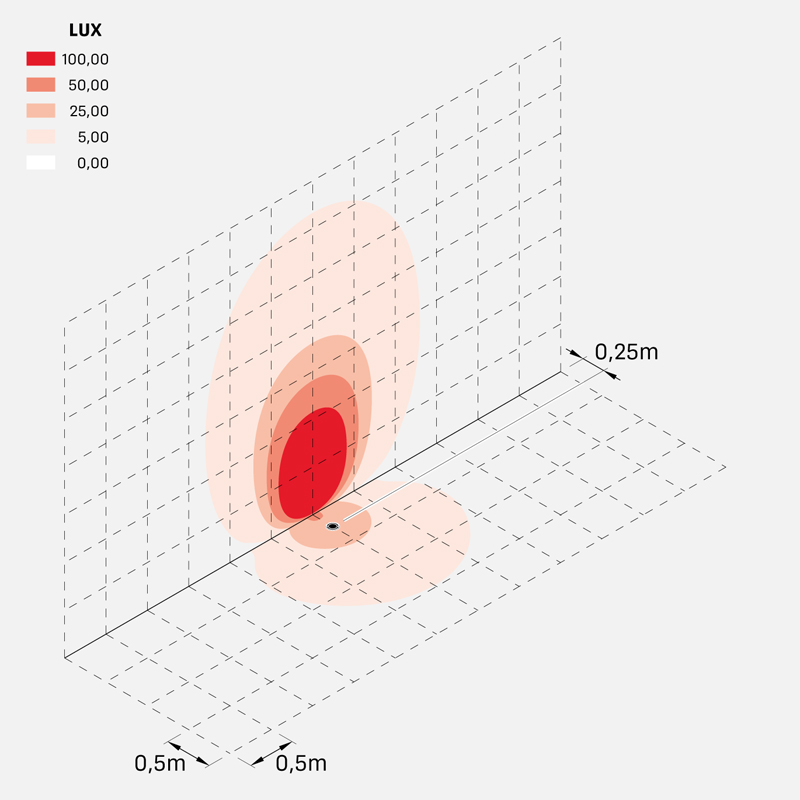

cnc_120_m
cnc_120_m

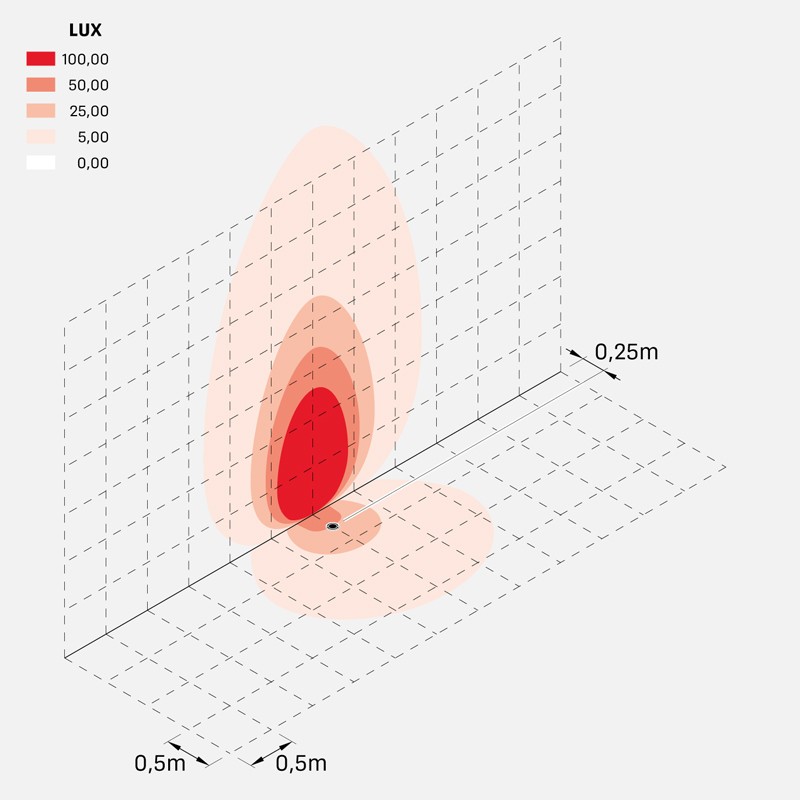

cnc_120_s
cnc_120_s
