Cnc 49 Q4L
Available colors

Cnc 49 Q4L

New

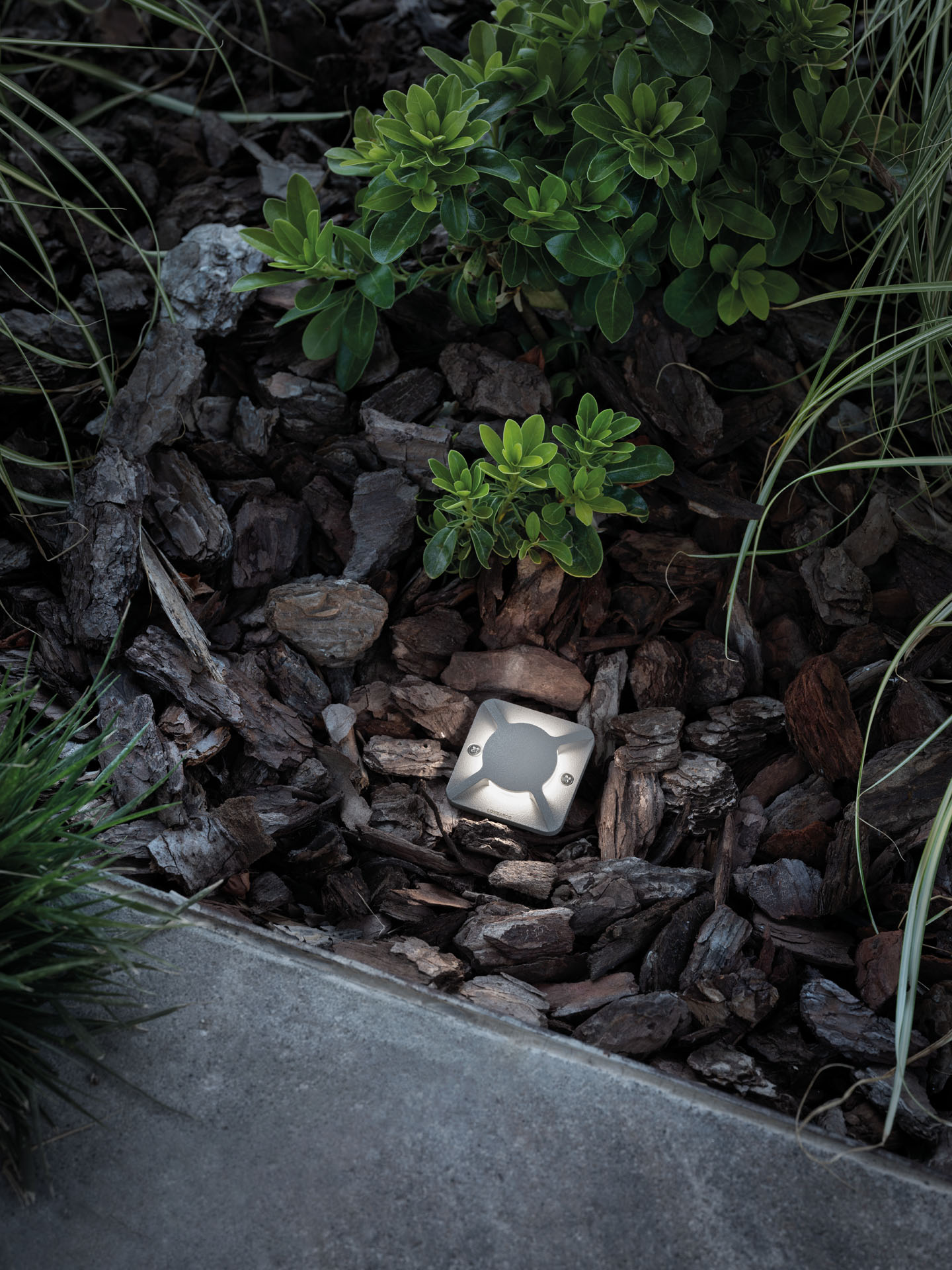

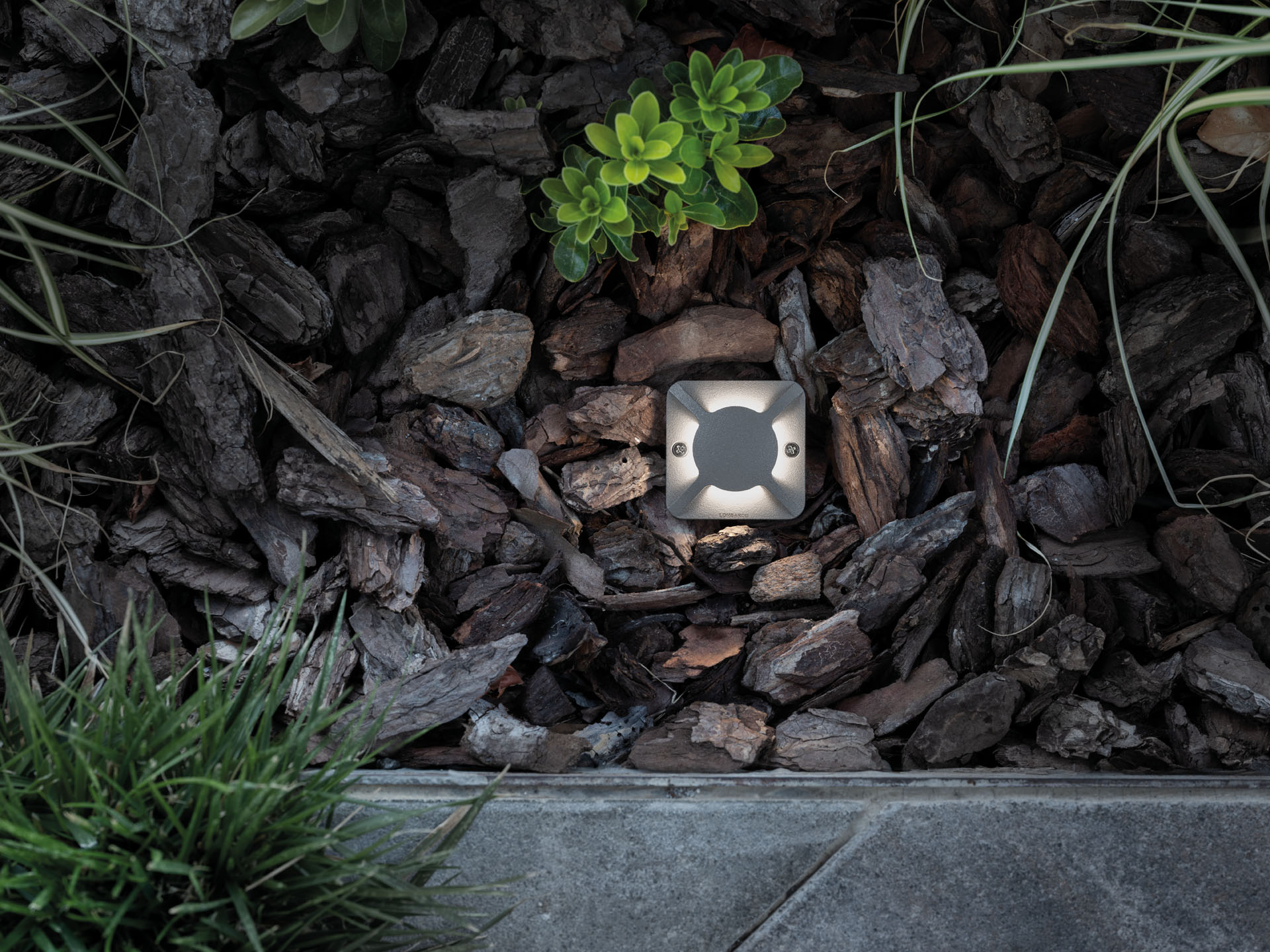

Suitable for ground and wall installation and for outdoor use. Installation directly to the ground or by means of recess box supplied separately. Product designed for LED light sources for accent lighting and making driveways and pathways. Turned aluminium body and retaining ring. Transparent polycarbonate diffuser. Silicone gaskets. 0.5 m of H05RN-F power cable pre-wired and secured by means of a nickel-plated brass cable gland. A4 or AISI 316L stainless steel nuts and bolts. Product supplied with water-stop device to protect it from water and humidity infiltration.
No photobiological risk, RG0 risk group (EN62471). LED 4000K (N), 3000K (3) or 2700K (2). Ballast 24V power supply not included.
IP 67
Outdoor e waterproof
Aquastop
Aquastop
Pre-wired
Pre-wired
Dimmable
Dimmable
Years warranty on LED circuit
Years warranty on LED circuit
Available from
October 2022
Diffuser
Polycarbonate
Cnc 49 Q4L
  • IP 67
  • IK 10 20J xx9
  • Calpestabile/Step Max 500 Kg
  • Temp. max 53°C
  • CE
Version with four openings.
Max. temperature measured on the eyelid 53°C.
LED
W LM REAL LM COL. DIFF. Trasp.
CODE
LED COLOUR
Select LED colour
LED colour not valid
2 240 83 CL.III 24V 24V White RAL 9010
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%
Grey High Tech RAL 9006
Grey anthracite RAL 7021
Corten
