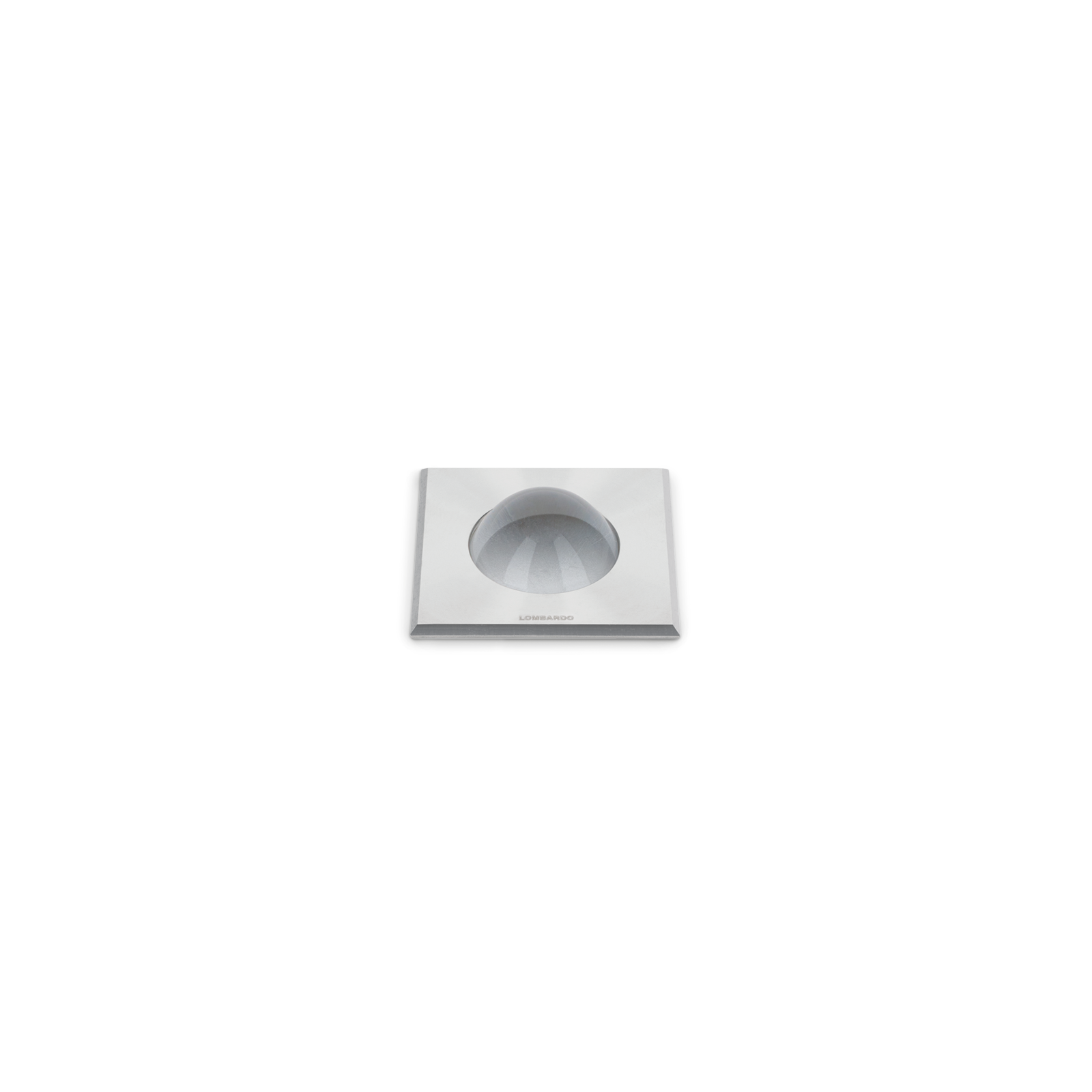

CNC 35 Q Up

Suitable for installation on walls and ceilings and for outdoor use. Ideal for recessed ground application, also for walk-over use. Installation by means of a recess box supplied separately. Product designed for LED light sources for accent lighting and marking driveways and pathways. Body and retaining ring made of stainless steel AISI 316L. Heat tempered glass diffuser. Silicone gaskets. 1.5 m. pre-wired cable type HO5RN-F 2x0,75, secured by means of a nickel-plated brass cable gland. Dimmable version available. A4 or AISI 316L stainless steel nuts and bolts.All the wiring is supplied with a special sheathing protecting the spot from seepage of water and damp. The retaining spring adapts both to applications requiring the use of the recess box or for fittings directly on plasterboard ceilings. Version in constant tension 12/24V. Version in constant current 350mA/ 500mA: only drivers type SELV or equivalent must be used. All the wiring is supplied with a built-in electronic system that allows a non-polarised connection of the spot light. CNC 35: moreover, the electronic device prevents the interruption of whole rows of downlights connected together in the event of a fault on just one of the products.
LED 4000K (N), 3000K (3), 2700K (2) or BLUE. Ballast not included.
No risk of photobiological damage, RG0 group (EN62471).
IP 67
Outdoor e waterproof
Aquastop
Aquastop
Pre-wired
Pre-wired
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Frosted glass
Available colors
Polished stainless steel
Until our stock lasts.
CNC 35 Q Up
  • IP 67
  • IK 10 20J xx9
  • CE
  • Calpestabile/Step Max 1000 Kg
  • Temp. max Vetro/Glass 65°C (Ta 25°C)
Version with protruding glass diffuser for high diffusion.
Light beam
360_nt
LED
W LM REAL LM COL. GLASS
CODE
2 180 78
CL.III 500mA - 4.8V 500mA - 4.8V
Polished stainless steel
LL107026
2 180 78
CL.III 12/24V 12/24V
Polished stainless steel
LL107027
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K
B
Blue

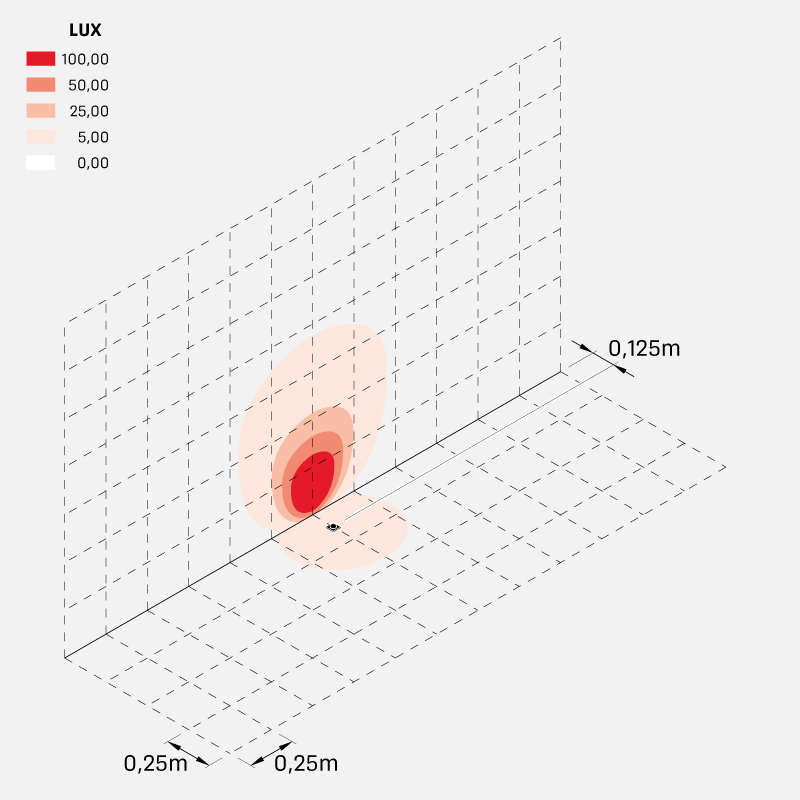

Lighting simulations

cnc_35q_up
cnc_35q_up
