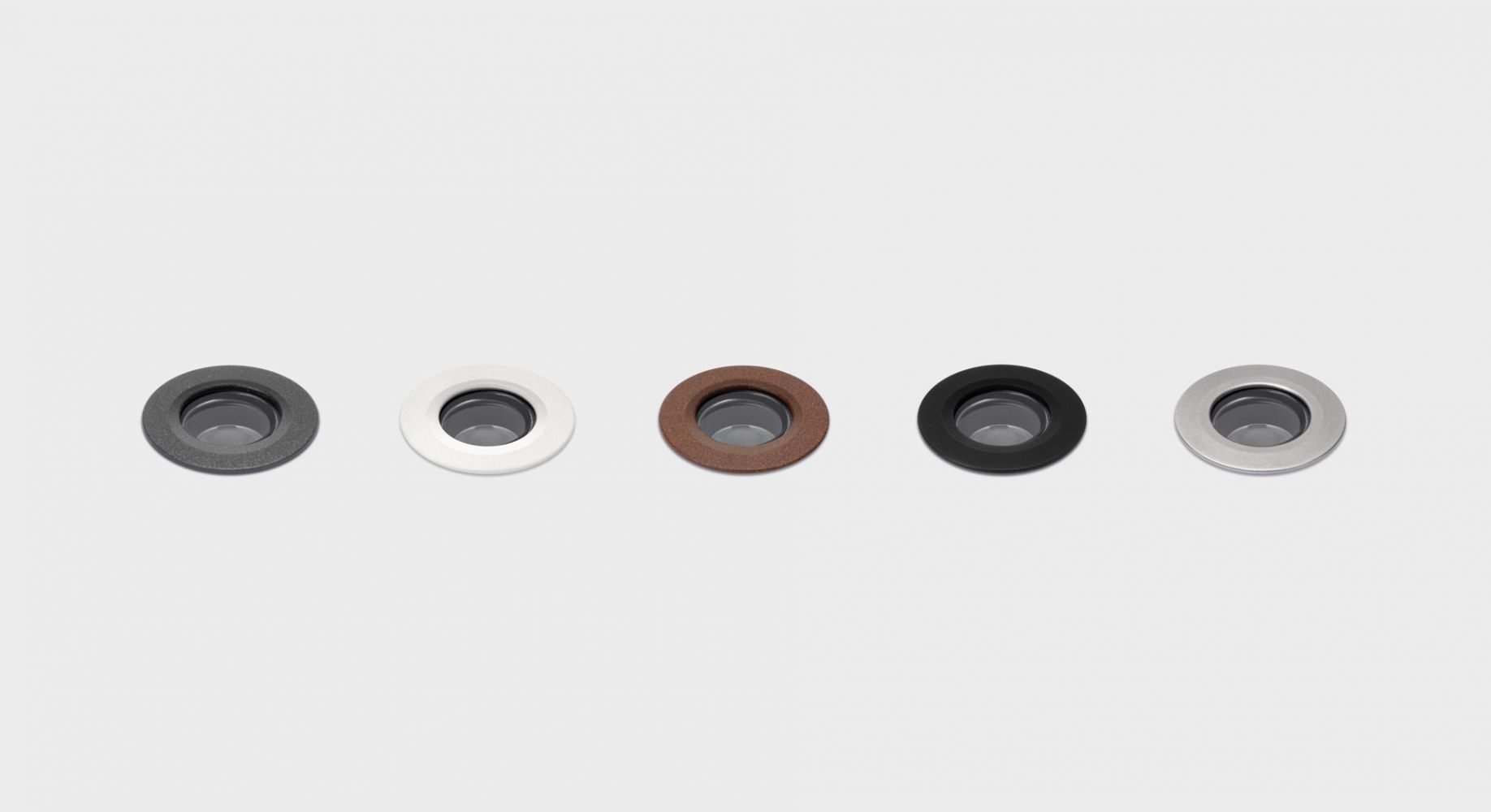

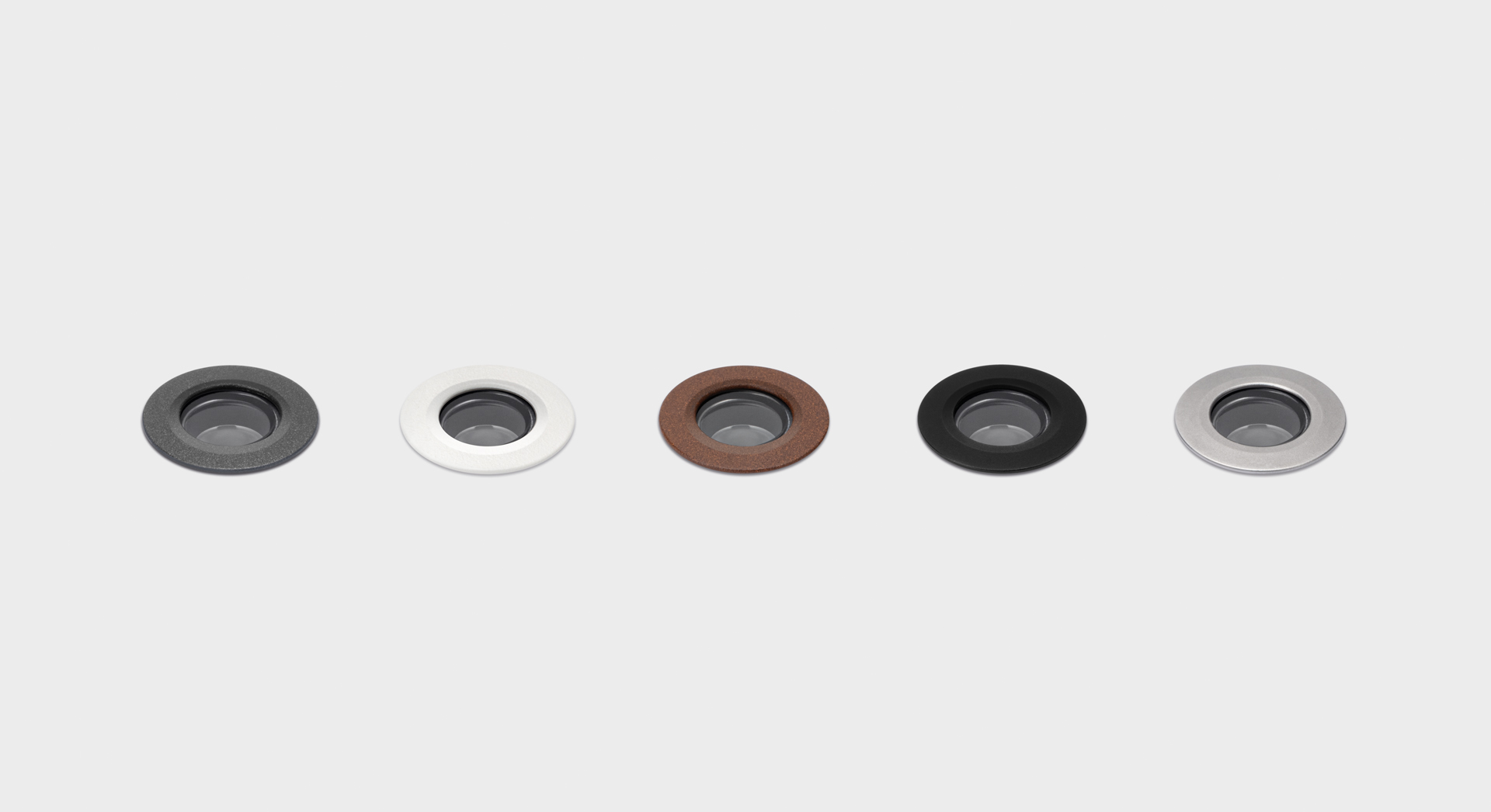

Available colors

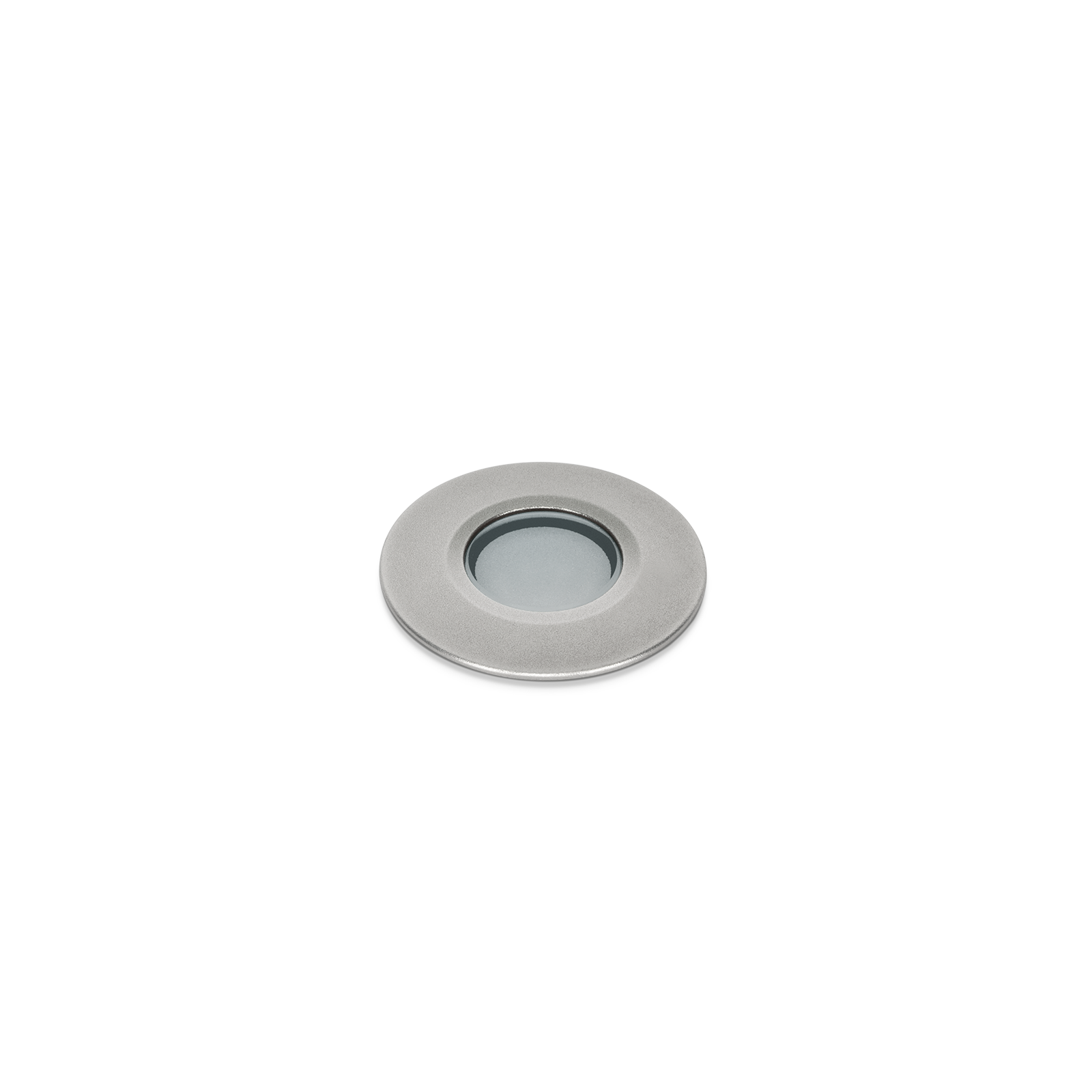

CNC 25 2.0 T Full Resin

Minimalist recessed step light. Also suitable for outdoor use. Aluminium body and AISI 316L stainless steel ring. Wide range of colour temperatures. Diffused glass diffuser. The product has an IP 67 rating and is fitted with an integrated Aquastop system that protects it from water ingress and humidity. Pre-wired luminaire with a multi-year warranty on the LED circuit, supplied with H05RN-F 2x0.75 power cable. Power supply not included: 24Vdc or 500mA - 6V. LEDs: 4000K (N) or 3000K (3), 2700K (2) or 2200K (1). No photobiological risk under normal conditions of use; RG1 risk group exempt (EN62471).

expand

Outdoor e waterproof

24 V

Aquastop

Dimmable

Anodisation

Pre-wired

Minimum Environmental Criteria

7 years warranty on LED circuit

Diffuser

Transparent glass

Ask for information

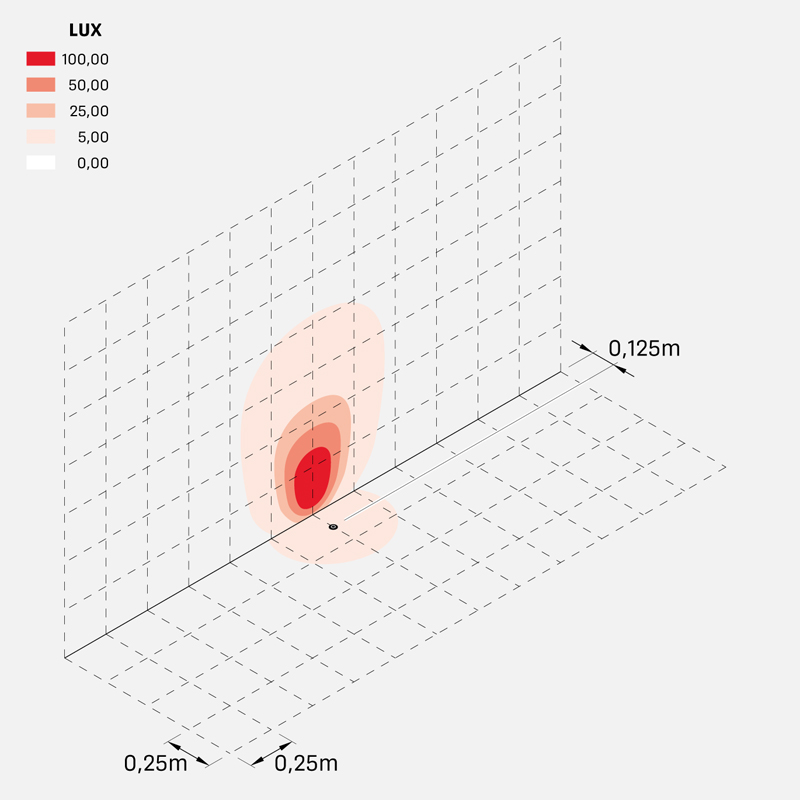

Lighting simulations

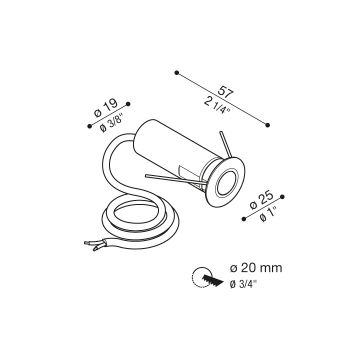

CNC 25 2.0 T Full Resin

Temp. max on diffuser 65°C

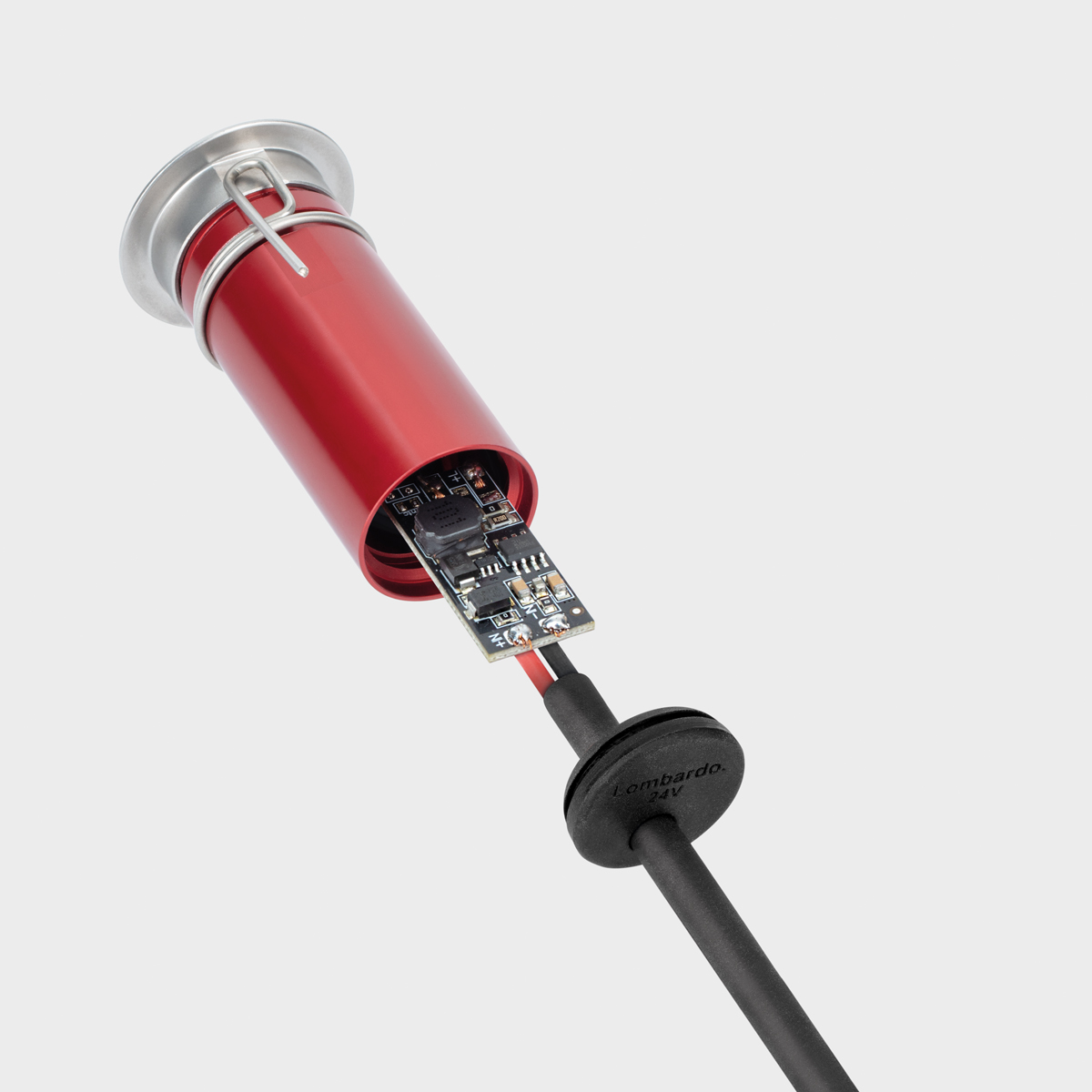

Full Resin version: new LED and circuit encapsulation technology that extends product life. Features diffused glass.

Light beam

LED
W	LM	REAL LM		COL.	CODE	Download
2	150	75	24V		LT158000F	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LT15800EF	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LT15800KF	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LT15800WF	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LT15800BF	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
2	150	75	500mA - 6V		LZ158000F	CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LZ15800EF	CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LZ15800KF	CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LZ15800WF	CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
					LZ15800BF	CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range

Complete the CODE

LED COLOUR

4000K

3000K

2700K

2200K

OPTIONAL CABLES

HO5RN-F 2x0.75 cable 4 | 5m 5 | 10m 6 | 15m 7 | 20m
