CNC 50 2.0 T
Available colors
Sandblasted Grey Grey anthracite RAL 7021 Corten White RAL 9010 Black PVD

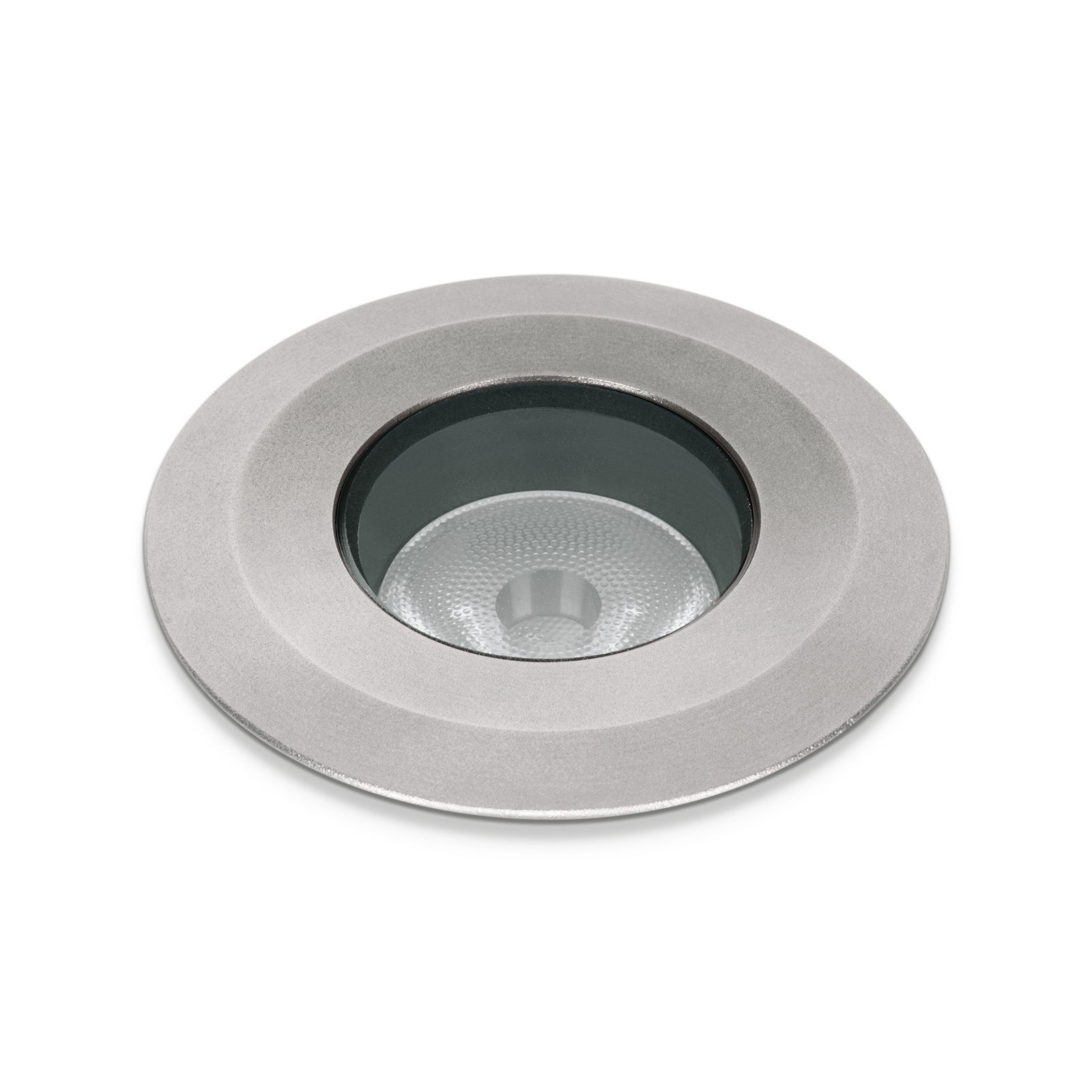

CNC 50 2.0 T

New

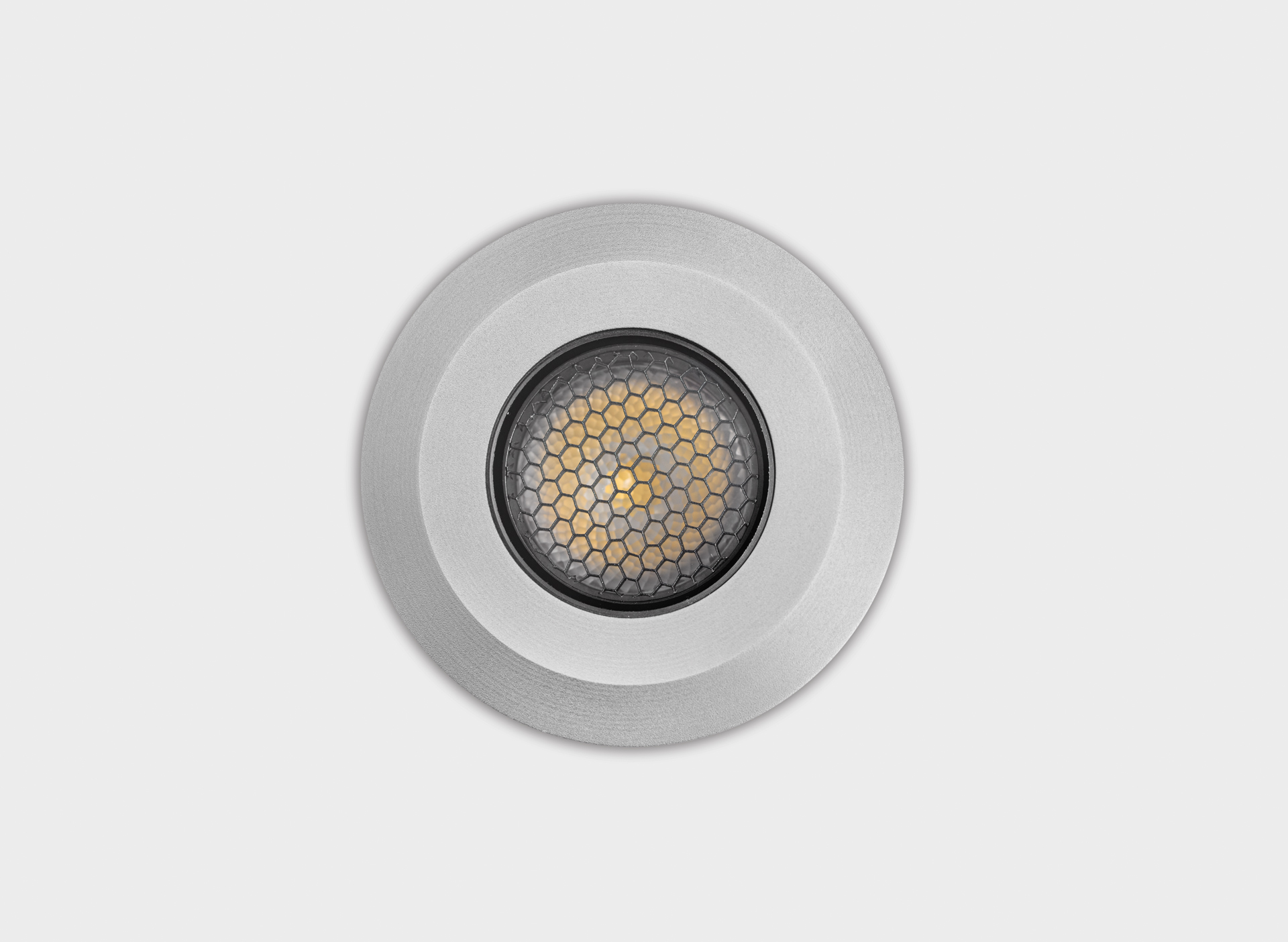

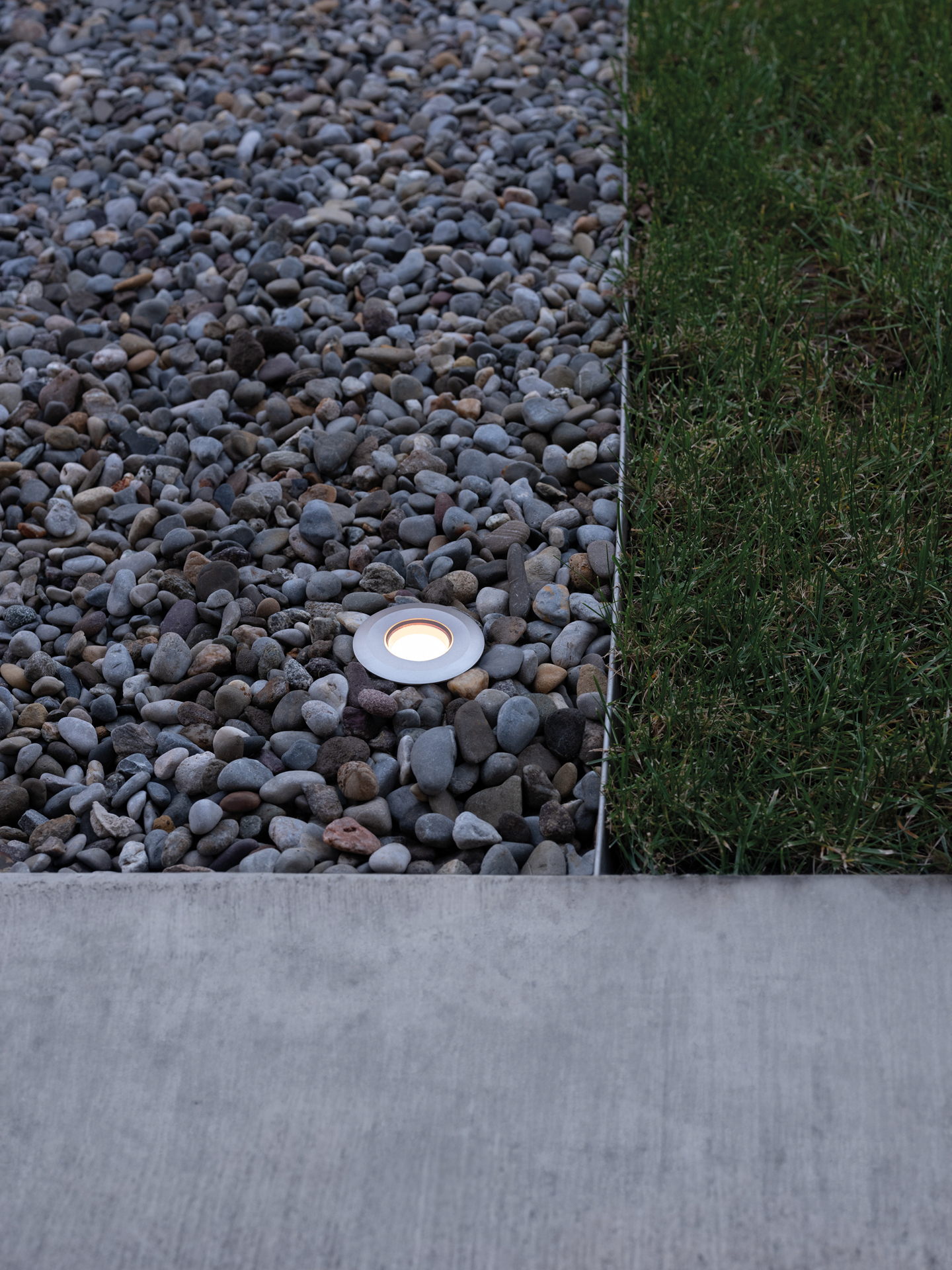

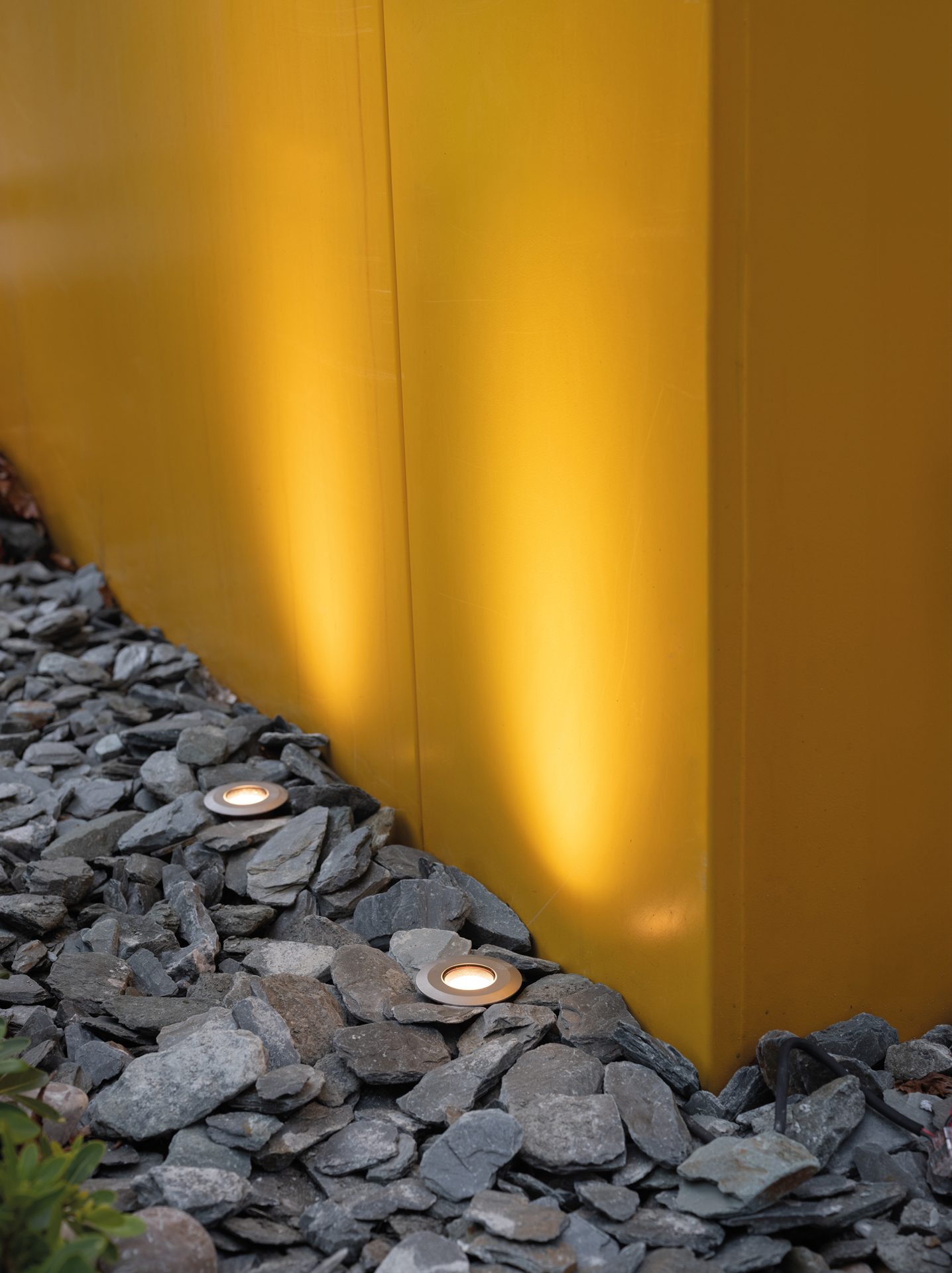

Minimalist downlight for recessed installation. Also suitable for outdoor use. Aluminium and/or AISI316L steel body. Wide choice of colour temperatures. Transparent glass diffuser. The product has an IP 67 rating and is fitted with an integrated Aquastop to protect against water and humidity infiltration. Pre-wired luminaire with multi-year warranty on LED circuit, supplied with power cord H05RN-F 2x0.75. Power supply excluded 24Vdc or 500mA - 6V. Honeycomb version available (not available with D optics). LED 4000K (N) or 3000K (3), 2700K (2) or 2200K (1). No photobiological risk under normal conditions of use; RG1 risk group exempt (EN62471).
IP 67
Outdoor e waterproof
24 V
24 V
Aquastop
Aquastop
Dimmable
Dimmable
Anodisation
Anodisation
Pre-wired
Pre-wired
CRI 90
CRI 90
Sea Treatment
Sea Treatment
5 years warranty on LED circuit
5 years warranty on LED circuit
Diffuser
Transparent glass
Ask for information
Lighting simulations
CNC 50 2.0 T
  • IP 67
  • IK 10 20J xx9
  • Calpestabile/Step Max 500 Kg
  • Temp. max on diffuser 65°C
  • CE
Optic D not available for Honeycomb version.
Light beam
360_nt
CNC 50 2.0 T
LED
W LM REAL LM COL. CODE Download
6,5 694 575
CL.III 24V 24V
Sandblasted Grey
LT158200
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LT15820E
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LT15820K
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
White RAL 9010
LT15820W
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Black PVD
LT15820B
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
6,5 694 392
CL.III 24V 24V HONEYCOMB
Sandblasted Grey
LT15820H0
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LT15820HE
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LT15820HK
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
White RAL 9010
LT15820HW
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Black PVD
LT15820HB
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
6,5 694 575
CL.III 500mA - 15V 500mA - 15V
Sandblasted Grey
LZ158200
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LZ15820E
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LZ15820K
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
White RAL 9010
LZ15820W
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Black PVD
LZ15820B
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
6,5 694 392
CL.III 500mA - 15V 500mA - 15V HONEYCOMB
Sandblasted Grey
LZ15820H0
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LZ15820HE
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LZ15820HK
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
White RAL 9010
LZ15820HW
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Black PVD
LZ15820HB
CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Complete the CODE
OPTIC
S
25°
M
30°
L
50°
D
Diff.
LED COLOUR
N
4000K
3
3000K
2
2700K
1
2200K

Lighting simulations

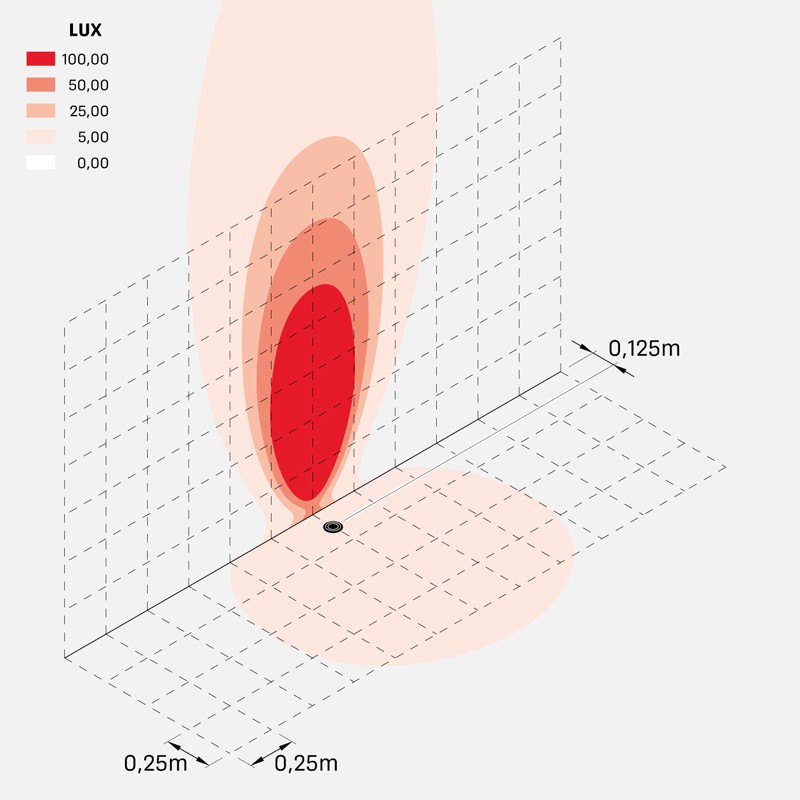

cnc_50t_20_optic_S
cnc_50t_20_optic_S

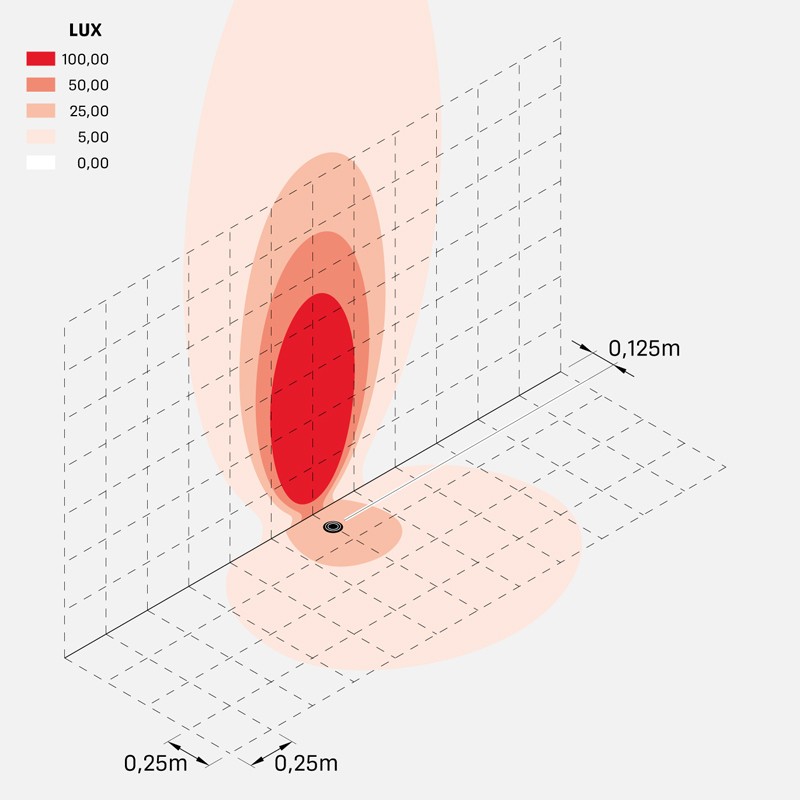

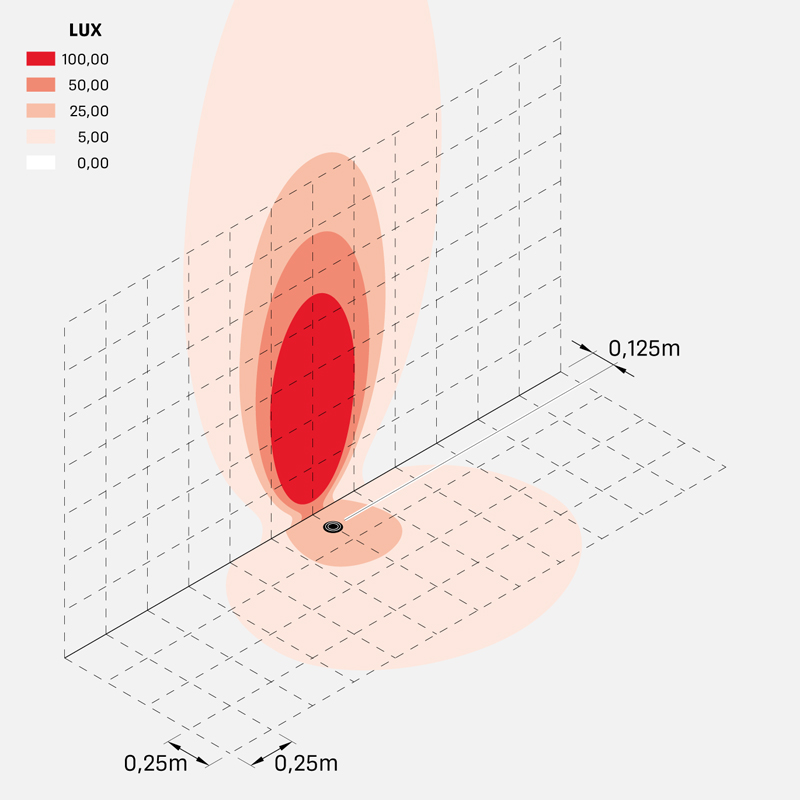

cnc_50t_20_optic_M
cnc_50t_20_optic_M

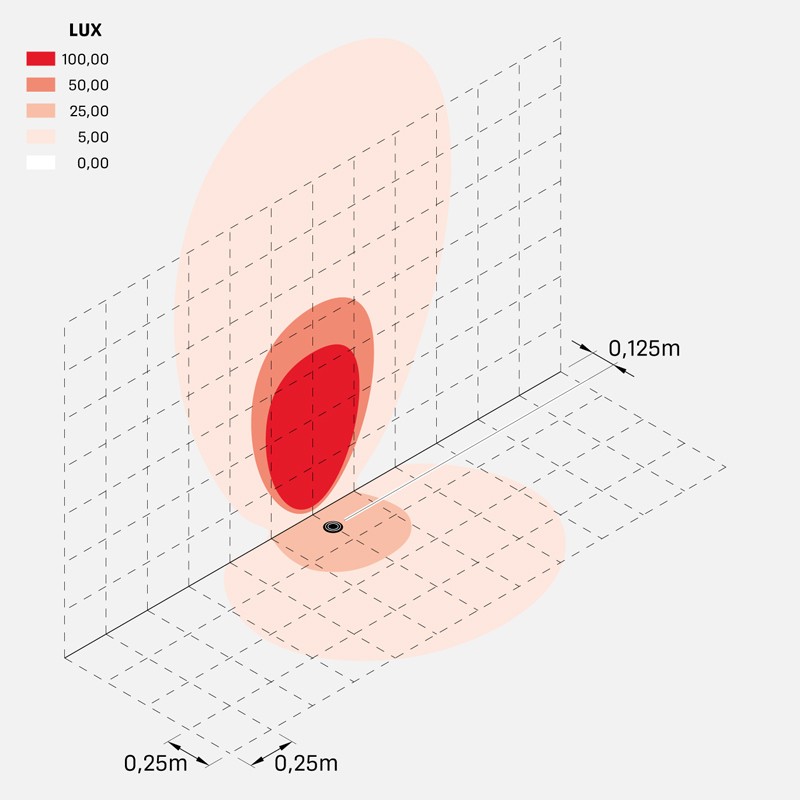

cnc_50t_20_optic_L
cnc_50t_20_optic_L

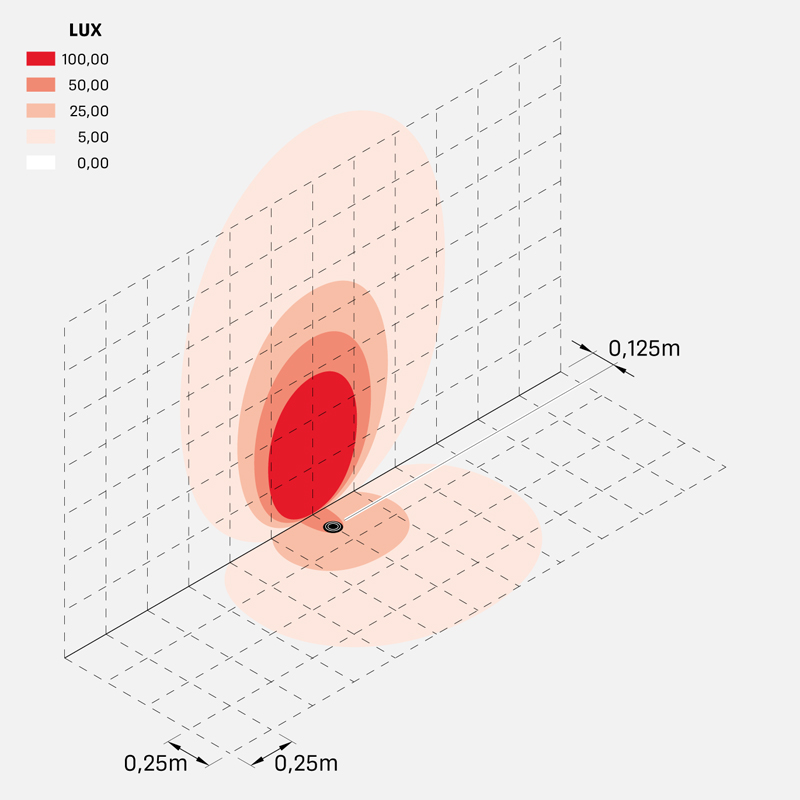

cnc_50t_20_optic_D
cnc_50t_20_optic_D

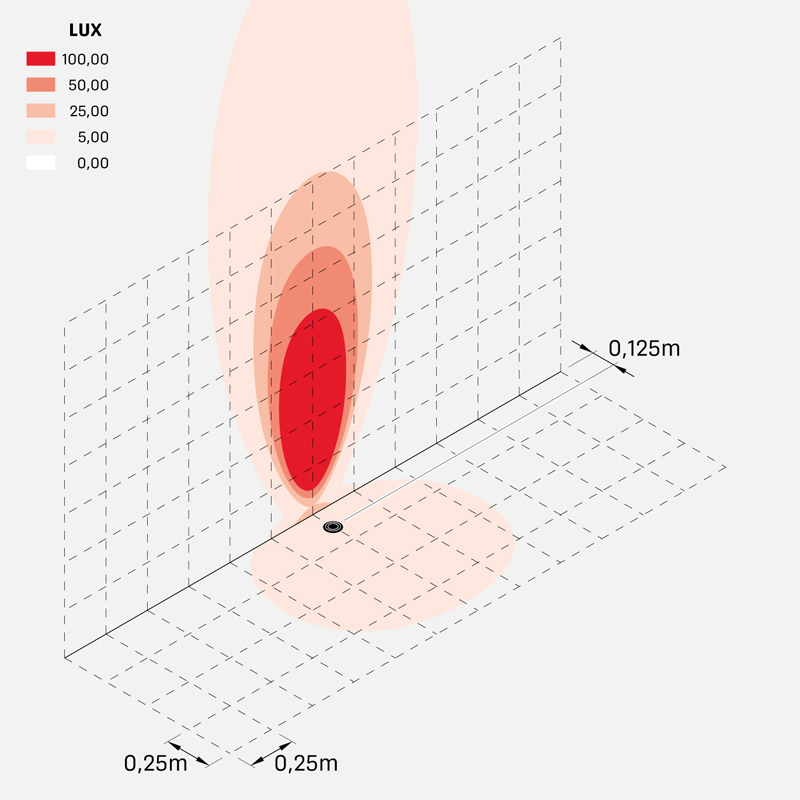

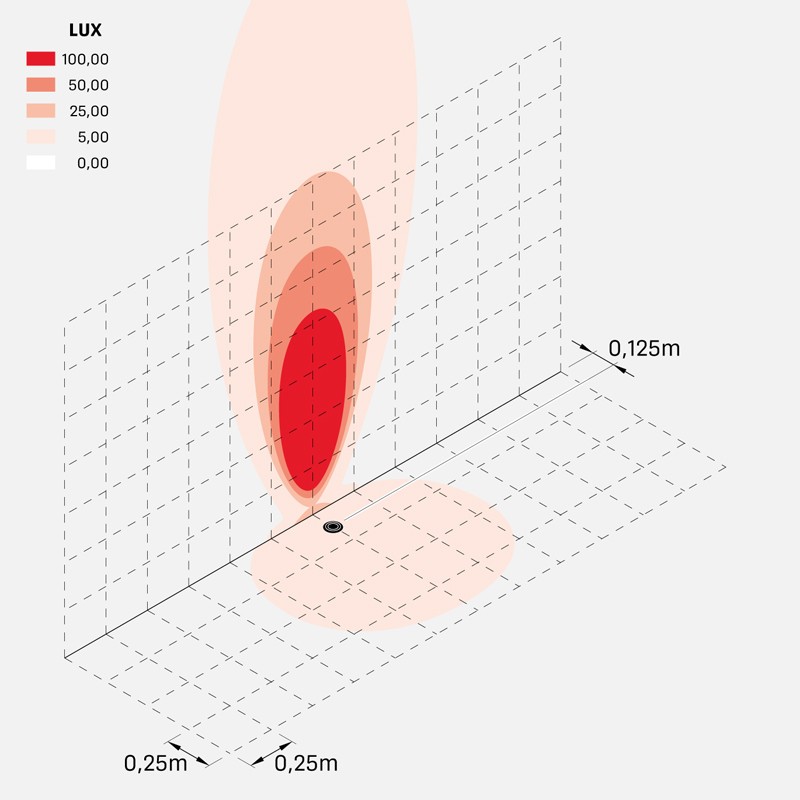

cnc_50t_20_honeycomb_optic_S
cnc_50t_20_honeycomb_optic_S

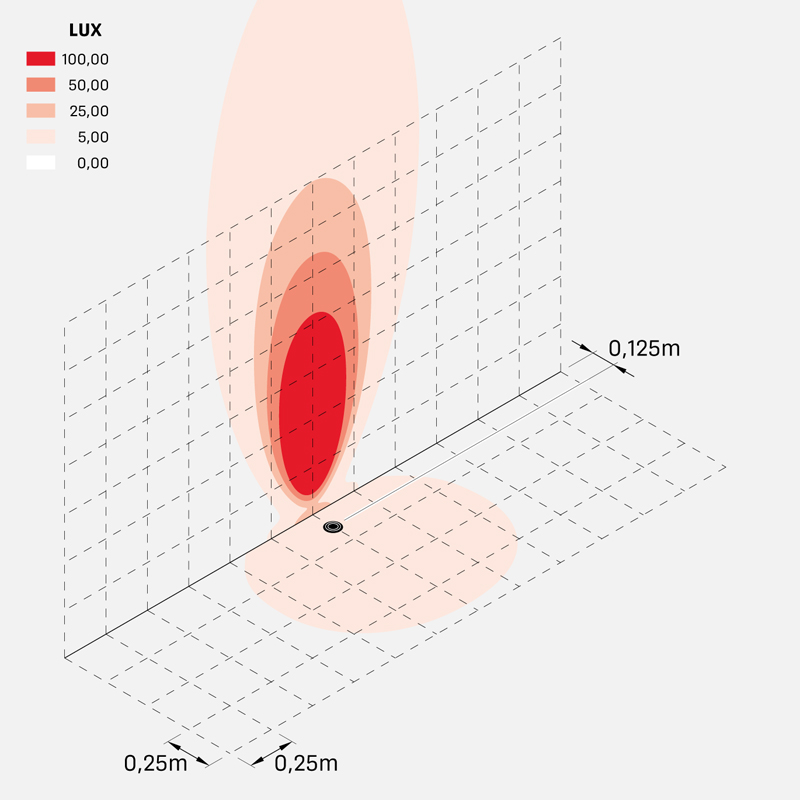

cnc_50t_20_honeycomb_optic_M
cnc_50t_20_honeycomb_optic_M

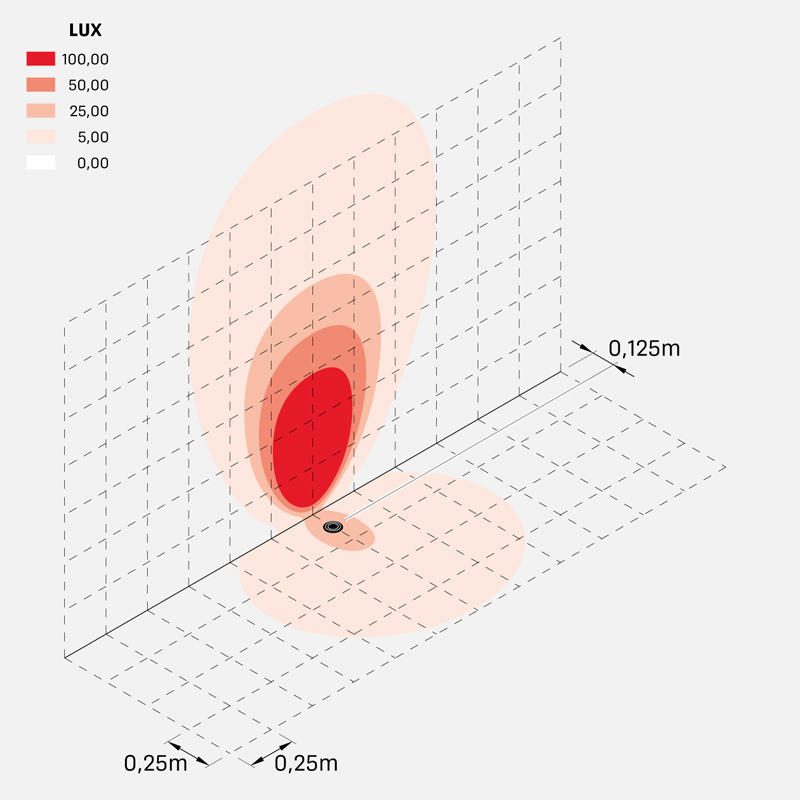

cnc_50t_20_honeycomb_optic_L
cnc_50t_20_honeycomb_optic_L
