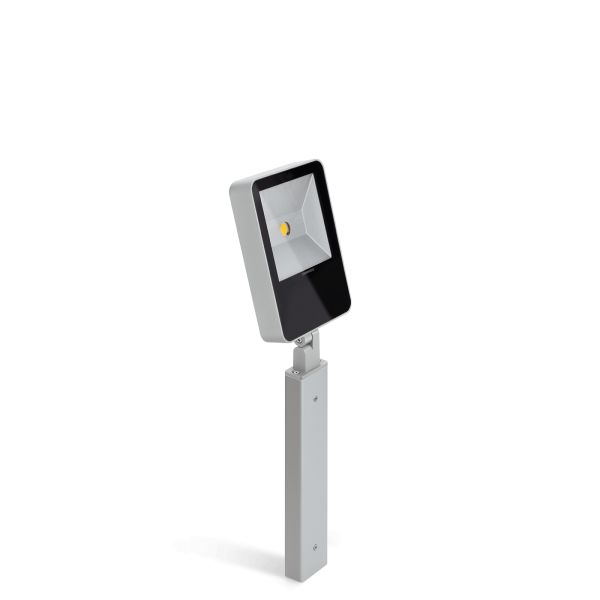

Kit 14 - Tag 210 H300
Design: Giancarlo Alci

Kit 14 - Tag 210 H300

Kit-10/11/12: consisting of Tag 110 + Bracket. Inaccessible device, provided with 1m of prewired power cable H05RN-F. No risk of photobiological damage, RG0 group (EN62471).
Kit-13/14/15: consisting of Tag210 + Bracket. Prearranged for double power input. Provided with 1m of prewired power cable H05RN-F. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Kit-16/17/18: consisting of assymetric Tag 210 + Bracket. Prearranged for double power input. Provided with 1m of prewired power cable H05RN-F. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Also suitable for outdoor use. Die-cast aluminum Body and joint highly resistant to oxidation thanks to the zirconium based passivation treatment and the UV stabilized polyester resin coating. Heat tempered and serigraphed glass diffuser. Aluminum reflector. Silicone gaskets to maintain IP66 rating. A4 stainless steel nuts and bolts.
180° angle adjustment.

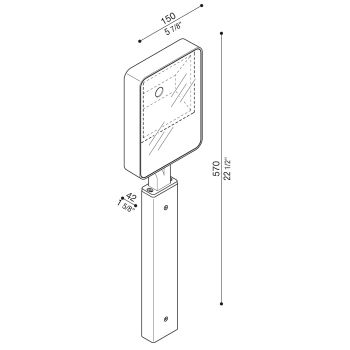

Possibility of installation Tag 110/210 on a post, height: 500 mm - 300 mm. - 160 mm., designed for wall or ceiling installation. Post made of extruded aluminum. Highly resistant to oxidization thanks to the zirconium based passivation process and the coating with UV-stabilised polyester resins. A4 stainless steel nuts and bolts. Complete with fastening kit and stainless steel cable.
LED 4000K (N), 3000K (3) or 2700K (2). Integral ballast 220-240V.
Diffuser
Serigraphed glass
Available configurations
Bracket
Available colors
White RAL 9010 Grey High Tech RAL 9006 Grey anthracite RAL 7021 Corten
Ask for information
Kit 14 - Tag 210 H300
  • IP 66
  • IK 06 1J xx3
  • CE
Kit consisting of TAG 210 + LB1150019/20/21/22.
LED
W LM REAL LM COL. DIFF. Trasp.
CODE
LED COLOUR
A++ 25 3500 2585 CL.I LED version with integrated ballast White RAL 9010
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%
Grey High Tech RAL 9006
Grey anthracite RAL 7021
Corten
