Kit 08 - Tag 210 Post
Design: Giancarlo Alci

Kit 08 - Tag 210 Post

Kit-07: consisting of Tag 110 + Adaptor for Post Ø 60. Inaccessible device, provided with 1m of prewired power cable H05RN-F. No risk of photobiological damage, RG0 group (EN62471).

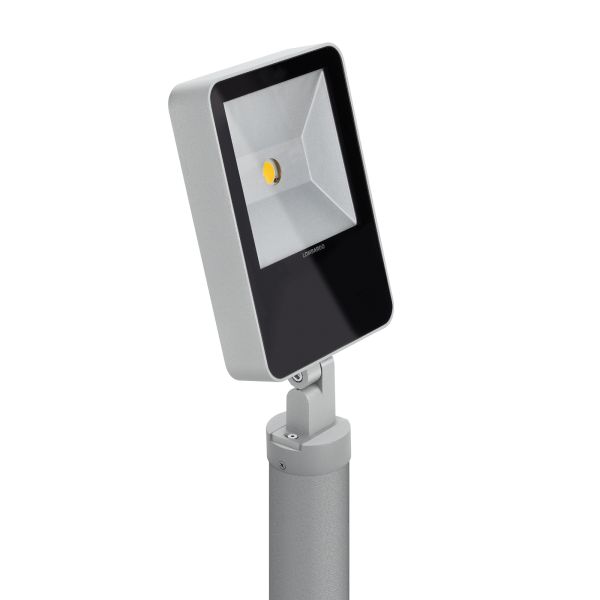

Kit-08: consisting of Tag210 + Adaptor for Post Ø 60. Prearranged for double power input. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Kit-09: consisting of assymetric Tag 210 + Adaptor for Post Ø 60. Prearranged for double power input. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Also suitable for outdoor use. Die-cast aluminum Body and joint highly resistant to oxidation thanks to the zirconium based passivation treatment and the UV stabilized polyester resin coating. Heat tempered and serigraphed glass diffuser. Aluminum reflector. Silicone gaskets to maintain IP66 rating. A4 stainless steel nuts and bolts.
180° angle adjustment.
Adapter for installation Tag 110/210 on a standard post Ø60 mm. Die-cast alluminum Body, highly resistant to oxidization, coated with UV-stabilised polyester resins. A4 stainless steel nuts and bolts.
Post not included.
LED 4000K (N), 3000K (3) or 2700K (2). LED. Integral ballast 220-240V.
Diffuser
Serigraphed glass
Available configurations
Post 1 luminaire Post
Available colors
Grey High Tech RAL 9006 Grey anthracite RAL 7021 Corten
Ask for information
Kit 08 - Tag 210 Post
  • IP 66
  • IK 06 1J xx3
  • CE
Kit consisting of TAG 210 + LB1150012/3/4.
LED
W LM REAL LM COL. DIFF. Trasp.
CODE
LED COLOUR
A++ 25 3500 2585 CL.I LED version with integrated ballast Grey High Tech RAL 9006
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%
Grey anthracite RAL 7021
Corten
