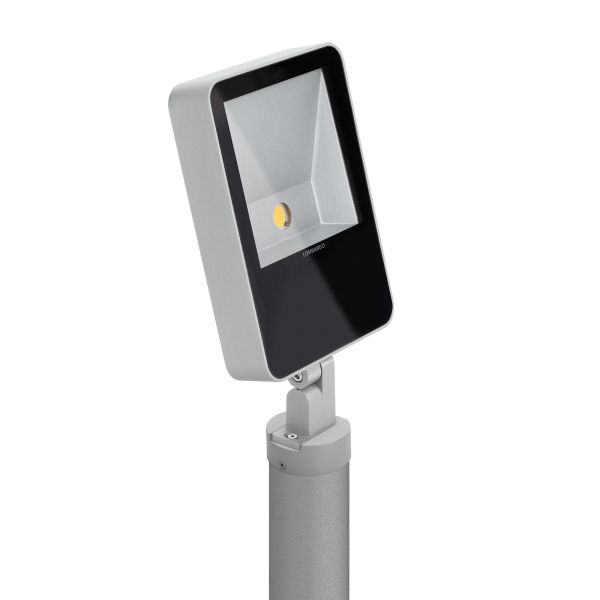

Kit 09 - Tag 210 Asimmetrico Post
Available colors
Grey High Tech RAL 9006 Grey anthracite RAL 7021 Corten

Kit 09 - Tag 210 Asimmetrico Post

Kit-07: consisting of Tag 110 + Adaptor for Post Ø 60. Inaccessible device, provided with 1m of prewired power cable H05RN-F. No risk of photobiological damage, RG0 group (EN62471).
Kit-08: consisting of Tag210 + Adaptor for Post Ø 60. Prearranged for double power input. Provided with 1m of prewired power cable H05RN-F. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Kit-09: consisting of assymetric Tag 210 + Adaptor for Post Ø 60. Prearranged for double power input. Provided with 1m of prewired power cable H05RN-F. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Also suitable for outdoor use. Die-cast aluminum Body and joint highly resistant to oxidation thanks to the zirconium based passivation treatment and the UV stabilized polyester resin coating. Heat tempered and serigraphed glass diffuser. Aluminum reflector. Silicone gaskets to maintain IP66 rating. A4 stainless steel nuts and bolts.
180° angle adjustment.
Adapter for installation Tag 110/210 on a standard post Ø60 mm. Die-cast alluminum Body, highly resistant to oxidization, coated with UV-stabilised polyester resins. A4 stainless steel nuts and bolts.
Post not included.
LED 4000K (N), 3000K (3) or 2700K (2). LED. Integral ballast 220-240V.
IP 66
Outdoor e waterproof
Direct power supply
Direct power supply
Pre-wired
Pre-wired
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Serigraphed glass
Ask for information
|
Kit 09 - Tag 210 Asimmetrico Post
Kit 09 - Tag 210 Asimmetrico Post
  • IP 66
  • IK 06 1J xx3
  • CE
Kit consisting of TAG 210 Asimmetrico + LB1150012/3/4. BORDO MARE: add S to the end of the selected code including LED colour to have the product supplied with sea treatment against salt spray.
Fasci di luce
asimmetrico
LED
 W LM REAL LM COL. DIFF. Trasp.
CODE 		LED COLOUR
Select LED colour
LED colour not valid
25 3500 2386 CL.I LED version with integrated ballast 220-240 V Grey High Tech RAL 9006
LL115116
CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Family range
N
4000K
3
3000K
2
2700K
Grey anthracite RAL 7021
LL115117
CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Family range
Corten
LL115118
CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Family range
