Ago Applique U&D
Available colors

Ago Applique U&D

Suitable for wall installation for outdoor use. Body made of EN-6026 anodized aluminum, highly resistant to oxidation thanks to anodizing treatment. Heat tempered and silk-screen printed glass. Polycarbonate base and technopolymer wall fixing bracket. Including IP68 quick gel connectors for wiring. A4 stainless steel nuts and bolts. LED AC Direct, phase cut dimmable.
LED 4000K (N), 3000K (3) or 2700K (2). LED AC Direct. No risk of photobiological damage, RG0 group (EN62471).
IP 66
Outdoor e waterproof
Anodisation
Anodisation
Dimmable
Dimmable
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Serigraphed glass
Ago Applique U&D
  • IP 66
  • IK 07 2J xx5
  • CE
Bidirectional version.
Version LL126207: painted aluminium
Fasci di luce
2L-up_down
LED
W LM REAL LM COL. DIFF. Trasp.
CODE
OPTIC
Select optic
Optic not valid
LED COLOUR
Select LED colour
LED colour not valid
10 1200 996 CL.I AC DIRECT AC DIRECT Grey Anodized Alluminium
D
Diff.
S
25°
M
40°
L
65°
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%
Black Anodized Alluminium
Brown Anodized Alluminium
White RAL 9010

Lighting simulations

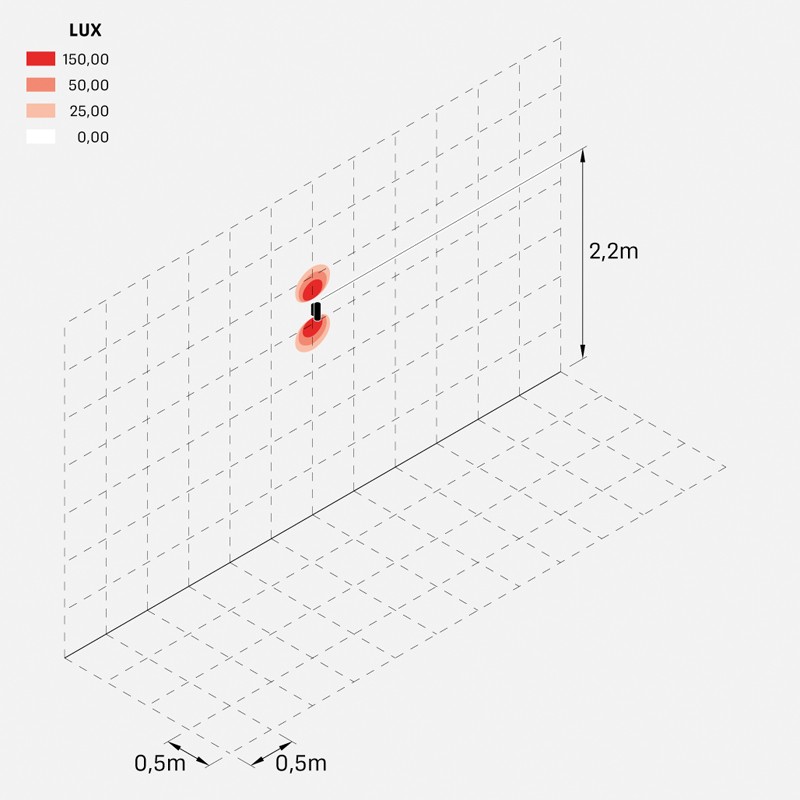

ago_applique_10w_ued_optic_d
ago_applique_10w_ued_optic_d

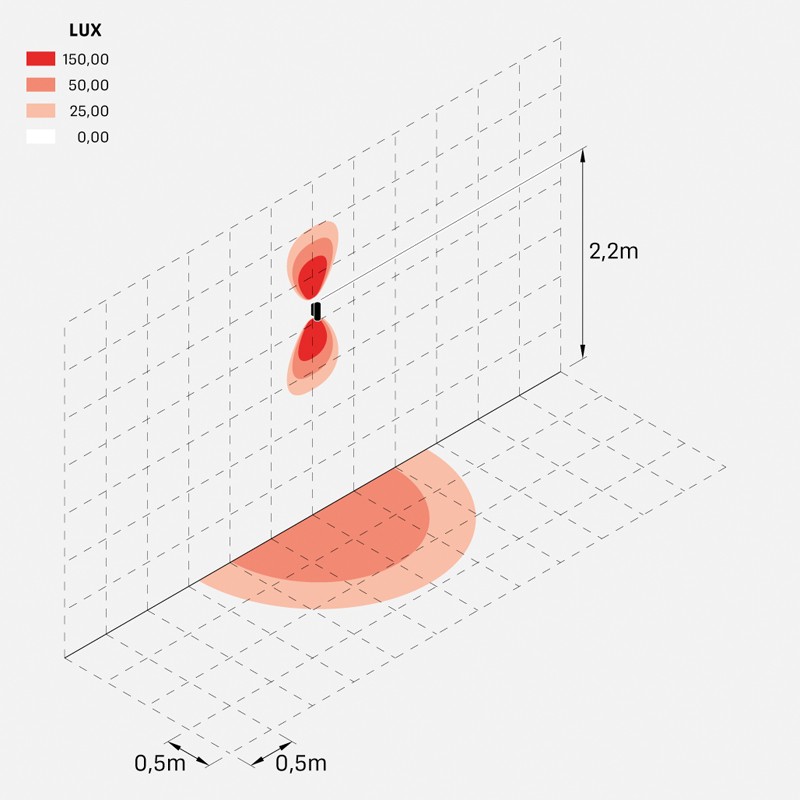

ago_applique_10w_ued_optic_l
ago_applique_10w_ued_optic_l

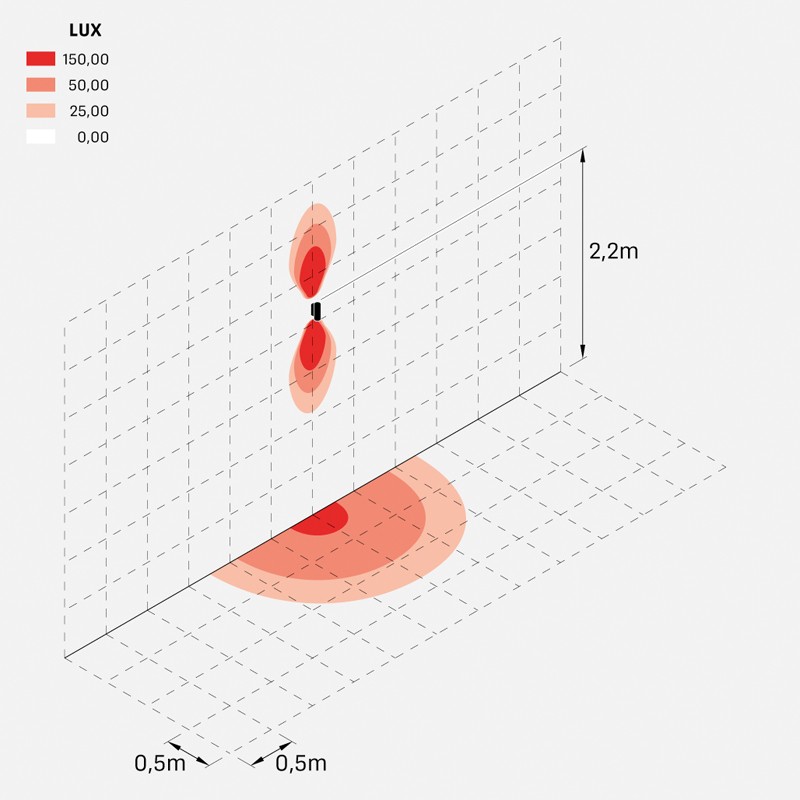

ago_applique_10w_ued_optic_m
ago_applique_10w_ued_optic_m
ago_applique_10w_ued_optic_s
ago_applique_10w_ued_optic_s
