Ago Garden
Available colors

Ago Garden

Suitable for ground installation and for outdoor use.
Body made of EN-6026 anodized aluminum; highly resistant to oxidation due to anodizing treatment.
Heat tempered and silk-screen printed glass.
Inaccessible device, provided with 1 m prewired power cable H0RN-F with epoxy resin treatment.
A4 or AISI 316L stainless steel nuts and bolts.
Available LED AC direct, phase cut dimmable.
Available 24V version.
LED 4000K (N), 3000K (3) or 2700K (2). No risk of photobiological damage, RG0 group (EN62471).
IP 66
Outdoor e waterproof
Anodisation
Anodisation
Dimmable
Dimmable
Pre-wired
Pre-wired
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Serigraphed glass
Ago Garden
  • IP 66
  • IK 07 2J xx5
  • CE
Suitable for ground installation.
LED
W LM REAL LM COL. DIFF. Trasp.
CODE
OPTIC
Select optic
Optic not valid
LED COLOUR
Select LED colour
LED colour not valid
6 700 568 CL.I AC DIRECT AC DIRECT Grey Anodized Alluminium
D
Diff.
S
25°
M
40°
L
65°
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%
Black Anodized Alluminium
Green Anodized Alluminium
Brown Anodized Alluminium
6 700 568 CL.III 24V 24V Grey Anodized Alluminium
Black Anodized Alluminium
Green Anodized Alluminium
Brown Anodized Alluminium

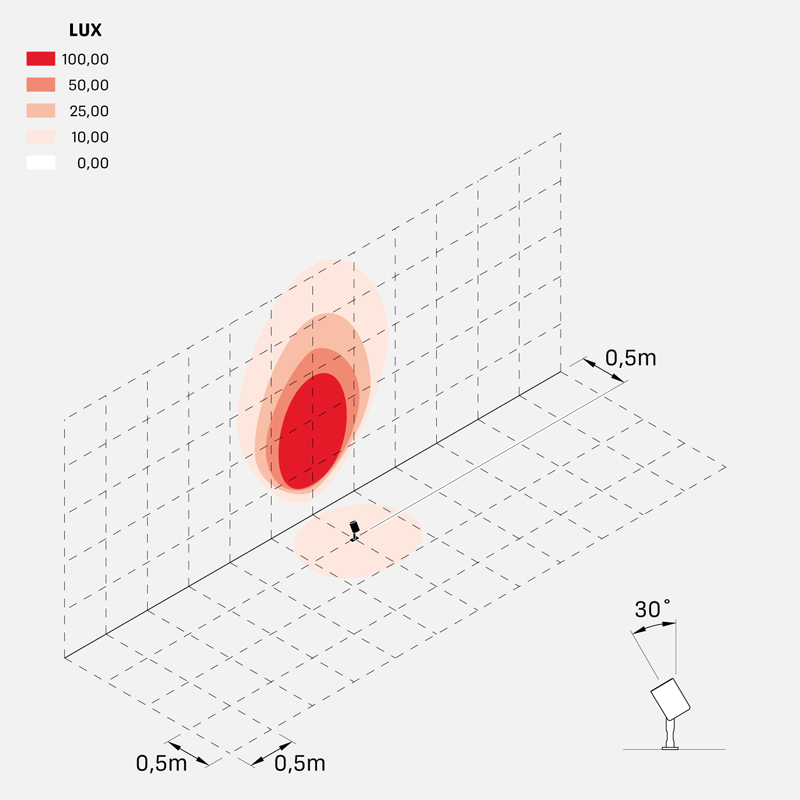

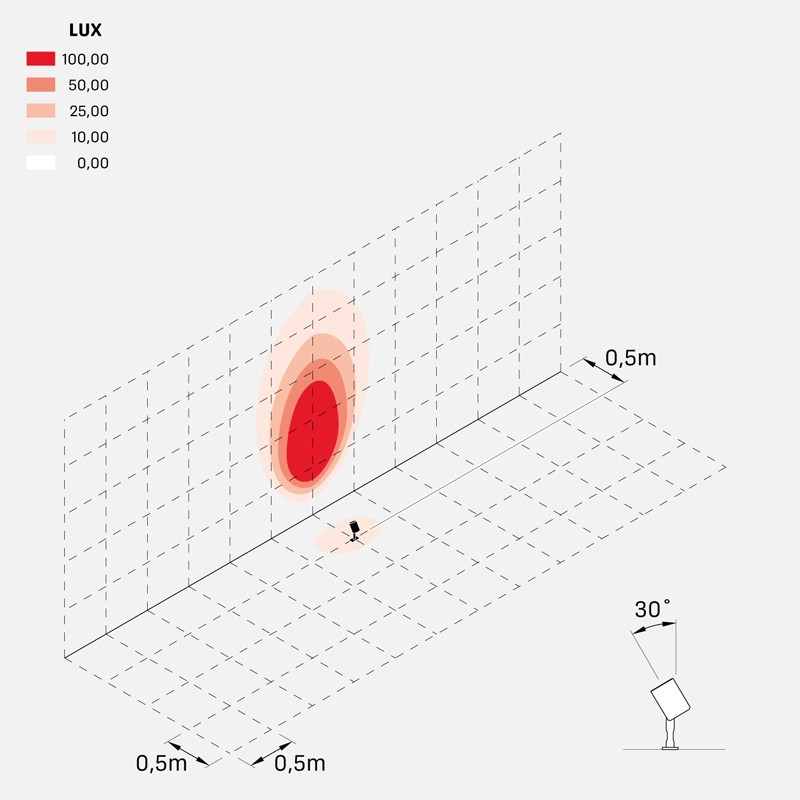

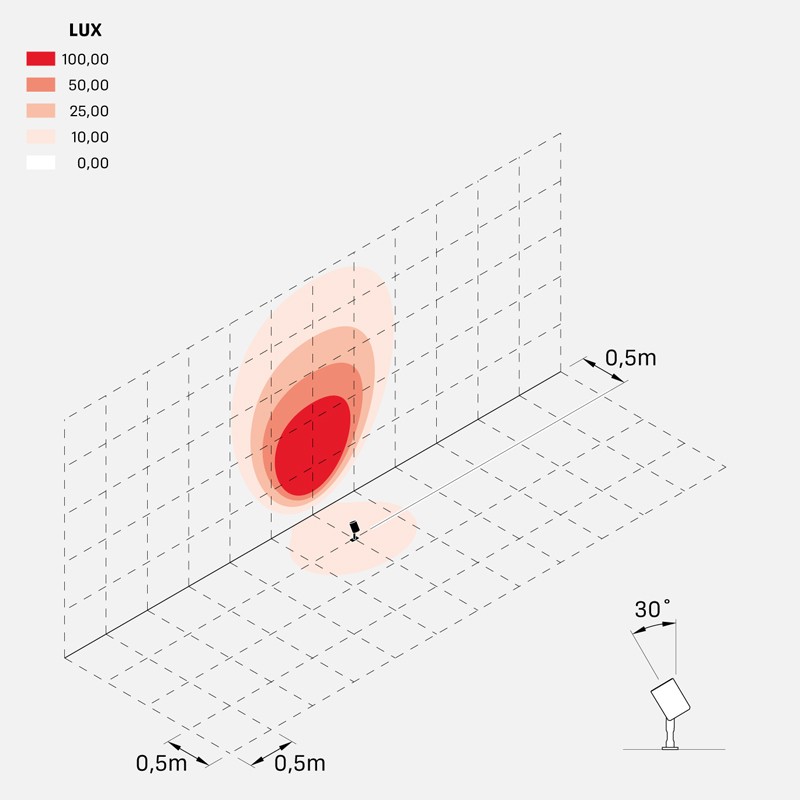

Lighting simulations

ago_garden_optic_d
ago_garden_optic_d
ago_garden_optic_l
ago_garden_optic_l
ago_garden_optic_m
ago_garden_optic_m
ago_garden_optic_s
ago_garden_optic_s
