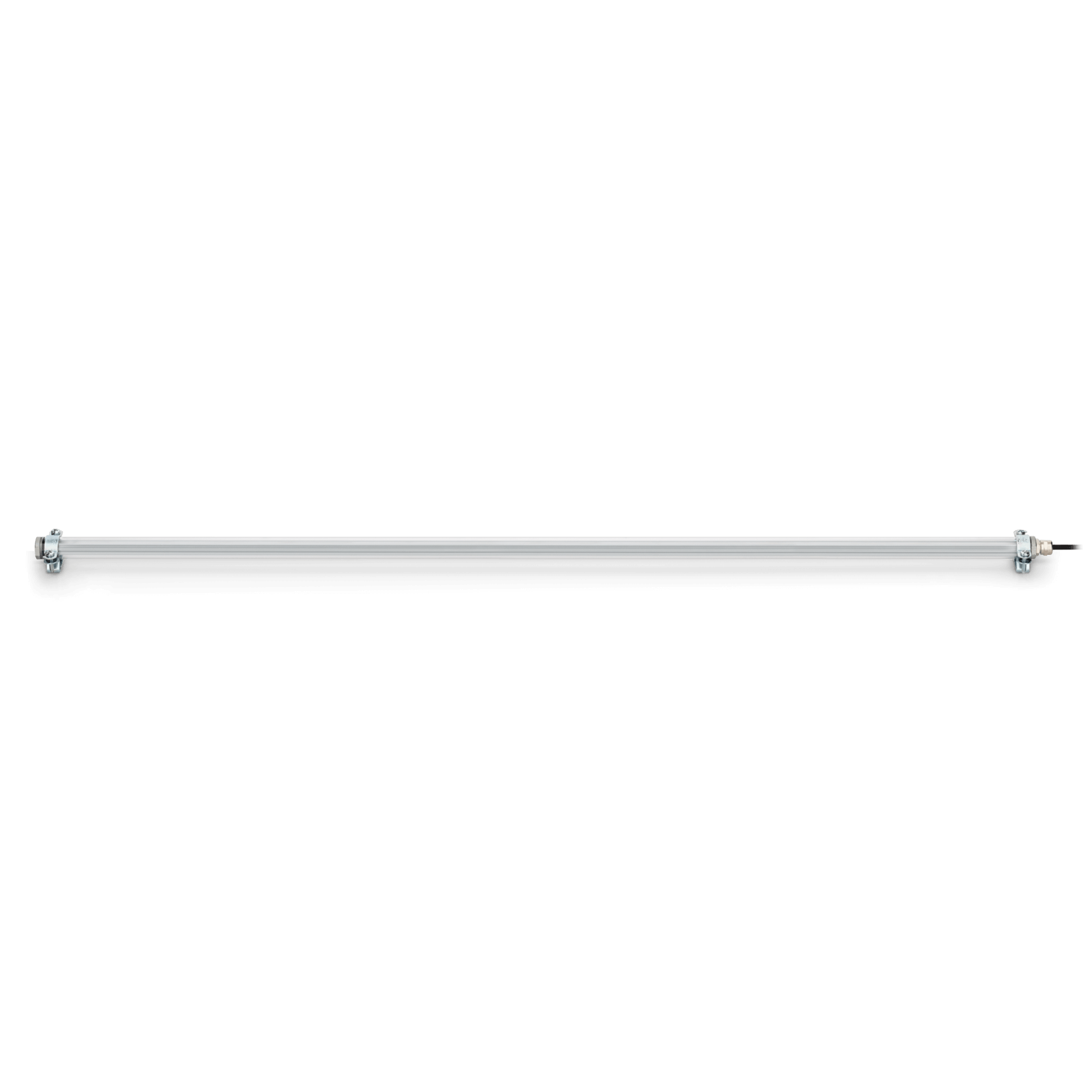

TNC 1055

Outdoor linear fixture suitable for ceiling and wall installation.
Extruded aluminium inner reflector, anodized aluminium side caps, opal PMMA diffuser and Polycarbonate body.
Single cable entry at the back. Inaccessible device supplied with 1m of pre-wired H05RN-F cable. Water-stop device included to protect the product from water and humidity infiltration.
LED 24V.  No photobiological risk, RG0 risk group (EN62471). LED 4000K (N), 3000K (3) or 2700K (2). Ballast not included.
IP 67
Outdoor e waterproof
Aquastop
Aquastop
Dimmable
Dimmable
Pre-wired
Pre-wired
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
PMMA
TNC 1055
  • IP 67
  • IK 09 10J xx7
  • CE
LED
W LM REAL LM COL. DIFF. Trasp.
CODE
LED COLOUR
Select LED colour
LED colour not valid
20 2200 1266 CL.III 24V 24V
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%

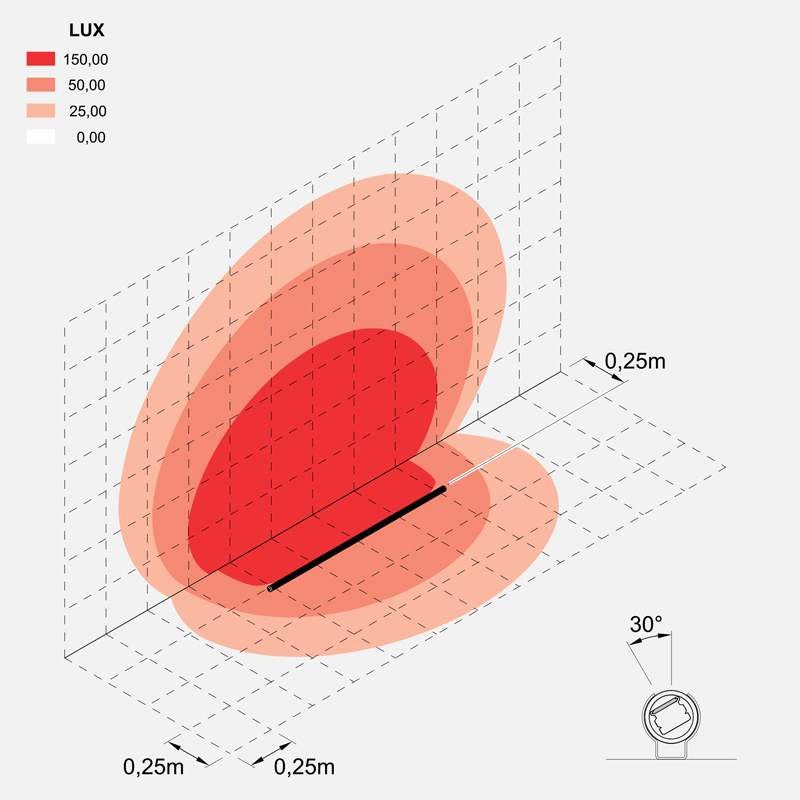

Lighting simulations
