Rol 900

Rol 900

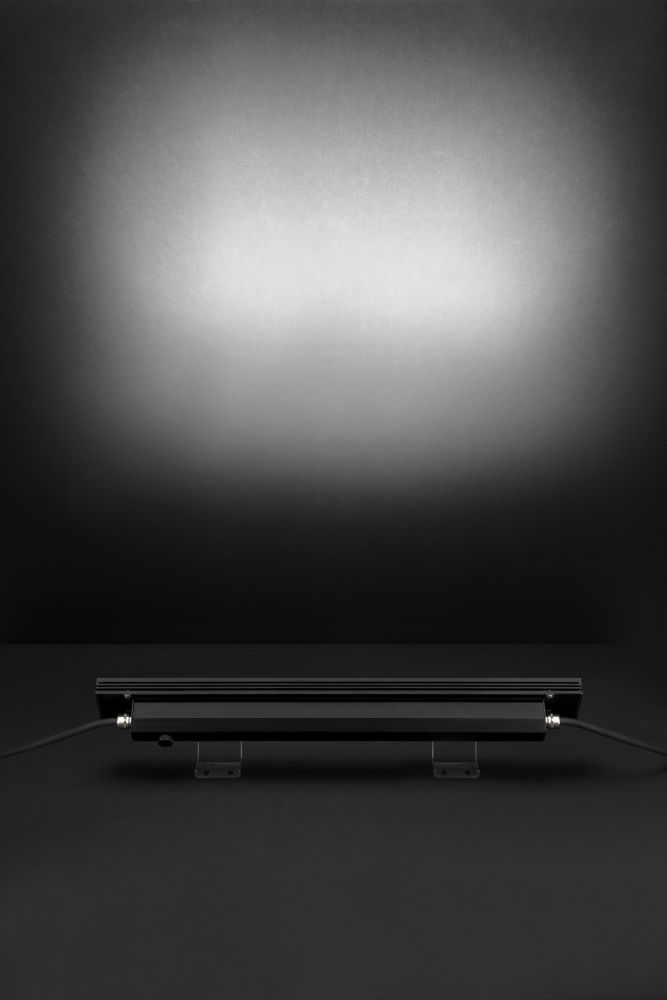

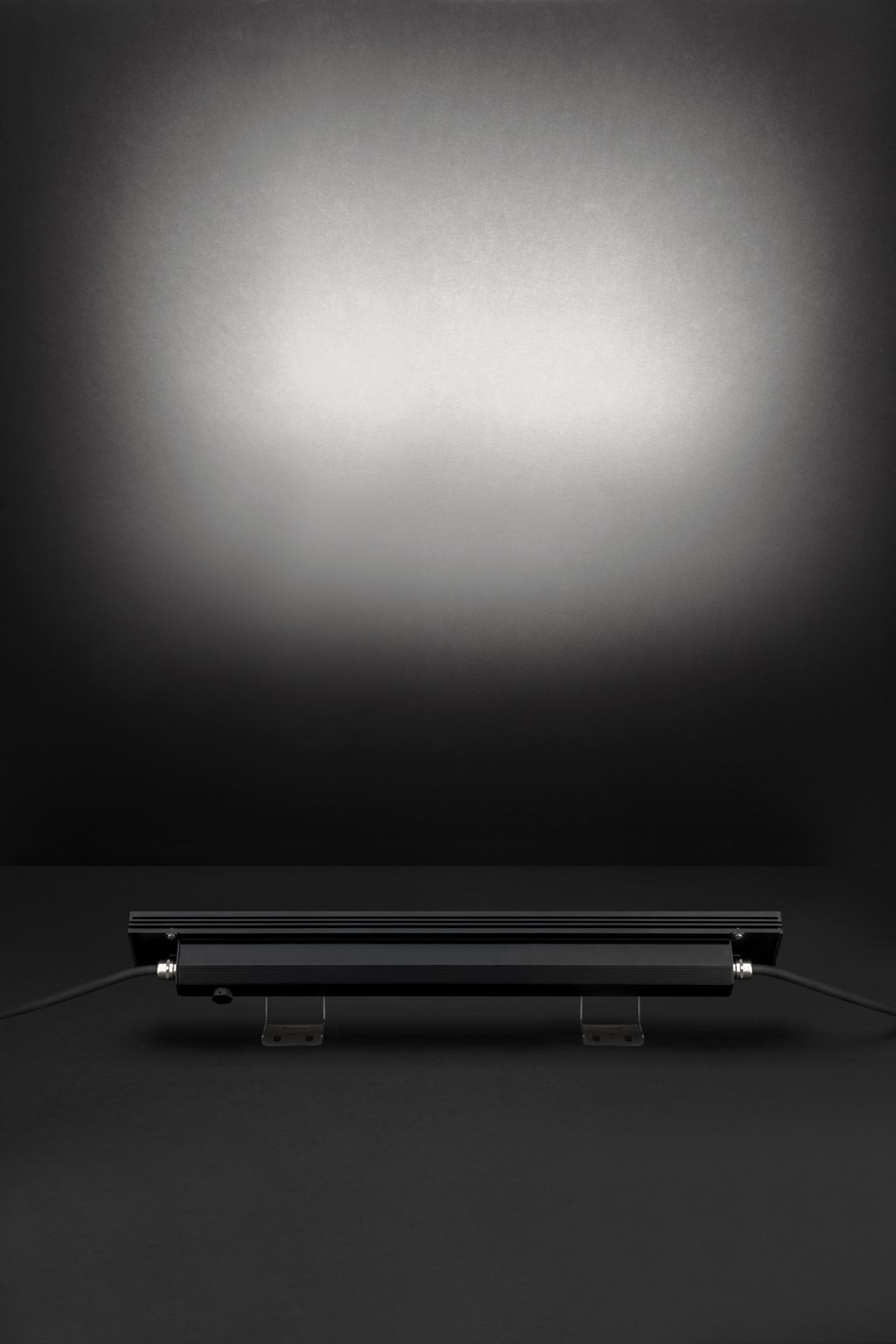

Grazing light and wall washing. Professional modular system with high-power LEDs. Module lengths of 600, 900 and 1200 mm. Wide choice of color temperatures, color mixes, optics and control systems to enhance volumes and details. Simple to position and install. Power supply on board. Control via DALI, DMX-RDM. Separate control. Supplied with "Bordo Mare" treatment ideal for installations in places with higher corrosion risk. Stainless steel A4 hardware. Device with multi-year warranty on LED circuit. Also available in RGBW version. LED 4000K (N), 3000K (3) or 2700K (2). No photobiological risk under normal conditions of use; RG1 exempt risk group (EN62471).
IP 66
Outdoor e waterproof
Direct power supply
Direct power supply
Dimmable
Dimmable
Anodisation
Anodisation
Sea Treatment
Sea Treatment
5 years warranty on LED circuit
5 years warranty on LED circuit
Diffuser
Transparent glass
Available colors
Black Anodized Aluminium
Ask for information
Lighting simulations
Rol 900
  • IP 66
  • IK 10 20J xx9
  • CE
Double cable entry at the back.
Rol 900
LED
W LM REAL LM COL. CODE Download
50 6.100 4620
CL.I LED version with integrated ballast 220-240 V
Black Anodized Aluminium
LL156090
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
50 6.100 4620
CL.I LED version with integrated ballast 220-240 V DALI2
Black Anodized Aluminium
LM156090
Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet 2D/3D drawings Drawings, photographs, descriptions Maintenance and disposal Family range
Complete the CODE
OPTIC
S
30°
M
50°
E
12 X 35°
W
Wall-washer
LED COLOUR
N
4000K
3
3000K
2
2700K

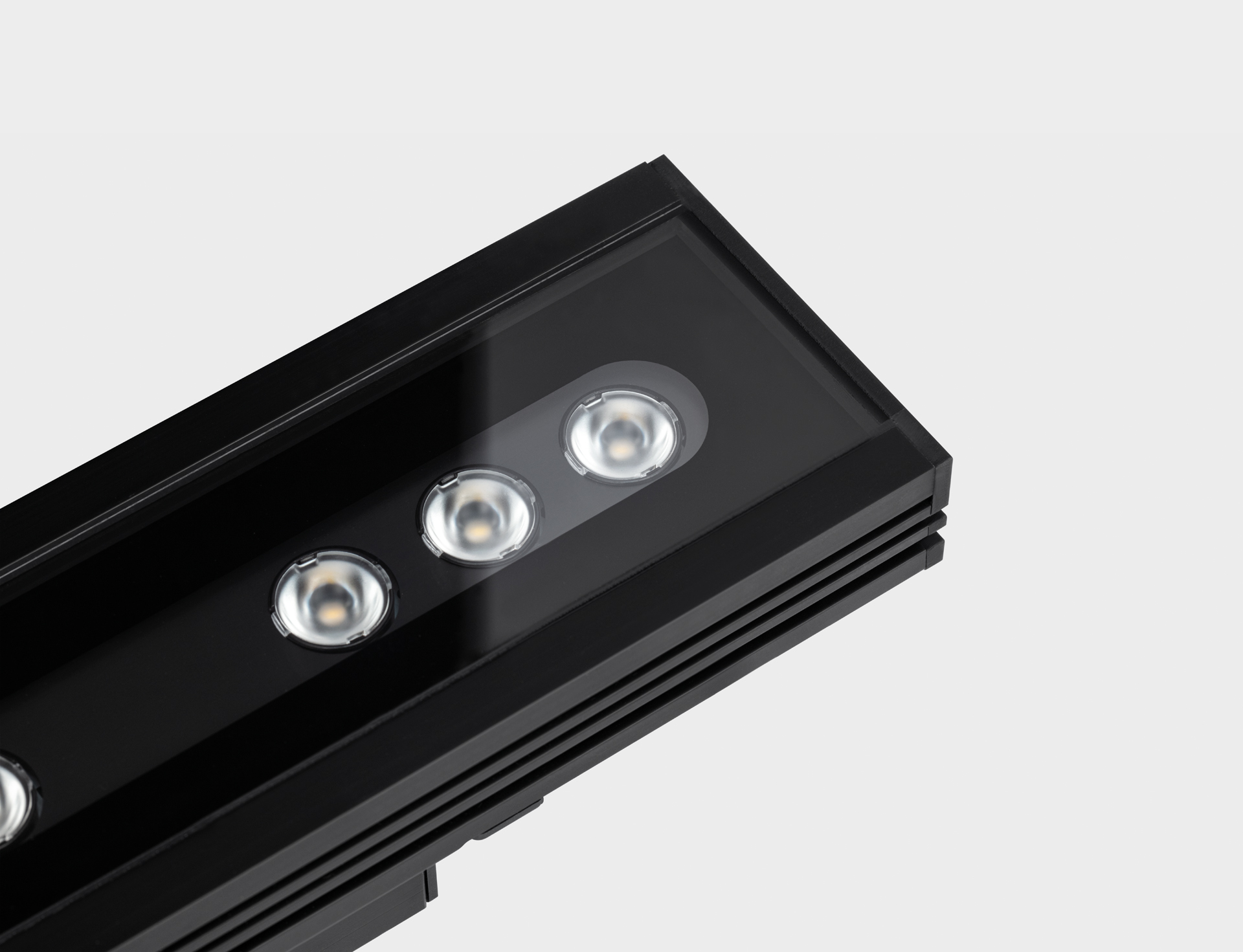

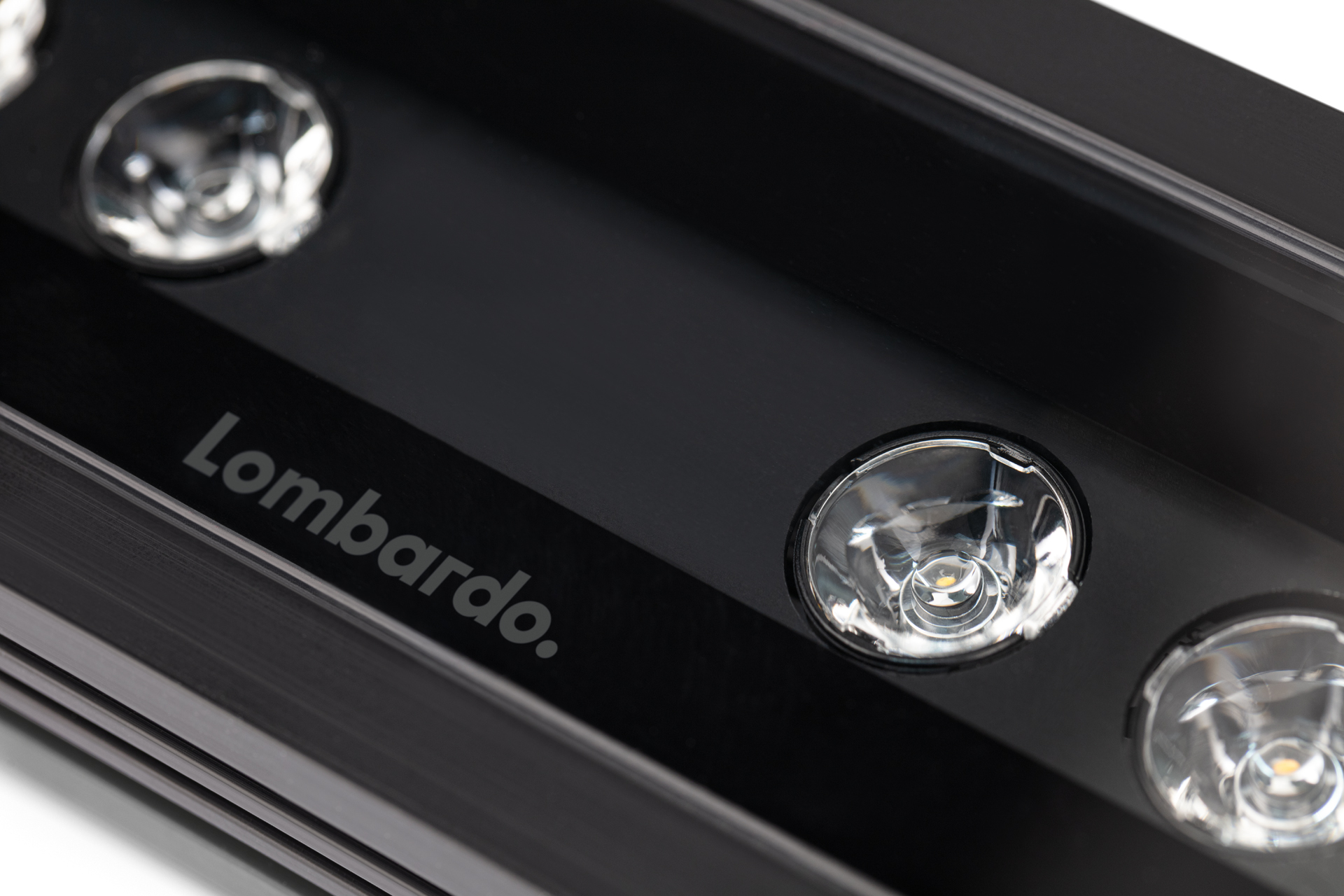

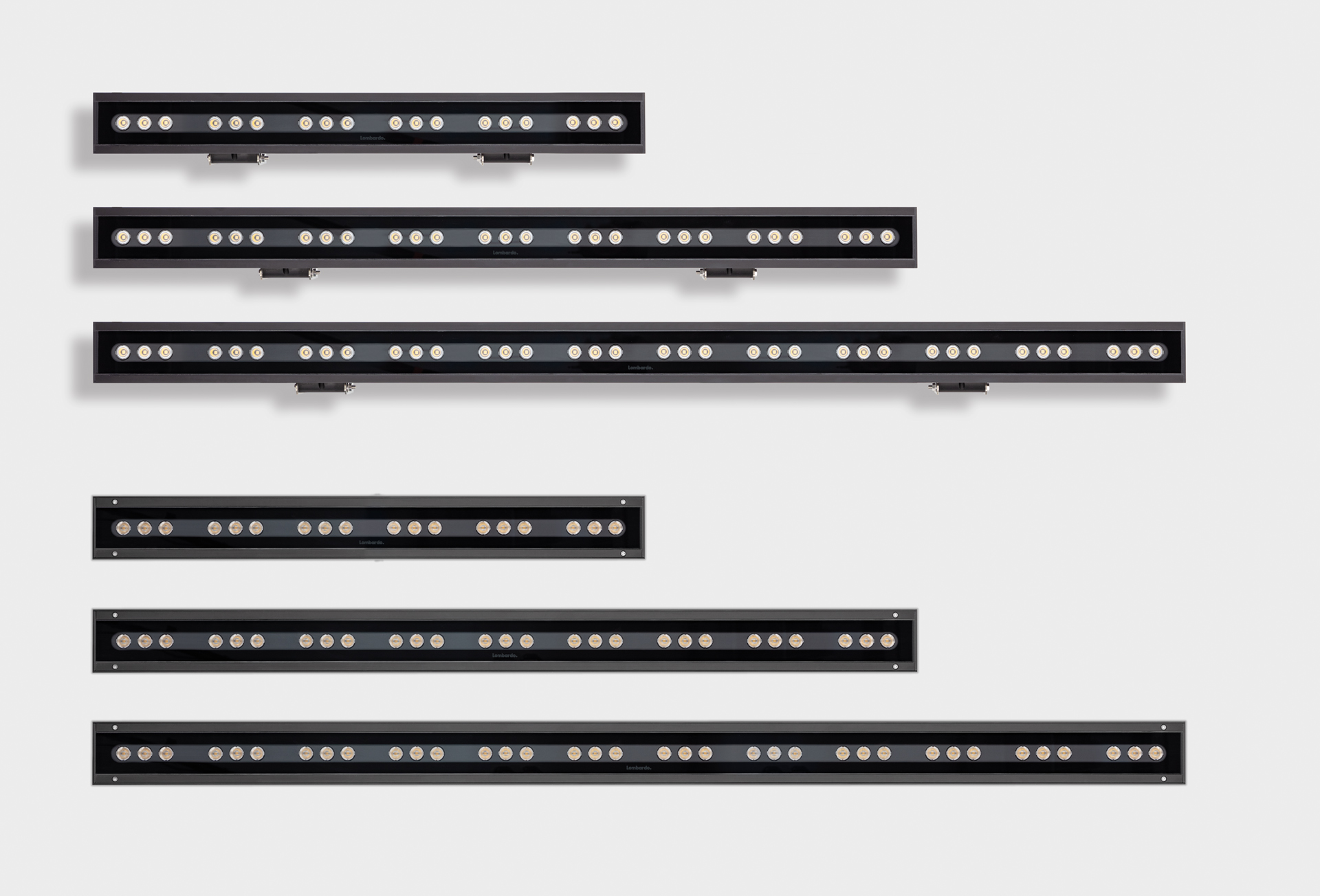

rol_A_03.jpg rol_A_10.jpg rol_A_11.jpg

Lighting simulations

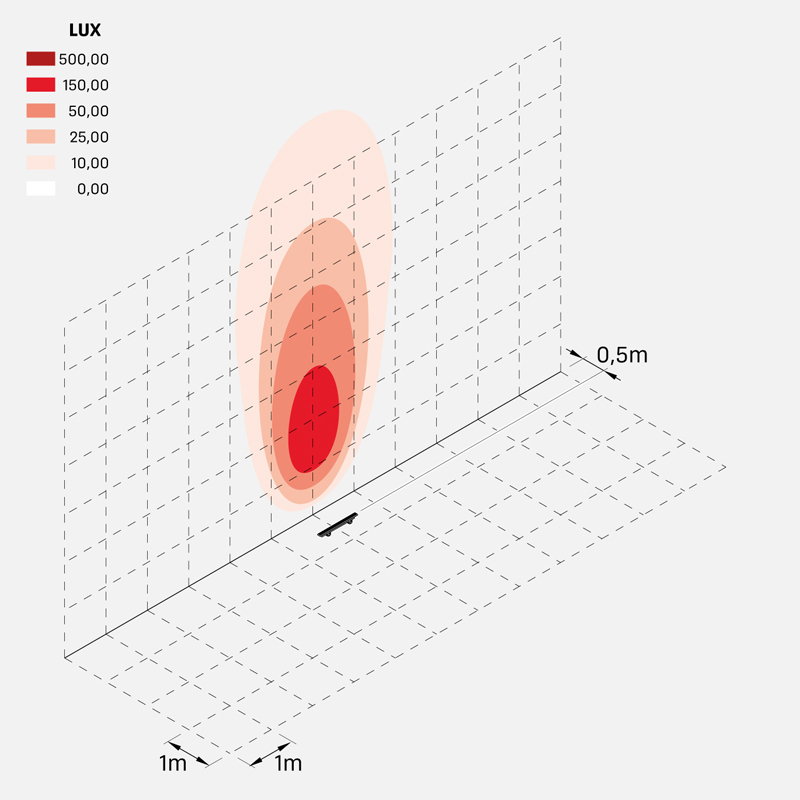

rol_900_50W_optic_S
rol_900_50W_optic_S

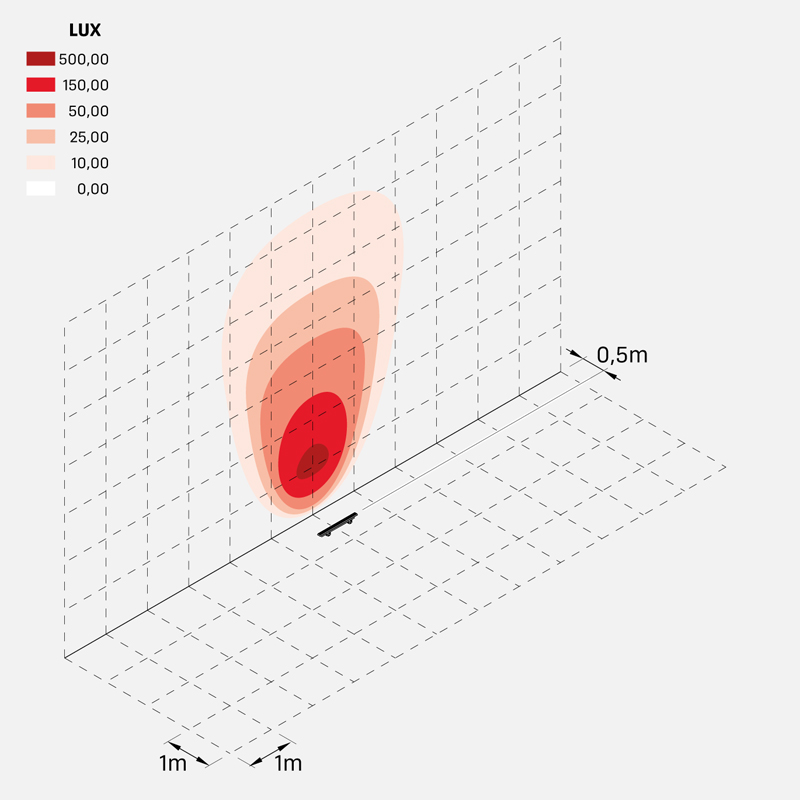

rol_900_50W_optic_M
rol_900_50W_optic_M

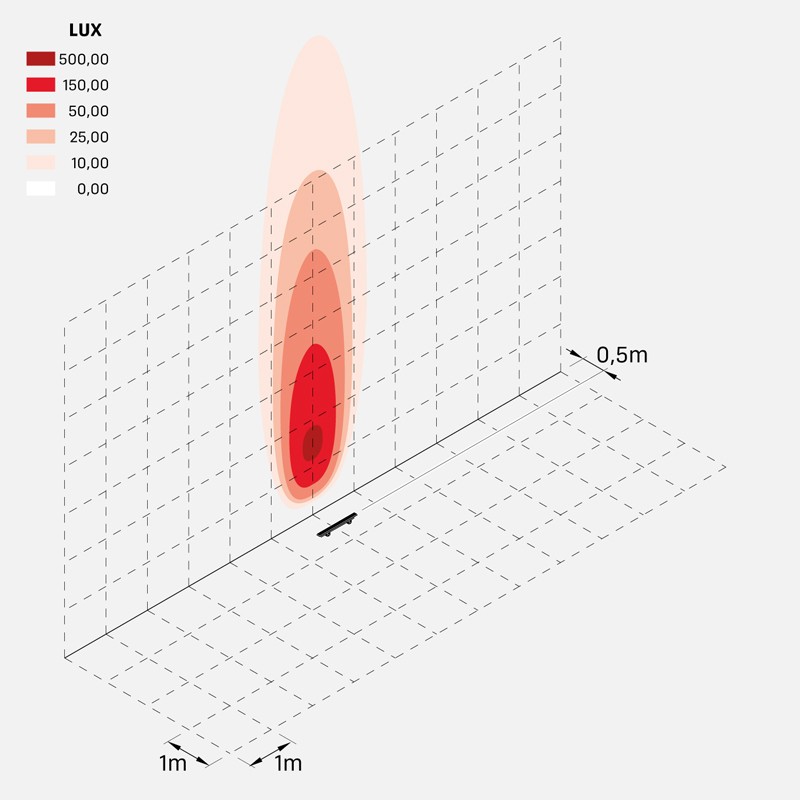

rol_900_50W_optic_E
rol_900_50W_optic_E

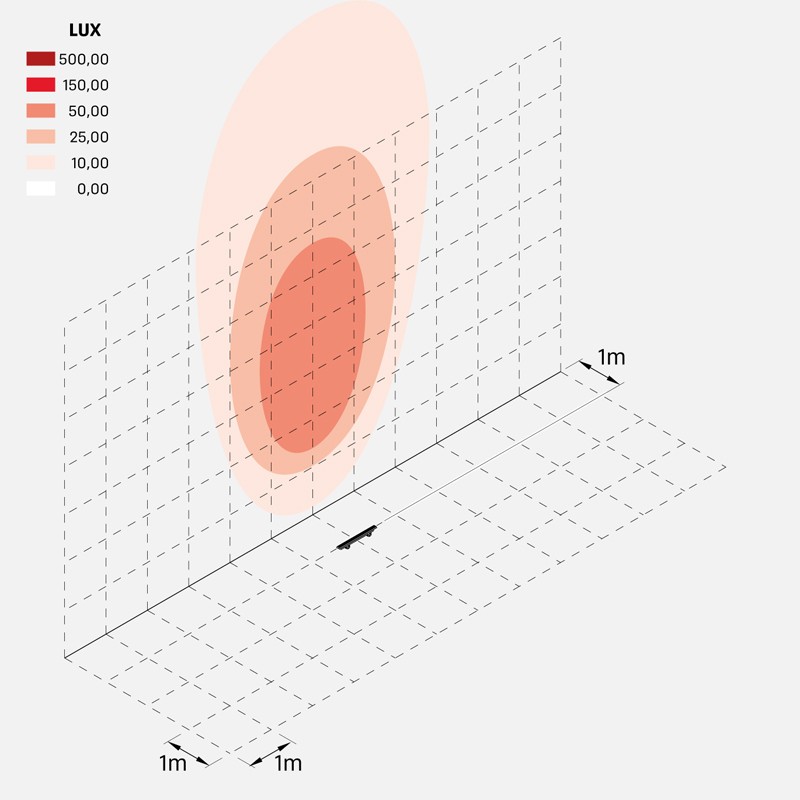

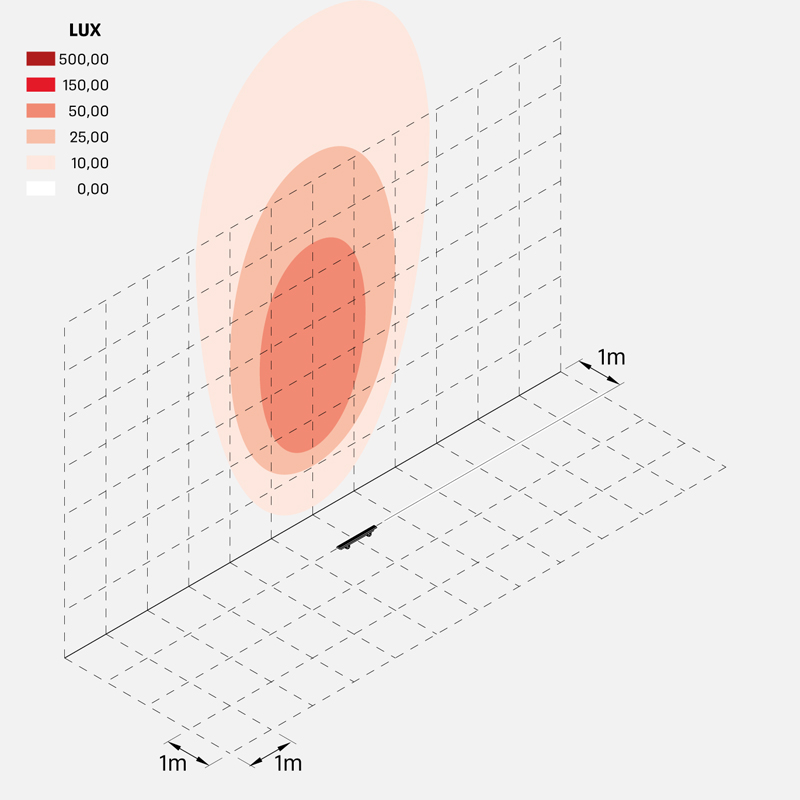

rol_900_50W_optic_W
rol_900_50W_optic_W
Rol 600 Rol 600 Rol 1200 Rol 1200 In-Rol 600 In-Rol 600 In-Rol 900 In-Rol 900 In-Rol 1200 In-Rol 1200 Rol 600 RGBW Rol 600 RGBW Rol 1200 RGBW Rol 1200 RGBW In-Rol 600 RGBW In-Rol 600 RGBW In-Rol 1200 RGBW In-Rol 1200 RGBW
4-pin male/female connector ON-OFF 4-pin male/female connector ON-OFF 5-pin male/female connector DALI 5-pin male/female connector DALI Female connector + End cap ON-OFF Female connector + End cap ON-OFF Female connector + End cap DALI Female connector + End cap DALI
