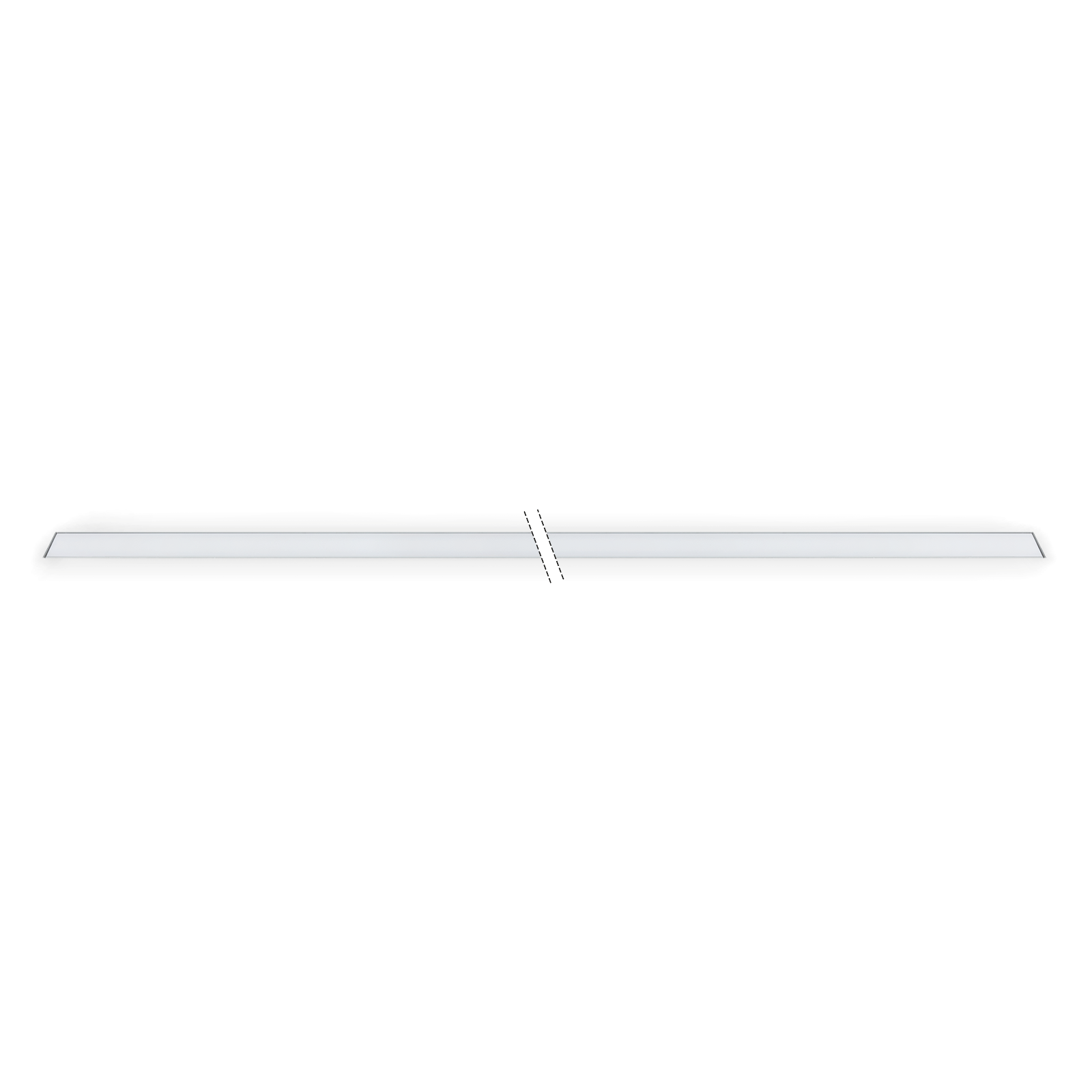

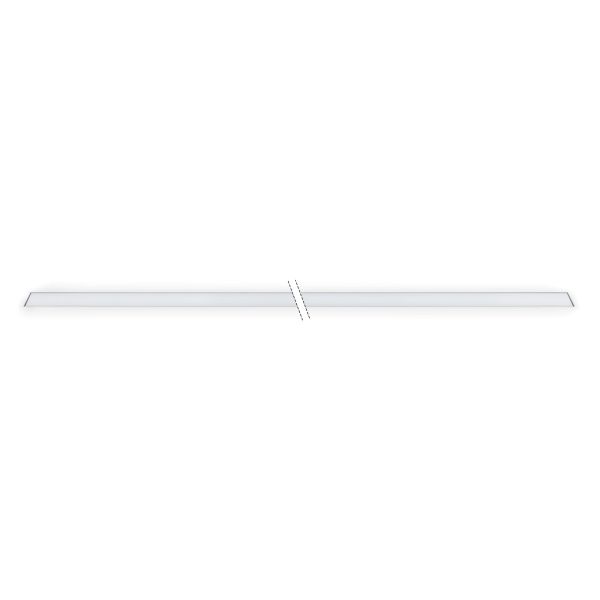

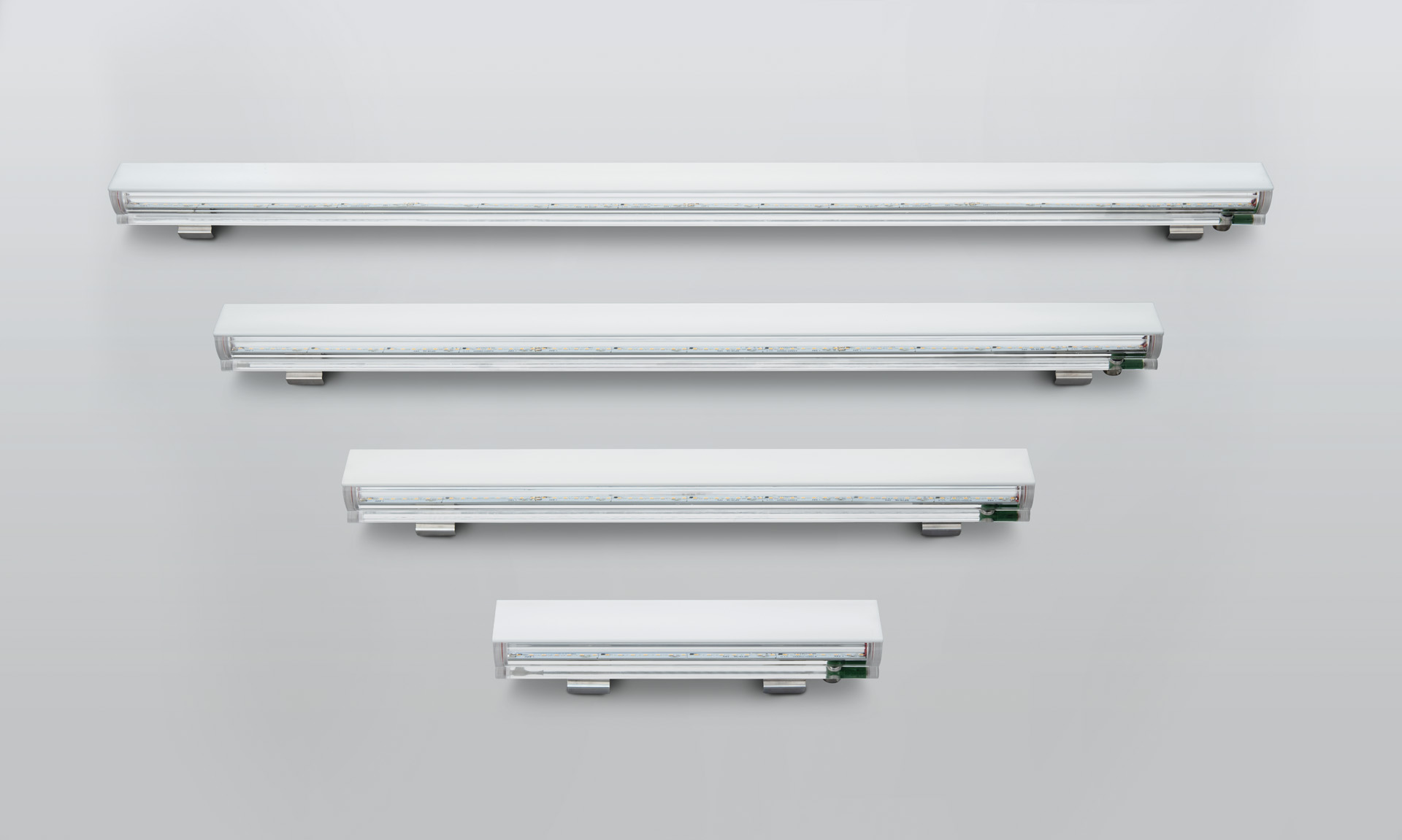

RNC 2020

Ideal for recessed ground application, also for drive-over use. Installation by means of a recess box supplied separately.

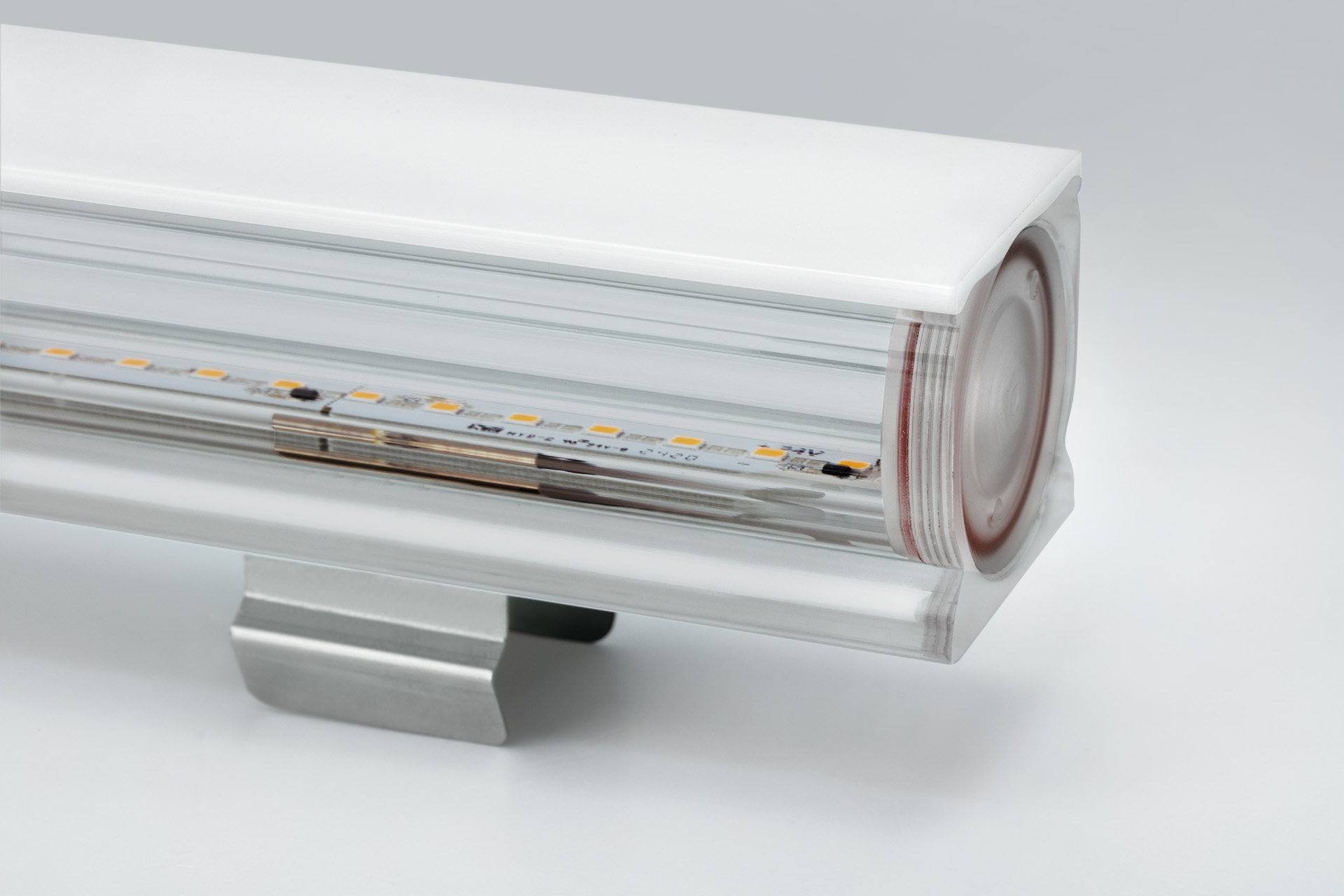

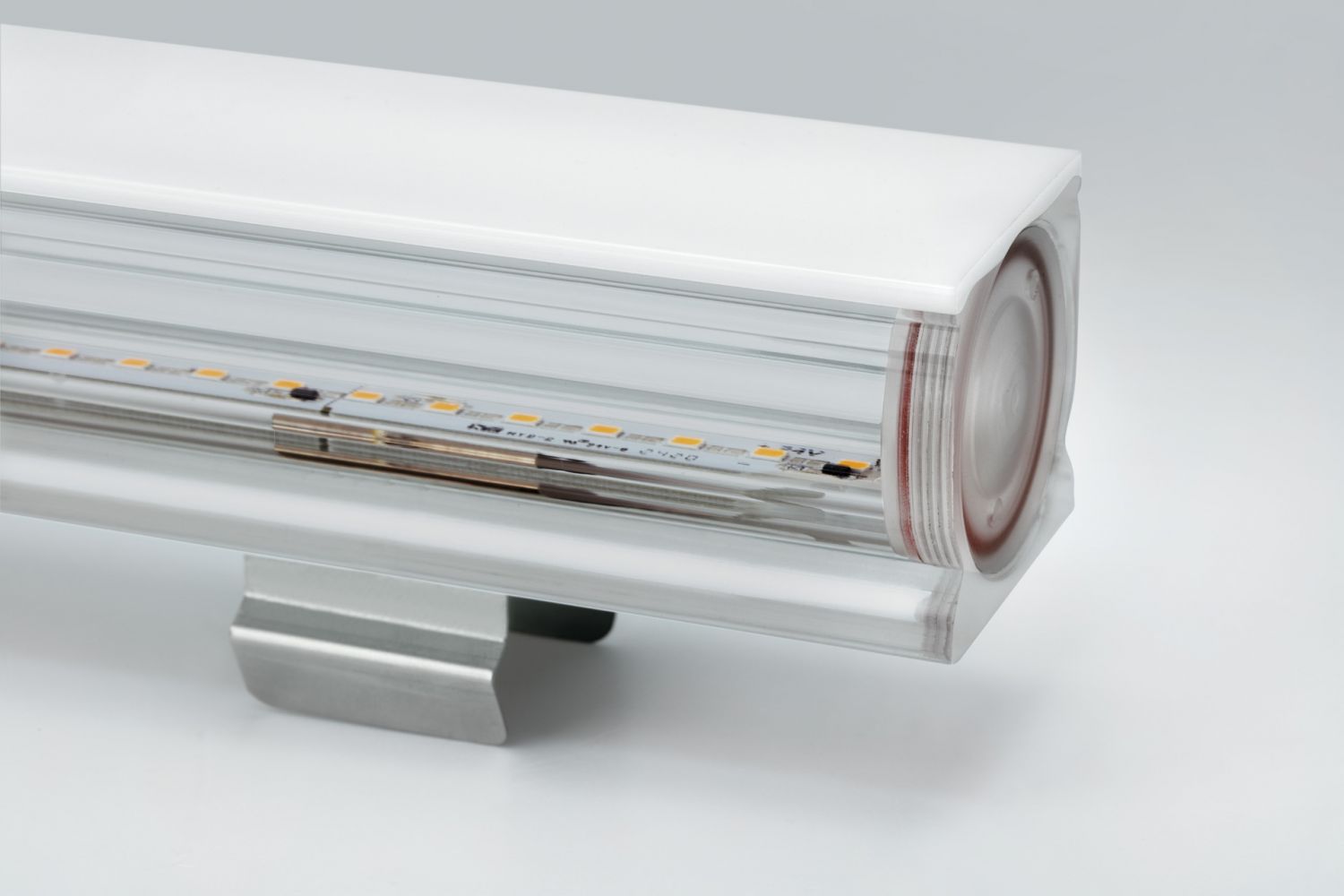

PMMA body and diffuser. Silicone gaskets. Single cable entry at the back. 1m of H05RN-F power supply cable pre-wired and secured by means of a nickel-plated brass cable gland. Product supplied with fixing springs and water-stop device to protect it from water and humidity infiltration.
LED 24V. No photobiological risk, RG0 risk group (EN62471). LED 4000K (N), 3000K (3) or 2700K (2). Ballast not included.
IP 67
Outdoor e waterproof
Aquastop
Aquastop
Pre-wired
Pre-wired
Dimmable
Dimmable
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
PMMA

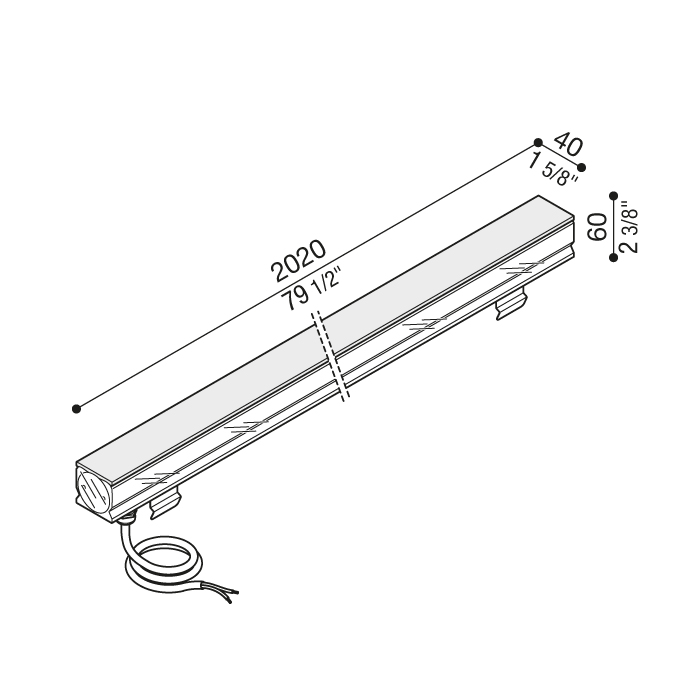

RNC 2020
  • IP 67
  • IK 10 20J xx9
  • CE
  • Carrabile/Drive-over Max 2000 Kg
  • Temp. max  on diffuser 35°C
LED
W LM REAL LM COL. OPAL.
CODE
20 2400 590
CL.III 24V 24V
LL138004
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K

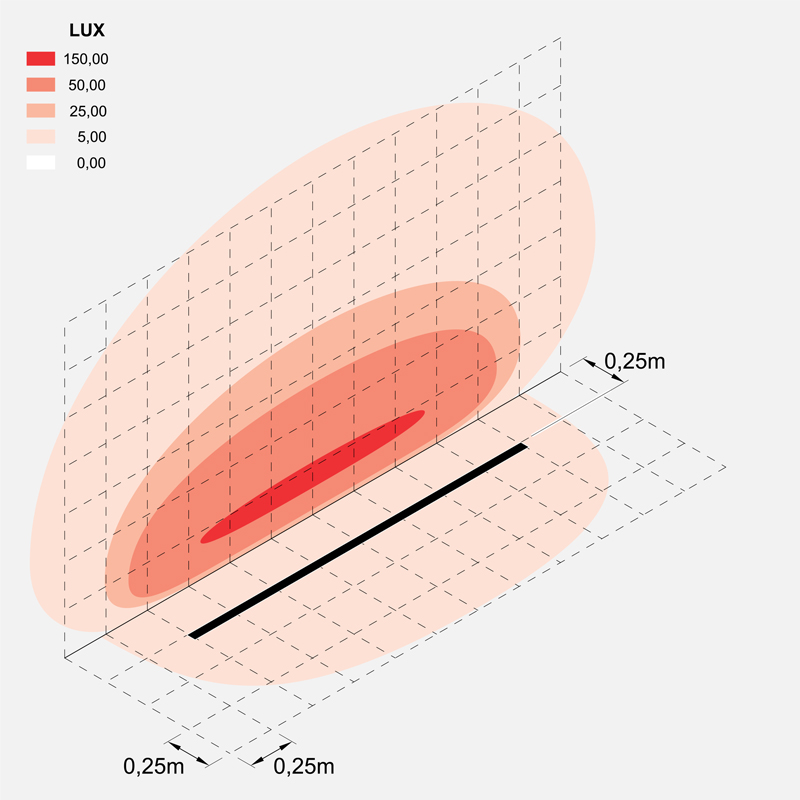

Lighting simulations

rnc_2020
