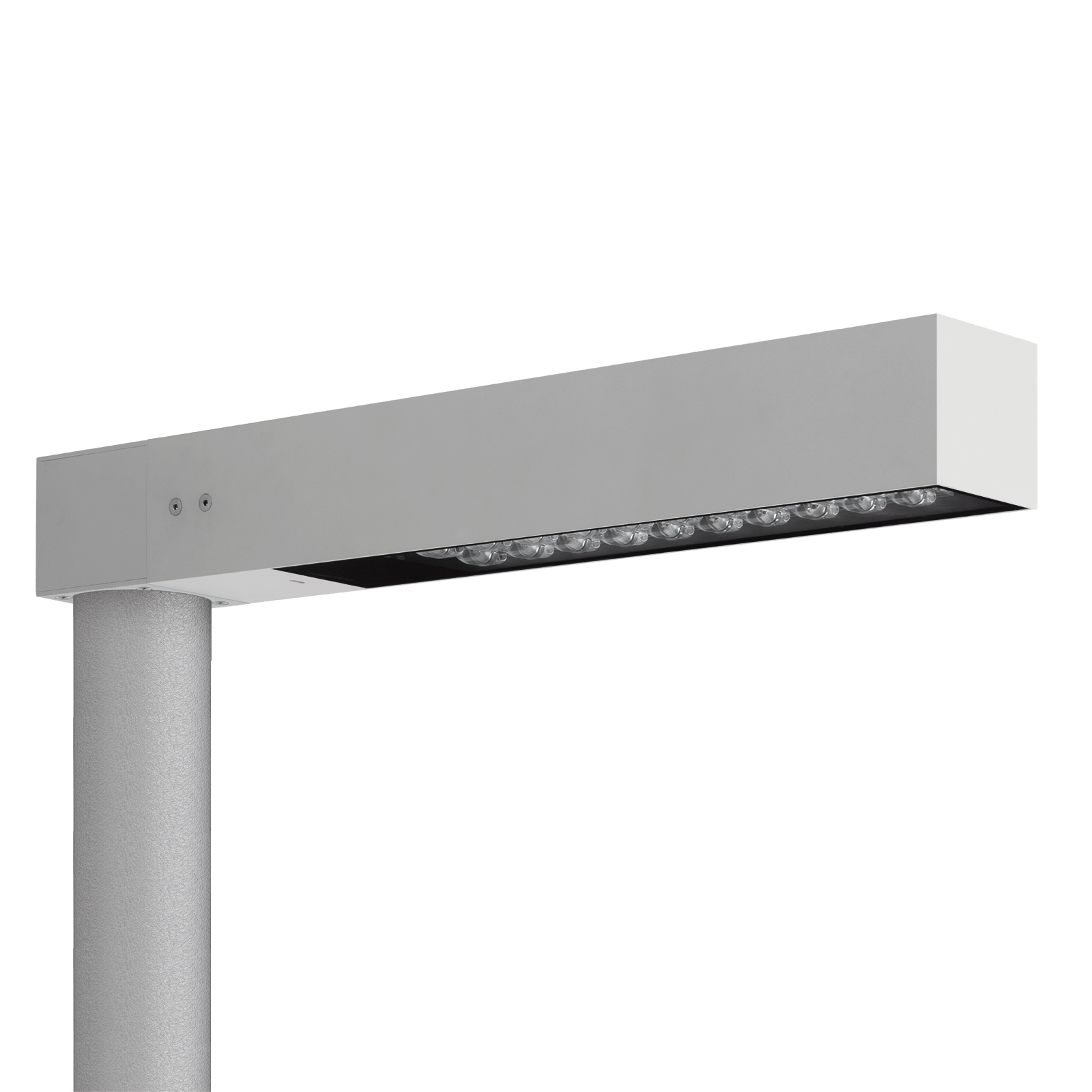

Flag 430 Post

Die-cast aluminium body; high resistance to oxidation thanks to cataphoresis treatment and UV-stabilised polyester resin coating. Screen-printed tempered glass diffuser. Silicone gaskets.
Anodized aluminium reflector. A4 stainless steel nuts and bolts.
Inaccessible device supplied with quick connector plug-socket IP68 with anti-condensation barrier.
LED 4000K (N), 3000K (3) or 2700K (2).
No photobiological risk, RG0 risk group (EN62471).

expand

Outdoor e waterproof

Direct power supply

Dimmable

Sea Treatment

Years warranty on LED circuit

Diffuser

Serigraphed glass

Ask for information

Lighting simulations

Recommended for you

Flag 330

Recommended for you

Flag 330

Flag 430 Post

Recommended for installation on Ø 60 conical poles. Not suitable for Still poles.

Powder coating (on metal) ensures a matt and textured finish, while liquid coating (on plastic) provides brighter and more uniform aesthetic effects. The combined use of aluminium and plastic components can lead to variations in colour rendering, affecting the visual homogeneity of the final product.

LED
W	LM	REAL LM		COL.	GLASS CODE	Download
35	4575	Max 3420	220-240 V		LL14032W	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
					LL14032G	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
					LL14032E	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
					LL14032K	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
35	4575	Max 3420	220-240 V DALI2		LM14032W	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
					LM14032G	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
					LM14032E	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
					LM14032K	Photometric curve CE certificate UKCA certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range

Complete the CODE

OPTIC

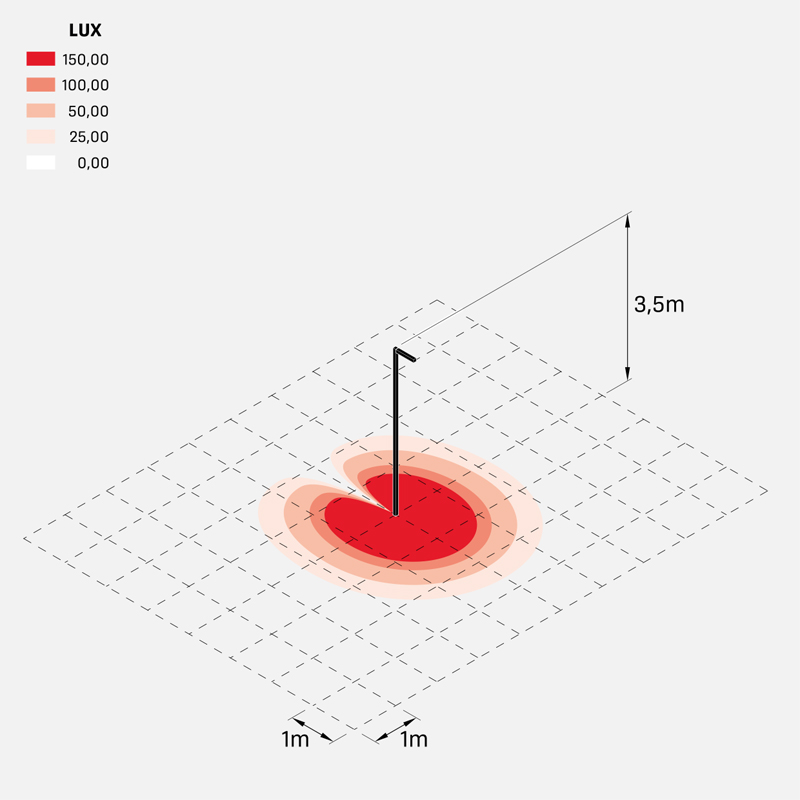

S

Spot-32°

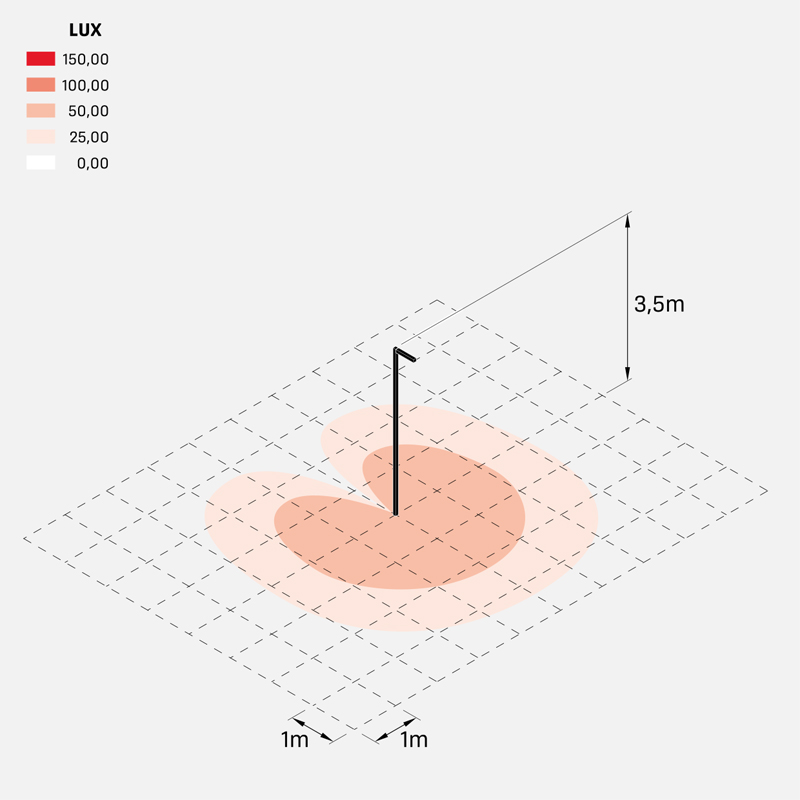

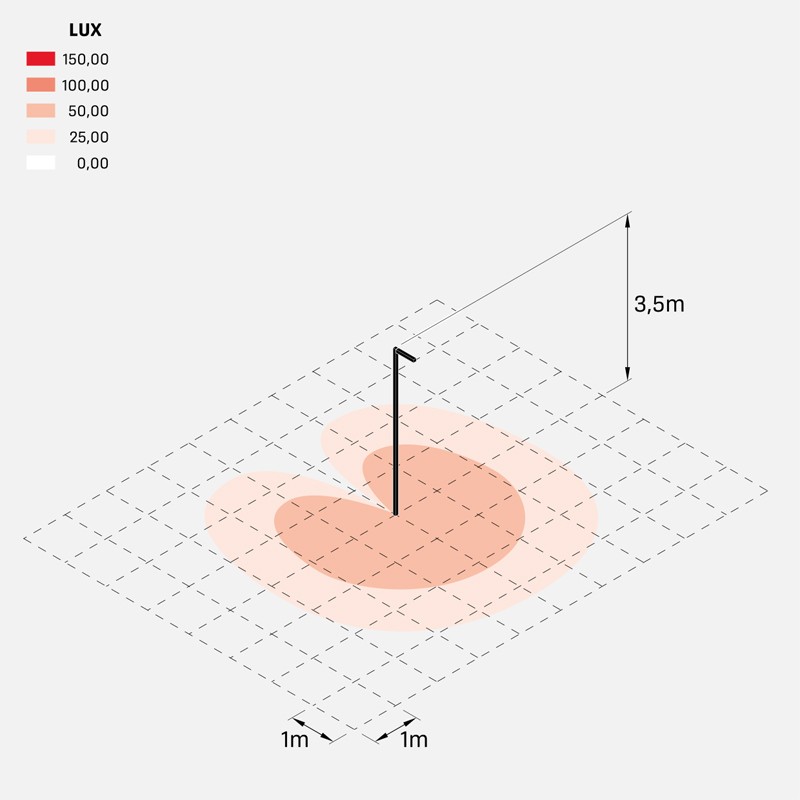

W

Wide-95°

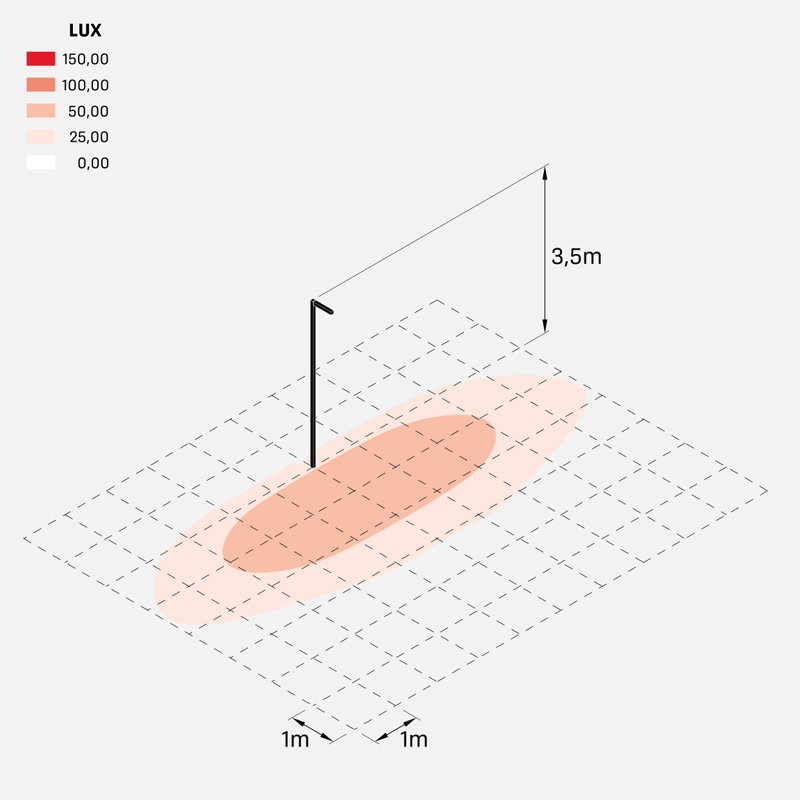

A

Asymm.-140°X45°

LED COLOUR

N

4000K

3

3000K

2

2700K

1

2200K
