High power
lighting division
Versus 1
Available colors

Versus 1

New

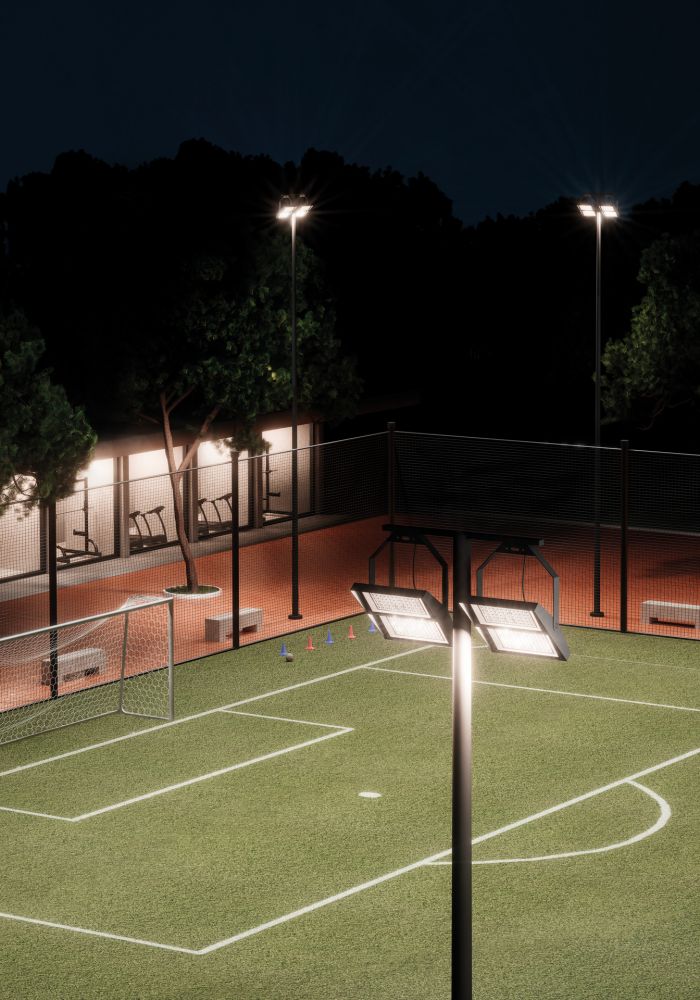

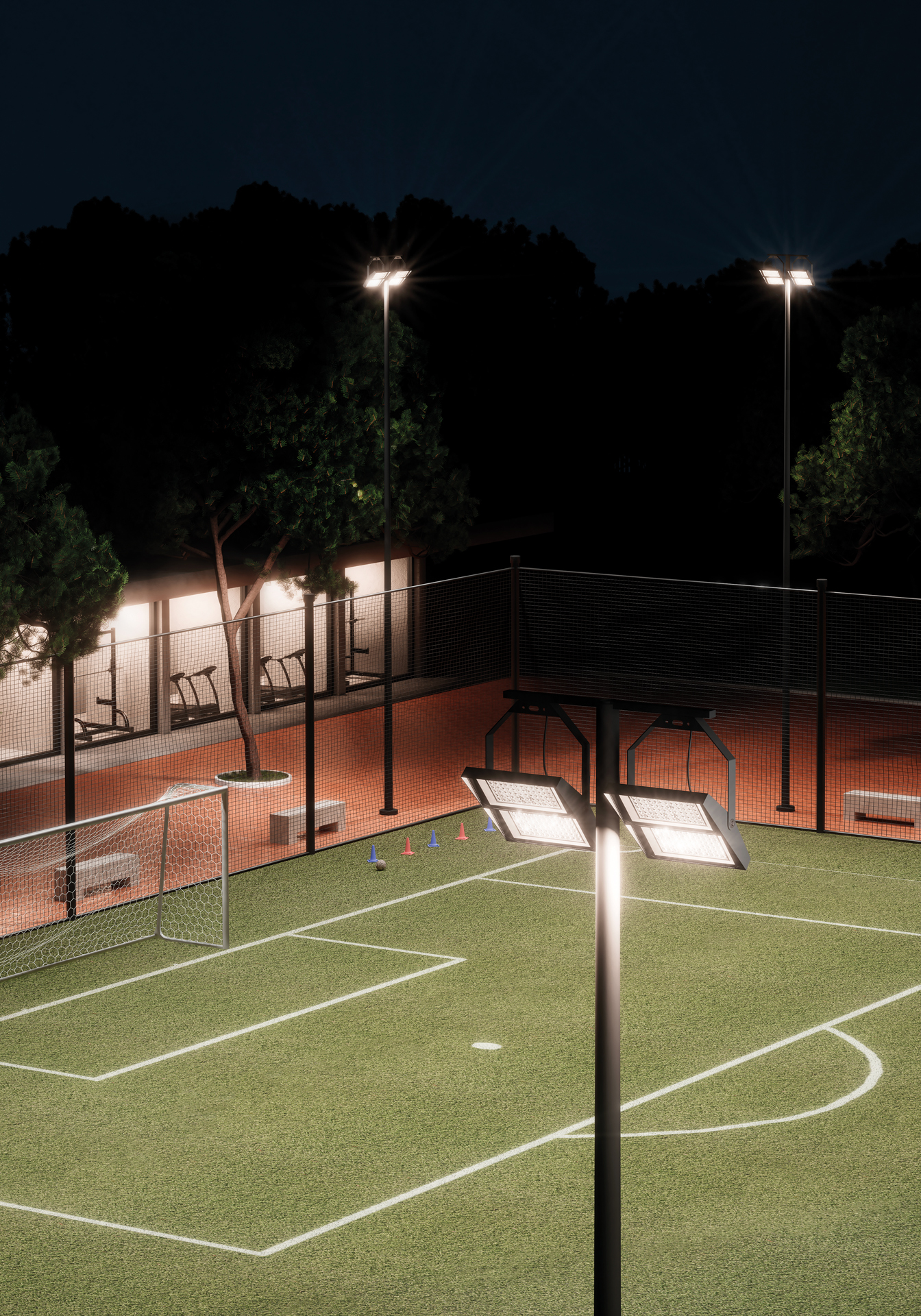

Versus has been specifically developed for lighting professional, amateur and high-performance sports fields. The design recalls sports aesthetics, creating a perfect combination of functionality and athletic style. All models are equipped with an innovative system that allows greater asymmetry of the light beam, simulating a 10-degree product inclination, ensuring 0% ULR, thanks to glass inclination and the studied arrangement of optical modules. With glass diffuser and aluminum body with IP66 protection rating, Versus offers excellent performance even in the most severe environmental conditions. Upon request, it is also available with seaside coating treatment. Innovation is reflected not only in aesthetics, but also in the body design, which allows high efficiency of heat dissipation and excellent water drainage. 7 optics are available with different opening degrees, symmetrical and asymmetrical. 3 color temperatures: 3000K, 4000K, 5700K. All models are powered by on/off or DALI drivers. All models are pre-wired with half a meter of cable and equipped with osmotic cable gland. Thanks to the special mounting bracket and the graduated stainless steel fixing ring, the products can be elegantly installed on ceiling or pole with 60mm terminal, furthermore installation is also provided for floor and wall mounting. LED 5700K (5), 4000K (N), 3000K (3). No photobiological risk under normal conditions of use; RG1 exempt risk group (EN62471).
IP 66
Outdoor e waterproof
Direct power supply
Direct power supply
Dimmable
Dimmable
Pre-wired
Pre-wired
Sea Treatment on request
Sea Treatment on request
Minimum Environmental Criteria
Minimum Environmental Criteria
5 years warranty on LED circuit
5 years warranty on LED circuit
Diffuser
Transparent glass
Versus 1
  • IP 66
  • IK 08 5J xx7
  • CE
BORDO MARE: add S to the end of the selected code including LED colour to have the product supplied with sea treatment against salt spray. On-off version cable: 0,7m H05RN-F. Cable DALI version: 0,7m H07RN-F.
LED
W LM REAL LM COL. GLASS
CODE
Download
75 12.800 Max. 12.113
CL.I LED version with integrated ballast 220-240 V
Grey High Tech RAL 9006
LL16311G
Corten
LL16311K
Black RAL 9005
LL16311B
75 12.800 Max. 12.113
CL.I LED version with integrated ballast 220-240 V DALI2
Grey High Tech RAL 9006
LM16311G
Corten
LM16311K
Black RAL 9005
LM16311B
105 17.200 Max. 16.333
CL.I LED version with integrated ballast 220-240 V
Grey High Tech RAL 9006
LL16312G
Corten
LL16312K
Black RAL 9005
LL16312B
105 17.200 Max. 16.333
CL.I LED version with integrated ballast 220-240 V DALI2
Grey High Tech RAL 9006
LM16312G
Corten
LM16312K
Black RAL 9005
LM16312B
Complete the CODE
OPTIC
A1
30° X 80°
A2
30° X 40°
A3
30° X 45°
S1
30°
S2
60°
S3
90°
S4
120°
LED COLOUR
5
5700K
N
4000K
3
3000K

Lighting simulations

versus1_75W_optic_A1
versus1_75W_optic_A1
versus1_75W_optic_A2
versus1_75W_optic_A2
versus1_75W_optic_A3
versus1_75W_optic_A3
versus1_75W_optic_S1
versus1_75W_optic_S1
versus1_75W_optic_S2
versus1_75W_optic_S2
versus1_75W_optic_S3
versus1_75W_optic_S3
versus1_75W_optic_S4
versus1_75W_optic_S4
versus1_105W_optic_A1
versus1_105W_optic_A1
versus1_105W_optic_A2
versus1_105W_optic_A2
versus1_105W_optic_A3
versus1_105W_optic_A3
versus1_105W_optic_S1
versus1_105W_optic_S1
versus1_105W_optic_S2
versus1_105W_optic_S2
versus1_105W_optic_S3
versus1_105W_optic_S3
versus1_105W_optic_S4
versus1_105W_optic_S4
