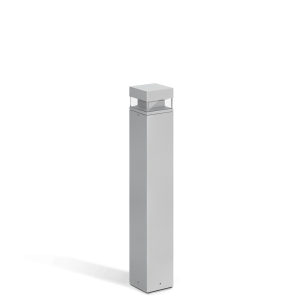

Tok Q2L H700
Available colors

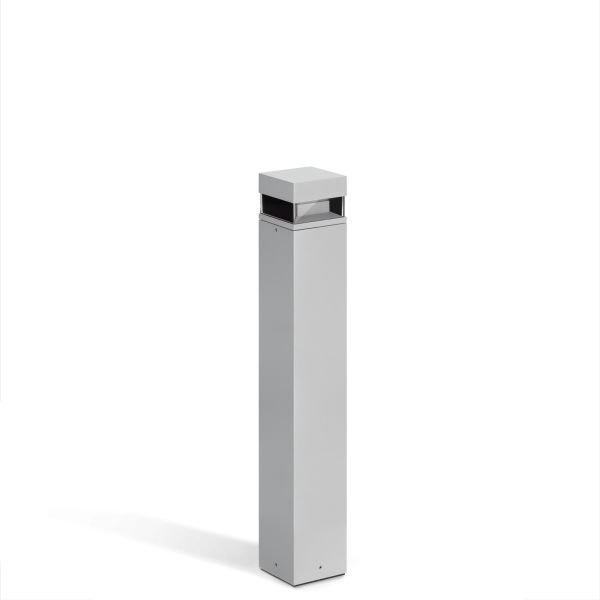

Tok Q2L H700

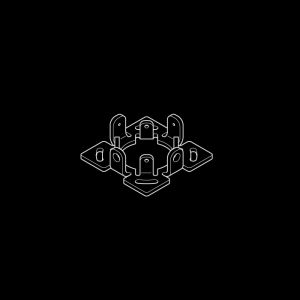

Also suitable for outdoor use. Aluminum body and top; highly resistant to oxidation thanks to cataphoresis treatment and to the UV stabilized polyester resin painting. Equipped with thermoplastic fixing bracket. Fitted for quick installation on standard Ø 60 post. Fixing bolts and small metal parts to secure the base to the ground. Diffuser made of transparent scratch-resistant UV stabilized PMMA. A4 stainless steel bolts. Provided with 1m of prewired cable H05RN-F.
LED 4000K (N), 3000K (3) or 2700K (2). Integrated driver 220-240V. No risk of photobiological damage, RG0 group (EN62471).
IP 66
Outdoor e waterproof
Direct power supply
Direct power supply
Cataphoresis
Cataphoresis
Pre-wired
Pre-wired
Years warranty on LED circuit
Years warranty on LED circuit
Available from
April 2021
Diffuser
PMMA
Installable on post 60

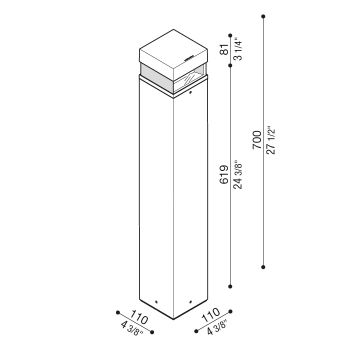

Tok Q2L H700
  • IP 66
  • IK 10 20J xx9
  • CE
Fasci di luce
2L-up_down
LED
W LM REAL LM COL. DIFF. Trasp.
CODE
LED COLOUR
Select LED colour
LED colour not valid
8 960 180 CL.I LED version with integrated ballast 220-240 V White RAL 9010
N
4000K
3
3000K
2
2700K
1
2200K
Grey High Tech RAL 9006
Grey anthracite RAL 7021
Corten
