High power
lighting division
Time 180 Soft
Available colors

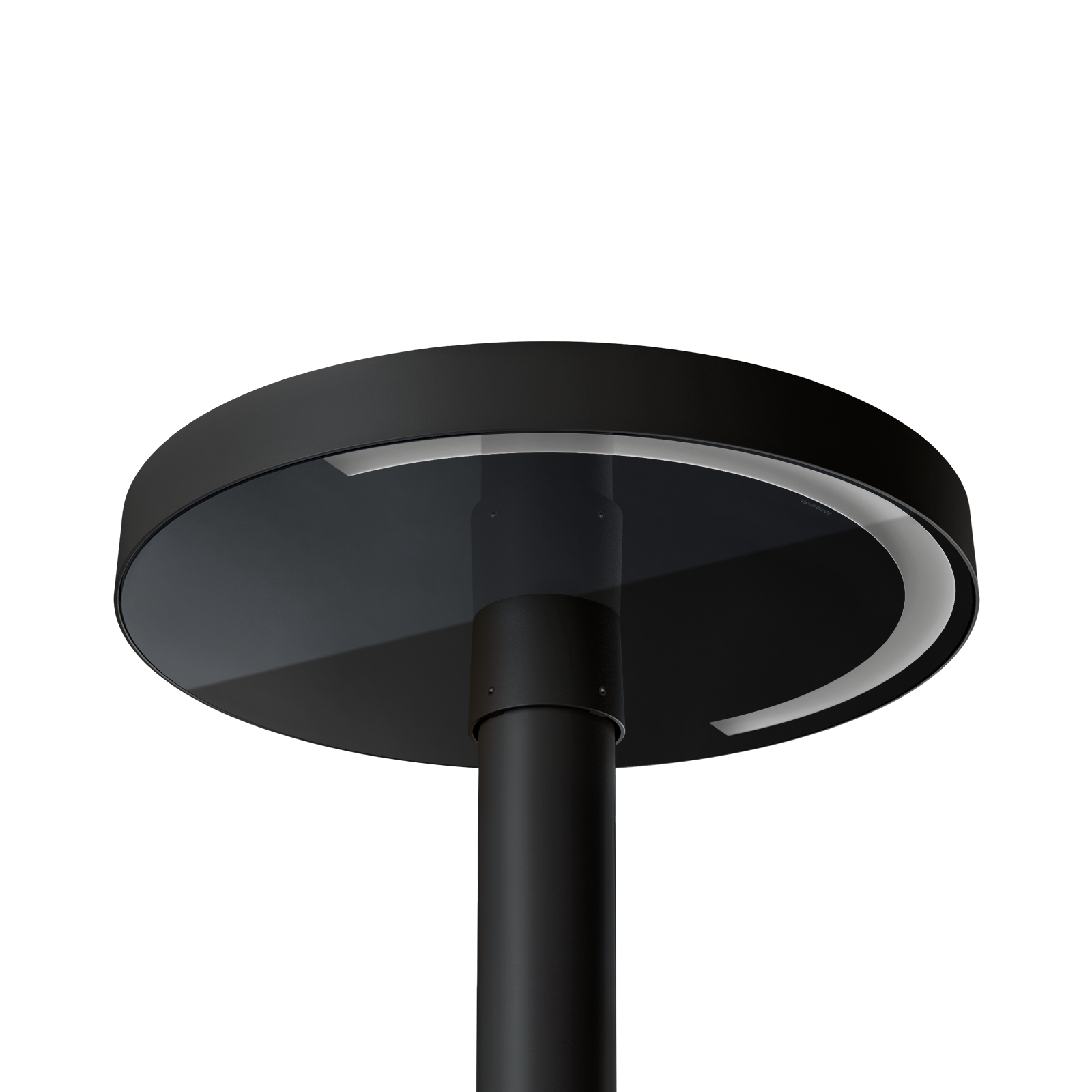

Time 180 Soft

New
Ideal for uniformly illuminating pedestrian paths, green areas and large spaces. Suitable for outdoor use. Wide choice of color temperatures and finishes. Integrated driver and latest generation LEDs. ON-OFF version cable: 1m H05RN-F 2x1. DALI version cable: 1m H07RN-F 4x1. Aluminum body with high oxidation resistance thanks to passivation treatment and coating with UV-stabilized polyester resins. High-quality transparent glass diffuser. Gaskets for maintaining IP65 protection degree. Prepared for quick installation in standard Ø60 metal poles (not suitable for Still poles). Device with multi-year warranty on LED circuit. Stainless steel A4 hardware. Supplied with "Bordo Mare" treatment ideal for installations in places with higher corrosion risk. LED 4000K (N), 3000K (3), 2700K (2) or 2200K (1). No photobiological risk under normal conditions of use; RG1 exempt risk group (EN62471).
IP 65
Outdoor e waterproof
Direct power supply
Direct power supply
Dimmable
Dimmable
Pre-wired
Pre-wired
Sea Treatment
Sea Treatment
Minimum Environmental Criteria
Minimum Environmental Criteria
5 years warranty on LED circuit
5 years warranty on LED circuit
Diffuser
Frosted glass
Installable on post 60
Time 180 Soft
  • IP 65
  • IK 08 5J xx7
  • CE
Recommended for installation on Ø 60 metal poles.
Not suitable for Still poles.
Cable ON-OFF version: 1m H05RN-F 2x1. Cable DALI version: 1m H07RN-F 4x1.
Light beam
180
LED
W LM REAL LM COL. CODE Download
30 4000 1400
CL.II LED version with integrated ballast 220-240 V
Black RAL 9005
LL155180BD
Grey High Tech RAL 9006
LL155180GD
Grey anthracite RAL 7021
LL155180ED
Corten
LL155180KD
30 4000 1400
CL.II LED version with integrated ballast 220-240 V DALI2
Black RAL 9005
LM155180BD
Grey High Tech RAL 9006
LM155180GD
Grey anthracite RAL 7021
LM155180ED
Corten
LM155180KD
55 7.500 2500
CL.II LED version with integrated ballast 220-240 V
Black RAL 9005
LL155181BD
Grey High Tech RAL 9006
LL155181GD
Grey anthracite RAL 7021
LL155181ED
Corten
LL155181KD
55 7.500 2500
CL.II LED version with integrated ballast 220-240 V DALI2
Black RAL 9005
LM155181BD
Grey High Tech RAL 9006
LM155181GD
Grey anthracite RAL 7021
LM155181ED
Corten
LM155181KD
30 4000 1400
CL.II LED version with integrated ballast 220-240 V Day Night sensor Motion sensor
Black RAL 9005
LS155180BD
Grey High Tech RAL 9006
LS155180GD
Grey anthracite RAL 7021
LS155180ED
Corten
LS155180KD
55 7.500 2500
CL.II LED version with integrated ballast 220-240 V Day Night sensor Motion sensor
Black RAL 9005
LS155181BD
Grey High Tech RAL 9006
LS155181GD
Grey anthracite RAL 7021
LS155181ED
Corten
LS155181KD
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K
1
2200K
