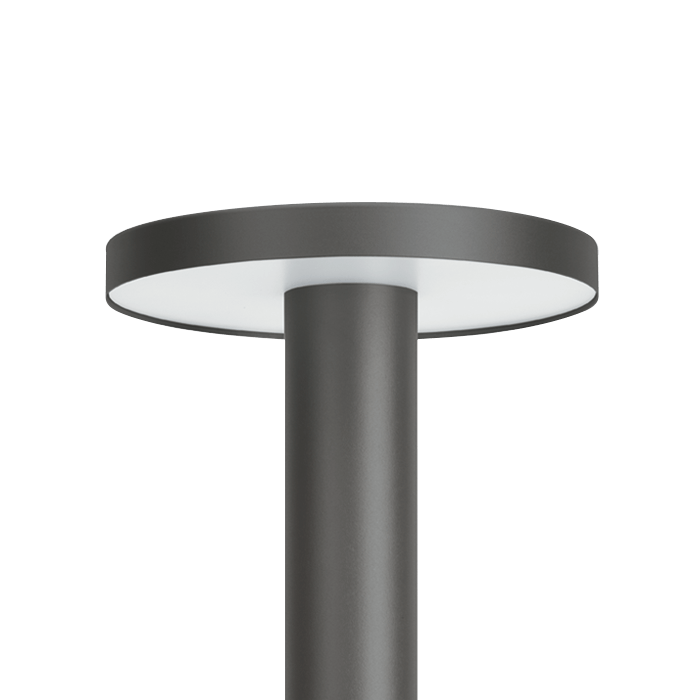

Line 220 Zero
Available colors
Black RAL 9005 Grey High Tech RAL 9006 Grey anthracite RAL 7021 Corten

Line 220 Zero

Suitable for outdoor use.
Integrated driver 220 - 240V and the latest generation of Led with ratings of up to 25W.
LINE, LINE DOWN e LINE 220 body and cover made of die-cast aluminium primary alloy; highly resistant to oxidization thanks to the zirconium-based passivation treatment and UV stabilized polyester resin coating.
LINE 330 upper black polycarbonate cap, injection moulded in-house.
Diffuser made of very thick optical polycarbonate, poliGLASS finish, injection moulded and subsequent manual finishing.
Silicone gaskets IP66.
A4 stainless steel nuts and bolts. Provision for safety screws.

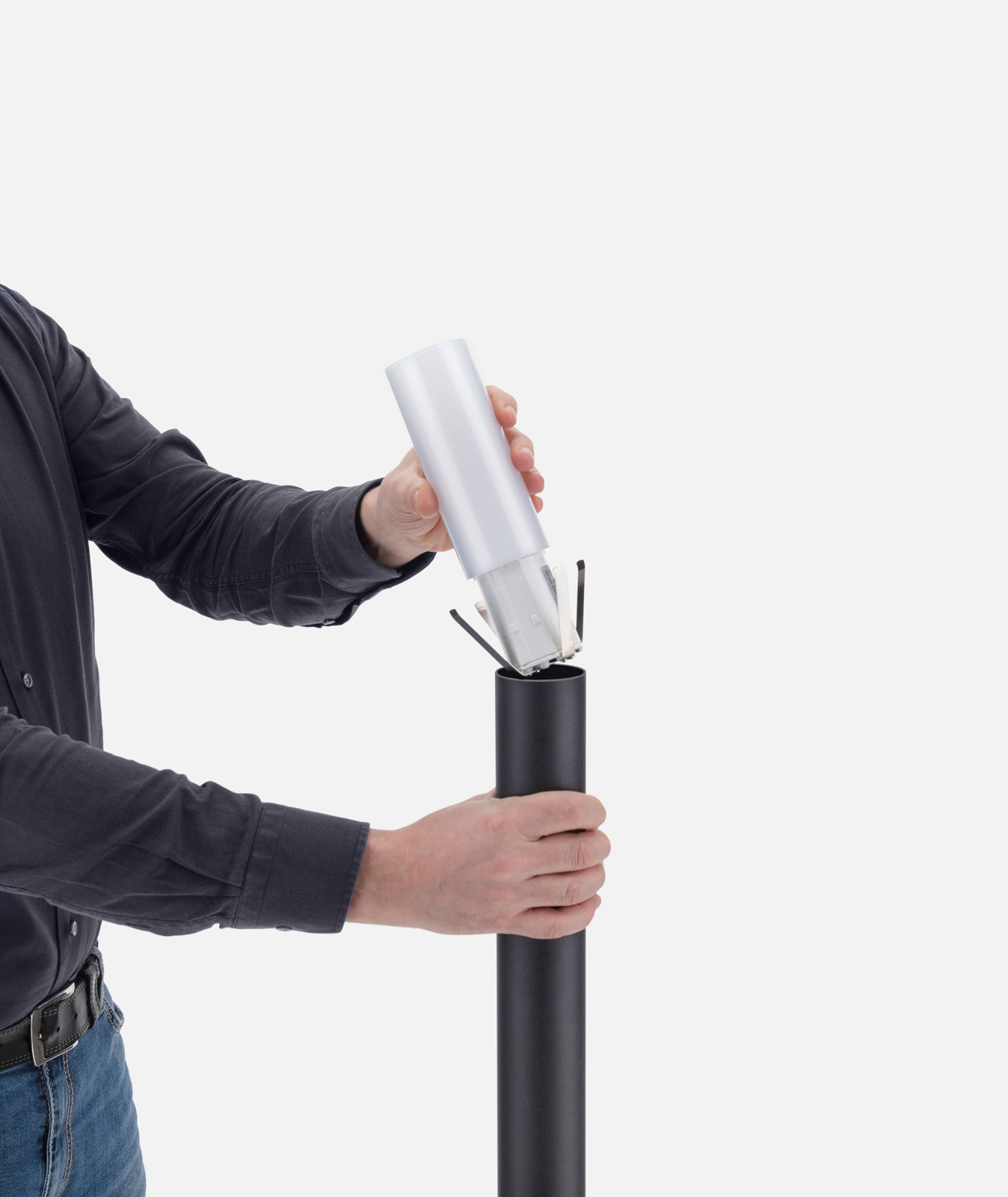

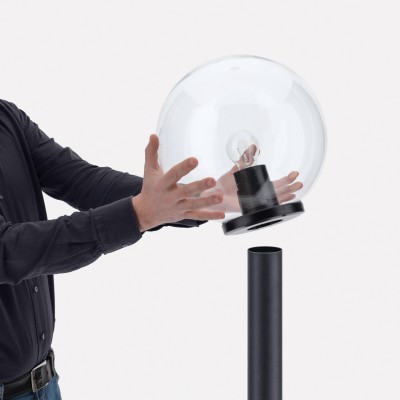

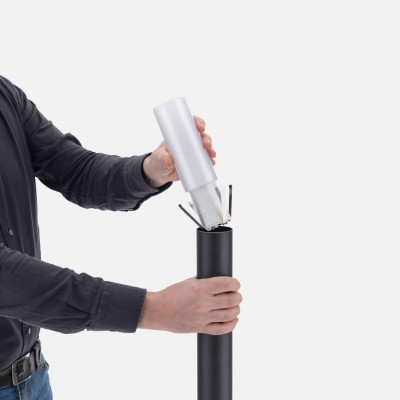

Suitable for quick installation in standard posts Ø60 by means of stainless steel springs.
LED 4000K (N), 3000K (3) or 2700K (2). Integral ballast 220-240V.
No risk of photobiological damage, RG0 group (EN62471).
IP 66
Outdoor e waterproof
Direct power supply
Direct power supply
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Polycarbonate
Ask for information
Lighting simulations
Line 220 Zero
  • IP 66
  • IK 08 5J xx7
  • CE

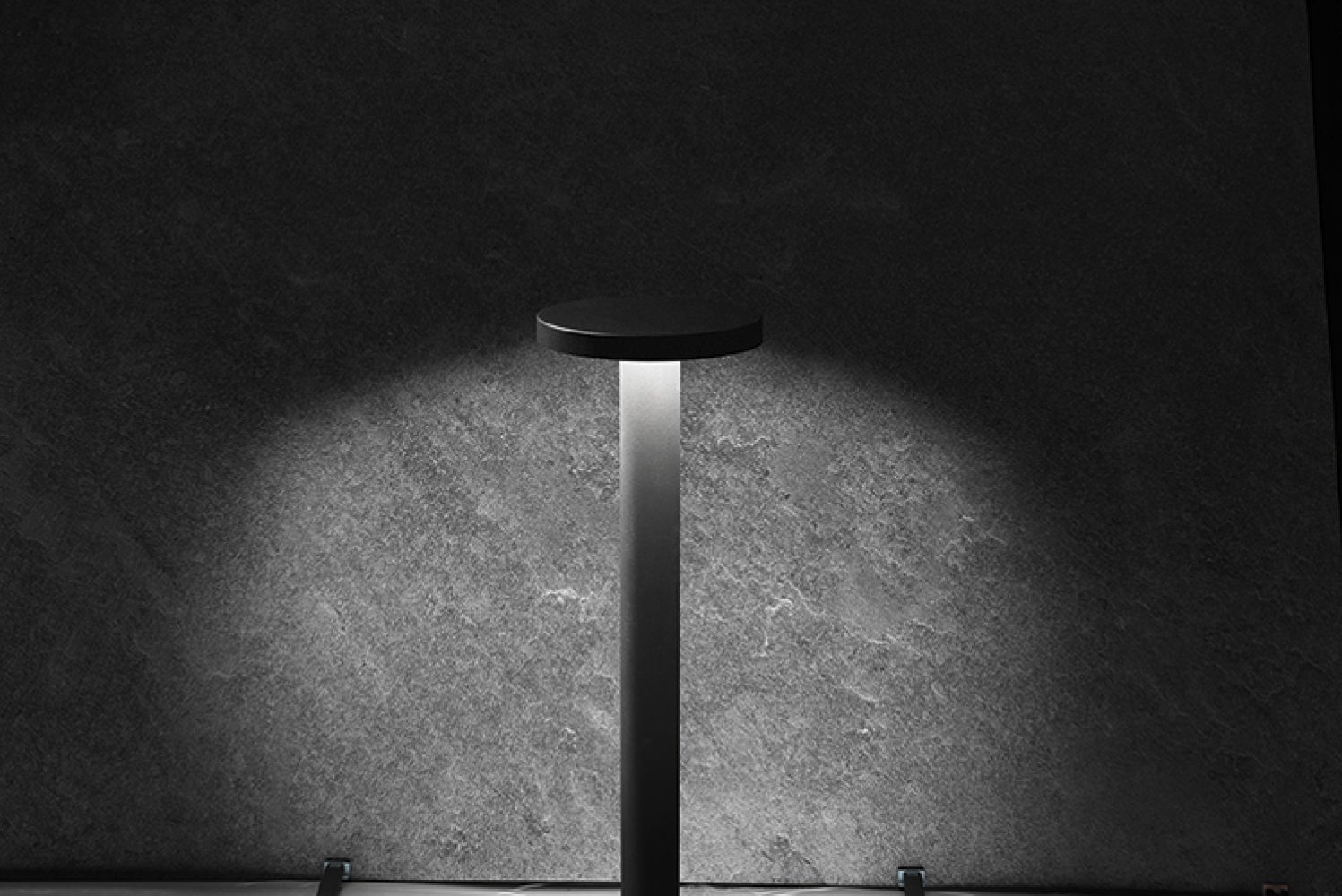

CUT-OFF version anti-light pollution.
Light beam
indiretto
Line 220 Zero
LED
W LM REAL LM COL. POLIGLASS
CODE
11 1200 632
CL.I LED version with integrated ballast 220-240 V
Black RAL 9005
LL113112
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Family range
Grey High Tech RAL 9006
LL113113
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Family range
Grey anthracite RAL 7021
LL113114
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Family range
Corten
LL113115
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Family range
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K

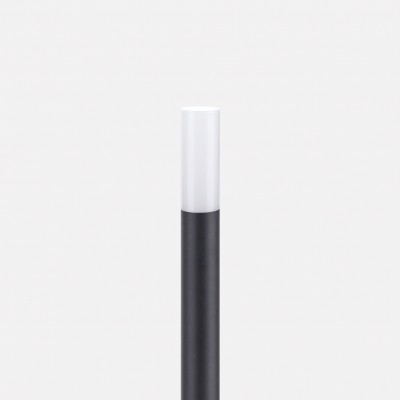

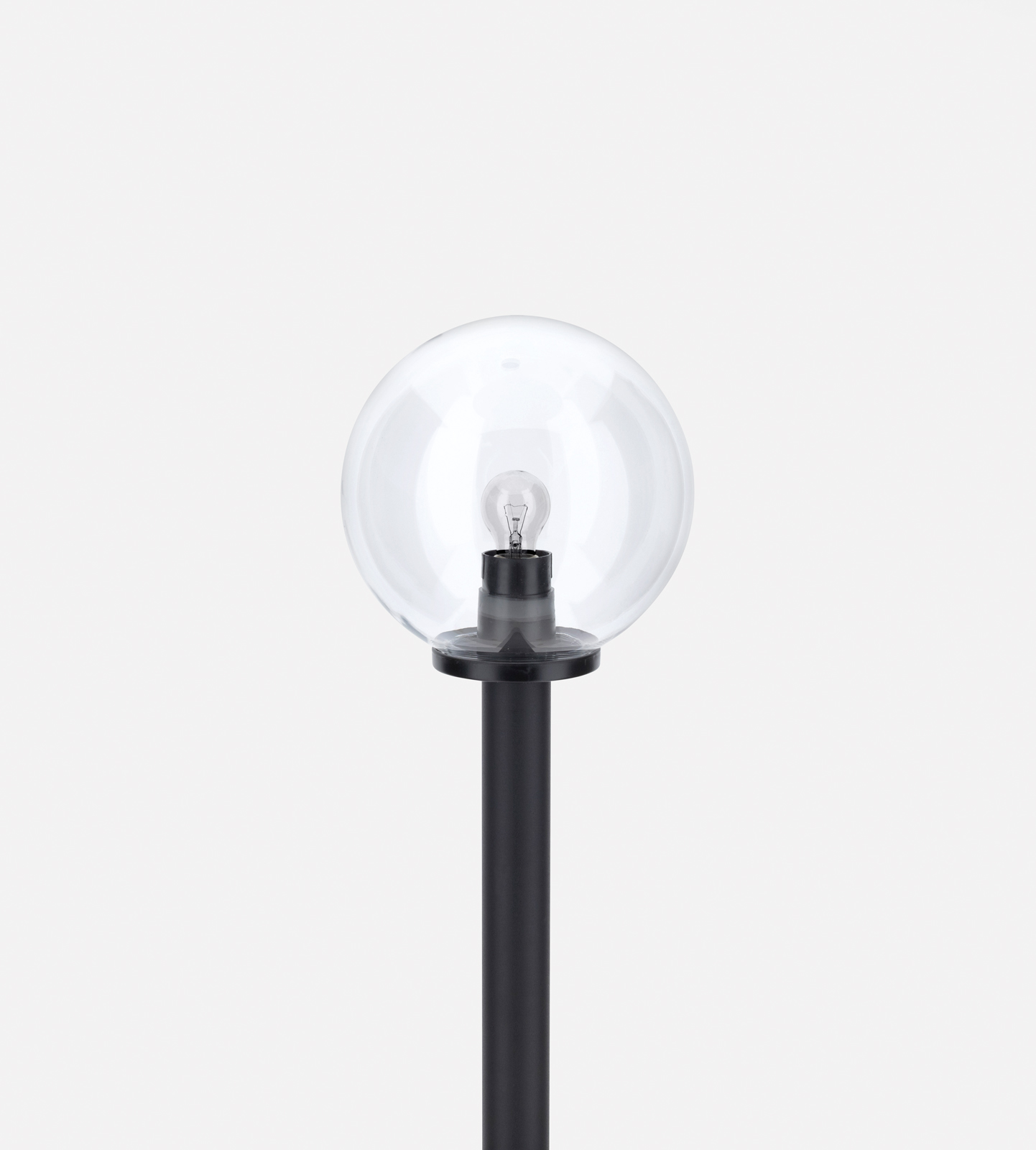

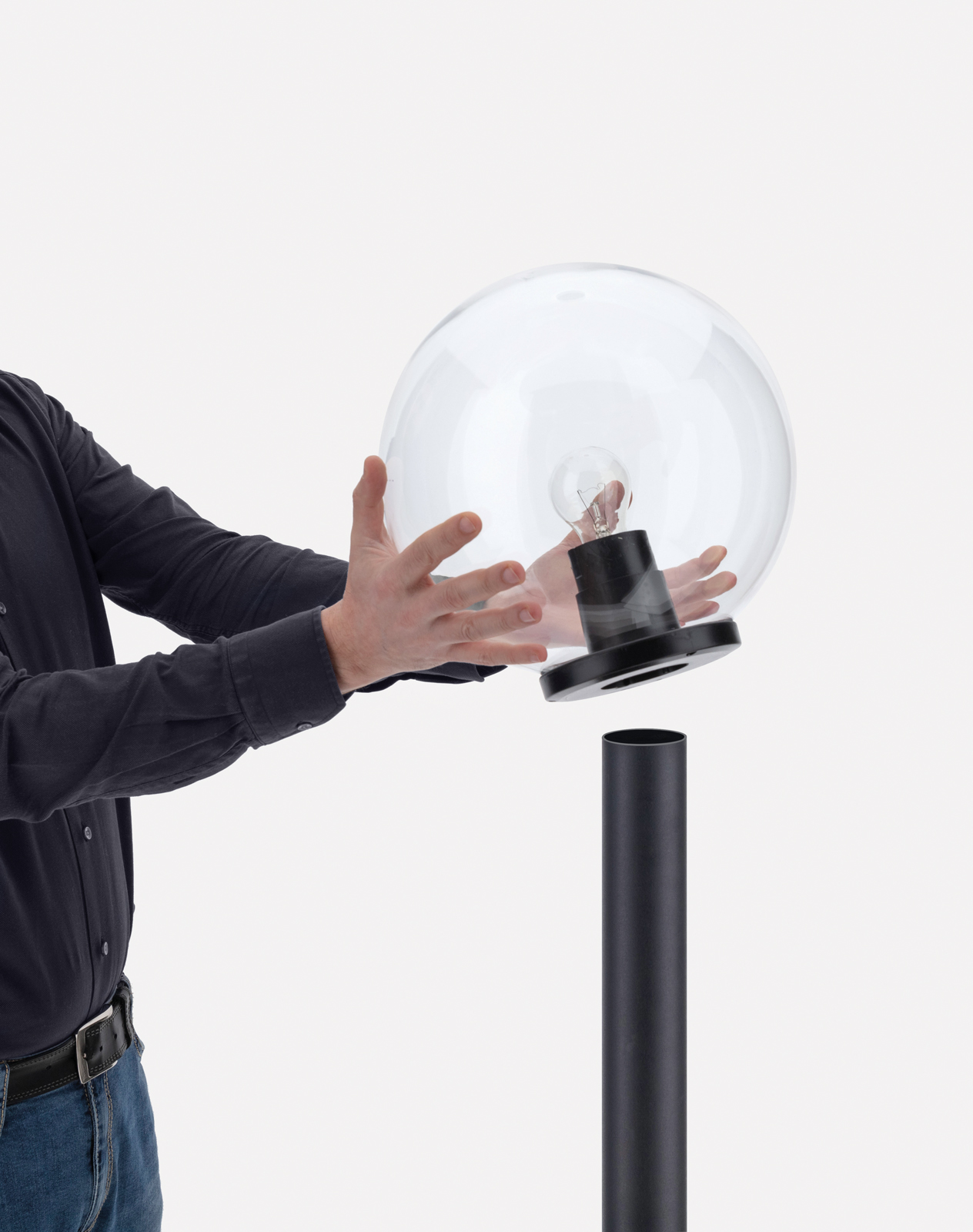

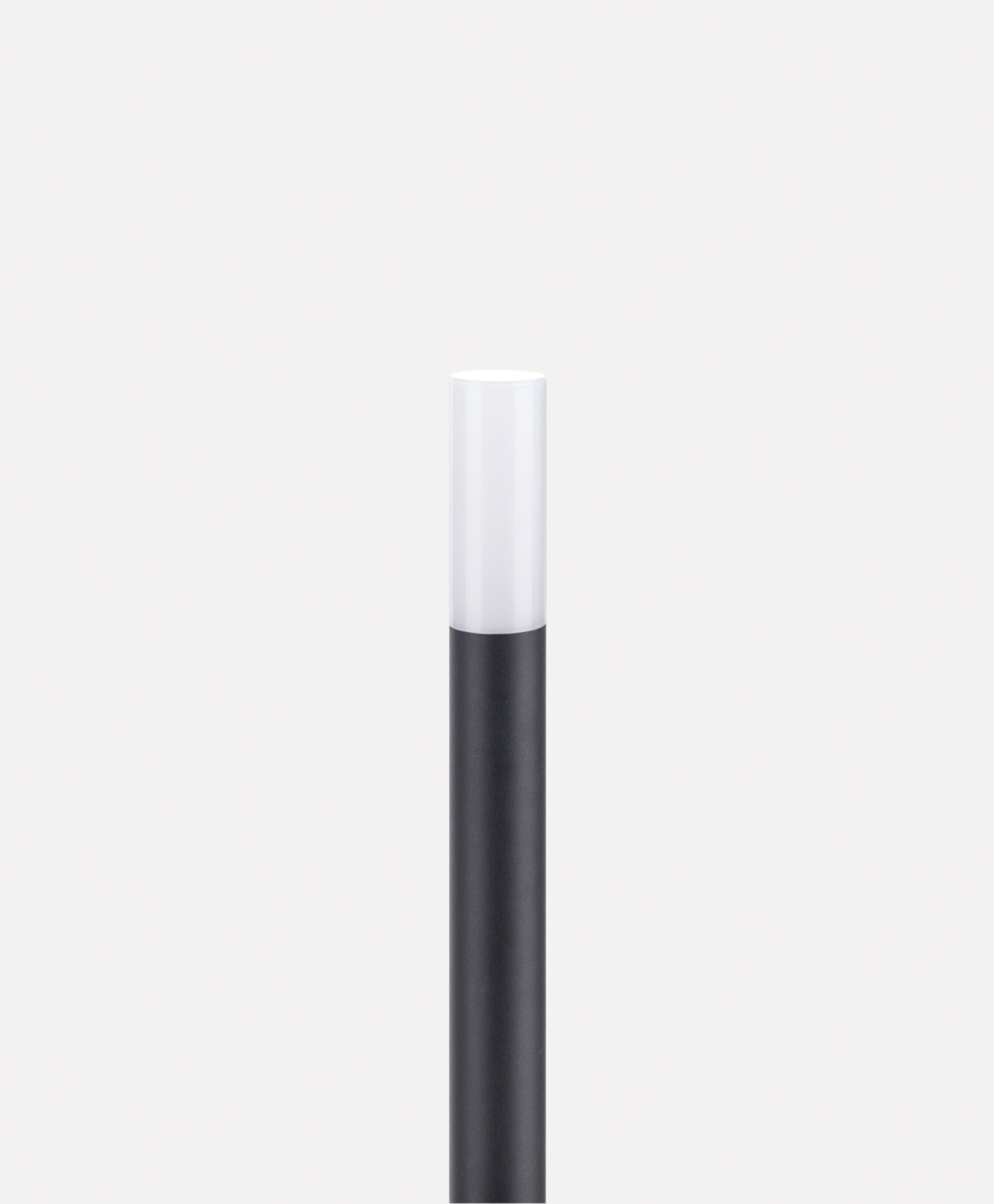

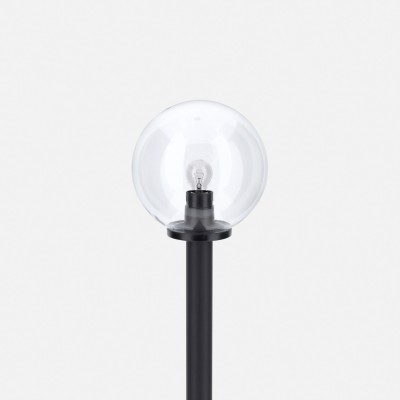

1_line_A_29.jpg 2_line_A_30.jpg 3_line_A_31.jpg 4_line_A_32.jpg

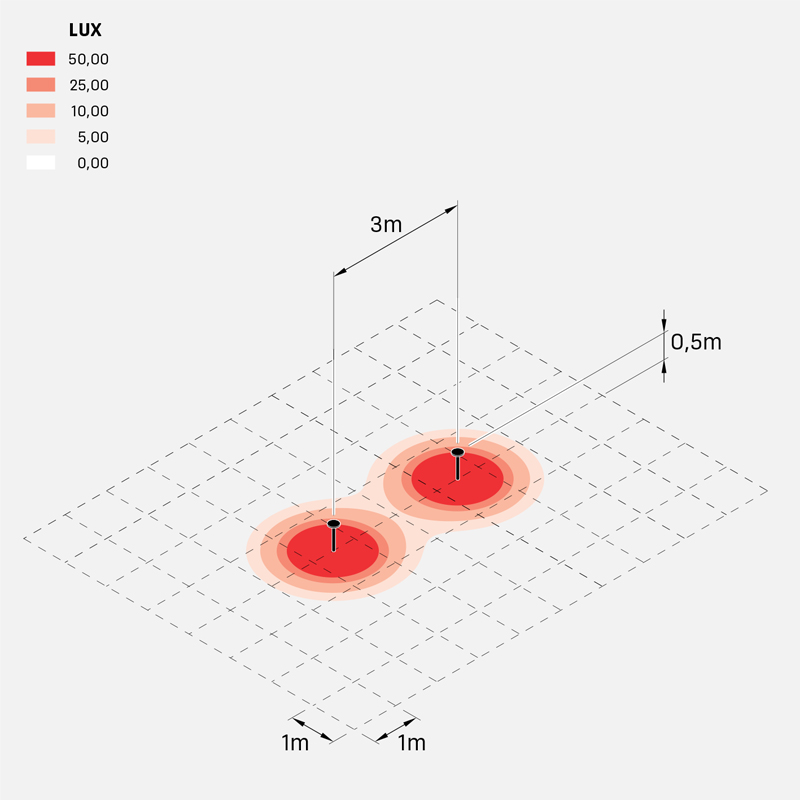

Lighting simulations

line_220_zero_H500
line_220_zero_H500
Line Line Line Down Line Down Line 220 Line 220 Kit 01 - Line Post H500 Kit 01 - Line Post H500 Kit 03 - Line Post H1500 Kit 03 - Line Post H1500 Kit 04 - Line Down Post H500 Kit 04 - Line Down Post H500 Kit 06 - Line Down Post H1500 Kit 06 - Line Down Post H1500 Kit 07 - Line 220 Post H500 Kit 07 - Line 220 Post H500 Kit 09 - Line 220 Post H1500 Kit 09 - Line 220 Post H1500 Line 330 Line 330 Kit 02 - Line Post H1000 Kit 02 - Line Post H1000 Kit 05 - Line Down Post H1000 Kit 05 - Line Down Post H1000 Kit 08 - Line 220 Post H1000 Kit 08 - Line 220 Post H1000
Base Ø170 mm for Still post Base Ø170 mm for Still post Retractable plate base Retractable plate base Template and fixing kit Still Post diam. 60 mm. Template and fixing kit Still Post diam. 60 mm. Box Line Box Line 3-pole coaxial terminal block 3-pole coaxial terminal block 3 way linear terminal block 3 way linear terminal block Still Still
