INC 35
Design: Giorgio Manenti

INC 35

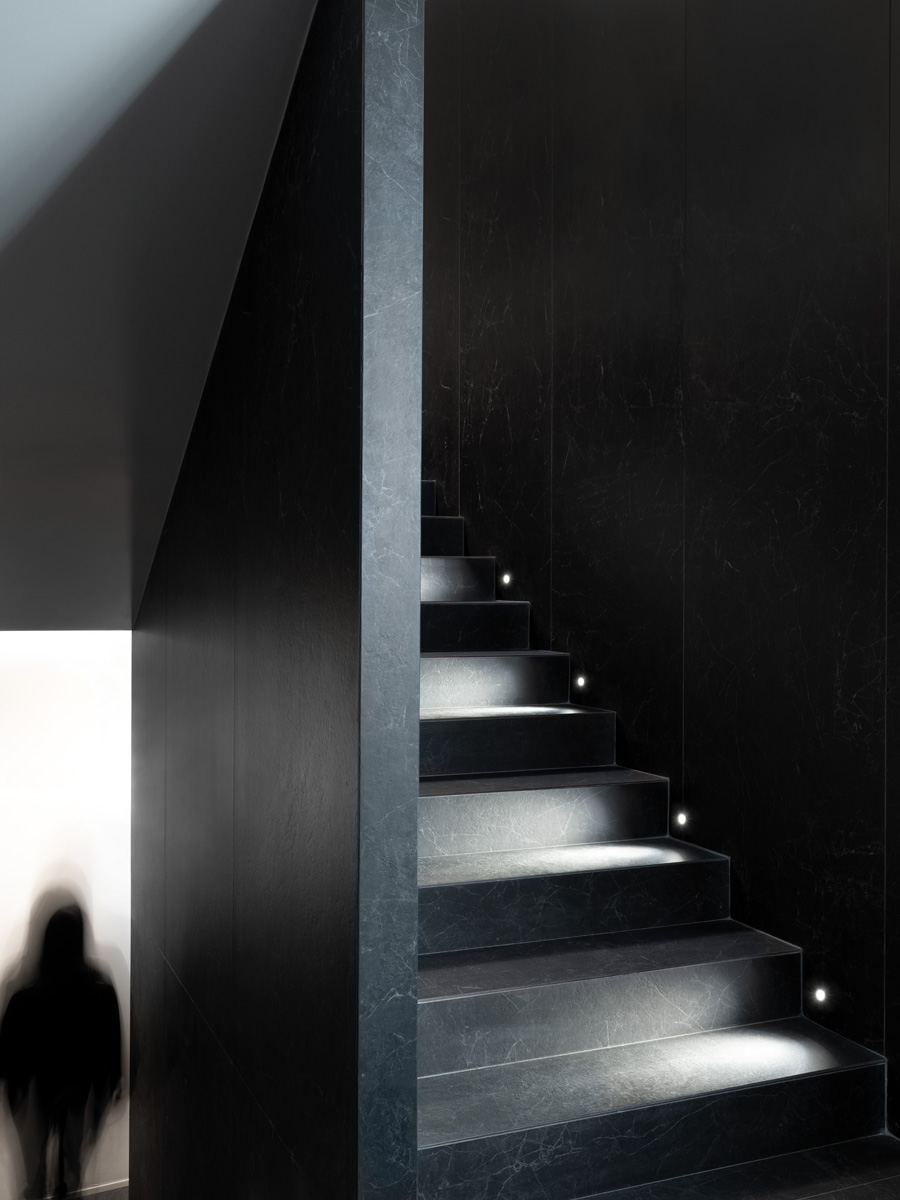

Suitable for installation on walls and ceilings and for outdoor use. Ideal for recessed ground application, also for walk-over use. Installation by means of a recess box supplied separately. Product designed for LED light sources for accent lighting and marking driveways and pathways. Retaining ring made of stainless steel AISI 316L.
Body made of black anodized aluminum. Heat tempered glass diffuser. Silicone gaskets. 1.5 m. pre-wired cable type HO5RN-F, secured by means of a nickel-plated brass cable gland. Dimmable version available. A4 or AISI 316L stainless steel nuts and bolts.All the wiring is supplied with a special sheathing protecting the spot from seepage of water and damp. The retaining spring adapts both to applications requiring the use of the recess box or for fittings directly on plasterboard ceilings. Version in constant tension 12/24V. Version in constant current 350mA/ 500mA: only drivers type SELV or equivalent must be used. All the wiring is supplied with a built-in electronic system that allows a non-polarised connection of the spot light.
INC 35: moreover, the electronic device prevents the interruption of whole rows of downlights connected together in the event of a fault on just one of the products.
LED 4000K (N), 3000K (3)or 2700K (2). Ballast not included. No risk of photobiological damage, RG0 group (EN62471).
Diffuser
Transparent glass
Available configurations
Wall recess Ceiling recess Ground recess
Available colors
Satin grey White Grey anthracite
Download
Ask for information
INC 35
  • IP 67
  • IK 10 20J xx9
  • CE
  • Temp. max Vetro/Glass 65°C (Ta 25°C)
  • Calpestabile/Step Max 500 Kg

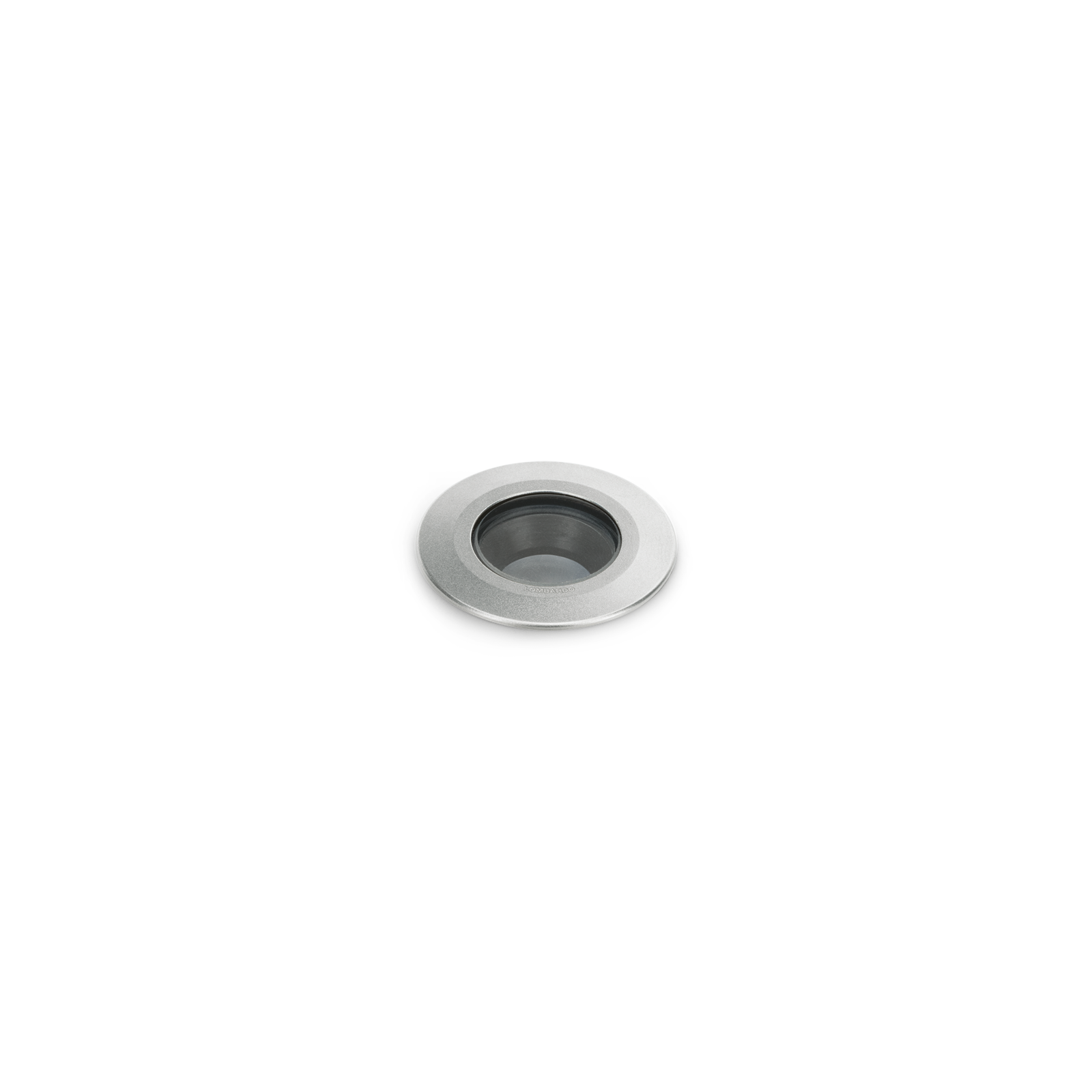

Version with round retaining ring, choice of 3 different optics. Max. temperature measured on the glass 65°C.
Fasci di luce
CNC T/Q/UP
LED
W LM REAL LM COL. DIFF. Glass
CODE
OPTIC LED COLOUR
A++ 2 180 120 CL.III Satin grey

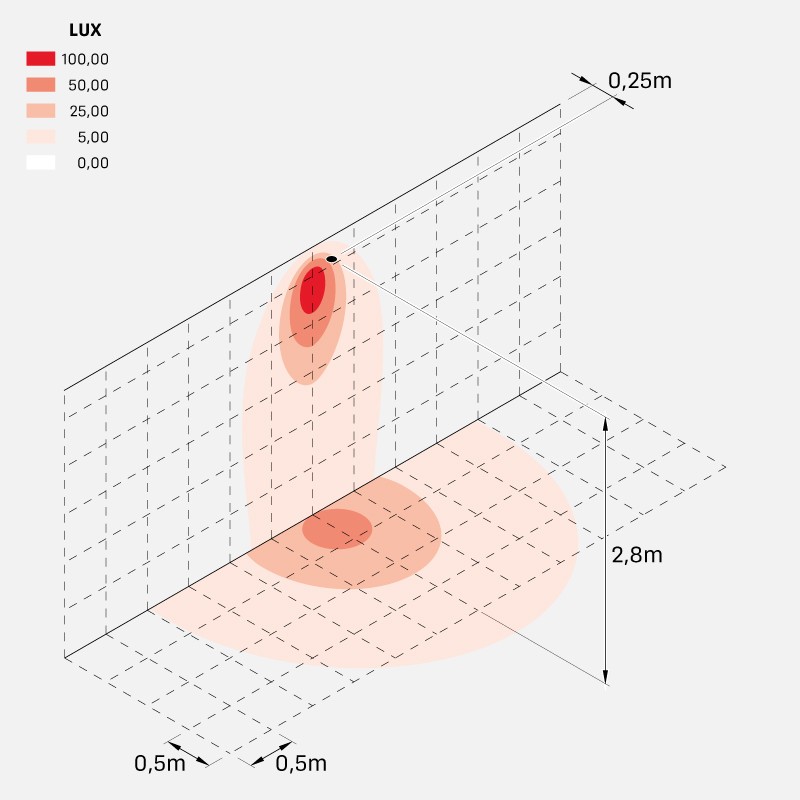

S
14°

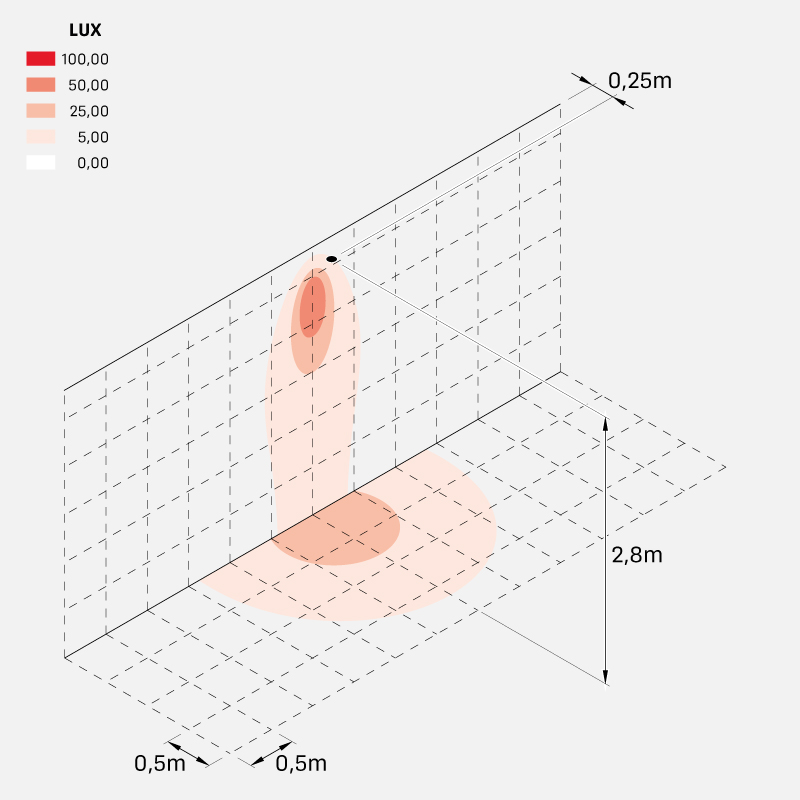

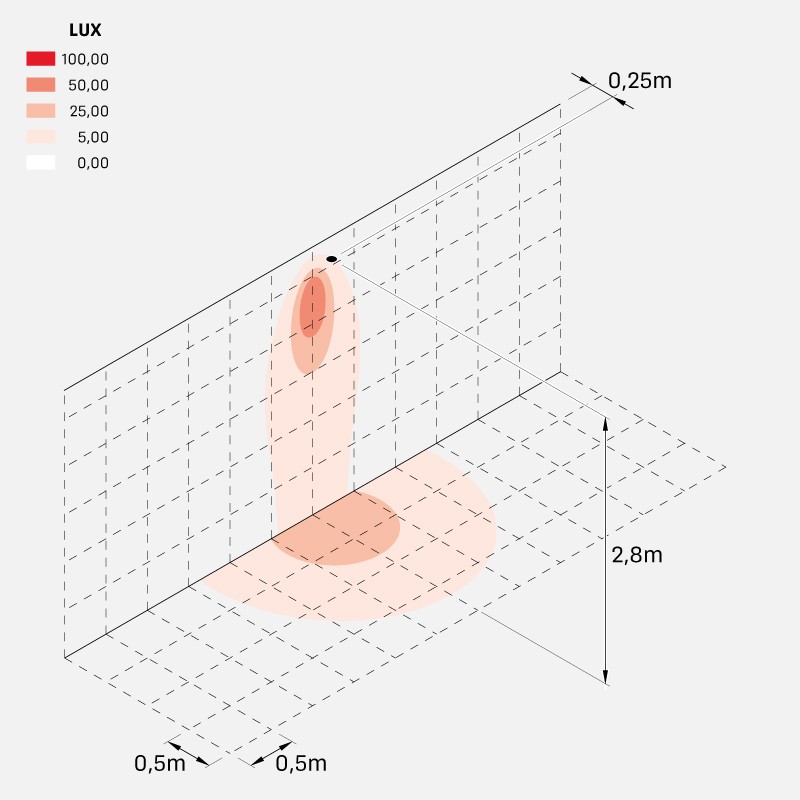

M
29°

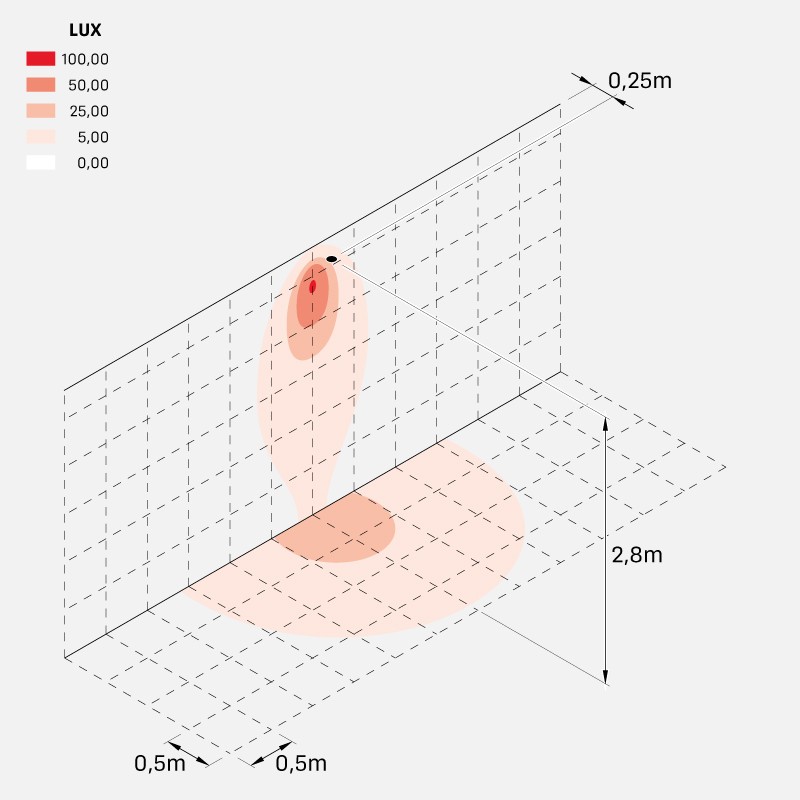

L
46°
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%
White
500 mA - 4.8 V Grey anthracite
A++ 2 180 120 CL.III Satin grey
White
12/24 V Grey anthracite
