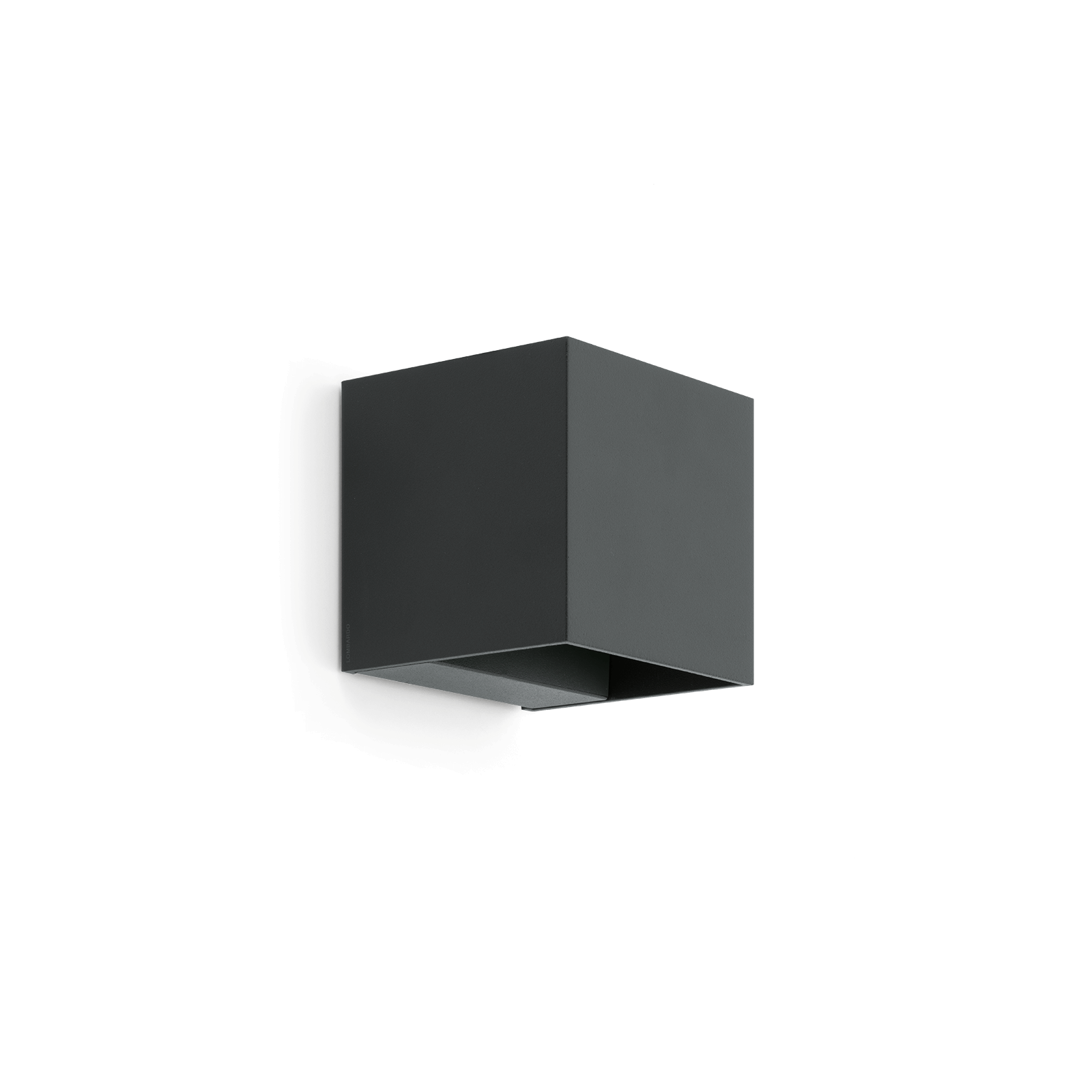

Dodo 100
Available colors
White RAL 9003 Light Grey RAL 7044 Dark Grey RAL 7021 Gold – Dark Grey RAL 7021

Dodo 100

New
Also suitable for outdoor use. Die-cast aluminium body; high resistance to oxidation thanks to cataphoresis treatment and UV-stabilised polyester resin painting. Transparent polycarbonate diffuser. Prepared for a single cable entry at the back. Supplied with accessories for adjusting the opening of the light beam. Silicone gaskets. A4 stainless steel hardware.
Dodo 100: Integral ballast 220-240V.
LED 4000K (N), 3000K (3) or 2700K (2). No photobiological risk, RG0 risk group exempt (EN62471).
IP 54
Outdoor e waterproof
Direct power supply
Direct power supply
Cataphoresis
Cataphoresis
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Polycarbonate
Ask for information
Lighting simulations
|
Dodo 100
Dodo 100
  • IP 54
  • IK 10 20J xx9
  • CE
Available light beams: 30°, 45°, 60°, 75°,90°.
LED
 W LM REAL LM COL. DIFF. Trasp.
CODE 		LED COLOUR
Select LED colour
LED colour not valid
10 1180 350 CL.I LED version with integrated ballast 220-240 V White RAL 9003
LL14303W
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Family range
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%
Light Grey RAL 7044
LL14303L
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Family range
Dark Grey RAL 7021
LL14303D
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Family range
Gold – Dark Grey RAL 7021
LL14303Z
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Family range

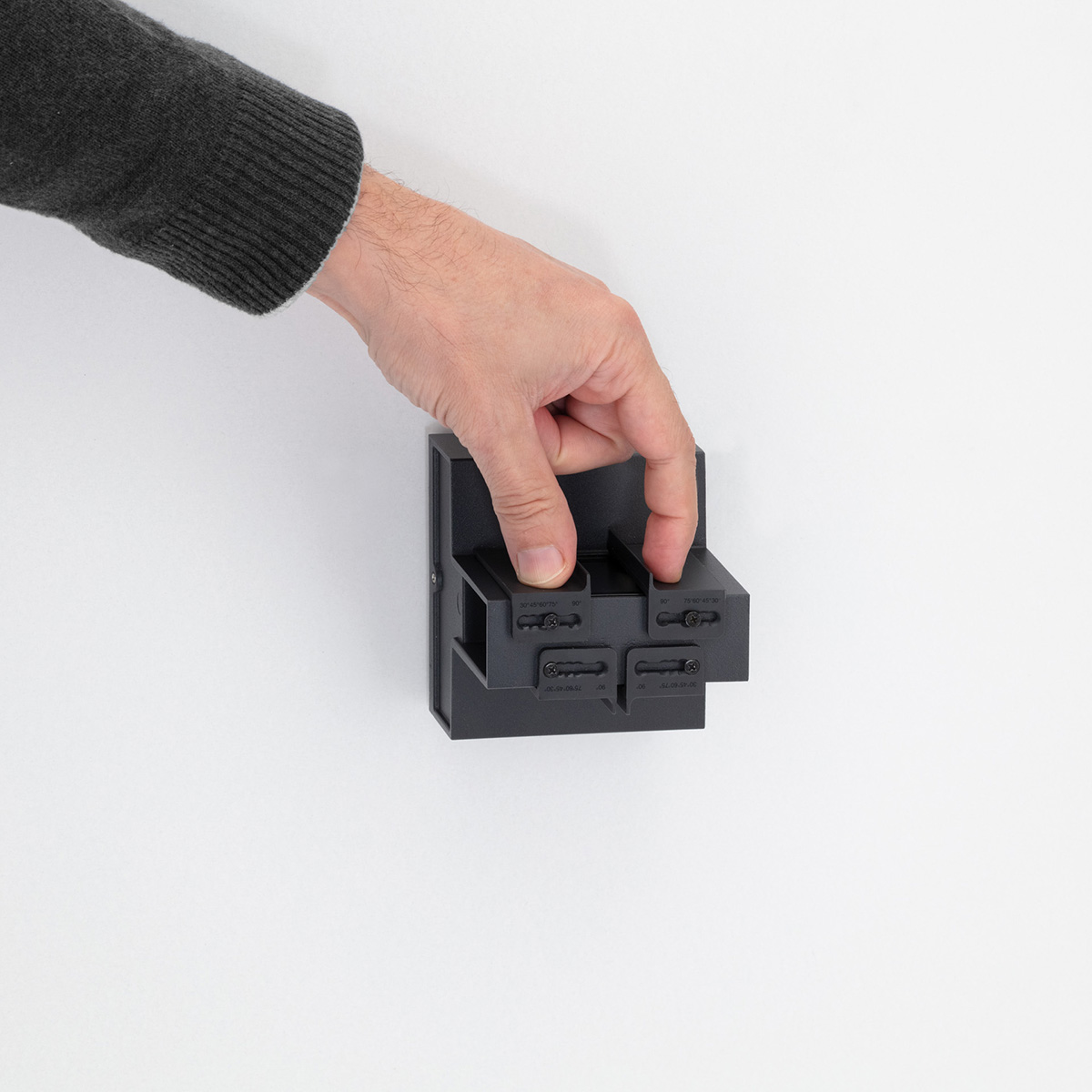

dodo_A_20

Lighting simulations

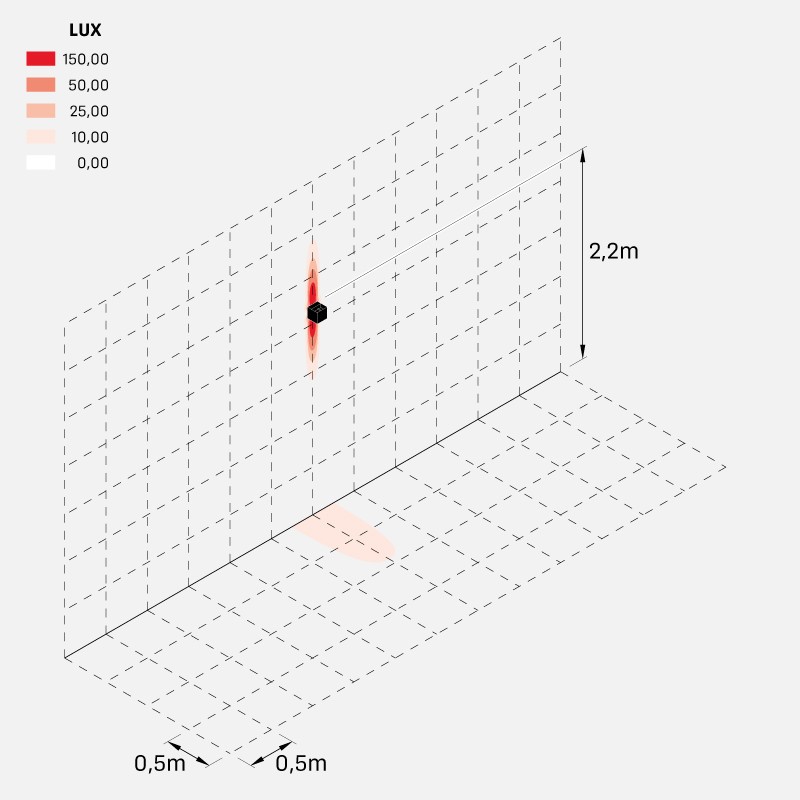

dodo_100_30
dodo_100_30

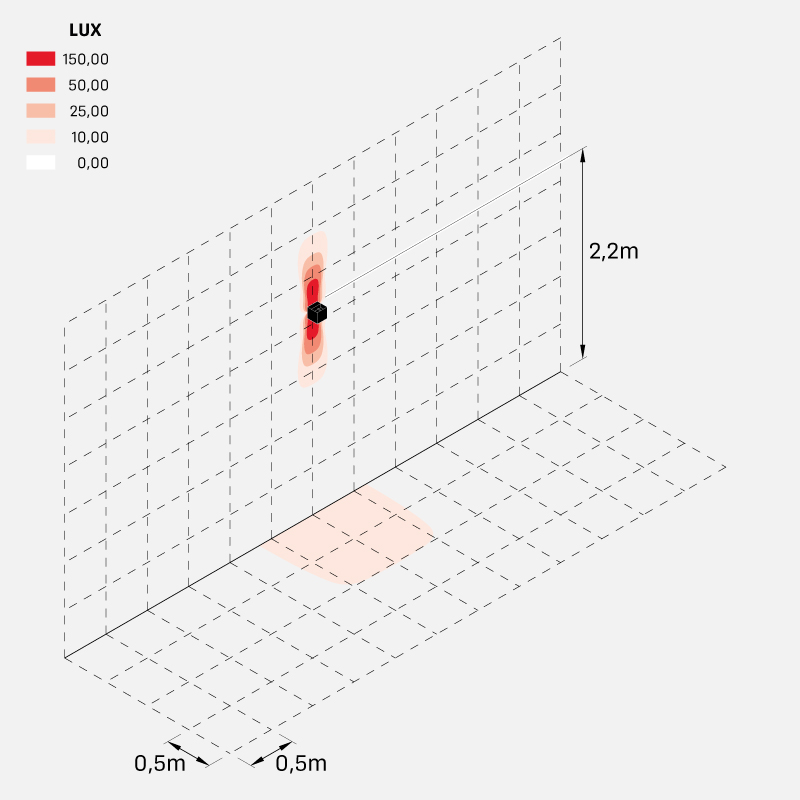

dodo_100_45
dodo_100_45

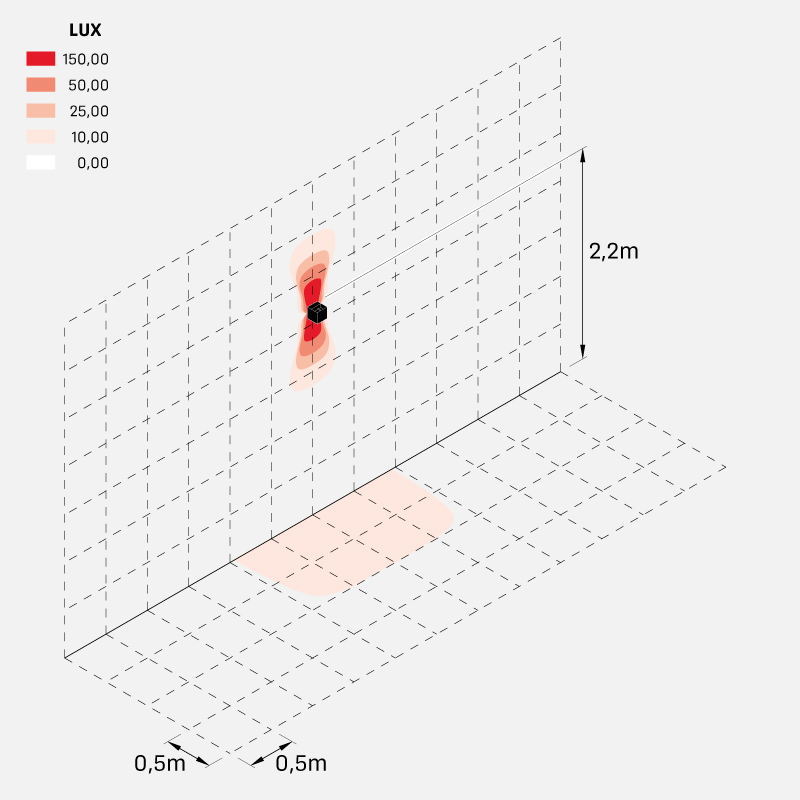

dodo_100_60
dodo_100_60

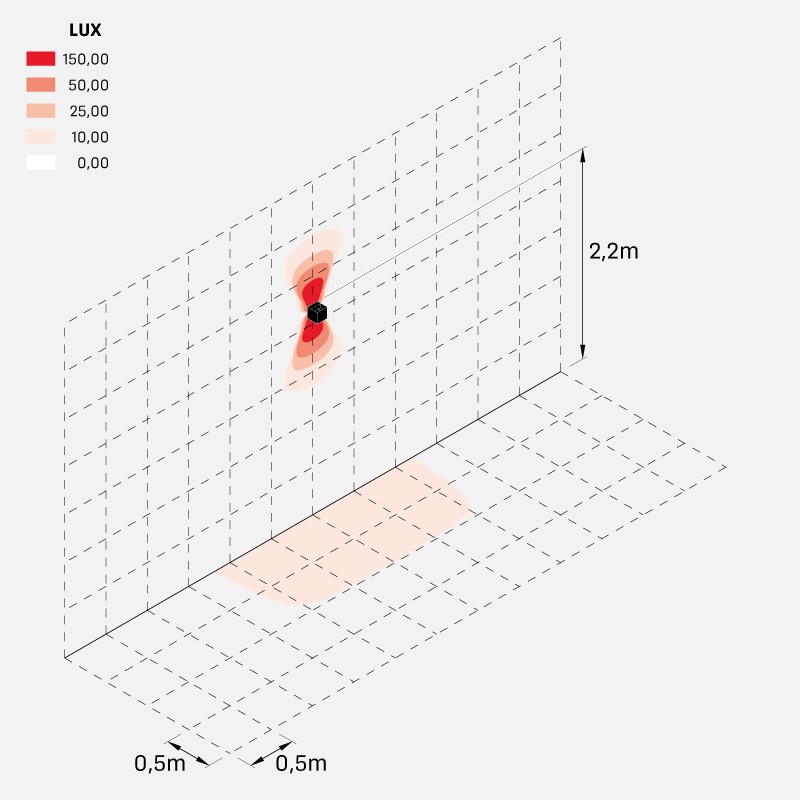

dodo_100_75
dodo_100_75

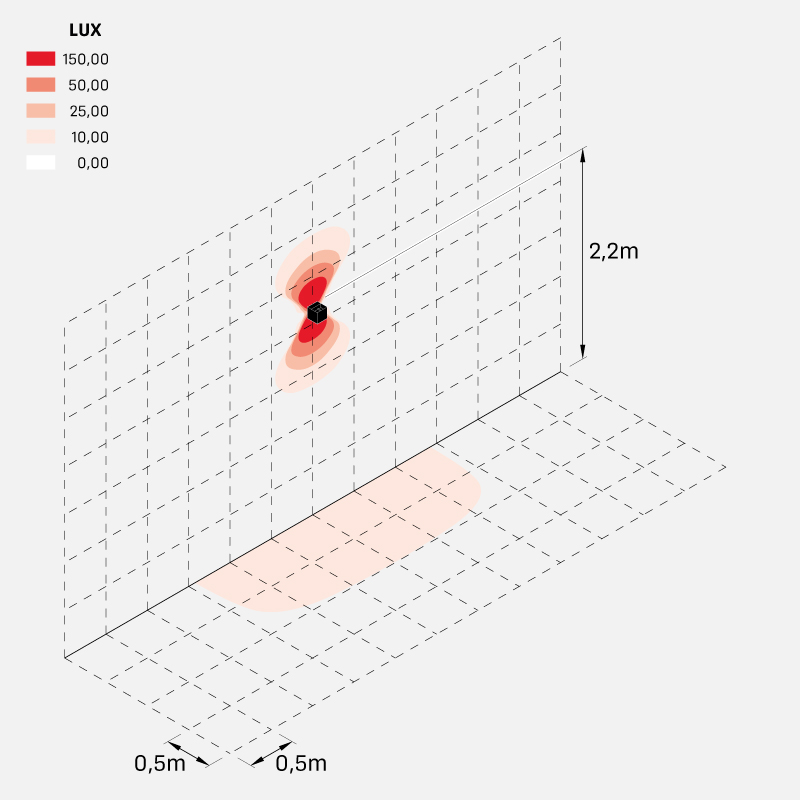

dodo_100_90
dodo_100_90
