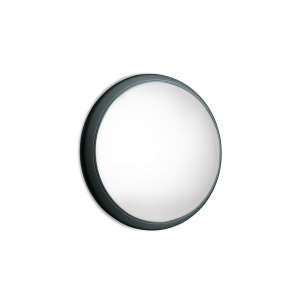

Class tonda 260
Design: Italo Belussi

Class tonda 260

Suitable for indoor and outdoor use.
Polycarbonate base and ring/eyelid.
Reflector made of polycarbonate or aluminium type L2-1060.
Cable entry option on the side with rigid tube 16/20 mm.
The diffuser can be opened/closed without the need for tools.
LED 4000K (N) or 3000K (3) LED. Integral ballast 220-240V.
No risk of photobiological damage, RG0 group (EN62471).
Diffuser
Polycarbonate
Available configurations
Wall Ceiling
Available colors
White Black Grey High Tech RAL 9006
Ask for information
Class tonda 260
  • IP 65
  • IK 10 20J xx9
  • CE
Polycarbonate diffuser. Silicone gasket.
Lamp max. dim: E27 128 mm Ø 48 mm.
LED
W LM REAL LM COL. DIFF. Opal.
CODE
DIFF. Semitrasp.
CODE
LED COLOUR
A++ 18 1950 1223 - 1658 CL.II LED version with integrated ballast White
N
4000K
3
3000K, lm -5%
Black
Grey High Tech RAL 9006
A++ 18 1950 1223 CL.II LED version with integrated ballast Maintained emergency 3h White
Black
+ LED Em. 3H - 180 lm Grey High Tech RAL 9006
A++ 18 1950 1223 LED version with integrated ballast Motion sensor included White
Black
Grey High Tech RAL 9006
LAMP
ATT. LAMP MAX CFL COL. DIFF. Opal.
CODE
DIFF. Semitrasp.
CODE
A - D E27 1x75 1x15 CL.II Suitable for motion sensor/Day and night sensor IMQ ENEC03 White
Black
Grey High Tech RAL 9006
Related product: Nova tonda 260
