CNC 100 2L
Available colors

CNC 100 2L

Suitable for installation on floor and walls for outdoor use. Ideal for recessed ground application, also for drive-over use. Installation by means of a recess box supplied separately. Except for CNC 100 C, which does not require a recess box. Product designed for LED light sources for accent lighting and marking driveways and pathways. Anodised aluminium body and AISI316L steel retaining ring. Heat polycarbonate diffuser. Silicone gaskets. 1.5 m. pre-wired cable type HO5RN-F, secured by means of a nickel-plated brass cable gland. A4 or AISI 316L stainless steel nuts and bolts. All the wiring is supplied with a special sheathing protecting the spot from seepage of water and damp.
No risk of photobiological damage, RG0 group (EN62471).
CNC 100 L / CNC 100 2L / CNC 100 UP
Snaps open and closed without screws.
LED 4000K (N), 3000K (3), or 2700K (2). Integral ballast 220-240V.
CNC 100 C L / CNC 100 C 2L
Version in constant current 700 mA. Only drivers type SELV or equivalent must be used.
LED 4000K (N), 3000K (3), or 2700K (2). Ballast not included.
CNC 100 C-UP
LED AC Direct.
LED 4000K (N), 3000K (3), or 2700K (2). LED AC Direct.
IP 68
Outdoor e waterproof
Aquastop
Aquastop
Pre-wired
Pre-wired
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Polycarbonate
CNC 100 2L
  • IP 68
  • IK 10 20J xx9
  • CE
  • Carrabile/Drive-over Max 2000 Kg
  • Temp. max  50°C
Version with Top retaining ring with two 110° openings. Max. temperature measured on the diffuser 50°C.
Cable type H05RN-F 3x1.
Fasci di luce
CNC 2L / TOP 2L / CL 2X110°

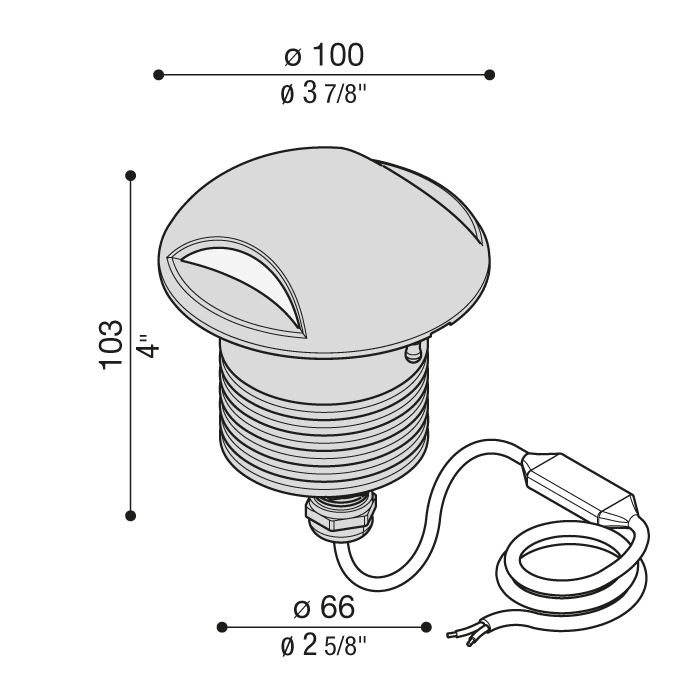

Profilo CNC100 2L
LED
W LM REAL LM COL. DIFF. Semitrasp.
CODE
LED COLOUR
Select LED colour
LED colour not valid
5 430 205 CL.I LED version with integrated ballast 220-240 V Stainless steel electropolished
N
4000K
3
3000K, lm -5%
2
2700K, lm -5%
White RAL 9010
Grey High Tech RAL 9006
Grey anthracite RAL 7021
Corten

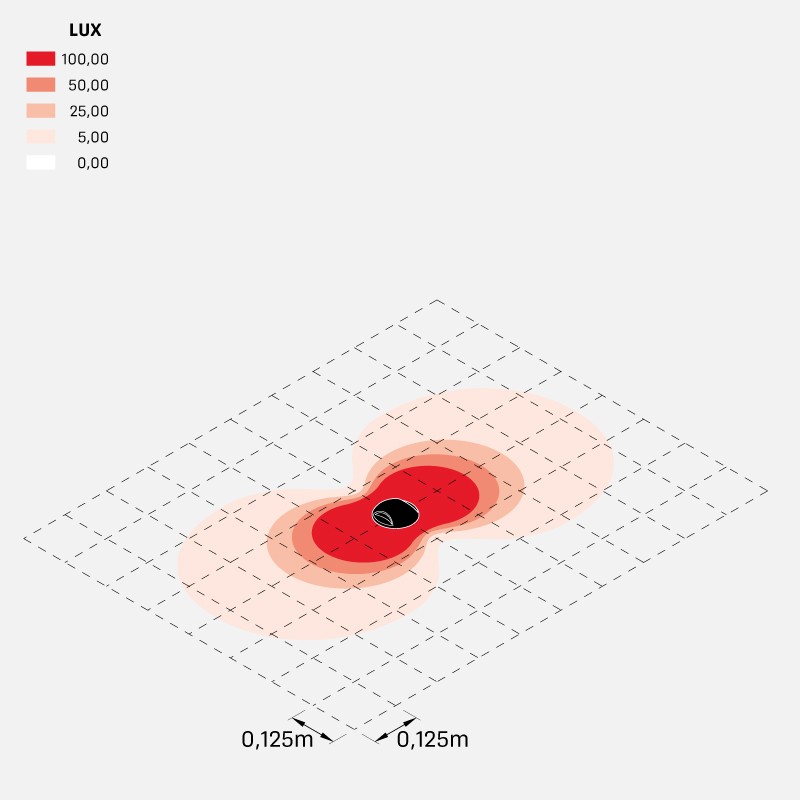

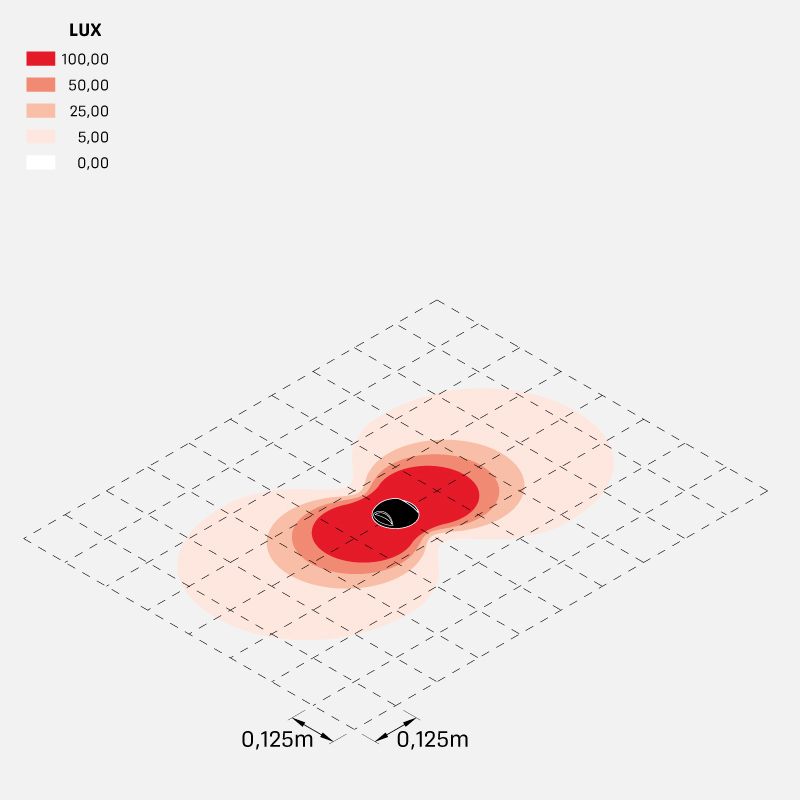

Lighting simulations

cnc_100_2l
cnc_100_2l
