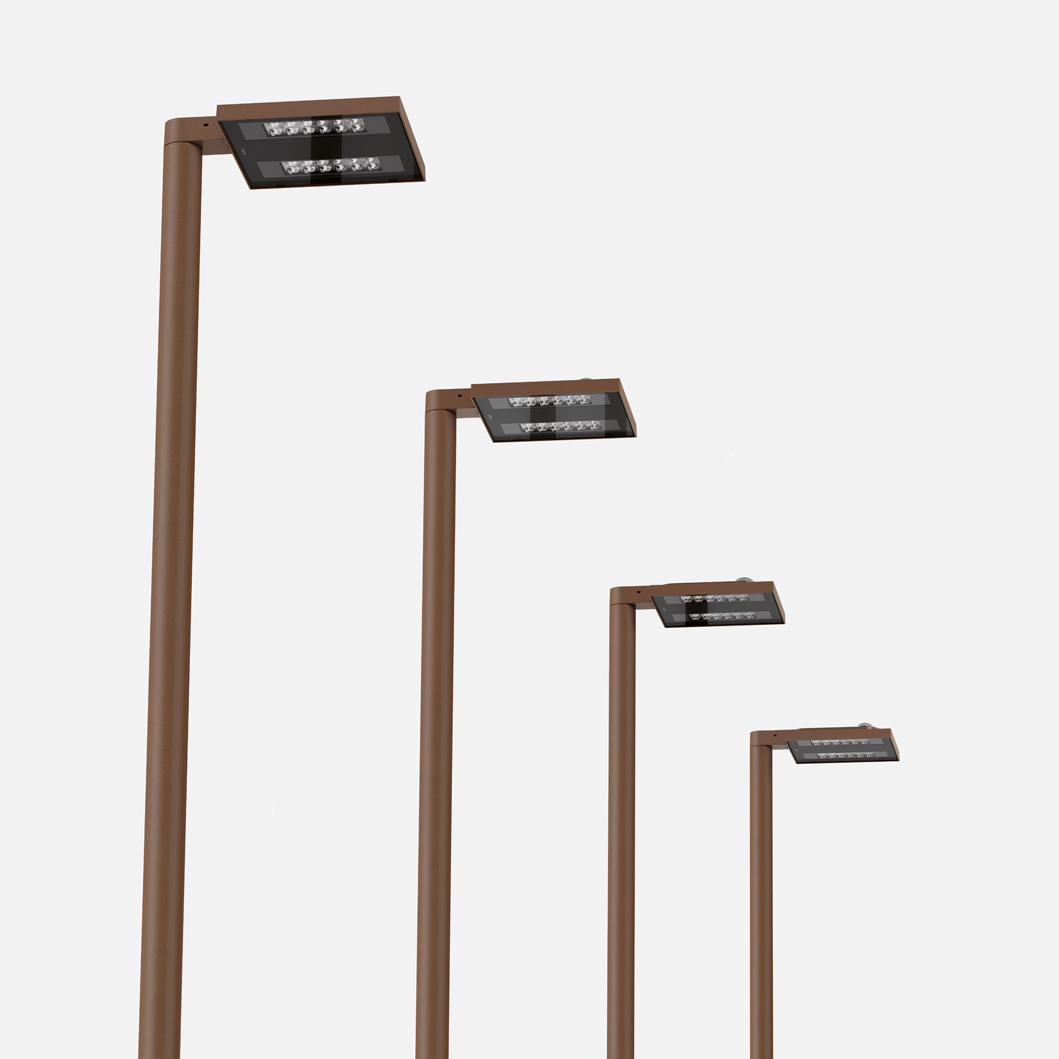

Kai 2 Midnight Function
Couleurs disponibles

Kai 2 Midnight Function

New
Convient pour l'installation extérieure sur mât, corps en aluminium moulé sous pression. IP 66. Diffuseur en verre transparent. Version on-off : câble 0,7m H05RN-F. Version DALI : câble 0,7m H07RN-F. Installation obligatoire sur mâts métalliques Ø60. Non adapté pour mâts Still. Boulonnerie en acier inoxydable A4. Préparé pour D4i et fonction midnight. Large choix de températures de couleur et de finitions. Fourni avec traitement "Bordo Mare" idéal pour les installations dans des lieux à risque de corrosion plus élevé. Le corps du produit est composé d'aluminium moulé sous pression ; haute résistance à l'oxydation grâce au traitement de passivation à base de zirconium et au revêtement avec des résines polyester stabilisées aux rayons UV. Appareil pré-câblé avec garantie pluriannuelle sur le circuit LED. Système de fixation propriétaire avec intégration interne au mât pour élimination d'éléments externes visibles. LED 5700K (5), 4000K (N) ou 3000K (3). Aucun risque photobiologique dans les conditions normales d'utilisation ; groupe de risque exempt RG1 (EN62471).
IP 66
Outdoor e waterproof
Alimentation directe
Alimentation directe
Dimmable
Dimmable
Pré-câblé
Pré-câblé

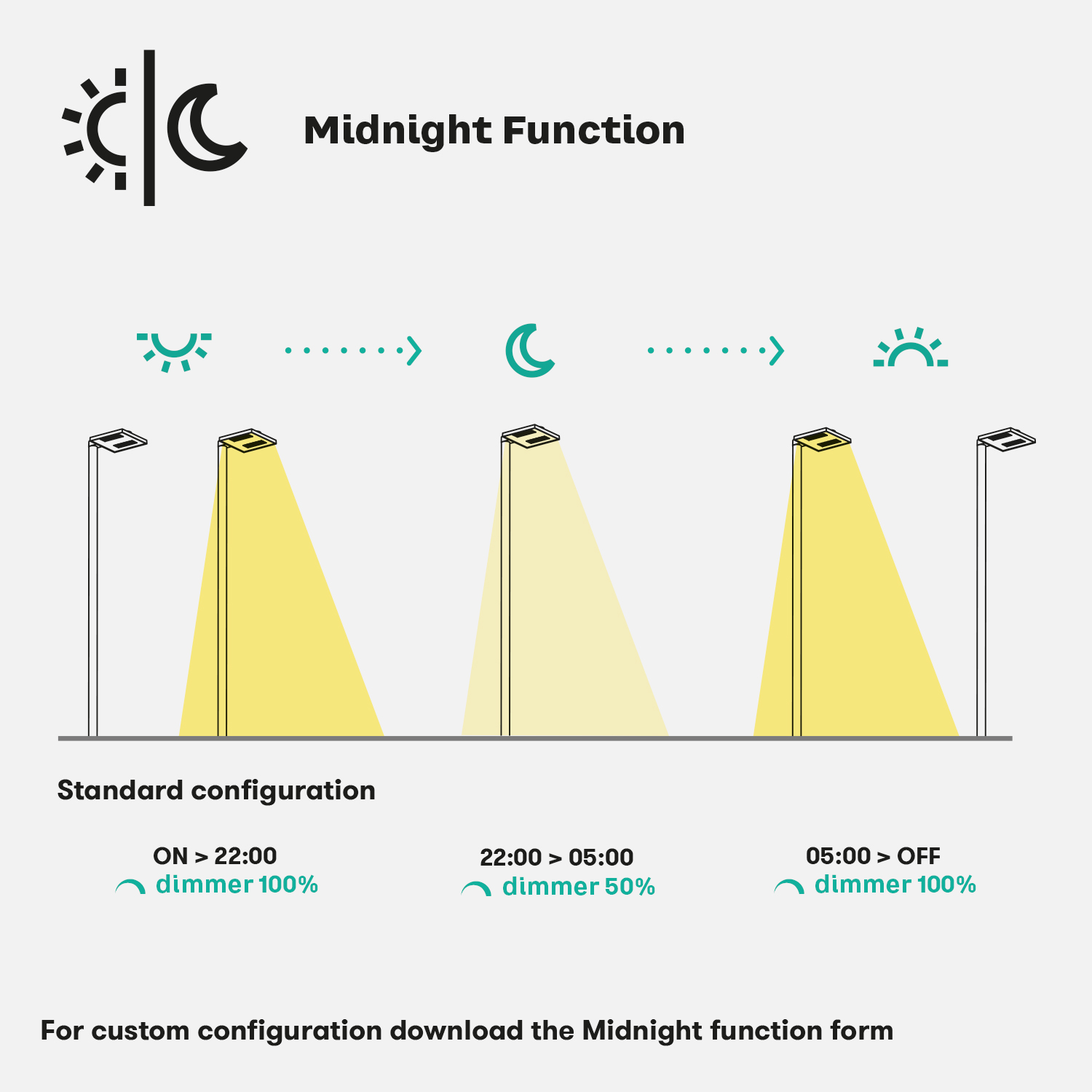

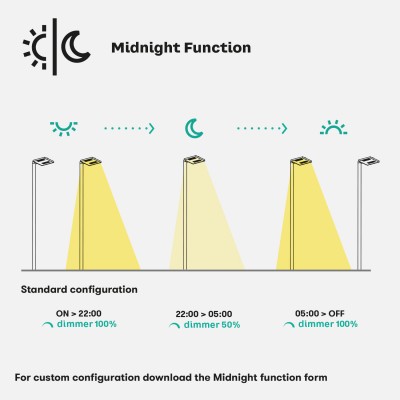

Midnight function
Midnight function
D4i
D4i
Bord de mer
Bord de mer
5 ans de garantie sur la source LED
5 ans de garantie sur la source LED
Available from
Commandable à partir de septembre 2025
Types de diffuseurs
Verre transparent
Installable on post 60
Kai 2 Midnight Function
  • IP 66
  • IK 08 5J xx7
  • CE
Câble version Midnight function: 0,7m H05RN-F. Recommandé pour l'installation sur des poteaux métalliques de Ø60. Ne convient pas aux Still poteaux.
LED
W LM REAL LM COL. CODE Download
25 4600 Max. 3656
CL.II Version LED avec alimentation intégrée 220-240 V Midnight function
Gris High Tech RAL 9006
MV16421G
Gris anthracite RAL 7021
MV16421E
Corten
MV16421K
Noir RAL 9005
MV16421B
40 6550 Max. 5215
CL.II Version LED avec alimentation intégrée 220-240 V Midnight function
Gris High Tech RAL 9006
MV16422G
Gris anthracite RAL 7021
MV16422E
Corten
MV16422K
Noir RAL 9005
MV16422B
55 9050 Max. 7197
CL.II Version LED avec alimentation intégrée 220-240 V Midnight function
Gris High Tech RAL 9006
MV16423G
Gris anthracite RAL 7021
MV16423E
Corten
MV16423K
Noir RAL 9005
MV16423B
75 12.550 Max. 9994
CL.II Version LED avec alimentation intégrée 220-240 V Midnight function
Gris High Tech RAL 9006
MV16424G
Gris anthracite RAL 7021
MV16424E
Corten
MV16424K
Noir RAL 9005
MV16424B
Complete the CODE
OPTIC
A1
70° X 150°
A2
65° X 130°
A3
50° X 150°
A4
60° X 150°
A5
30° X 80°
LED COLOUR
5
5700K
N
4000K
3
3000K

Simulations d'éclairage

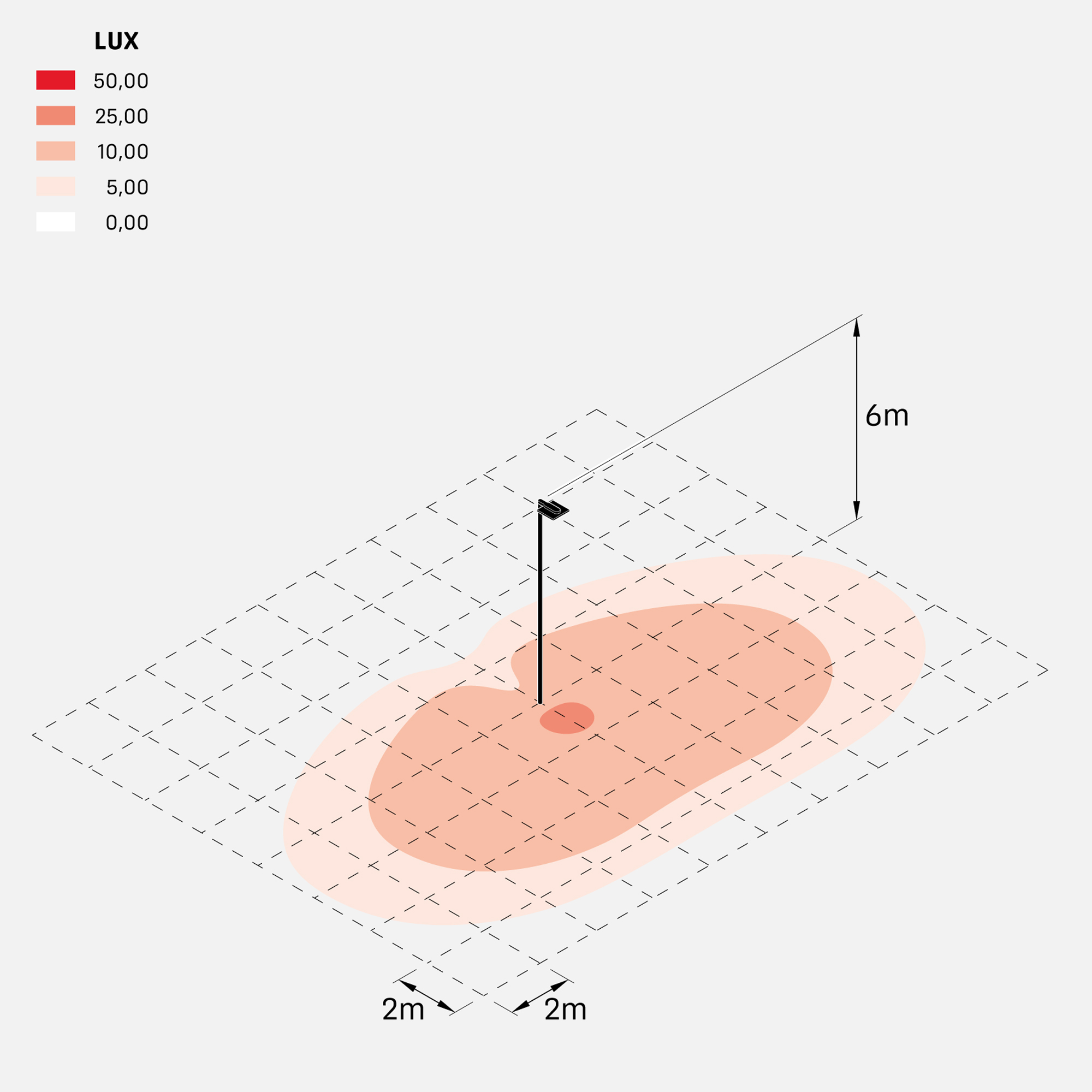

kai2-midnight_25W_A1
kai2-midnight_25W_A1

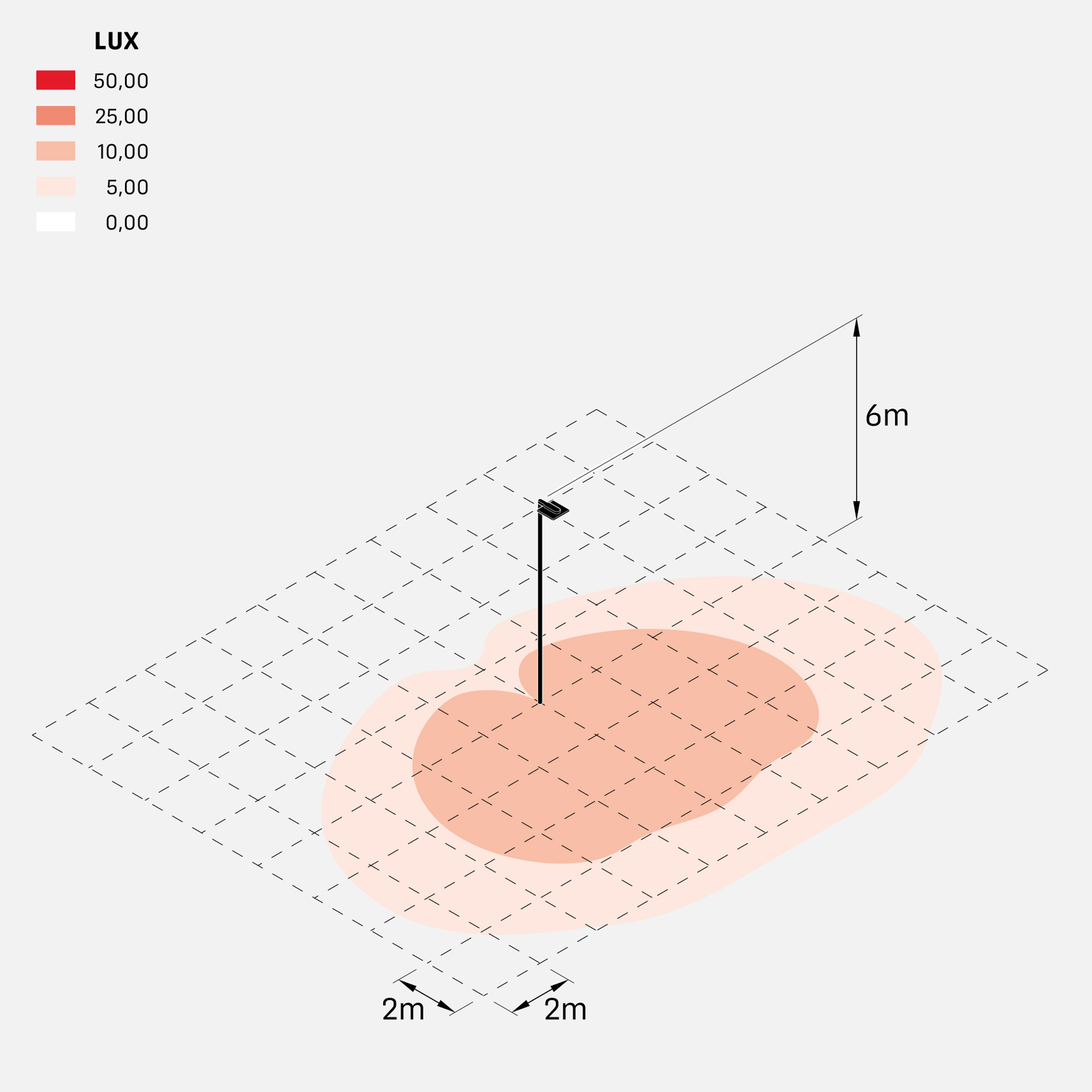

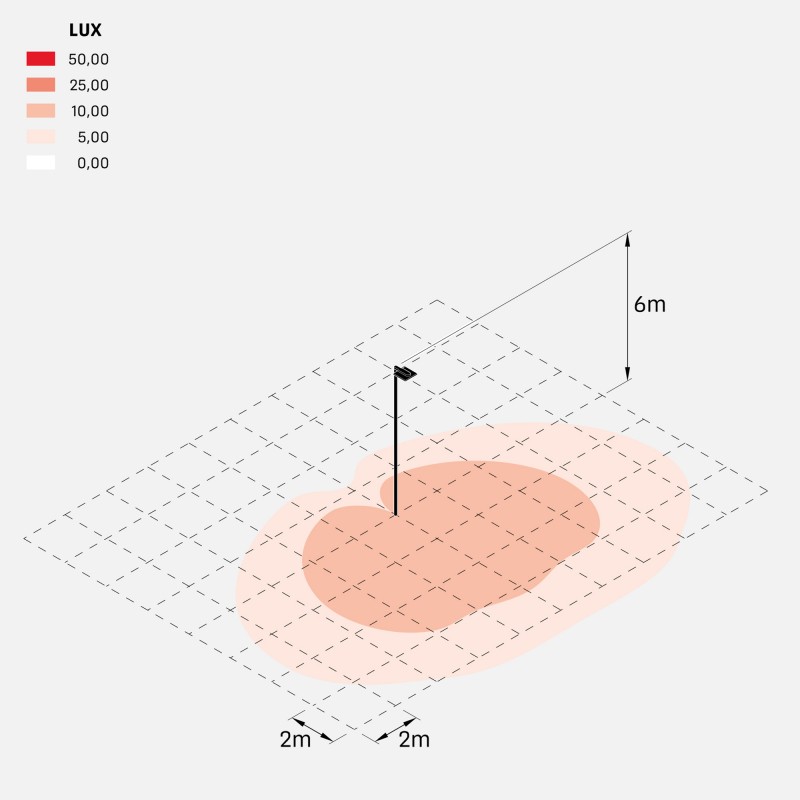

kai2-midnight_25W_A2
kai2-midnight_25W_A2

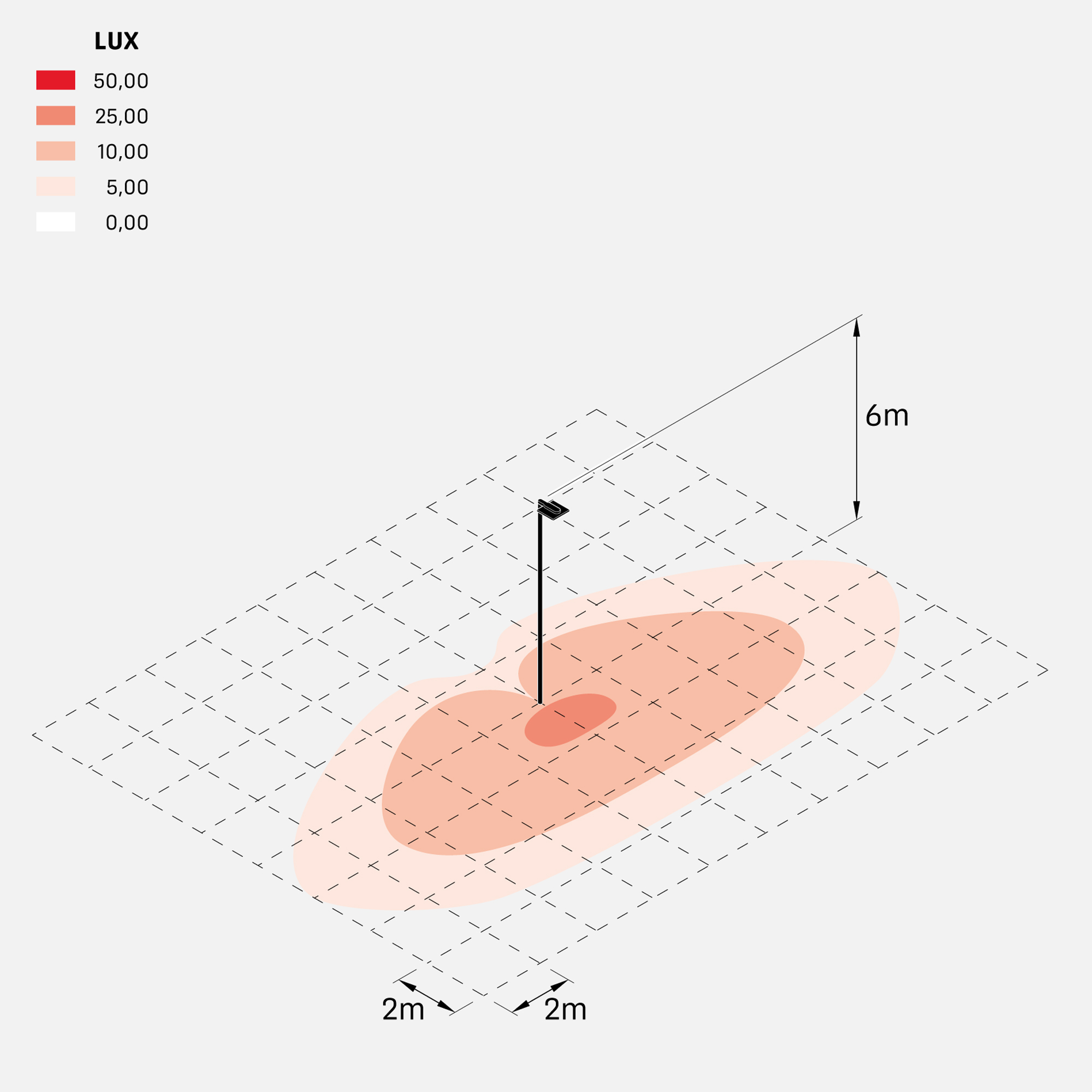

kai2-midnight_25W_A3
kai2-midnight_25W_A3

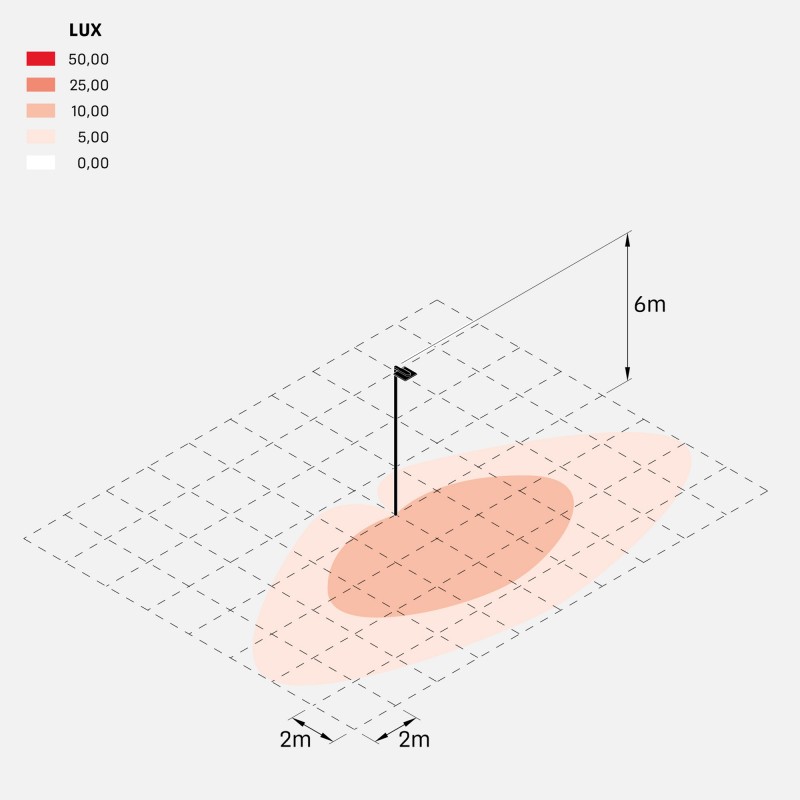

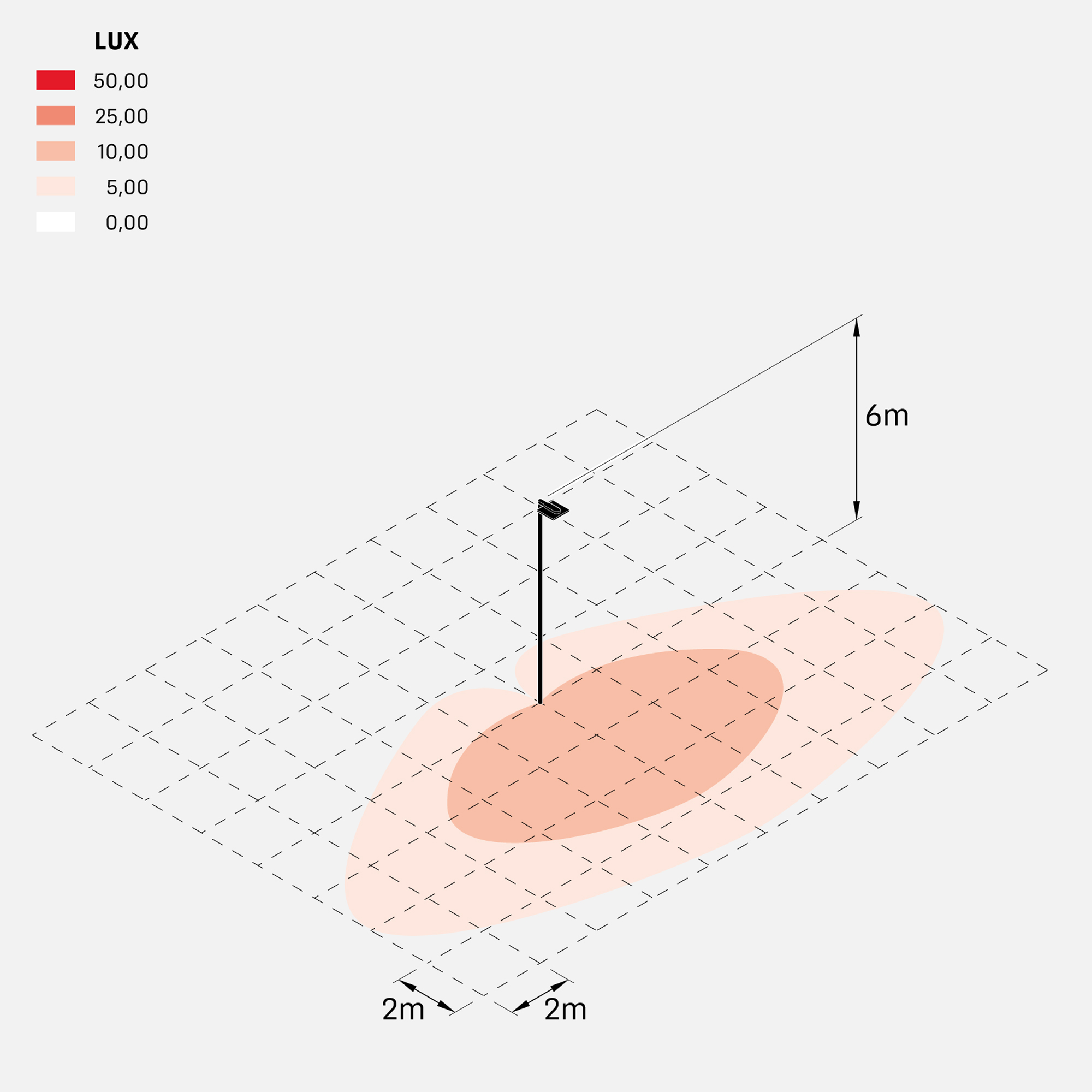

kai2-midnight_25W_A4
kai2-midnight_25W_A4

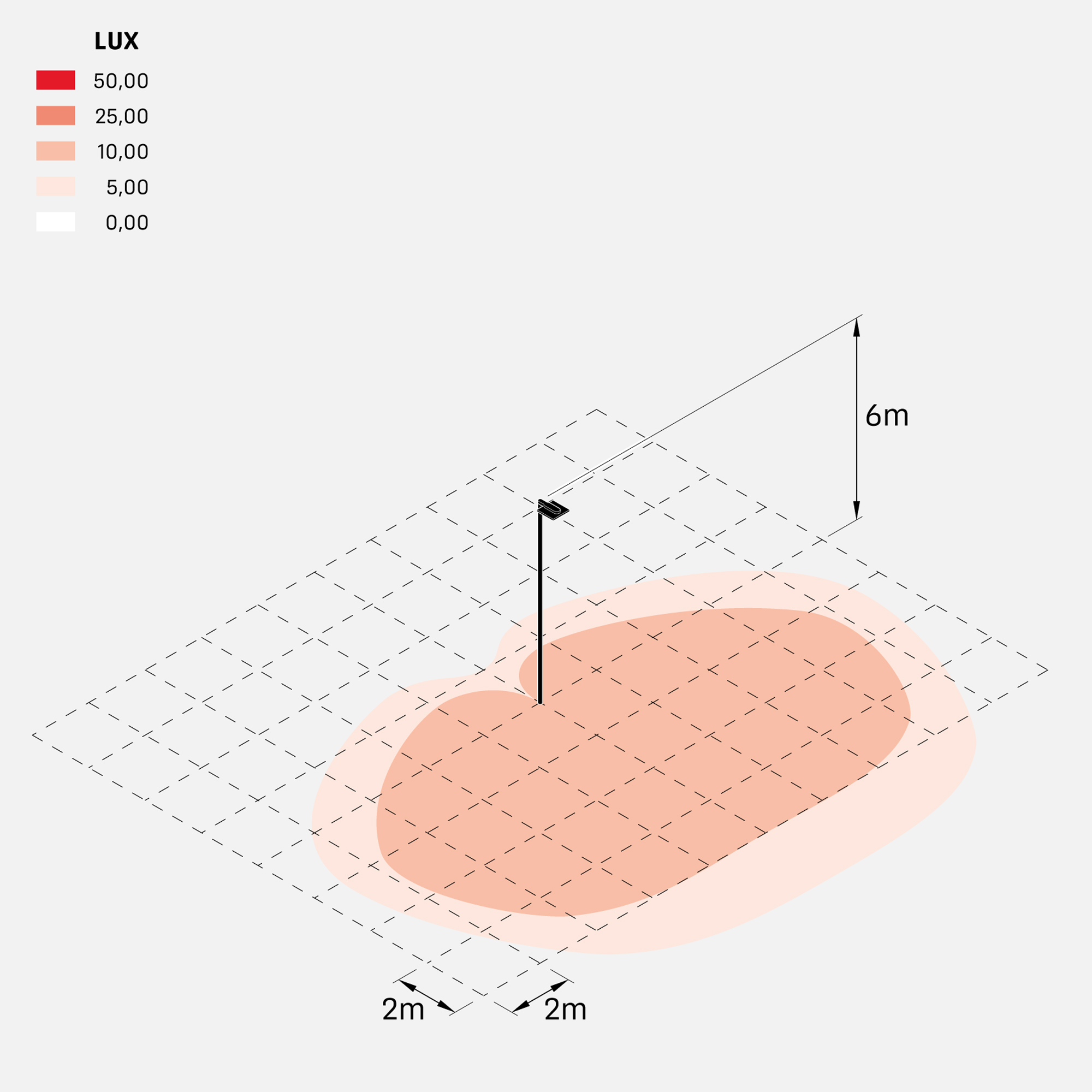

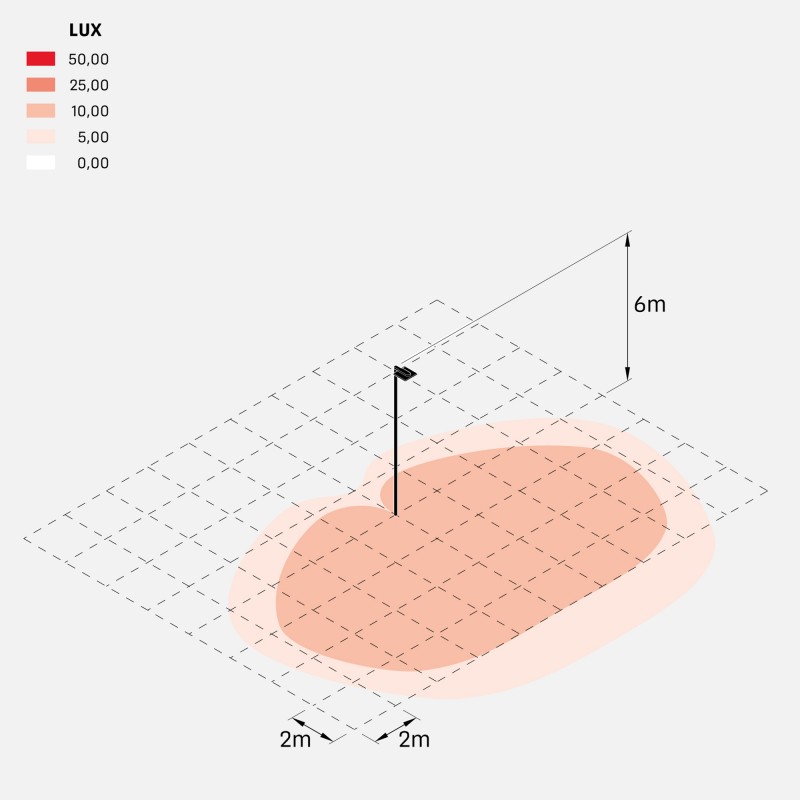

kai2-midnight_25W_A5
kai2-midnight_25W_A5

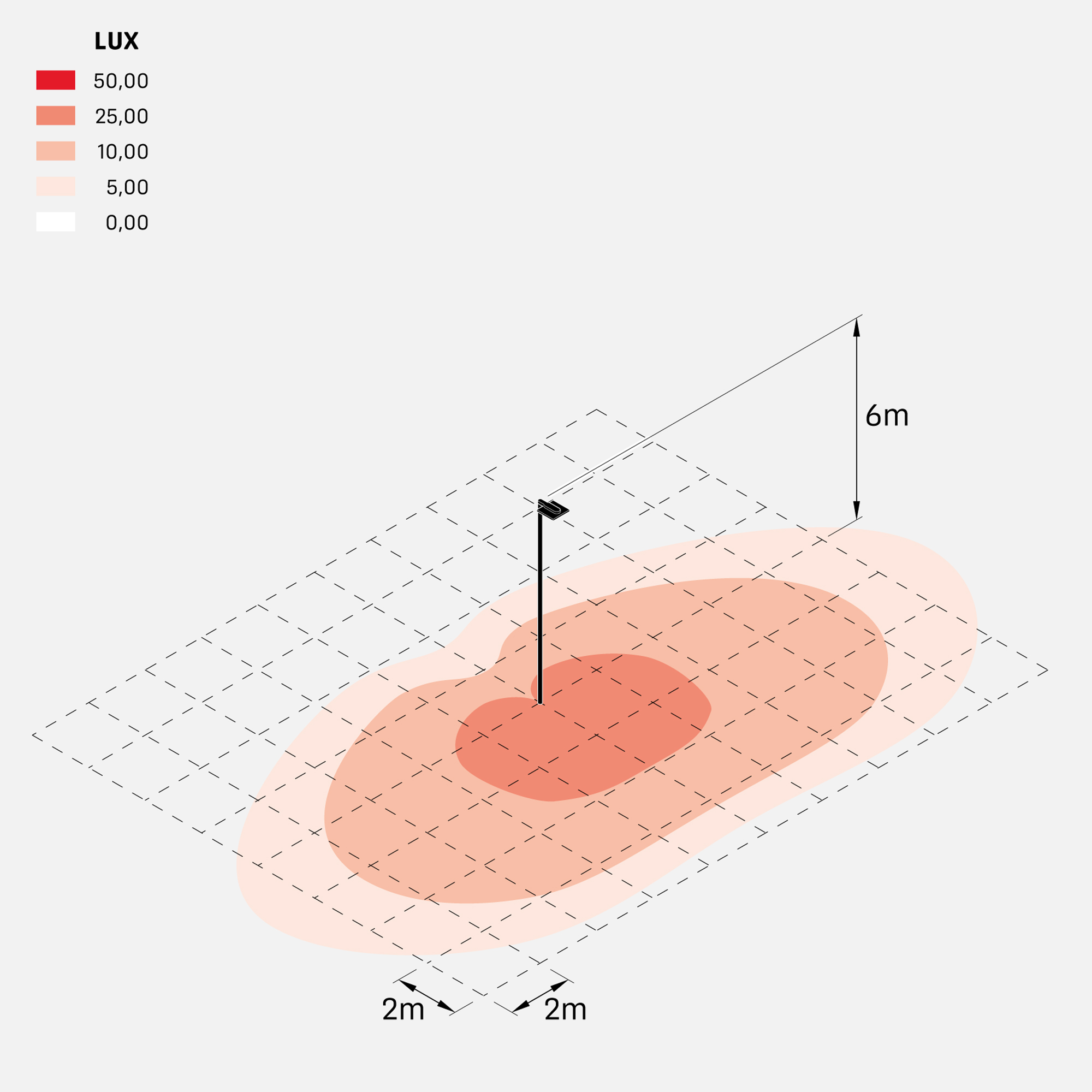

kai2-midnight_40W_A1
kai2-midnight_40W_A1

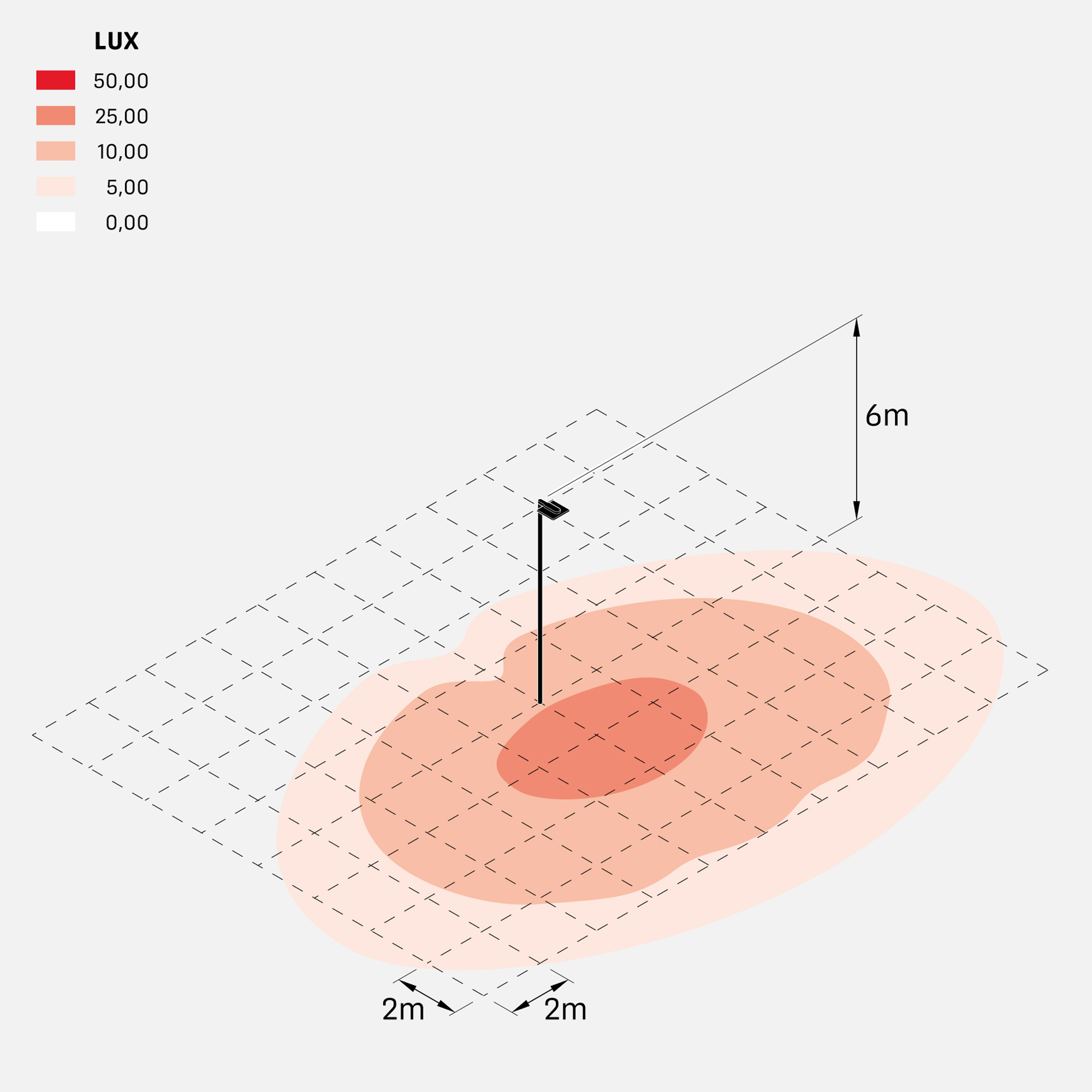

kai2-midnight_40W_A2
kai2-midnight_40W_A2

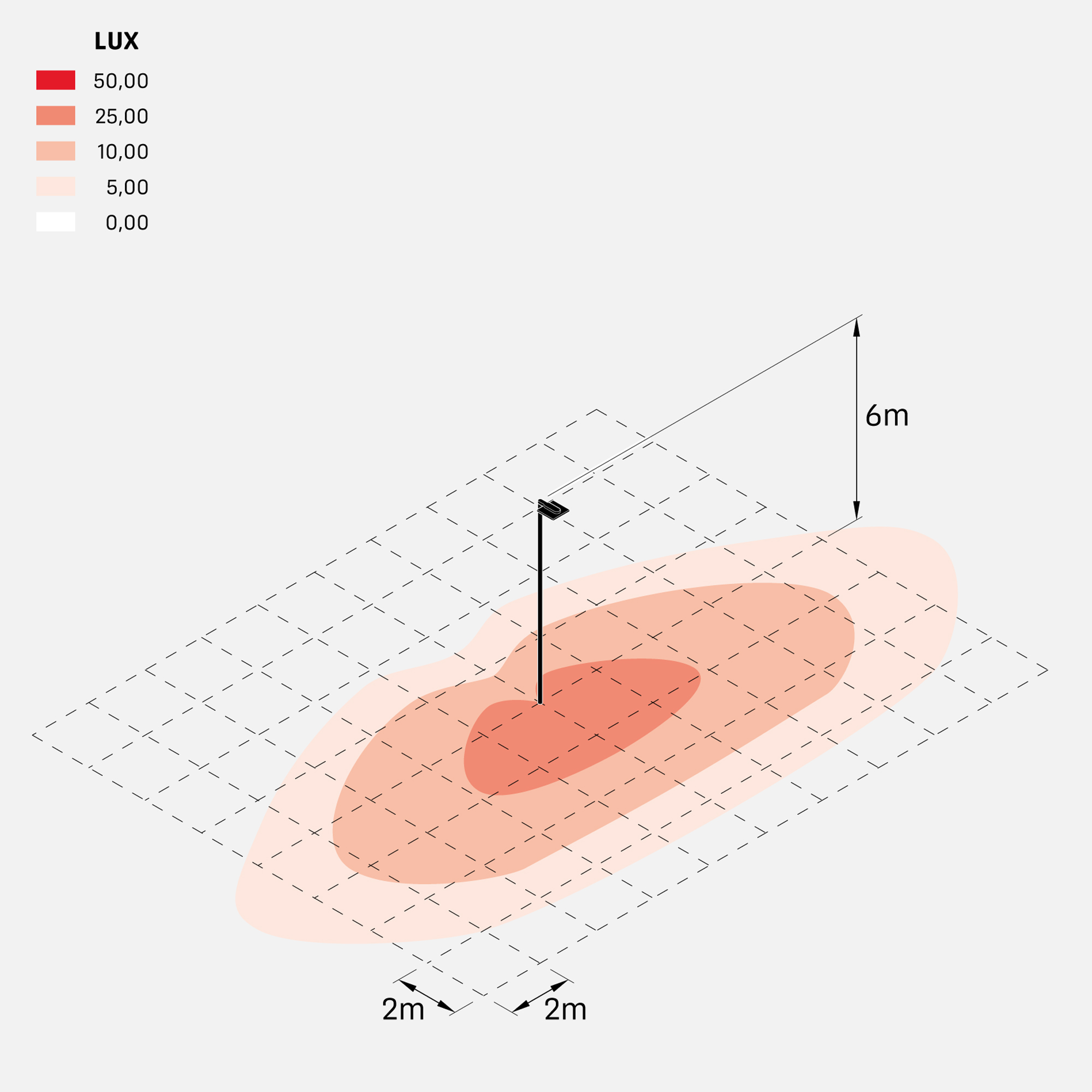

kai2-midnight_40W_A3
kai2-midnight_40W_A3

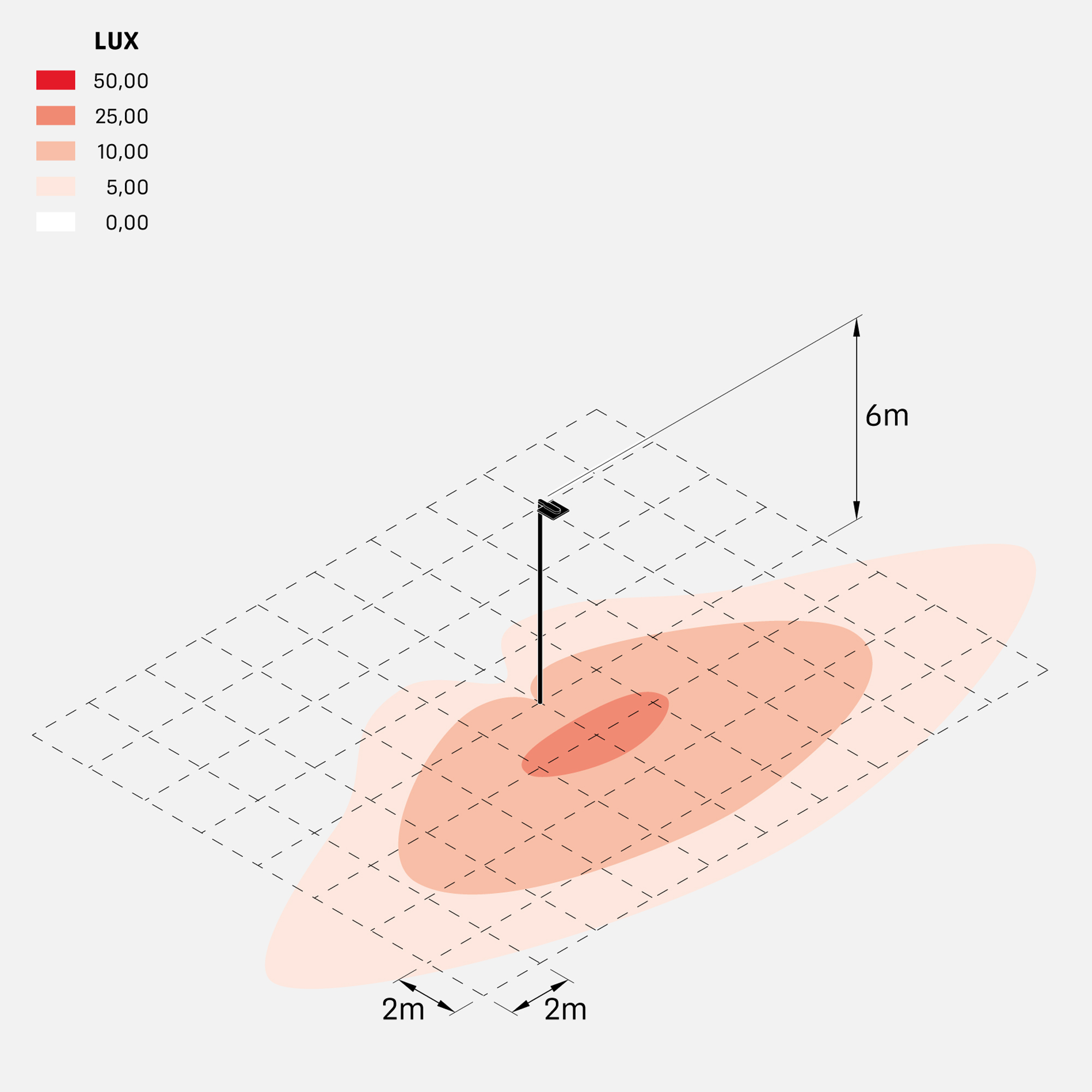

kai2-midnight_40W_A4
kai2-midnight_40W_A4

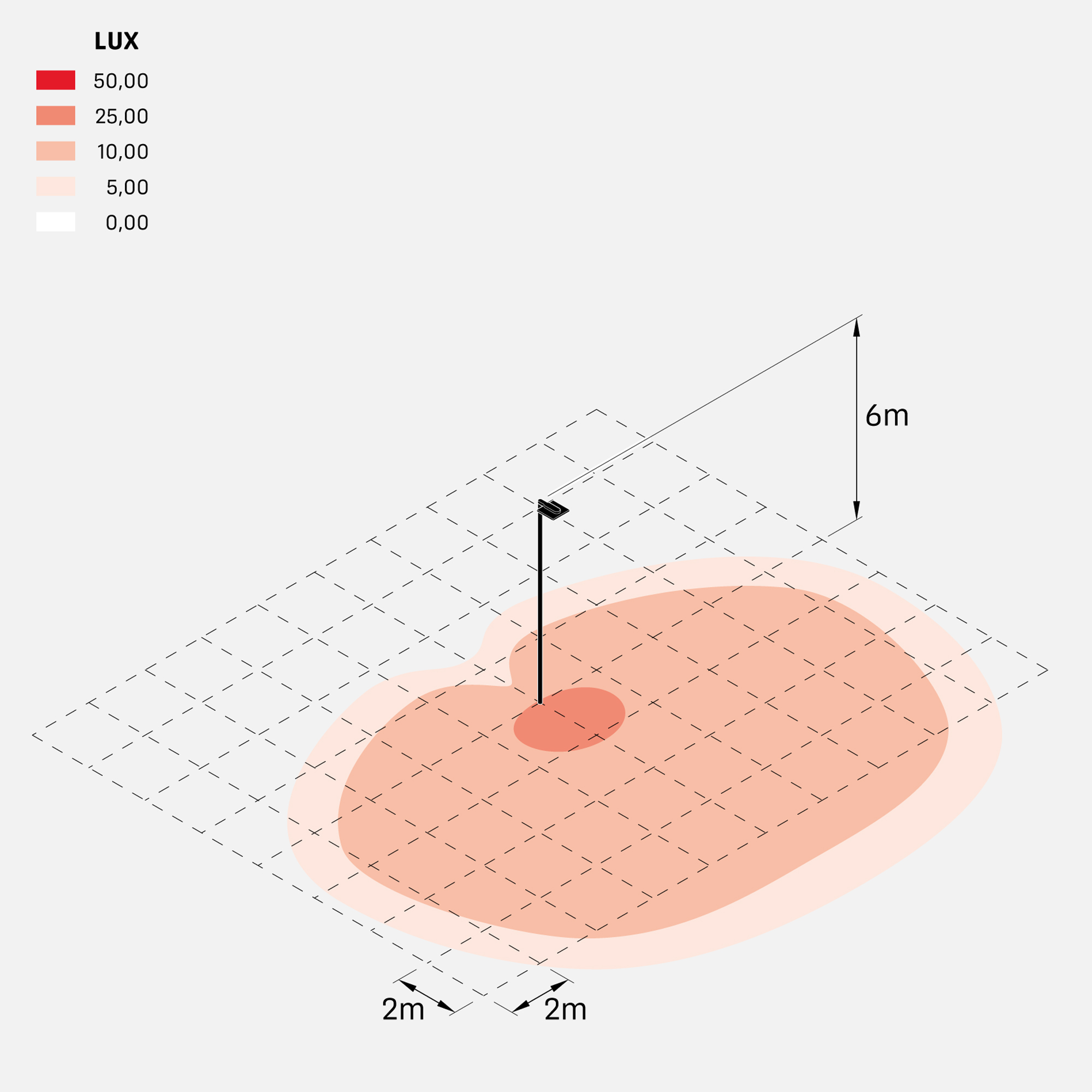

kai2-midnight_40W_A5
kai2-midnight_40W_A5

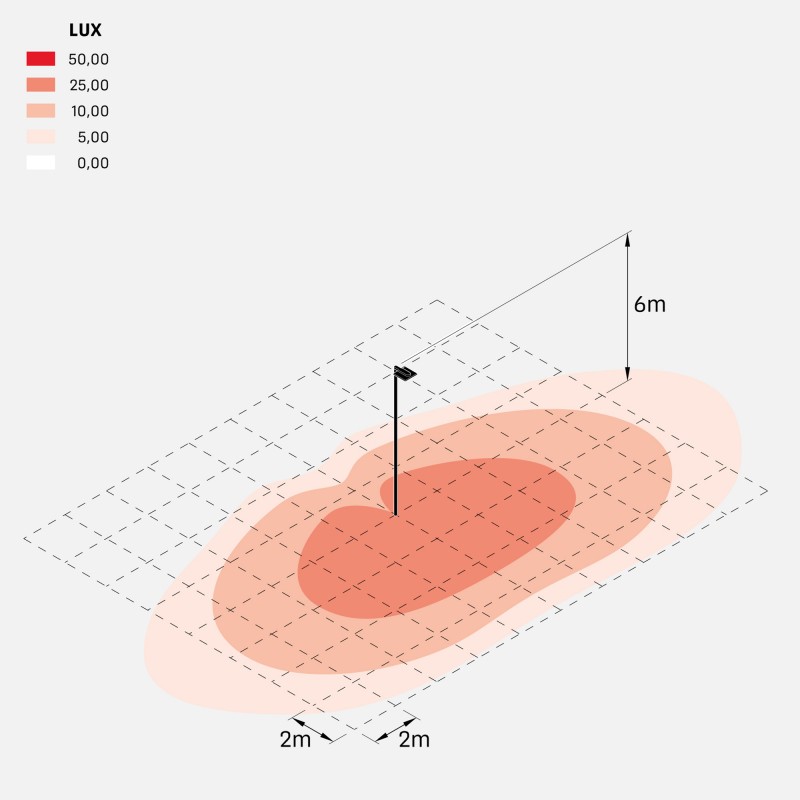

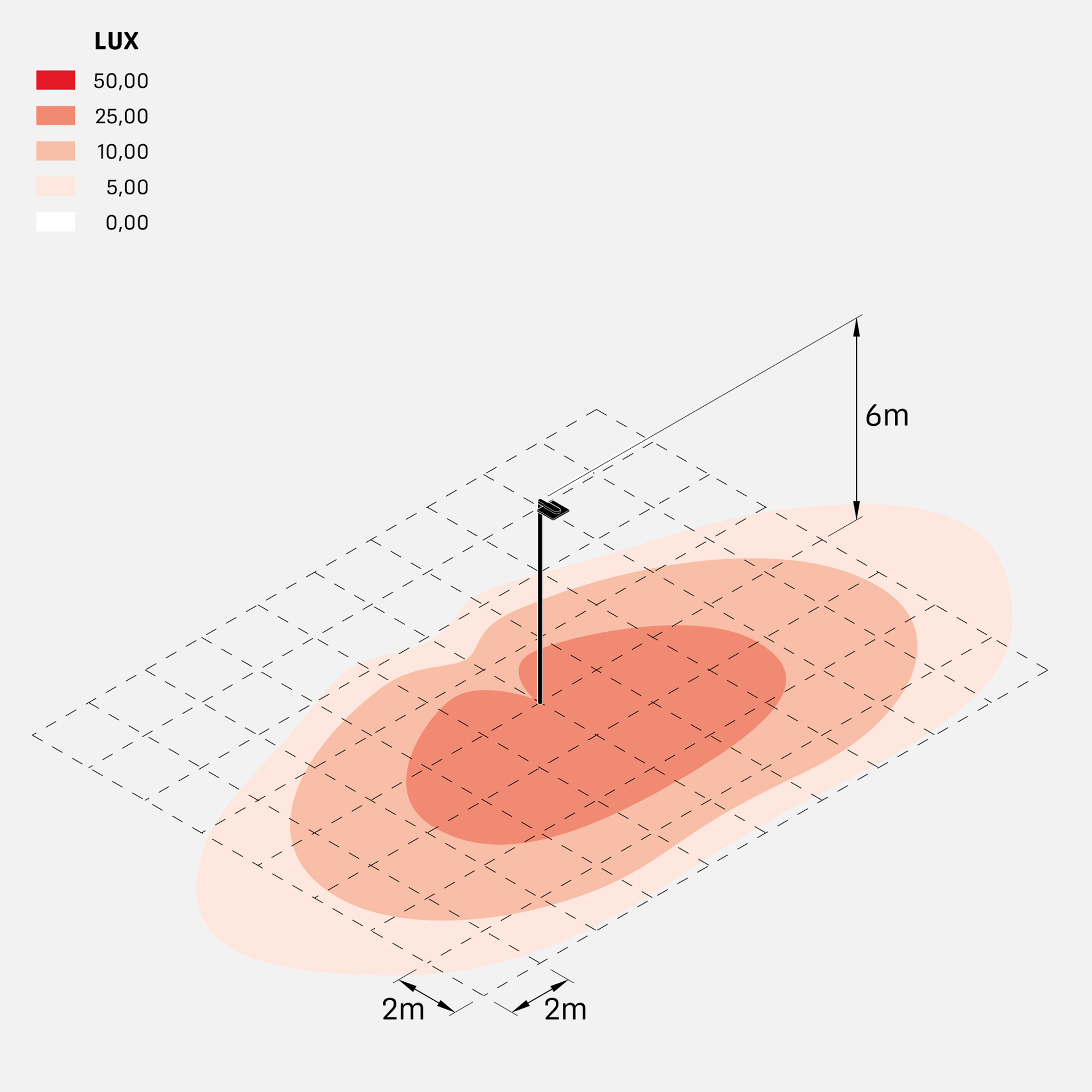

kai2-midnight_55W_A1
kai2-midnight_55W_A1

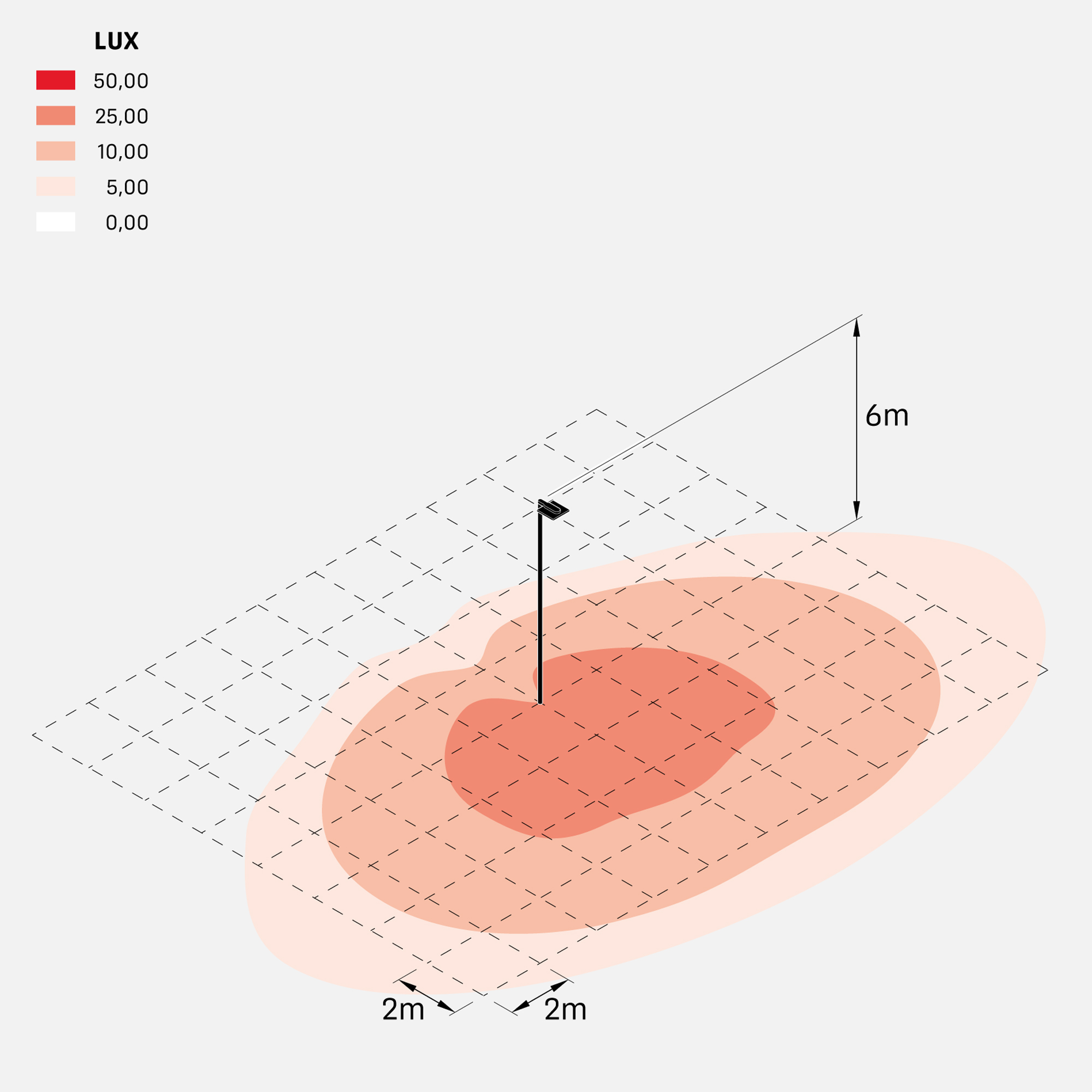

kai2-midnight_55W_A2
kai2-midnight_55W_A2

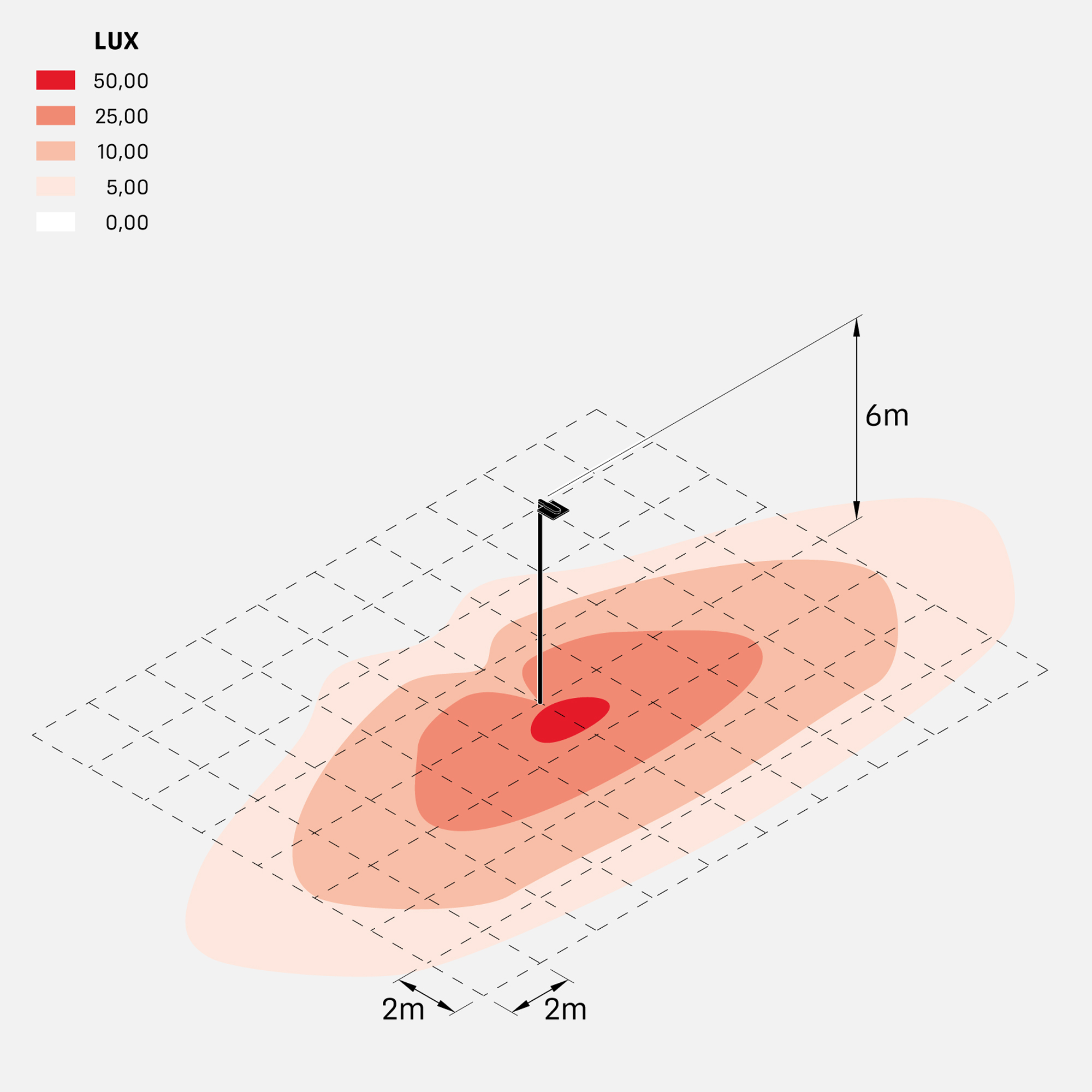

kai2-midnight_55W_A3
kai2-midnight_55W_A3

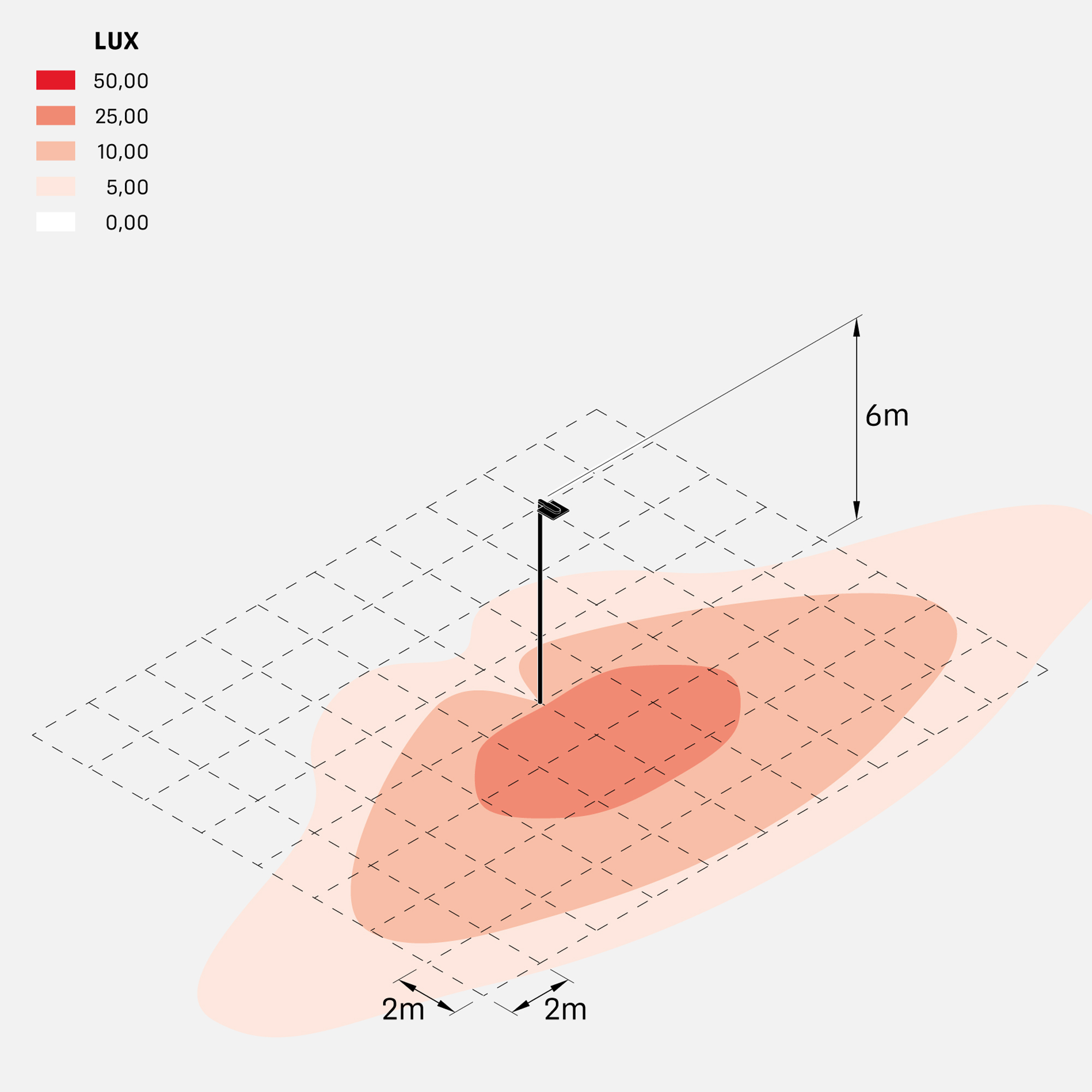

kai2-midnight_55W_A4
kai2-midnight_55W_A4

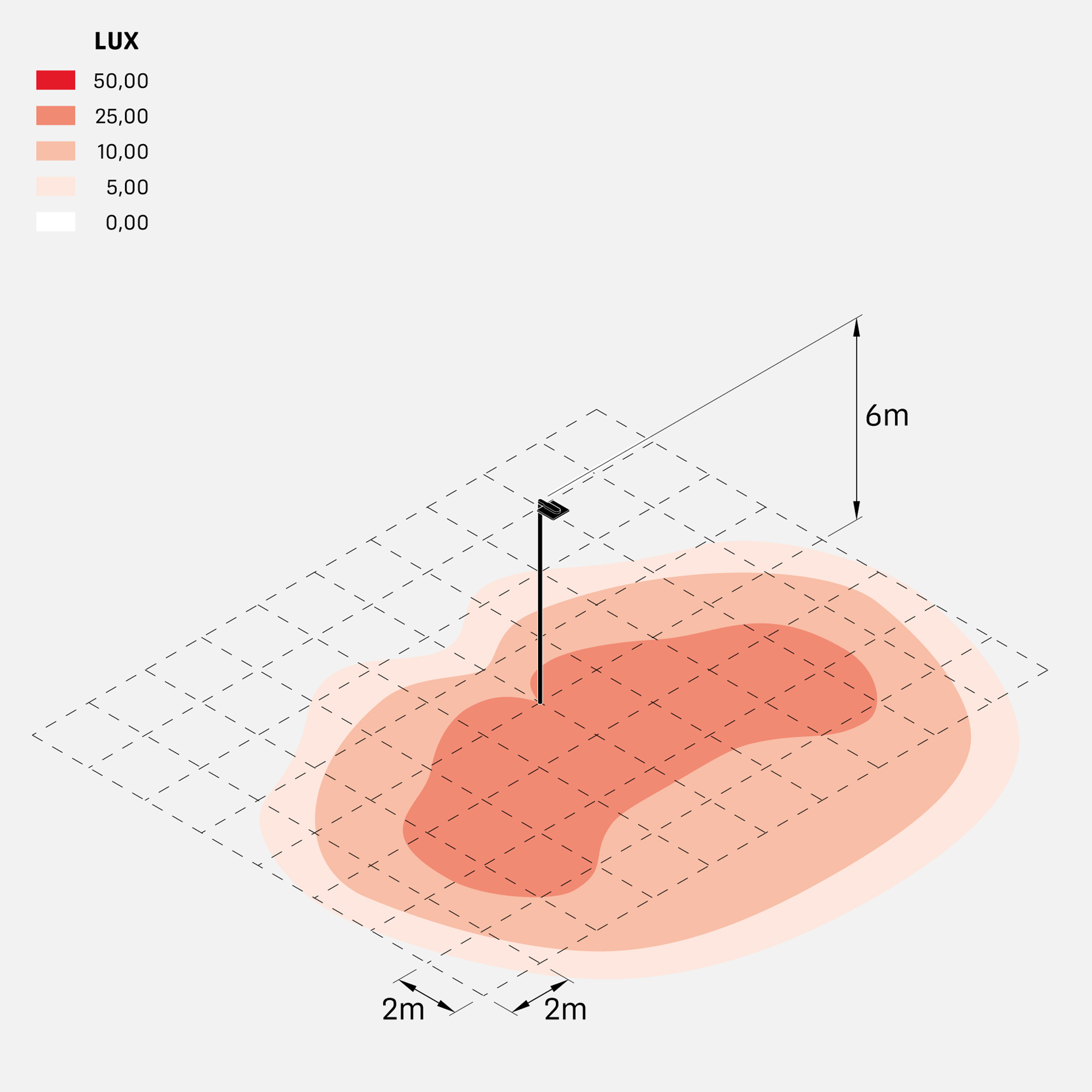

kai2-midnight_55W_A5
kai2-midnight_55W_A5

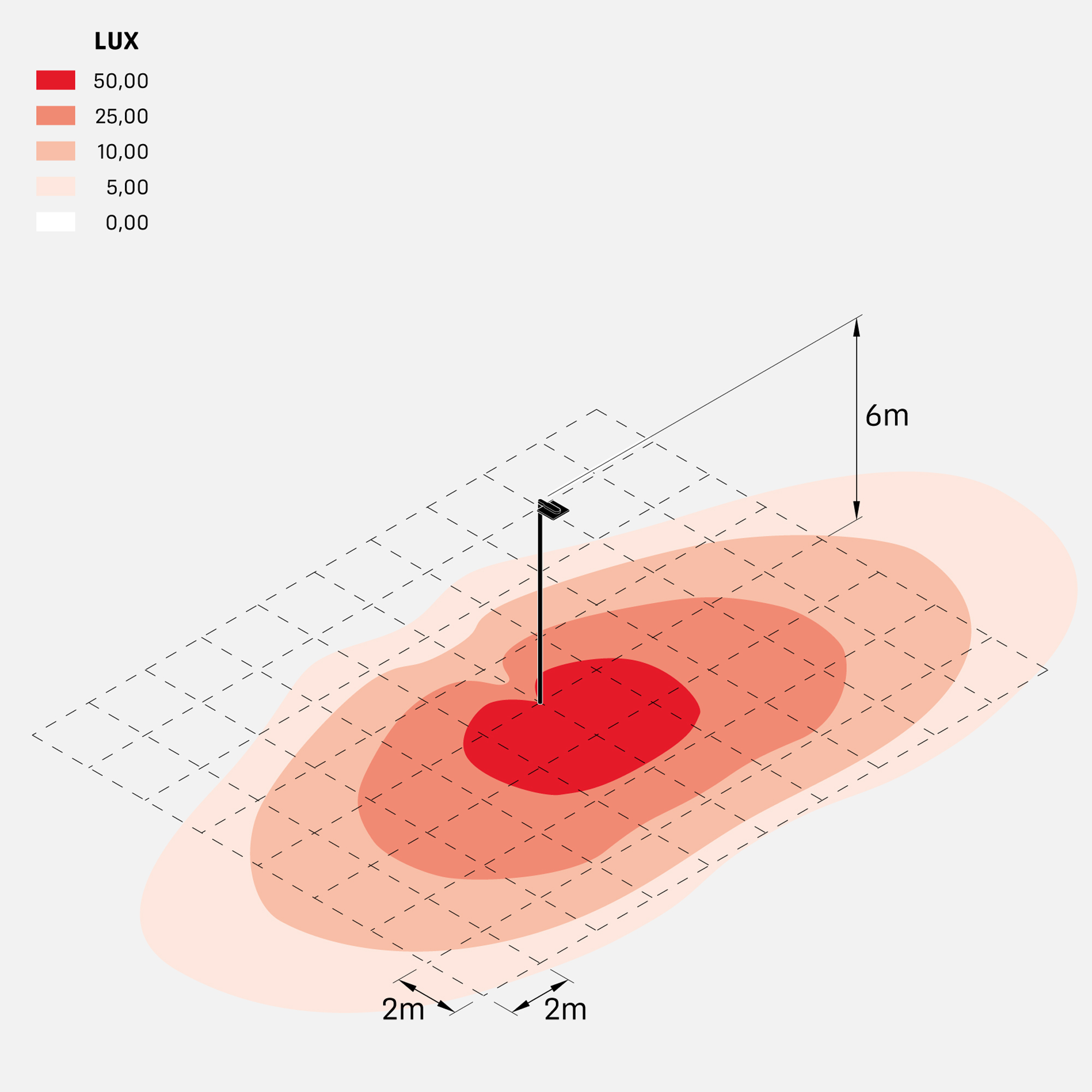

kai2-midnight_75W_A1
kai2-midnight_75W_A1

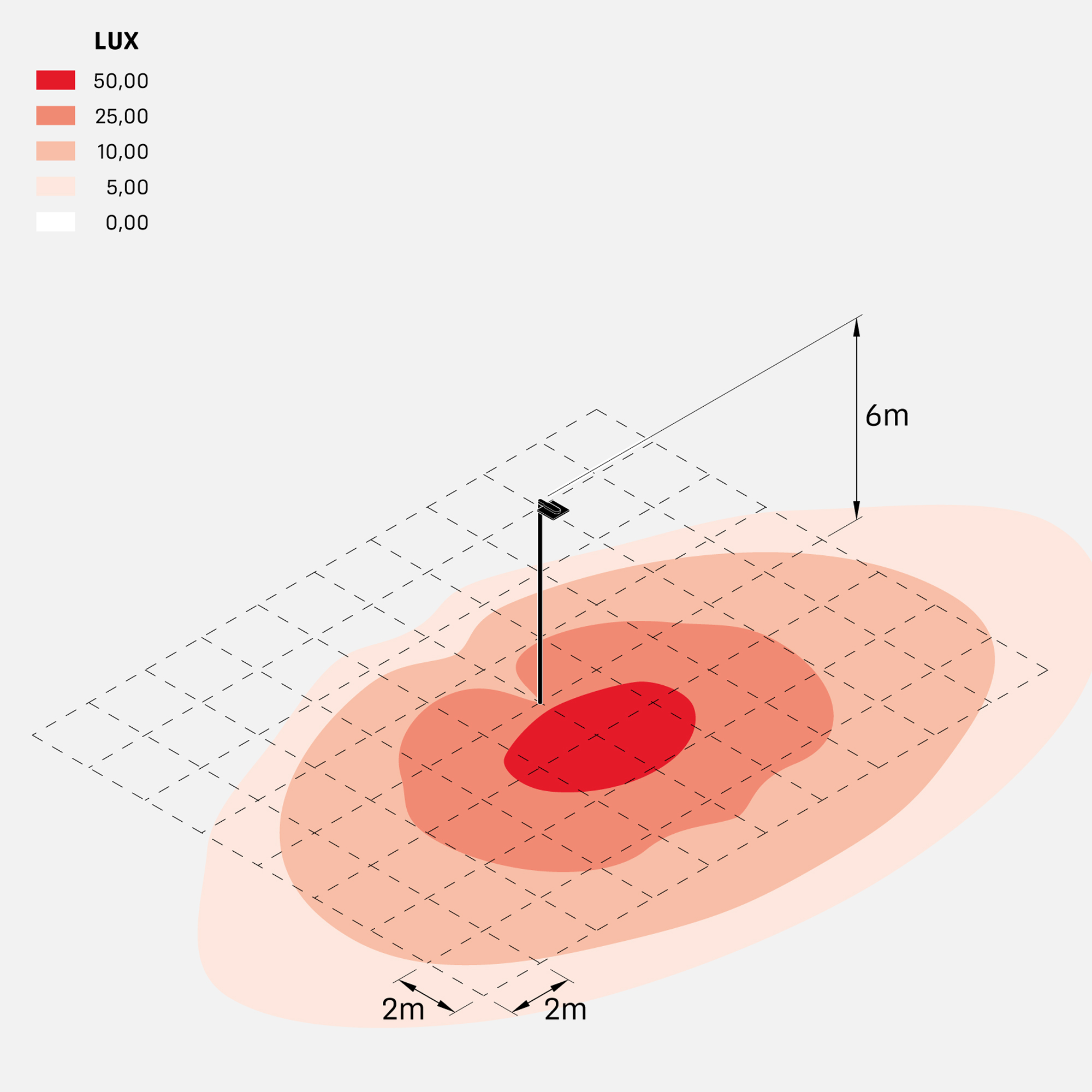

kai2-midnight_75W_A2
kai2-midnight_75W_A2

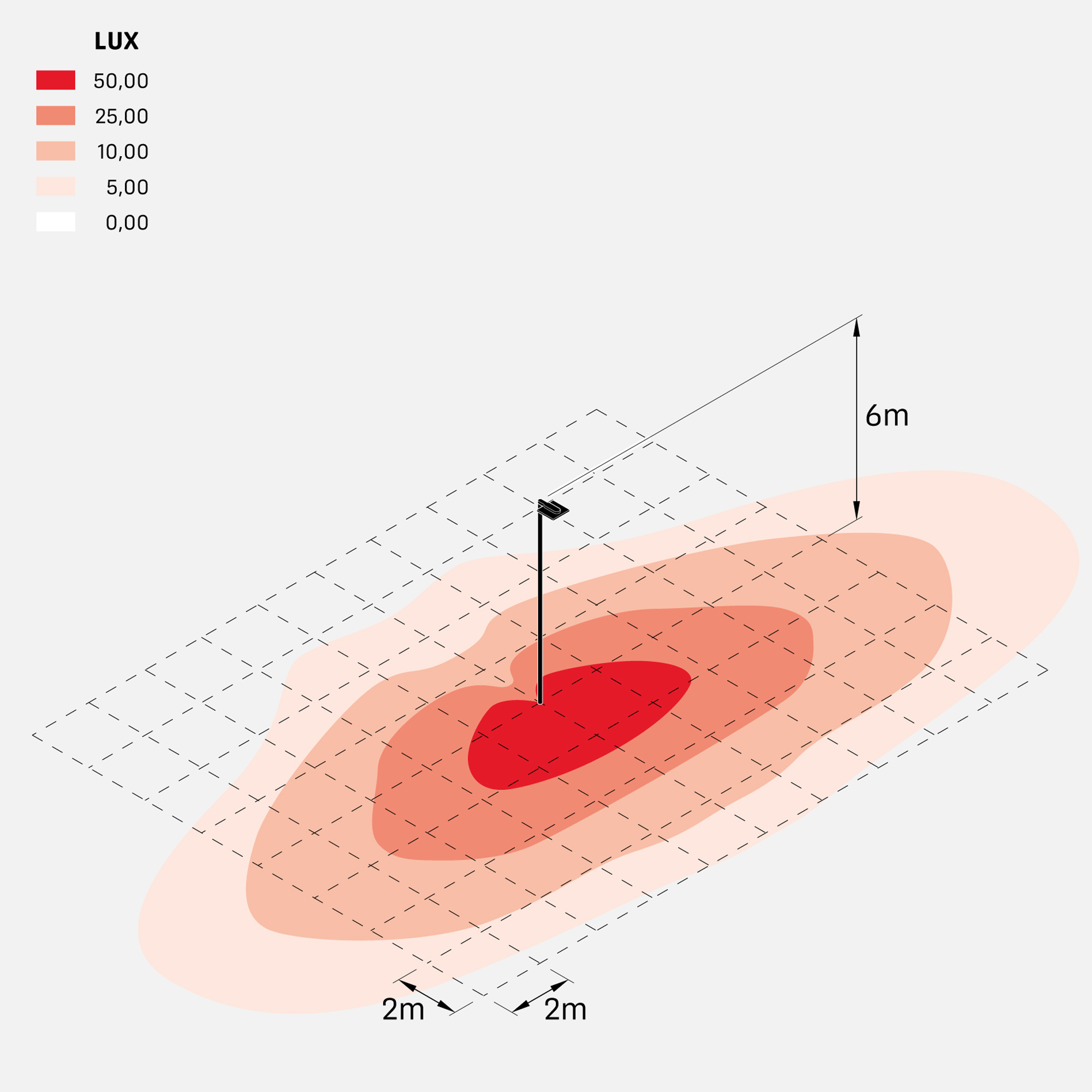

kai2-midnight_75W_A3
kai2-midnight_75W_A3

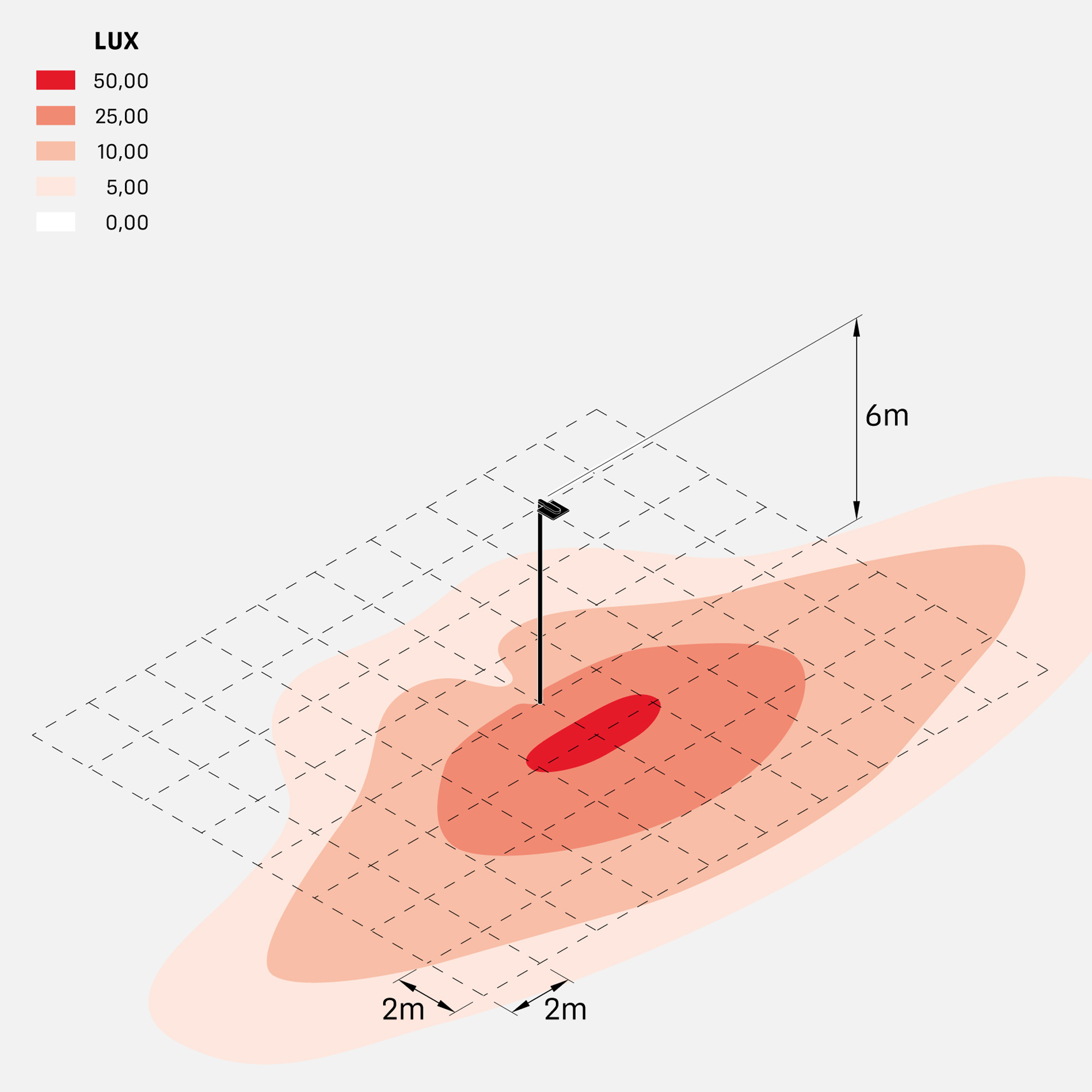

kai2-midnight_75W_A4
kai2-midnight_75W_A4

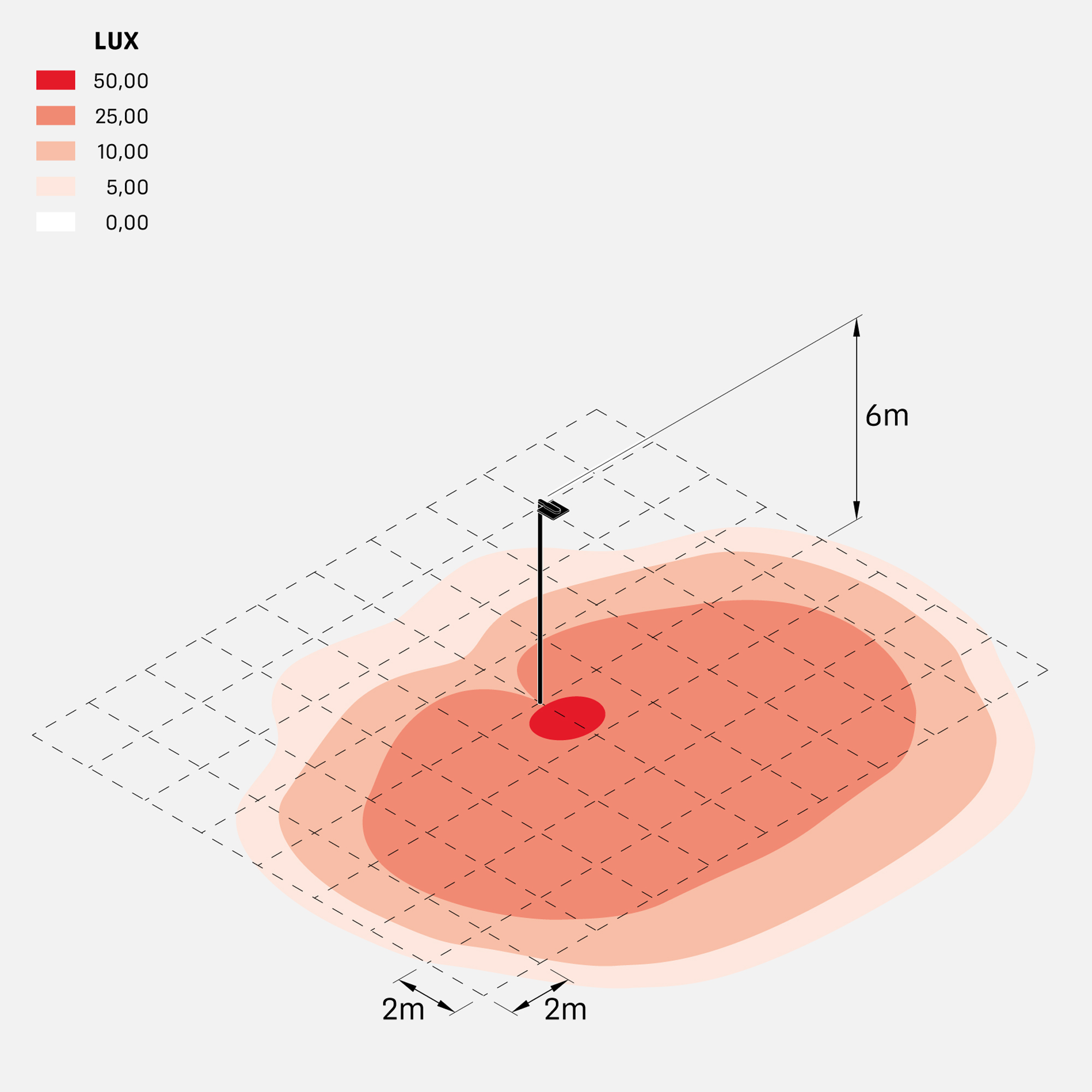

kai2-midnight_75W_A5
kai2-midnight_75W_A5
Comparaison des simulations d'éclairage
Ajouter une autre simulation
